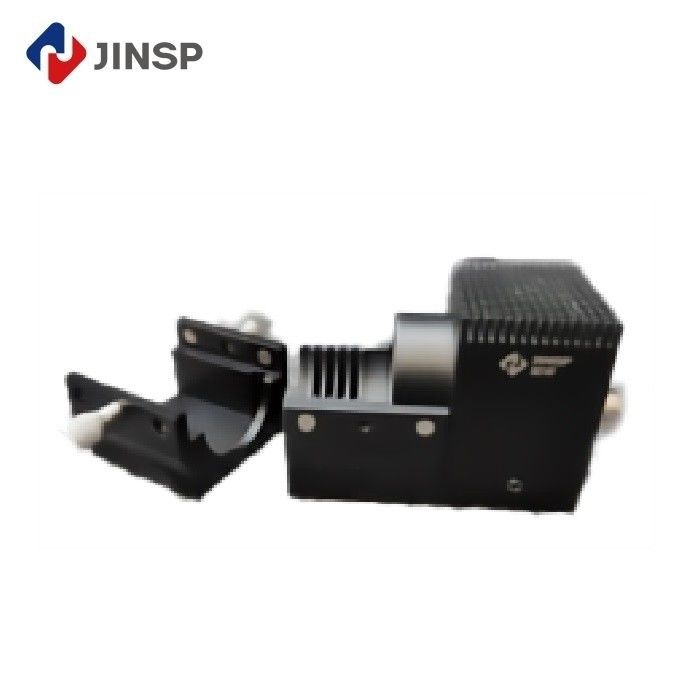

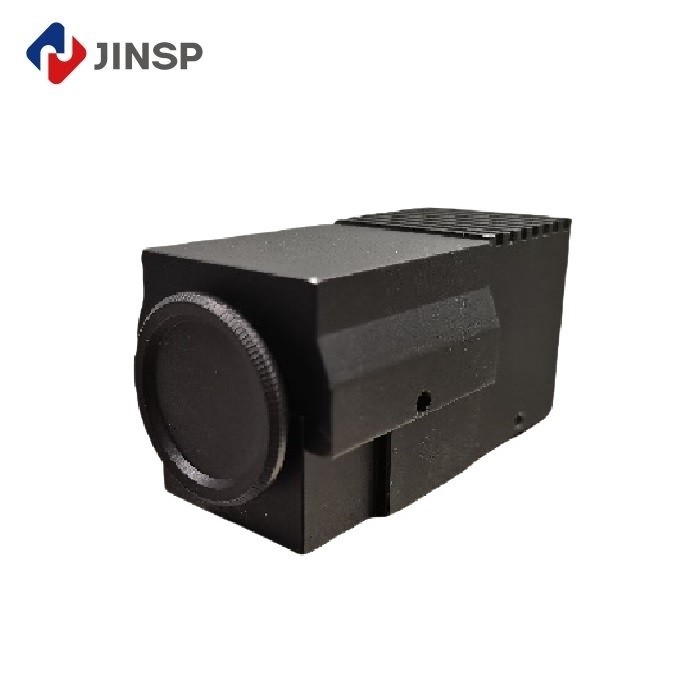

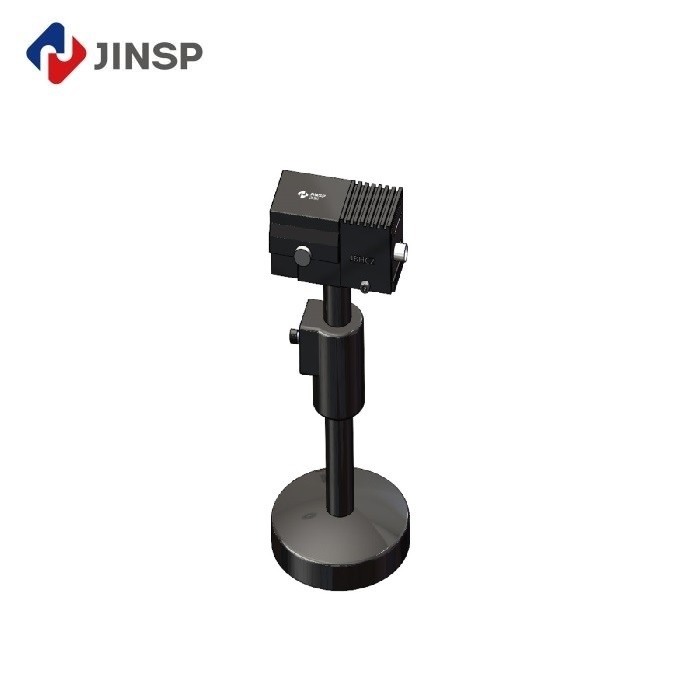

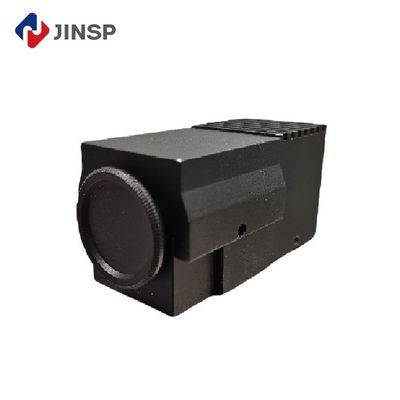

5 Pixls Laser Beam Profiling Camera Real Time With Accurate Measuring

Contact Now

5 Pixls Laser Beam Profiling Camera Real Time With Accurate Measuring

Minimum Order Quantity :	1	Price :	USD2750 - USD2900
Packaging Details :	International Shipping Package	Delivery Time :	30 Working Days
Payment Terms :	T/T	Supply Ability :	100PCS Per 30 Working Days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001 IP30 IP40	Model Number:	BA1024Gb
Document:	Brochure JINSP BEAM PROFILE...EN.pdf

Detail Information
Wavelength Range:	280nm-1100nm	Dimension:	78 45 38.5mm (without Base)
Power Supply:	USB Powered Or 12V DC Externally Powered	Effective Sensing Area:	13mm*8.7mm
Sensor:	20MP, 1" CMOS	SNR:	41.5 DB
Cell Size:	2.4μm*2.4μm	Minimum Detection Area:	12 μm (5 Pixls)
Maximum Frame Rate:	5.9 Fps @5472*3648	Data Interface:	GigE
Highlight:	5 Pixls Laser Beam Profiling Camera , 5 Pixls optical beam profiler , Real Time Laser Beam Profiling Camera

Product Description

Product Specifications

Attribute	Value
Wavelength Range	280nm-1100nm
Dimension	78 45 38.5mm (without base)
Power supply	USB powered or 12V DC externally powered
Effective sensing area	13mm*8.7mm
Sensor	20MP, 1" CMOS
SNR	41.5 dB
Cell size	2.4μm*2.4μm
Minimum detection area	12 μm (5 pixls)
Maximum frame rate	5.9 fps @5472*3648
Data interface	GigE

280nm ~1100nm CMOS USB Laser Beam Profiler

JINSP Beam Profilers are precision-engineered for comprehensive laser and light beam analysis, offering essential capabilities for industrial and scientific applications.

Key Functions

Measuring: Precise dimensions and characteristics of light spots for optimized resource utilization
Marking: Accurate light spot positioning for quality control in material processing
Comparing: Analysis of light spot variations over time or conditions
Real-time monitoring: Continuous beam observation for immediate performance feedback

Product Selection & Technical Parameters

Product Code	BA1023	BA1024Ga	BA1024Gb	BA1024Ua	BA1024Ub
Probe wavelength range	280nm ~ 1100nm
Effective sensing area	11mm*7mm	13mm*8.7mm	7mm*5.5mm	4.9mm*3.7mm
Sensor	2.3MP, 1/1.2" CMOS	20MP, 1" CMOS	2MP, 1/1.7" CMOS	0.4MP, 1/2.9" CMOS
SNR	40 dB	44.9 dB	41.5 dB	43.7 dB	42.9 dB
Gain control	0~20dB	0~24dB
Cell size	5.86μm*5.86μm	2.4μm*2.4μm	4.5μm*4.5μm	6.9μm*6.9μm
Minimum detection area	30μm (5 pixls)	12 μm (5 pixls)	22.5 μm (5 pixls)
Maximum frame rate	41 fps@1920*1200	5.9 fps @5472*3648	90 fps @1624*1240	526.5 fps @ 720*540 Mono 8
Ingress protection	IP30	IP40
Data interface	USB	GigE	USB
File storage	.jpg,.mat,.csv,.xml

Software Features

Compatible with Windows 10 (64bit) and Linux (Ubuntu X86)
Camera exposure, gain, and resolution control
Real-time 2D & 3D spot visualization with Gaussian & Super-Gaussian curve display
Measurement of spot parameters including axes, ellipticity, and rotation angle
Advanced functions: dual spot comparison, background cropping, light intensity camera
Data recording and export capabilities

2D & 3D Spot Reconstruction

Gaussian & Super-Gaussian fitting

Background Shear

Dual-beam real-time comparison (Location, light intensity distribution)

Light intensity camera (optional)

Industrial & Scientific Applications

Laser beam quality measurement for optical research and industrial processes
Scientific research applications including laser system and detection studies
Real-time processing monitoring for laser equipment manufacturers
Light intensity distribution monitoring with imaging lenses
Specialized applications in medical fields (e.g., ophthalmic excimer laser procedures)

Frequently Asked Questions

Q1: This is the first time I use it, is it easy to operate?

A1: We provide comprehensive English manuals and instructional videos, along with professional technical support from our engineers.

Q2: Can you offer an operation training?

A2: We offer both on-site training at our facility and can arrange for our engineers to provide local support including installation, training, and maintenance.

Q3: How to receive the best price in the shortest time?

A3: Please provide detailed specifications (wavelength, detector type, pixels, focal length, etc.) with your inquiry for an accurate quotation.

Q4: If the spectrometer has a problem in my place, what could I do?

A4: All products include a one-year warranty with free repairs. Our technicians will diagnose issues remotely based on your feedback.

Q5: What about quality assurance?

A5: Our dedicated quality team performs thorough inspections before shipment, with documentation available upon request.
