High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication
High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication
High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication
Contact Now

High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication

Minimum Order Quantity : 1 Price : USD60000 - USD85800
Packaging Details : International Shipping Package Delivery Time : 60-80working days
Payment Terms : TT Supply Ability : 100 PCS/70-90 days
Place of Origin: CHINA Brand Name: JINSP
Certification: CE Model Number: RS2000

Detail Information
Laser Wavelength: 785nm Wavelength Accuracy: 0.2nm
Wavelength Stability: 0.01nm Connectivity Interface: USB 2.0
Output Data Format: Spc Standard Spectrum, Prn, Txt And Other Formats Are Optional Communication Protocols: Modbus
Power Supply: 100 ~ 240 VAC，50 ~ 60 Hz Operating Temperature: 0 ~ 40 ℃
Power Consumption: 50 W Detection Accuracy: 0.01%
Highlight:

High Sensitivity Raman Spectroscopy Machine

,

Raman Spectroscopy Machine 785nm

,

785nm raman spectroscopy detector

Product Description

High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication
Key Specifications
Laser wavelength 785nm
Wavelength accuracy 0.2nm
Wavelength stability 0.01nm
Connectivity interface USB 2.0
Output Data format spc standard spectrum, prn, txt and other formats
Communication protocols Modbus
Power supply 100 ~ 240 VAC，50 ~ 60 Hz
Operating temperature 0 ~ 40 ℃
Power consumption 50 W
Detection Accuracy 0.01%
Product Overview
The JINSP RS2000 is a cutting-edge Raman spectroscopy instrument designed for real-time monitoring in chemical, pharmaceutical, and materials processing industries. This advanced solution enables in-situ, continuous analysis of reaction components, providing precise control over complex chemical processes.
Technical Parameters
Product Online Raman Analyzer
Measurement Type Raman Spectrometer
Sample Type Liquid
Number of detection channels 1 single channel
Standard Probe 1pc 1.3m non-immersed fiber optic probe (PR100) and 1pc 5m immersed probe (PR200-HSGL)
Dimensions 496×312×185mm
Net Weight ≤10 kg
Certifications CE ISO9001
Software Capabilities
  • Online Monitoring: Continuous real-time collection with intelligent analysis of unknown components
  • Data Analysis: Advanced processing including smoothing, peak finding, noise reduction, and baseline subtraction
  • Model Establishment: Automatic quantitative modeling based on real-time reaction data
Key Advantages
  • Accelerates process development and time-to-market
  • Enhances production efficiency and capacity
  • Enables real-time reaction control and intervention
  • Reduces product defect rates and material losses
  • Provides safety alarms for abnormal reactions
  • Eliminates dangerous on-site sampling requirements
Applications
The RS2000 is extensively used in fine chemicals, pharmaceuticals, and materials research, including:
  • Li-ion battery industry research
  • Biopharmaceutical process development
  • Drug crystal form research and evaluation
  • Biofermentation quality control
  • Fine chemical process optimization
  • Hazardous process monitoring (nitration, chlorination, hydrogenation)

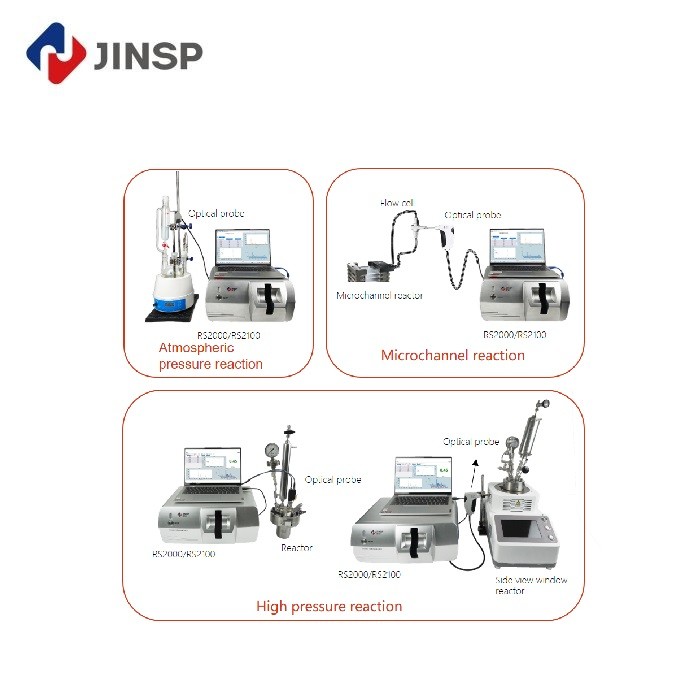

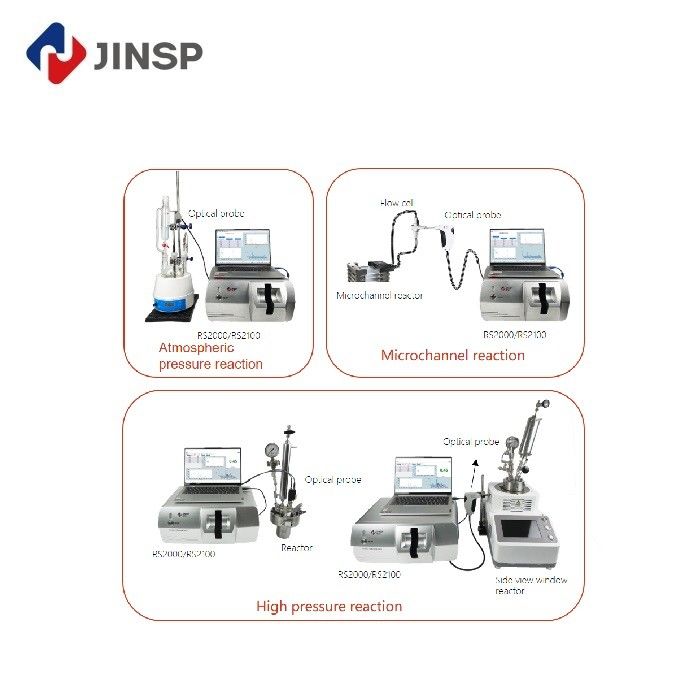

Usage Modes
  1. Immersed probe for direct liquid level monitoring
  2. Flow cell with bypass probe for microchannel reactors
  3. Optical probe aligned with reaction vessel side window

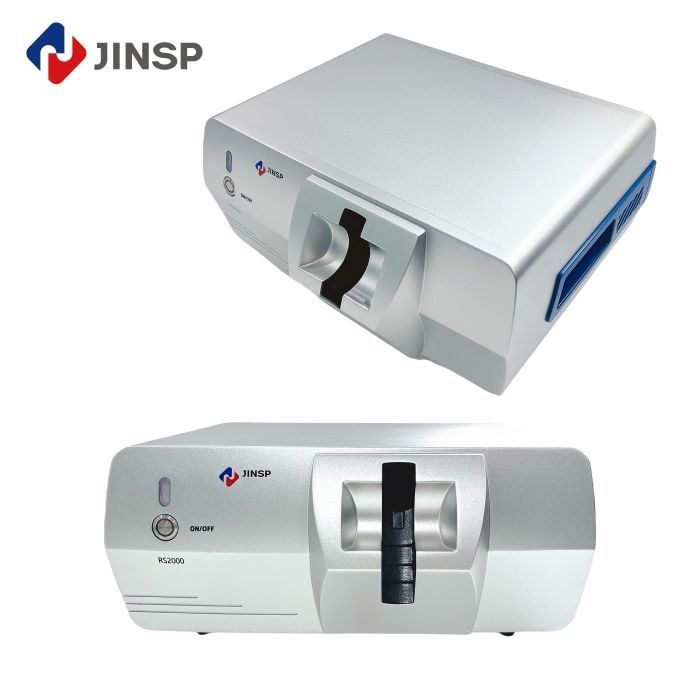

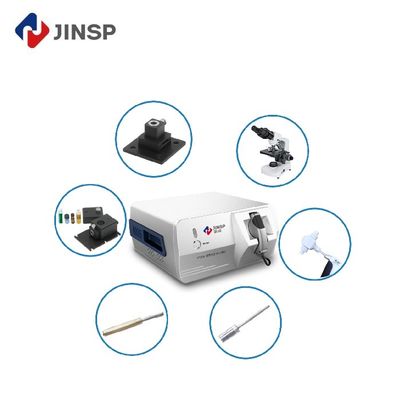

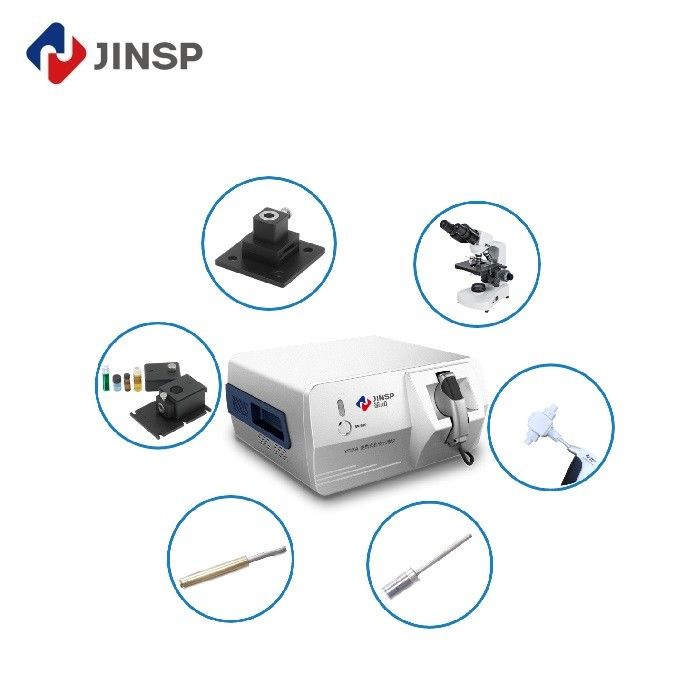

Product Images
High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication 0 High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication 1 High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication 2 High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication 3 High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication 4 High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication 5
Frequently Asked Questions
Q: Is the spectrometer easy to operate for first-time users?
A: We provide comprehensive English manuals, instructional videos, and technical support sessions with our engineers.
Q: Do you offer operation training?
A: Training is available at our facility or we can arrange for engineers to provide on-site support including installation, training, and debugging.
Q: How can I receive pricing information quickly?
A: Please provide detailed specifications (wavelength, detector type, pixels, focal length) in your inquiry for an accurate quotation.
Q: What is your warranty and support policy?
A: The spectrometer comes with a one-year warranty. Our technicians provide remote troubleshooting and free repairs for warranty issues.
Q: How do you ensure product quality?
A: All instruments undergo rigorous quality inspection before shipment, with documentation and photos available upon request.
