High Sensitivity Raman Analyzer Process Instruments 50-60Hz 785nm Laser Deep Cooling
785nm Deep Cooling Four Multi-channel Online Process Raman Analyzer
Chemical, pharmaceutical, and materials science development processes require precise quantitative analysis of substance components. Traditional offline laboratory analysis involves sample extraction and transport to dedicated labs for analysis using chromatography systems, mass spectrometers, and NMR equipment.
JINSP provides online monitoring solutions for chemical, pharmaceutical, and material process research and production, enabling in-situ, real-time, continuous monitoring of reaction components.

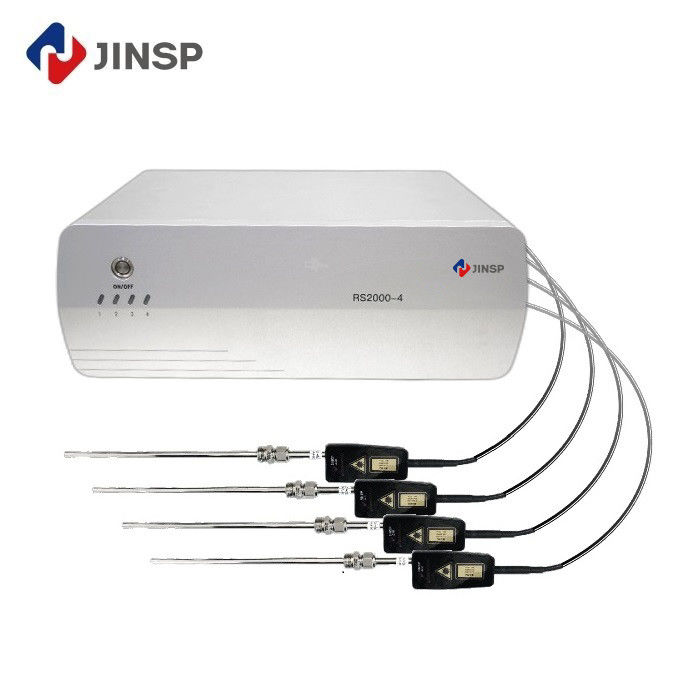

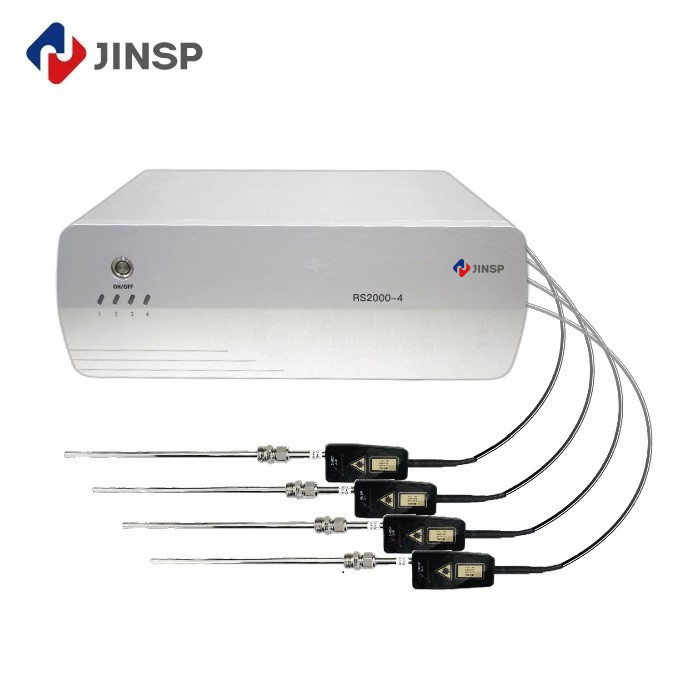

The JINSP RS2000-4 features a 4-channel optical probe for switching online analysis in multiple reaction systems, achieving simultaneous process control.
Technical Parameters
| Parameter |
Value |
| Product |
Online Raman Analyzer |
| Measurement Type |
Raman Spectrometer |
| Laser wavelength |
785nm |
| Wavelength accuracy |
0.2 nm |
| Wavelength stability |
0.01 nm |
| Sample Type |
Liquid |
| Number of detection channels |
Four-channel switching detection |
| Standard Probe |
1pc 1.3 m non-immersed fiber optic probe (PR100) |
| Software functions |
Online Monitoring, Data Analysis, Model Establishment |
| Power supply |
100 ~ 240 VAC, 50 ~ 60 Hz |
| Operating temperature |
0 ~ 40 ℃ |
| Dimensions |
496x312x185mm |
| Net Weight |
≤10 kg |
Main Features
- Four channels for switchable detection with real-time display of reactant and product changes
- Specialized Raman probes withstand extreme conditions including strong acids, alkalis, corrosion, high temperature, and pressure
- Real-time response in seconds with immediate analysis results
- In-situ monitoring without sampling or sample processing requirements
- Continuous monitoring for quick reaction endpoint determination and anomaly alerts
Applications
Li-ion battery industry: Research on bis(fluorosulfonyl)amide synthesis process
Biopharmaceutical industry: Drug crystal form research, consistency evaluation, biofermentation quality control
Fine chemical industry: Furfuryl alcohol production research, bioenzyme catalytic reactions, ultra-low temperature nitrification, o-xylene nitration
Chemical/Biological Process R&D: Online monitoring provides real-time continuous data for accelerated R&D cycles compared to traditional offline detection.

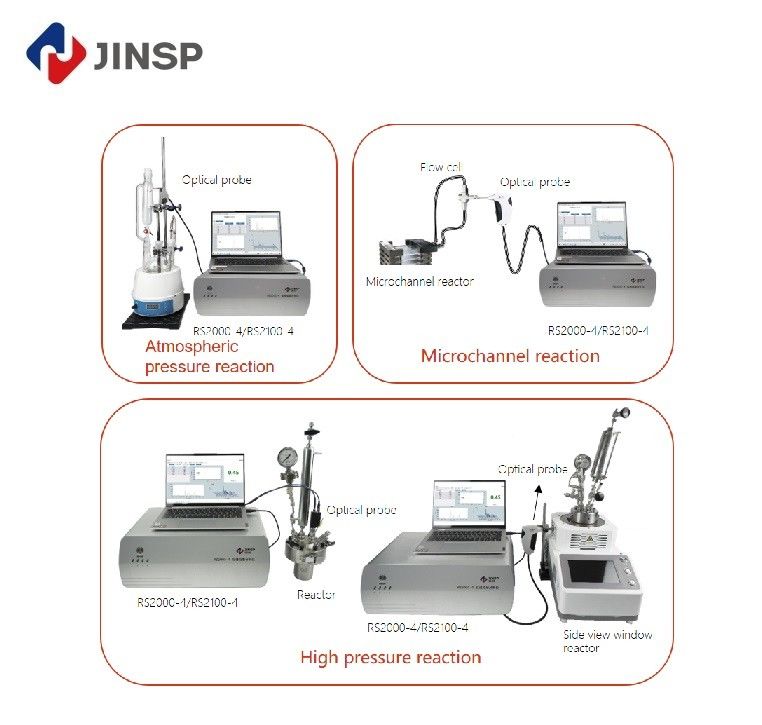

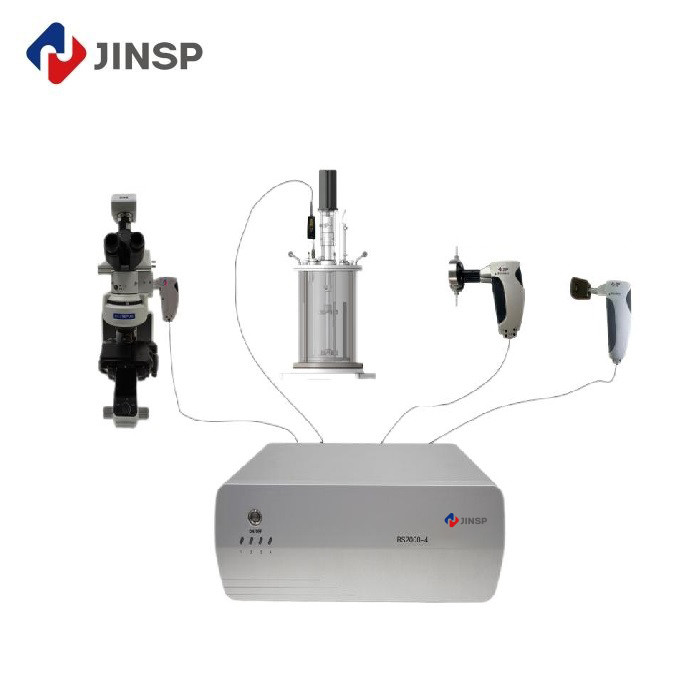

Usage Models
The RS2000T-4 offers three laboratory usage modes with different accessory requirements:
- Immersed long probe for liquid level monitoring in reaction systems
- Flow cell with bypass probe for microchannel reactor monitoring
- Optical probe aligned with reaction vessel side window
Frequently Asked Questions
Q1: This is the first time I use it, is it easy to operate?
A1: We provide an English manual and guide video, plus professional technical support from our technicians.
Q2: Can you offer an operation training?
A2: Training available at our factory or on-site support from JINSP engineers for installation, training, and maintenance.
Q3: How to receive the best price in the shortest time?
A3: Provide detailed specifications in your inquiry for a prompt quotation with complete details.
Q4: If the spectrometer has a problem in my place, what could I do?
A4: One-year warranty includes free repairs with technician support for problem diagnosis.
Q5: What about quality assurance?
A5: All goods undergo quality inspection before shipment with optional inspection photos.
