Standard Raman Analyzer Process Instruments 50W Single Channel Laboratory
Product Specifications
| Attribute |
Value |
| Laser wavelength |
1064nm |
| Wavelength accuracy |
0.2nm |
| Wavelength stability |
0.01nm |
| Connectivity interface |
USB 2.0 |
| Output Data format |
spc standard spectrum, prn, txt and other formats are optional |
| Communication protocols |
Modbus |
| Power supply |
100 ~ 240 VAC，50 ~ 60 Hz |
| Operating temperature |
0 ~ 40 ℃ |
| Power consumption |
50W |
| Detection Accuracy |
0.5% |
Product Overview
JINSP provides advanced online monitoring solutions for chemical, pharmaceutical, and material process research and production. Our RS2100 Raman Analyzer enables in-situ, real-time, continuous monitoring of component content during reactions with exceptional accuracy.
Key Applications
- Fine chemicals: Reaction mechanism studies, kinetics, crystal form research, process development and optimization
- Biomedicine: Aseptic biological fermentation, peptide drug synthesis, enzyme catalytic reactions
- Li-ion battery industry: Synthesis process research
- Quality control in biofermentation engineering
- Process control of bioenzyme catalytic reactions
Technical Features
| Measurement Type |
Raman Spectrometer |
| Sample Type |
Liquid |
| Detection channels |
1 single channel |
| Standard Probe |
1pc 1.3 m non-immersed fiber optic probe (PR100) and 1pc 5 m immersed probe (PR200-HSGL) |
| Dimensions |
300x356x185mm |
| Net Weight |
≤10 kg |
| Certifications |
CE ISO9001 |
Software Capabilities
- Online Monitoring: Continuous real-time collection of single-channel signals with intelligent analysis of unknown components
- Data Analysis: Advanced processing including smoothing, peak finding, noise reduction, and baseline subtraction
- Model Establishment: Automatic quantitative model building based on real-time reaction data
Operational Modes

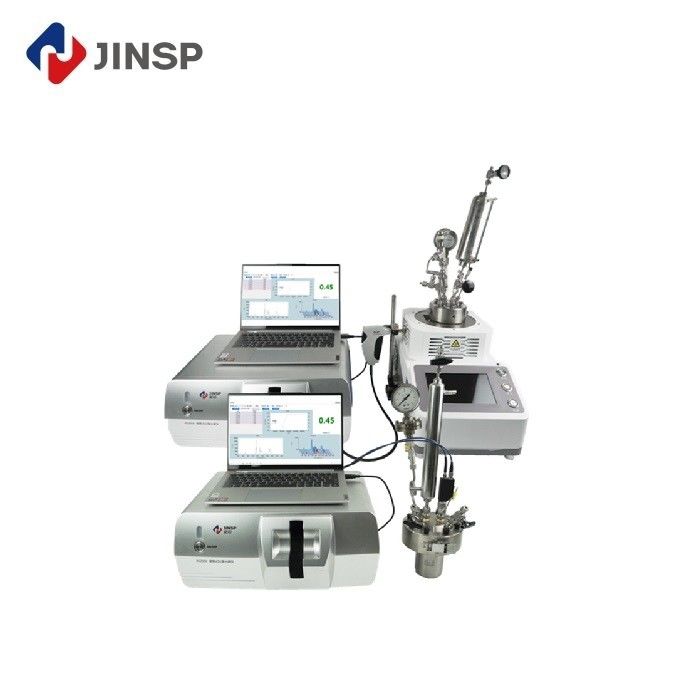

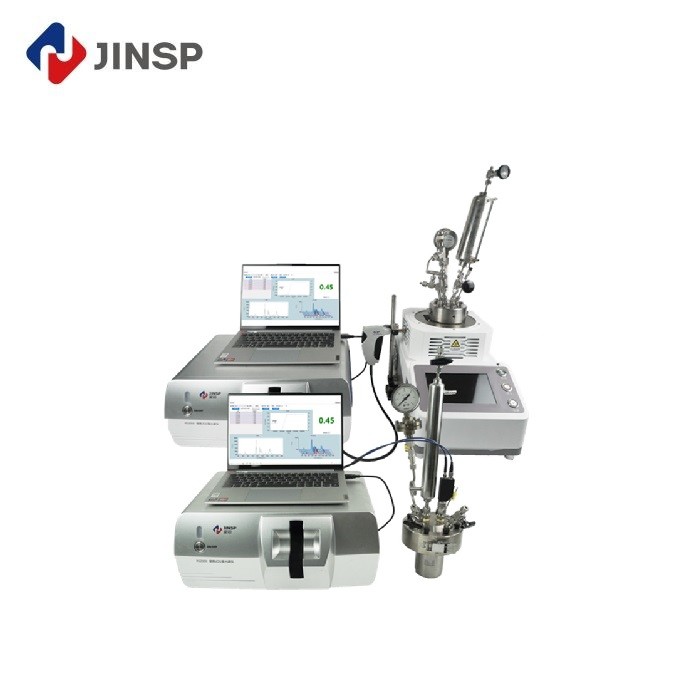

Mode 1: Immersed long probe for direct liquid level monitoring with customizable probe specifications
Mode 2: Flow cell with bypass probe for microchannel reactor applications
Mode 3: Optical probe aligned with reaction vessel side window for direct monitoring

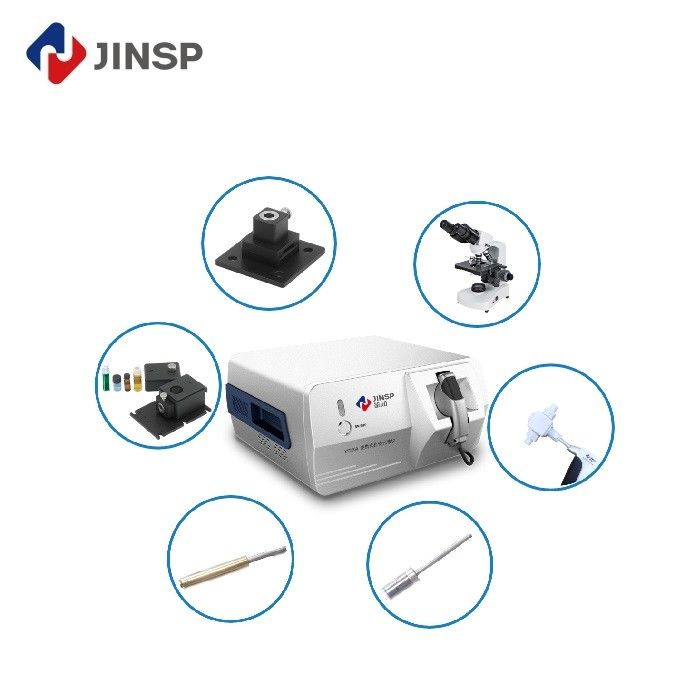

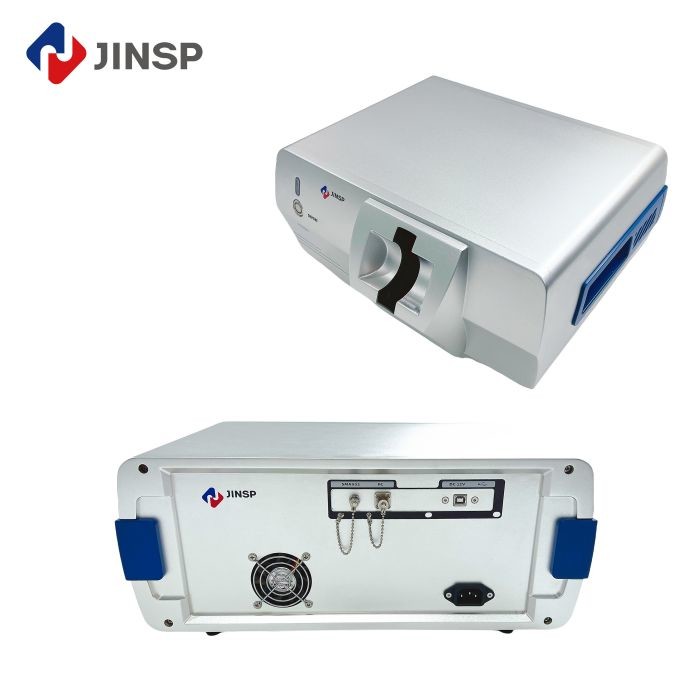

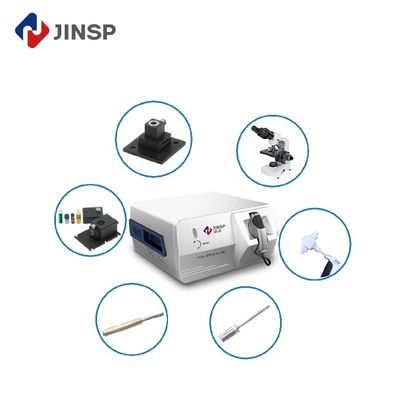

Product Images
Company Profile
JINSP Company Limited is a professional supplier with over 17 years of experience in spectral detection technology, including Raman, FT-IR, and LIBS technologies. Our core technologies have reached international leading levels with over 200 patent applications.
We offer over twenty spectroscopic products used in pharmaceutical, chemical, public security, and customs applications worldwide, with cumulative sales exceeding 3,000 units across 30+ countries.
Our team of 30+ R&D engineers, including 4 PhDs, specializes in personalized product customization to meet diverse customer needs with innovative design capabilities.
Frequently Asked Questions
Is the spectrometer easy to operate for first-time users?
We provide an English manual and guide video, along with professional technical support meetings with our technicians.
Do you offer operation training?
Training is available at our factory, or our engineers can provide on-site support including installation, training, debugging, and maintenance.
How can I receive the best price quickly?
Please provide detailed application requirements, configuration needs, and installation details with your inquiry for a prompt, detailed quotation.
What if the device has problems during operation?
The spectrometer comes with a one-year warranty. Our technicians will diagnose any issues based on your feedback and provide free repairs during the warranty period.
What quality assurance measures do you have?
Our quality inspection team thoroughly checks all goods before shipment. We can provide inspection photos upon request.
