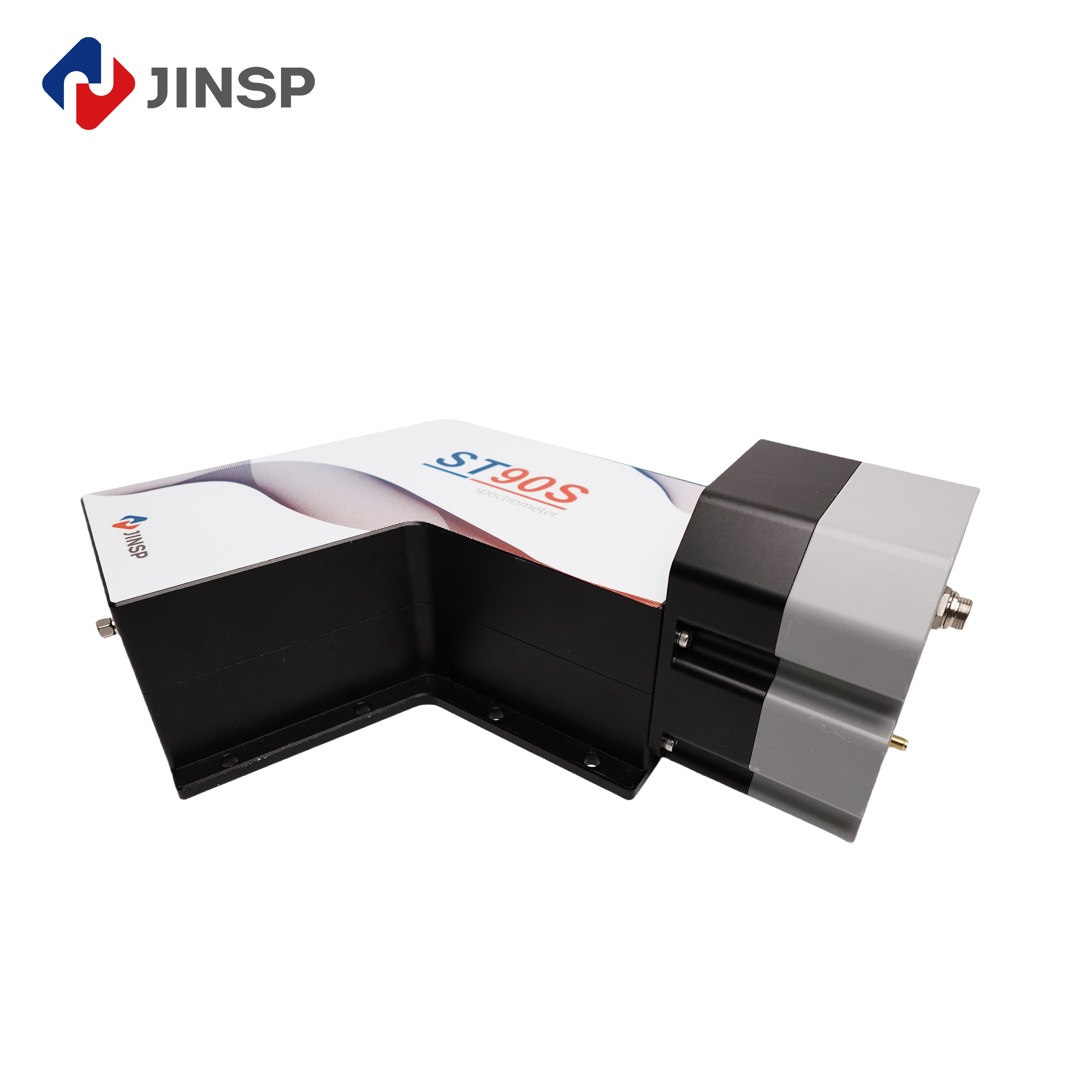

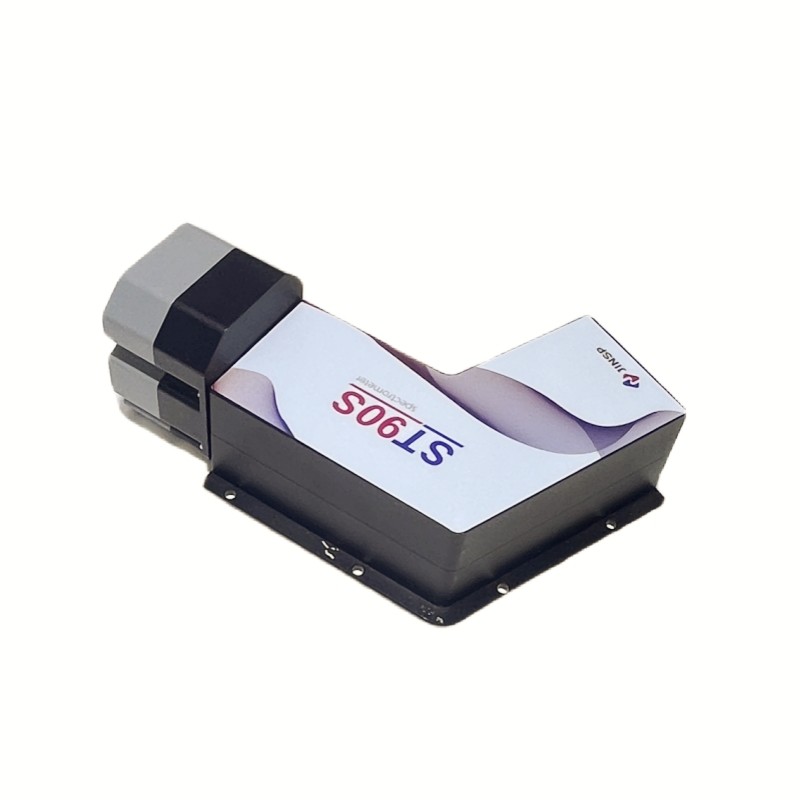

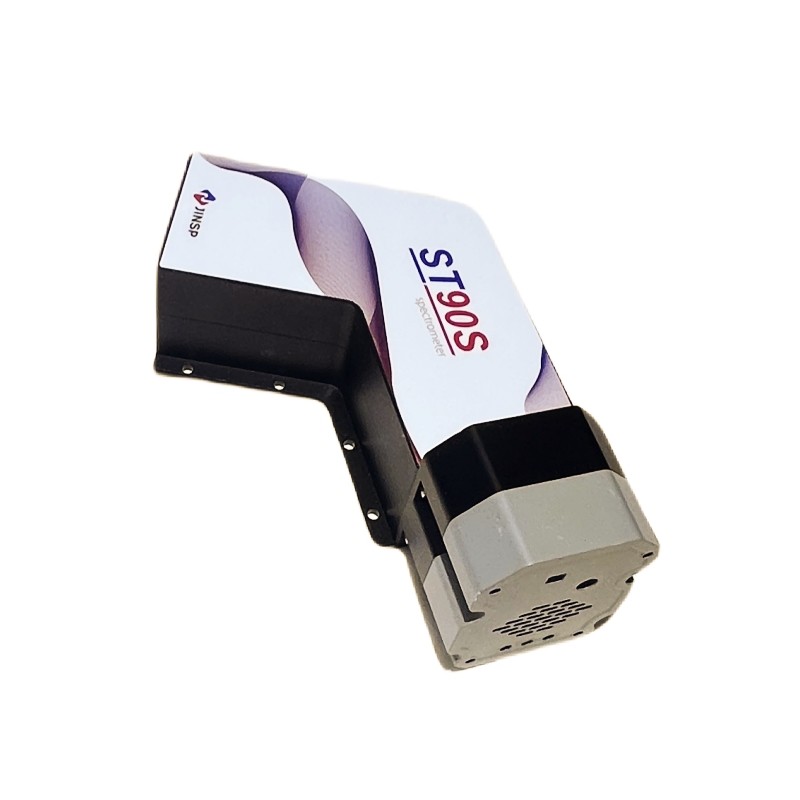

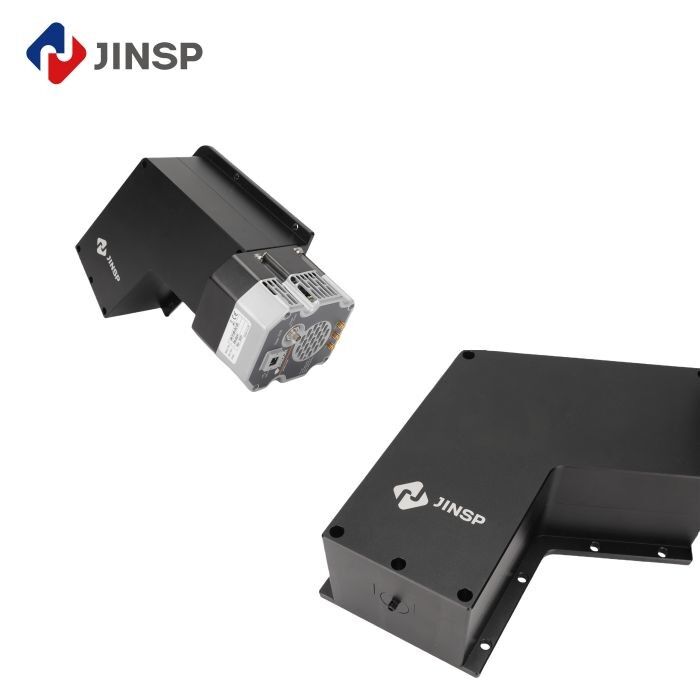

FC/APC/SMA Fiber Modular Raman Spectrometer For Quick Data Collection

Contact Now

FC/APC/SMA Fiber Modular Raman Spectrometer For Quick Data Collection

Minimum Order Quantity :	1	Price :	USD32200 - USD64300
Packaging Details :	International Shipping Package	Delivery Time :	40-70working days
Payment Terms :	T/T, Western Union	Supply Ability :	100PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	ST90S

Detail Information
Optical Resolution:	0.25nm, Corresponds To 8cm-1(50μm Slit)	Grating Type:	VPH Volume Holographic Transmission Grating
Diffraction Efficiency:	>85%	Fiber Interface:	SMA905 Or Φ10mm Multi-core Optical Fiber
Numerical Aperture:	0.25	Dimensions:	348.7mm×222.8mm ×126mm
Detector Array:	512 Pixels	Fiber Connector:	FC/APC Or SMA
Highlight:	SMA Fiber Modular Raman Spectrometer , FC Fiber Modular Raman Spectrometer , SMA Fiber fiber optic spectrometer

Product Description

FC/APC/SMA Fiber Modular Raman Spectrometer For Quick Data Collection

Key Specifications

Optical Resolution	0.25nm, corresponds to 8cm-1(50μm slit)
Grating Type	VPH volume holographic transmission grating
Diffraction Efficiency	>85%
Fiber Interface	SMA905 or Φ10mm multi-core optical fiber
Numerical Aperture	0.25
Dimensions	348.7mm×222.8mm ×126mm
Detector Array	512 pixels
Fiber Connector	FC/APC or SMA

Product Overview

High Sensitivity Spectrometer for 532nm Raman Systems. This Raman transmission spectrometer features a 532nm laser Raman spectrometer, capable of online gas detection and process analysis. The integration of industrial Raman system makes it ideal for a wide range of applications.

Technical Parameters

Category	Parameter	Value
Optical Parameters	Wavelength Range	ST90S1: 540nm~686nm (260~4200cm-1) ST90S2: 532nm~670nm (0~3850cm-1)
	Optical Resolution (ST90S1)	0.25nm (8cm-1 with 50μm slit) 0.14nm (5cm-1 with 25μm slit)
	Grating Type	VPH volume holographic transmission grating
	Diffraction Efficiency	>85%
	Fiber Interface	SMA905 or Φ10mm multi-core optical fiber
	Numerical Aperture	0.25
Electrical Parameters	Integration Time	1ms-3600s
	Data Output Interface	USB2.0
	ADC Bit Depth	16-bit
	Power Supply	DC12V (ST90S1~ST90S4) DC5V (ST90S5)
	Operating Current	3A (typical value 2A)
	Operating Temperature	-20°C ~60°C
	Storage Temperature	-30°C ~70°C
Physical Parameters	Dimensions	348.7mm × 222.8mm × 126mm
	Weight	<6kg (including camera)

Model Specifications

Product Model	ST90S1	ST90S2	ST90S3	ST90S4
Detector Brand/Model	AndoriVac 316	PI PIXIS 100BX	Raptor261FI	Raptor261BI
Chip Type	Deep depletion back illuminated	Back illuminated	Front illuminated	Back illuminated
Quantum Efficiency	80%@600nm	90%@600nm	45%@600nm	80%@600nm
Number of Pixels	2000*256	1340*100	2048*256	2048*256
Pixel Size (μm)	15*15	20*20	15*15	15*15
Image Area (mm)	30*3.8	26.8*2.0	30*3.8	30*3.8
Cooling Temperature (℃)	-70	-80	-70	-70

* Customization available for other ranges

Technical Characteristics

High Compatibility: Compatible with multiple scientific research grade cooling cameras such as PI and Andor, with ultra-low dark current and noise
Zero-aberration: Zero aberration design, diffraction-limited resolution
Highly Stable: No adjustable components, applicable to labs and industries
High Flux: High flux, numerical aperture is 0.25
High Diffraction Efficiency: VPH grating, diffraction efficiency up to 90%

Applications

The JINSP ST90S spectrometer is perfect for a variety of applications. It has a wavelength range of 540nm~686nm (260~4200cm-1), weighs less than 6kg (including camera), with numerical aperture of 0.25 and integration time ranging from 1ms-3600s.

One common application is in 532 Confocal Raman microscopy for studying chemical and structural properties of molecules. The ultra-high resolution spectrometer detects even the smallest signals with great precision.

Support and Services

Our product technical support and services include:

Expert technical support for installation, configuration, and troubleshooting
Access to online resources including manuals, user guides, and FAQs
Regular software updates and upgrades
Operation training available at our factory or your location

Product Packaging

The spectrometer comes in a sturdy cardboard box with foam inserts to ensure safe transportation.

Frequently Asked Questions

Q: Is this spectrometer easy to operate for first-time users?

A: We provide English manuals and guide videos, plus professional technical operation meetings with our technicians.

Q: Do you offer operation training?

A: Your technicians can train at our factory, or our engineers can provide local support including installation, training, debugging, and maintenance.

Q: How can I receive the best price quickly?

A: Please provide details like wavelength, detector, effective pixels, and focal length in your inquiry for a prompt quotation.

Q: What if the spectrometer has problems at my location?

A: The spectrometer has a one-year warranty. Our technicians will diagnose any issues and provide free repairs within warranty.

Q: Which payment methods do you accept?

A: We accept T/T, Paypal, Western Union, L/C, and other payment methods.
