6 Channels Modular Raman Spectrometer Advanced Spectral Analysis Technology

Contact Now

6 Channels Modular Raman Spectrometer Advanced Spectral Analysis Technology

Minimum Order Quantity :	1	Price :	USD32200 - USD42900
Packaging Details :	International Shipping Package	Delivery Time :	60-70working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	ST100S

Detail Information
Wavelength Range:	785nm~988nm Corresponds To 0~2600cm-1	Optical Resolution:	0.35nm, Corresponds To 5cm-1(50μm Slit)
Grating Type:	VPH Volume Holographic Transmission Grating	Diffraction Efficiency:	>85%
Number Of Channels:	6 Channels (for Multi-core Optical Fiber With Core Diameter Of 200μm)	Dimensions:	354.9198.7123.5mm
Weight:	<6Kg (including Camera)	Fiber Connector:	FC/PC
Detector Type:	CCD	Interface:	USB 2.0
Highlight:	6 Channels Modular Raman Spectrometer , 6 Channels optical fiber spectroscopy , Advanced Modular Raman Spectrometer

Product Description

Ultra Hensitivity Modular Spectrometer for Raman Systems

JINSP ST100S transmission imaging spectrometer is equipped with an Deep-cooling area array CCD camera of scientific research level,VPH volume phase holographic grating with diffraction efficiency close to 90%. it can achieve excellent sensitivity and SNR,with sensitivity 5~10 times that of reflection spectrometer and resolution twice that of traditional

spectrometer.

With a resolution of up to 3 cm, the ST100S can be coupled with a scientific research level 785nm laser Raman system to detect the Raman spectrum of materials and biological samples. Furthermore, it is more appropriate for industrial integration due to its compact design and good stability when compared to huge long-focus reflection spectrometers like the f300mm and f500mm.

Product Parameters:

	Performance Indicators	Parameters
Detector	-	See product model table
Optical Parameters	Wavelength Range(ST100S1)	785nm~988nm corresponds to 0~2600cm-1
	Optical Resolution(ST100S1)	0.35nm, corresponds to 5cm-1(50μm slit) 0.25nm, corresponds to 3cm-1(25μm slit)
	Grating Type	VPH volume holographic transmission grating
	Diﬀraction Eﬃciency	>85%
	Fiber Interface	SMA905, FC, Φ10mm multi-core optical ﬁber
	Number of Channels	6 channels (for multi-core optical ﬁber with core diameter of 200μm)
	Numerical Aperture	0.25
Electrical parameters	Integration Time	1ms-3600s
	Data Output Interface	USB2.0
	ADC Bit Depth	16-bit
	Power Supply	DC12V
	Operating Current	3A (typical value 2A)
	Operating Temperature	-20°C ~60°C
	Storage Temperature	-30°C ~70°C
	Operating Humidity	<90%RH (no condensation)
Physical Parameters	Dimensions	354 . 9mm1 98 . 7mm1 23 . 5mm
Physical Parameters	Weight	<6Kg (including camera)

List of product model table:

Product model	ST100S1	ST100S3	ST100S4
Detector Brand & Model	AndoriVac 316	Raptor261FI	Raptor261BI
Chip Type	Deep depletion of back illumination	Front illumination	Deep depletion of back illumination
Quantum Eﬃciency	82%@900nm	38%@900nm	80%@900nm
Number of Pixels	2000*256	2048*256	2048*256
Pixel Size /μm	15*15	15*15	15*15
Image Area/mm	30*3.8	30*3.8	30*3.8
Cooling Temperature /℃	-70	-70	-70
* Customization available for other ranges

Features:

VPH grating, diffraction efficiency reaches 90%
Zero aberration design, diffraction-limited resolution
Compatible with various PI and Andor scientific research cryogenic cameras, extremely low dark current noise
High-throughput design, numerical aperture 0.25
Compatible with SMA905 optical fiber and Φ10mm multi- core optical fiber interface, supporting multi-channels
High stability for laboratory and industrial applications

Applications:

The JINSP ST100S Transmission Fiber Spectrometer comes with an FC/PC fiber connector and is perfect for use in various scientific research scenarios. It is highly stable and features advanced spectral analysis technology that makes it perfect for use in multiple scientific research Raman Spectrometer applications.

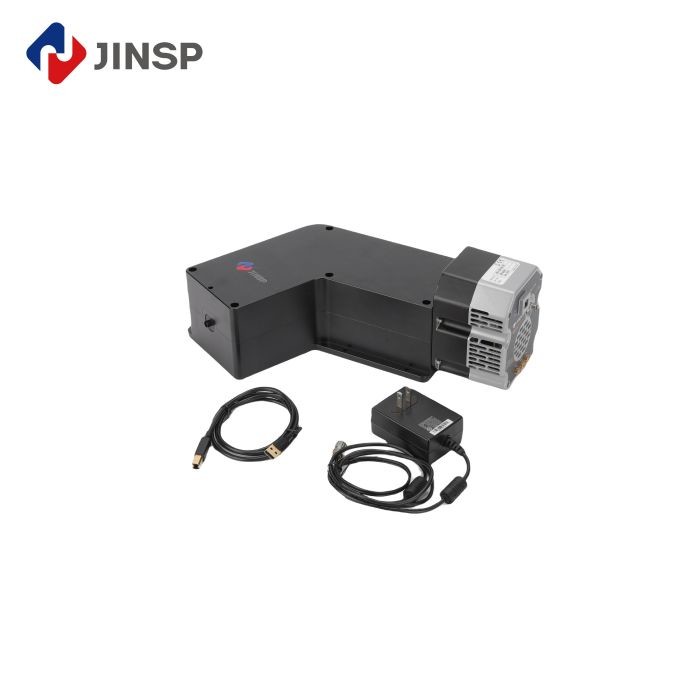

6 Channels Modular Raman Spectrometer Advanced Spectral Analysis Technology 0

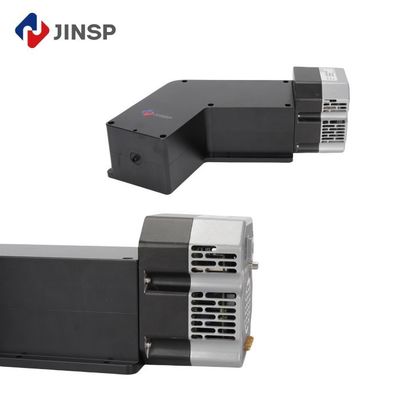

6 Channels Modular Raman Spectrometer Advanced Spectral Analysis Technology 3 Spectrometer Series

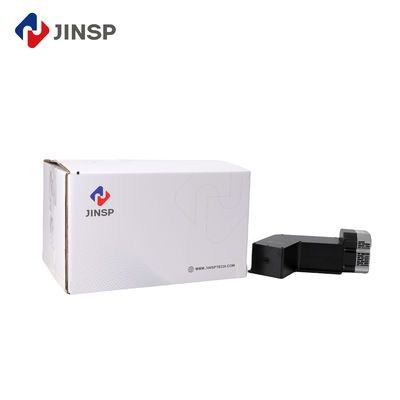

6 Channels Modular Raman Spectrometer Advanced Spectral Analysis Technology 4

Company Introduction

JINSP Company Limited originates from Tsinghua University and has 17 years of experience in developing spectroscopic technology.As a leading supplier of spectroscopic technology, JINSP Technology offers over twenty spectroscopic products across various fields, including pharmaceutical and chemical industries, public security, customs, and fiber optic spectrometers. Our products are available nationwide and are exported to over 30 countries, with cumulative sales exceeding 3,000 units.

6 Channels Modular Raman Spectrometer Advanced Spectral Analysis Technology 6

FAQ

Q: What is the minimum order quantity for JINSP ST100S High-Throughput Transmission Fiber Spectrometer?

A: The minimum order quantity for JINSP ST100S High-Throughput Transmission Fiber Spectrometer is 1 PC.

Q: What are the payment terms for JINSP ST100S High-Throughput Transmission Fiber Spectrometer?

A: The payment terms for JINSP ST100S High-Throughput Transmission Fiber Spectrometer are T/T and Western Union.

Q: What is the delivery time for JINSP ST100S High-Throughput Transmission Fiber Spectrometer?

A: The delivery time for JINSP ST1000S High-Throughput Transmission Fiber Spectrometer is 30-40 working days.

Q: What are the packaging details for JINSP ST100S High-Throughput Transmission Fiber Spectrometer?

A: The packaging details for JINSP ST100S High-Throughput Transmission Fiber Spectrometer are customized packaging.
