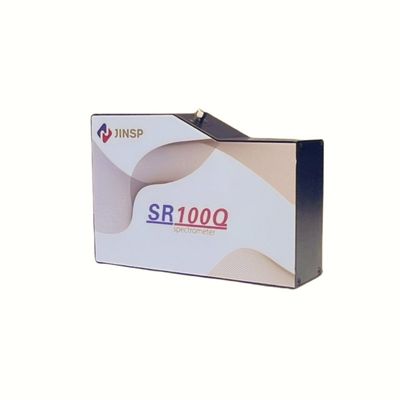

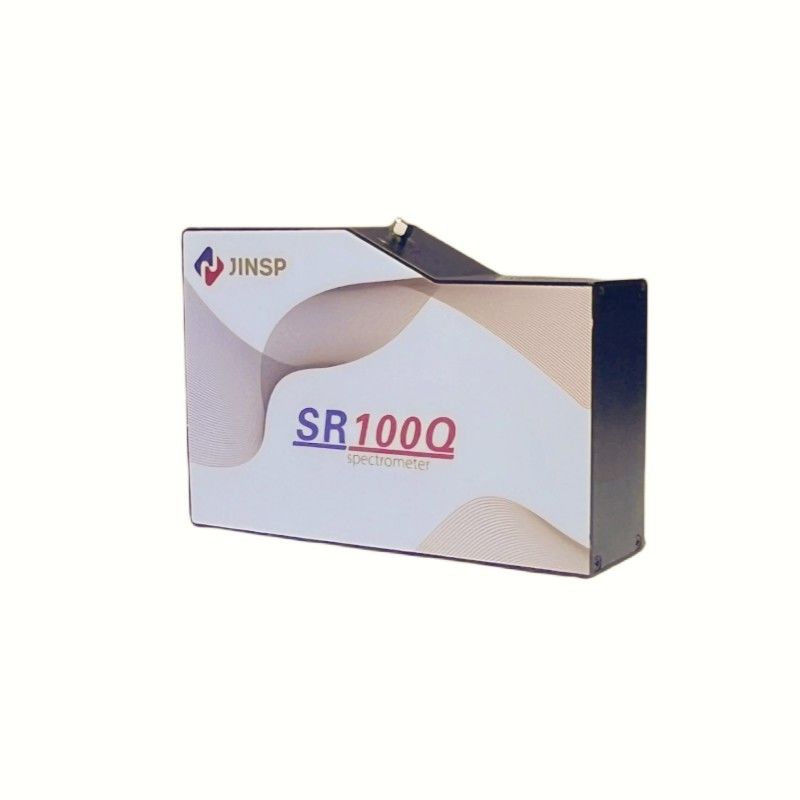

Back-Illuminated Hamamatsu S7031 CCD Chip Fiber Optic Spectrometer for Ultraviolet Band Detection and Low Dark Noise

Contact Now

Back-Illuminated Hamamatsu S7031 CCD Chip Fiber Optic Spectrometer for Ultraviolet Band Detection and Low Dark Noise

Minimum Order Quantity :	1	Price :	USD12900 - USD14300
Packaging Details :	Customized Packaging	Delivery Time :	90-120 working days
Payment Terms :	T/T,Western Union	Supply Ability :	5PCS/90-120 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	ISO9001	Model Number:	SR100Q

Detail Information
Spectrual Range:	200nm - 1100nm	Effective Pixels:	1024*122
Qutuam Efficiency:	QE92%peak@650nm, 83%@232nm	SNR:	1000:1

Product Description

92% High Quantum Efficiency CCD Modular Fiber Optic Spectrometer

The JINSP SR100Q Spectrometer offers researchers a powerful solution for accurate light measurement. Its TE-cooled CCD sensor delivers exceptional SNR and sensitivity, particularly in the UV spectrum. The large pixel size and high QE ensure maximum photon collection, making it ideal for low-light applications like fluorescence and Raman spectroscopy.

This spectrometer is also well-suited for laser characterization, providing detailed insights into spectral purity, peak wavelength, and bandwidth. In addition, it supports non-contact film thickness measurement, aiding industries in optimizing coating processes and improving product quality.

With USB3.0 interface and advanced FPGA technology, the SR100Q guarantees high-speed operation and reliable data output for demanding environments.

Product Parameters:

Detector	Chip Type	Back-illuminated TE-cooled Hamamatsu S7031
	Effective Pixel	1024*122
	Pixel Size	24*24μm
	Sensing Area	24.576*2.928mm
Optical Parameters	Optical Design	F/4 cross-type
	Numerical Aperture	0.13
	Focal Length	100mm
	Entrance Slit Width	10μm,25μm,50μm,100μm,200μm (customizable)
	Fiber Interface	SMA905,free space
Electrical Parameters	Integration Time	8ms-3600s
	Data Output Interface	USB3.0,RS232,RS485,20pin connector
	ADC Bit Depth	16-bit
	Power Supply	5V
	Operating Current	<3.5A
Physical Parameters	Operating Temperature	10℃~40℃
	Storage Temperature	-20℃~60℃
	Operating Humidity	<90%RH (no condensation)
	Dimensions	180mm120mm50mm
	Weight	1.2kg

List of Product Models:

Model	Spectral Range(nm)	Resolution(nm)	Slit(μm)
SR100Q-G21 SR100Q-G22	200~950 350~1100	6.8	200
		2.2	50
		1.5	25
		1.0	10
SR100Q-G23 SR100Q-G24	200~775 350~925	1.6	50
		1.0	25
		0.7	10
SR100Q-G25	532~690(4400cm-1)	13cm-1	50
SR100Q-G26	638~800(3200cm-1)*	10cm-1	25
SR100Q-G27	785~1050(3200cm-1)*	11cm-1	50

Technical Characteristics:

High quantum efficiency, 92%peak@650nm, 83%@232nm
High SNR: Ultra-low dark noise under long integration time, SNR is as high as 1000:1

Noise-free clear processing of weak signal in long exposure, strong adaption to environment
Low-noise and high-speed circuit: USB3.0

Typical Applications:

Detect absorption, transmittance and reflection Spectrum
Light source and laser wavelength characterization
OEM product module: Fluorescence spectrum, Raman spectrum, etc.

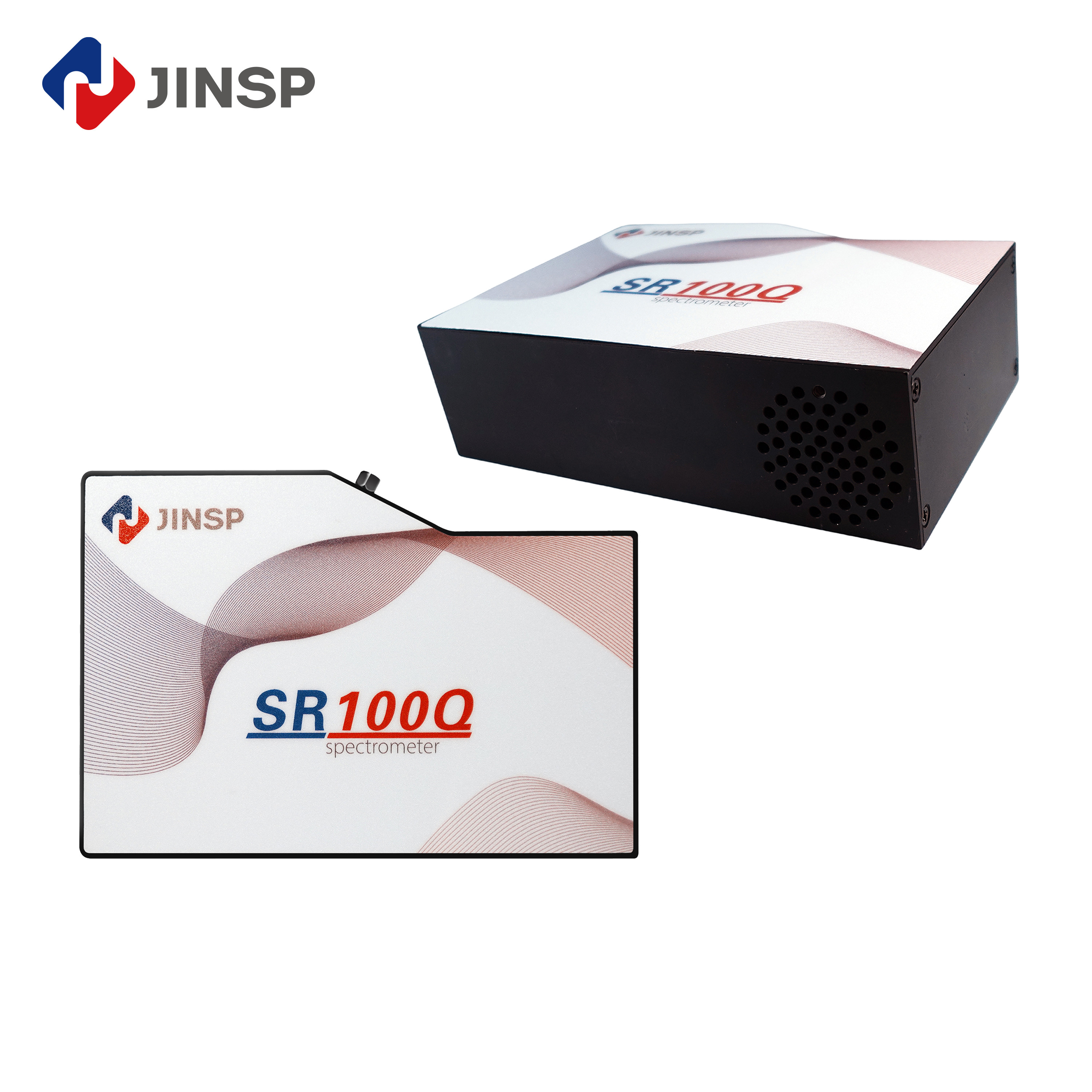

Back-Illuminated Hamamatsu S7031 CCD Chip Fiber Optic Spectrometer for Ultraviolet Band Detection and Low Dark Noise 0

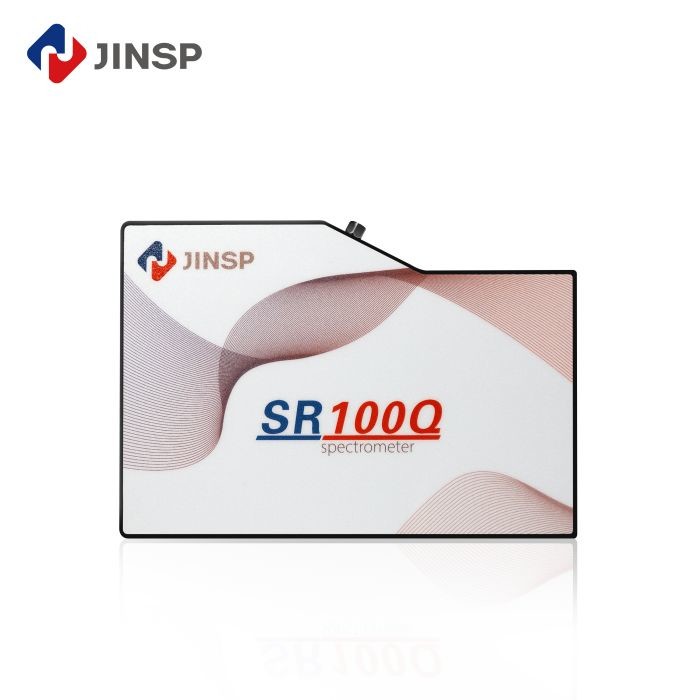

Back-Illuminated Hamamatsu S7031 CCD Chip Fiber Optic Spectrometer for Ultraviolet Band Detection and Low Dark Noise 1

Company Instroductions:

JINSP – Where Spectral Technology Meets Excellence
For 17+ years, JINSP Company Limited has set the international standard in Raman, FT-IR, and LIBS technologies. With 200+ patent applications and ISO 9001/14001/45001 certifications, our Beijing-based R&D and Jiangsu manufacturing ensure unmatched quality. Our systems are certified by ECAC, CE, and global metrology institutes—proving JINSP’s role as a trusted supplier for defense, environmental, and industrial sectors.

FAQ

Q1:This is the first time I use,is it easy to operate?

A1:We will send you manual and guide vedio in English,it can teach you how to operate the spectrometer.Also our technicians will offer professional tecnical opearation meetings.

Q2:Can your offer a operation traning?
A2:Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support
( installation , training, debugging, maintenance ).

Q3:What's your website?
A3:You can visit:www.jinsptech.com

Q4:What about your quality assurance?

A4:We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
