200nm-1100nm Fiber Optic Spectrometer Versatile For Various Scientific Applications

Contact Now

200nm-1100nm Fiber Optic Spectrometer Versatile For Various Scientific Applications

Minimum Order Quantity :	1	Price :	USD3900 - USD4300
Packaging Details :	International Shipping Package	Delivery Time :	30-400 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100PCS/30-40 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	ISO9001 CE	Model Number:	SR100B

Detail Information
Spectrual Range:	200nm - 1100nm	Effective Pixels:	2048*64
Pixel Size:	28.672*0.896mm	Integration Time:	4ms~900s
Dimensions:	180mm120mm50mm	Weight:	1.2kg
Highlight:	200nm Fiber Optic Spectrometer , 200nm optical fiber spectroscopy , 1100nm Fiber Optic Spectrometer

Product Description

200nm-1100nm Fiber Optic Spectrometer for Scientific Applications

Key Specifications

Attribute	Value
Spectral Range	200nm - 1100nm
Effective pixels	2048*64
Pixel Size	28.672*0.896mm
Integration Time	4ms~900s
Dimensions	180mm120mm50mm
Weight	1.2kg

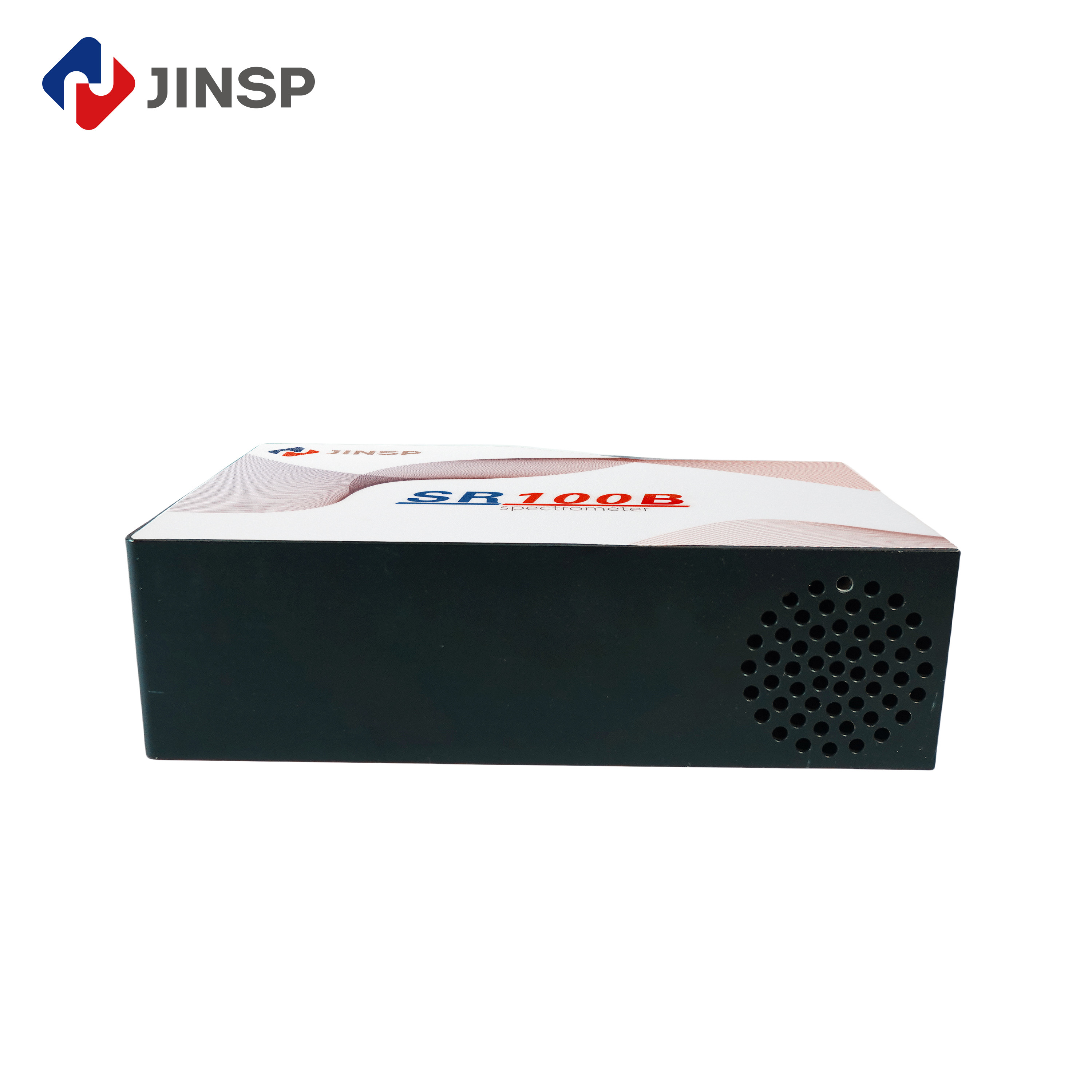

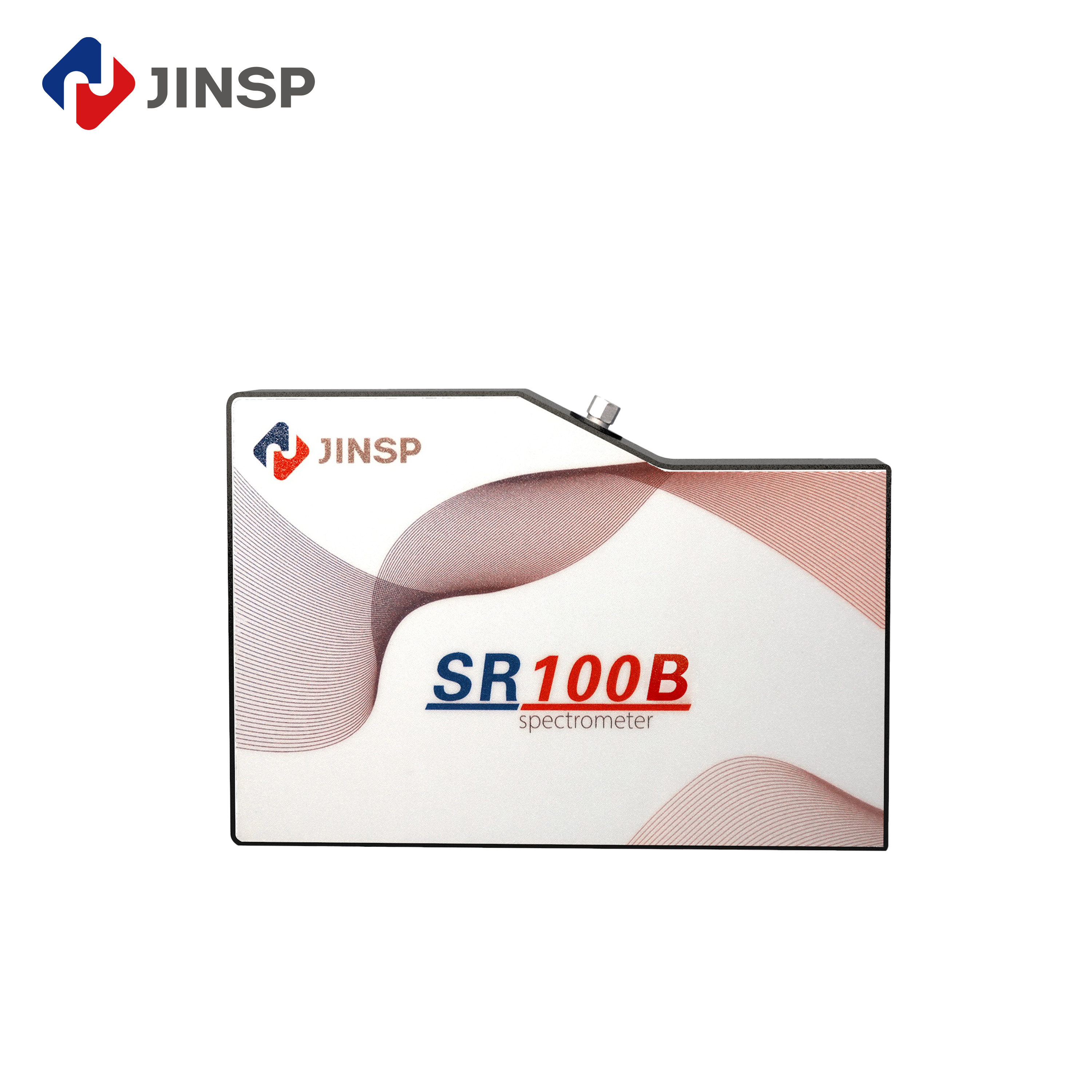

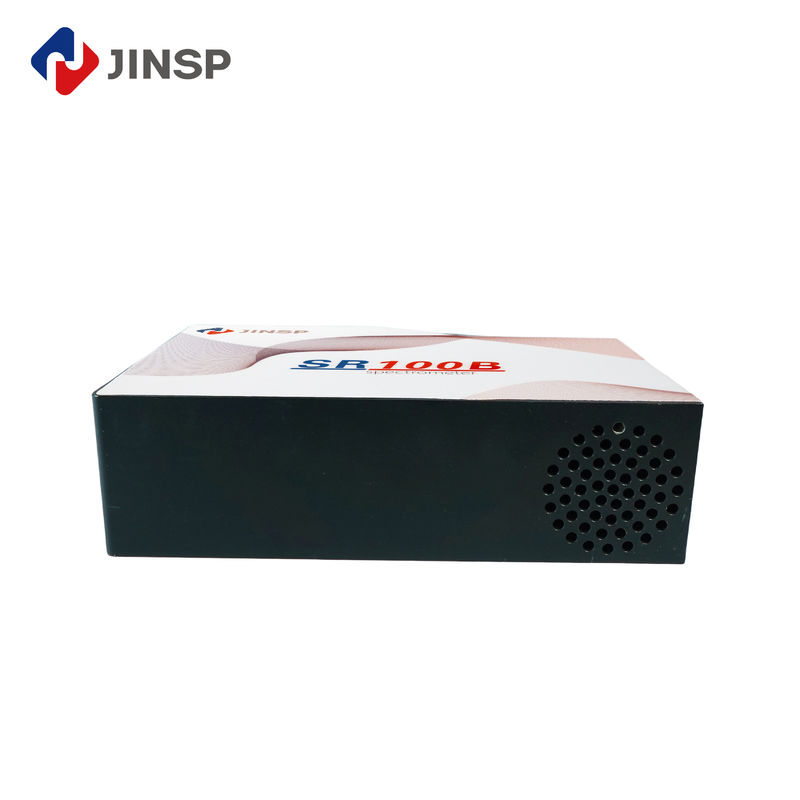

Backlit Array CCD UV Enhanced High Sensitivity Modular Spectrometer

The SR100B spectrometer delivers high-performance capabilities designed for industrial, laboratory, and research environments. Featuring the Hamamatsu S10420 CCD chip with a large sensing area, it provides stable spectral readings essential for accurate data acquisition.

Core Features

2048x64 pixel sensor array with 14x14μm pixel size
Exceptional quantum efficiency from 200 to 1100nm
Customizable gratings and slit widths for tailored resolution
High-resolution optical path with FPGA signal processing
Real-time spectral data processing capability

Detailed Technical Parameters

Category	Parameter	Specification
Detector	Chip Type	Back-illuminated cooling Hamamatsu S10420
	Effective Pixel	2048*64
	Pixel Size	14*14μm
Optical Parameters	Optical Design	F/4 cross type
	Numerical Aperture	0.13
	Focal Length	100mm
	Entrance Slit Width	10μm,25μm,50μm,100μm,200μm (customizable)
	Fiber Interface	SMA905, free space
	Electrical Parameters	Integration Time: 4ms~900s

Available Models

Model	Spectral Range(nm)	Resolution(nm)	Slit(μm)
SR100B-G21	200~1100	2.2 (50μm) 1.5 (25μm) 1.0 (10μm)	50 25 10
SR100B-G24	200~875 350~1025	1.6 (50μm) 1.0 (25μm) 0.7 (10μm)	50 25 10
SR100B-G28	200~345	0.35 (50μm) 0.2 (25μm) 0.14 (10μm)	50 25 10

Note: Some models are primarily designed for Raman applications.

Technical Characteristics

High sensitivity with optimized ultraviolet band detection
High resolution (<1.0nm@10μm in 200~1100nm range)
Flexible operation with multiple interface options (USB3.0, RS232, RS485)
Reliable performance with ultra-high SNR and thermal stability

Typical Applications

Absorption, transmittance and reflection spectrum analysis
Light source and laser wavelength characterization
OEM modules for fluorescence and Raman spectroscopy

About JINSP Company

JINSP Company Limited is a professional supplier with over 17 years of experience in spectral detection technology, specializing in Raman, FT-IR, and LIBS technologies. With over 200 patent applications, our core technologies are internationally recognized.

Headquartered in Beijing with manufacturing facilities in Jiangsu, China, JINSP holds ISO9001:2015, ISO14001:2015, and ISO45001:2018 certifications. We provide comprehensive certifications including CE, ECAC, and ICT Security Testing.

Frequently Asked Questions

Q1: Is this spectrometer easy to operate for first-time users?

A1: We provide English manuals and instructional videos, along with professional technical support meetings with our technicians.

Q2: Do you offer operation training?

A2: We offer training at our factory or can send engineers to your location for installation, training, debugging, and maintenance.

Q3: What is your website?

A3: Visit us at www.jinsptech.com

Q4: What is your quality assurance process?

A4: All products undergo rigorous quality inspection before shipment, with documentation and photos available upon request.
