High Quantum Efficiency Fiber Optic Spectrometer Integrated High SNR Low Noise
Key Specifications
| Spectral Range |
200nm - 1100nm |
| Effective pixels |
1024*122 |
| Quantum Efficiency |
QE92%peak@650nm, 83%@232nm |
| SNR |
1000:1 |

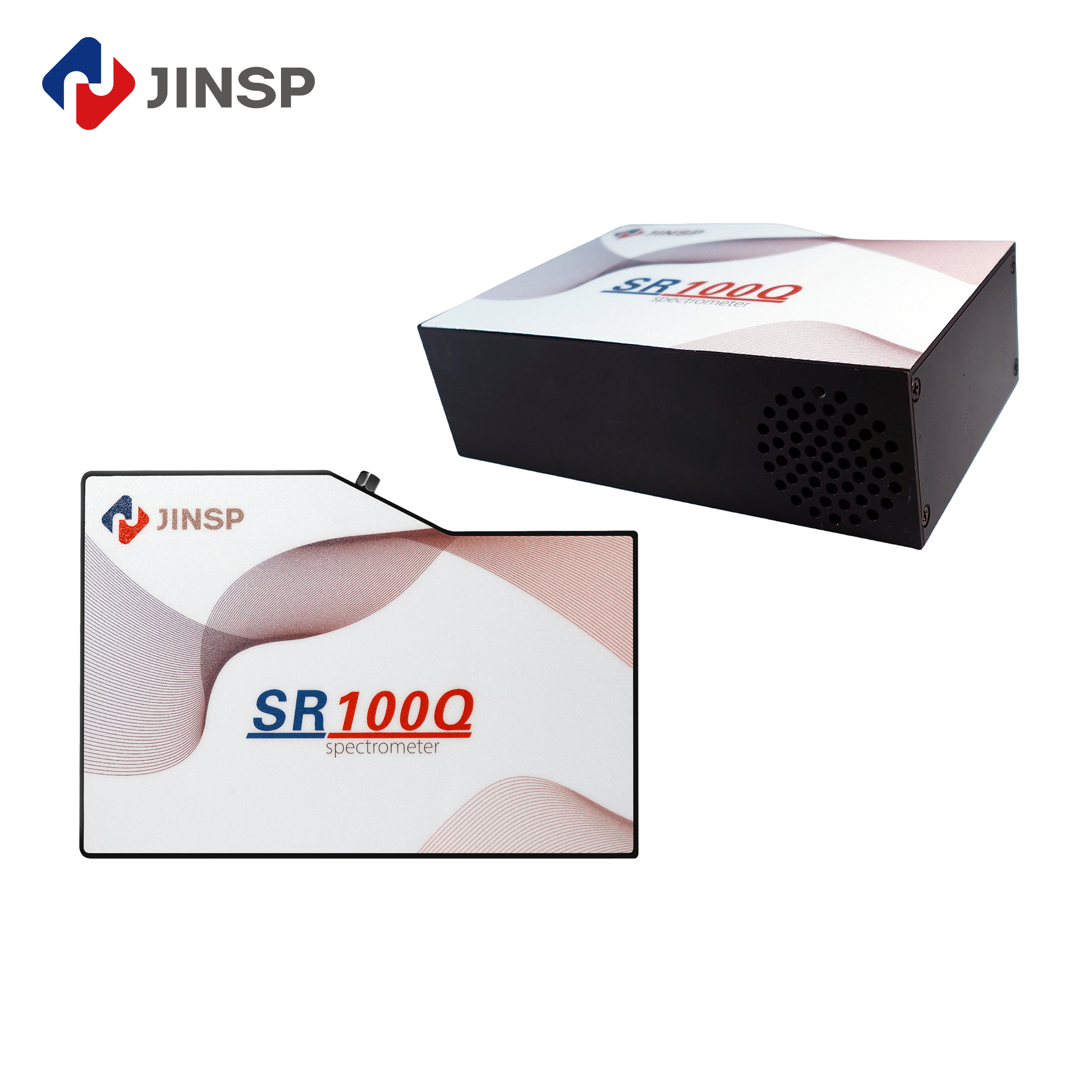

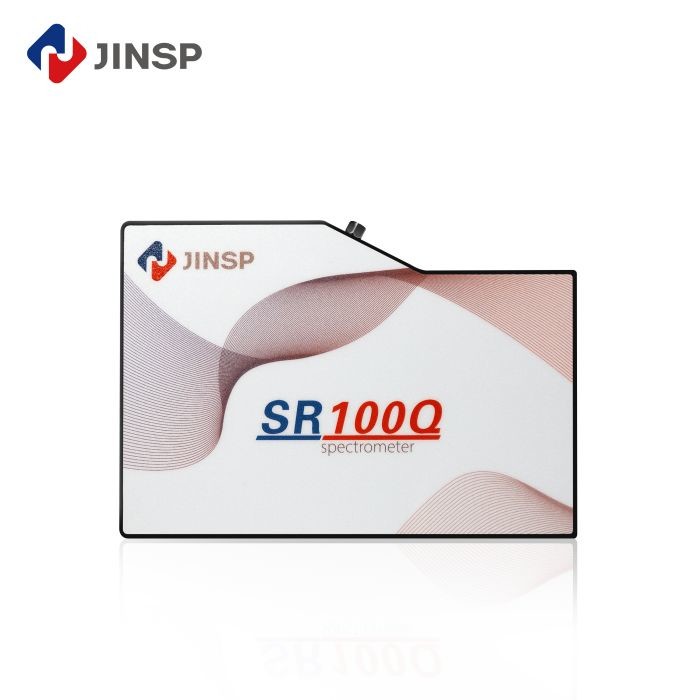

92% High Quantum Efficiency CCD Modular Fiber Optic Spectrometer
The JINSP SR100Q spectrometer integrates the Hamamatsu S7031 scientific-grade TE-cooled area array CCD chip. With 24*24μm pixel size and up to 92% quantum efficiency, it delivers exceptional UV band response, enhancing sensitivity and SNR for weak signals. The advanced high-resolution optical path and low-noise, high-speed FPGA signal processing chip ensure superior spectral performance and reliability. TE cooling significantly reduces dark noise, making it ideal for weak light detection in scientific research.
Product Parameters
| Detector |
Back-illuminated TE-cooled Hamamatsu S7031 |
| Effective Pixel |
1024*122 |
| Pixel Size |
24*24μm |
| Sensing Area |
24.576*2.928mm |
| Optical Design |
F/4 cross-type |
| Numerical Aperture |
0.13 |
| Focal Length |
100mm |
| Entrance Slit Width |
10μm,25μm,50μm,100μm,200μm (customizable) |
| Fiber Interface |
SMA905, free space |
| Integration Time |
8ms-3600s |
| Data Output Interface |
USB3.0, RS232, RS485, 20pin connector |
| ADC Bit Depth |
16-bit |
| Power Supply |
5V |
| Operating Current |
<3.5A |
| Operating Temperature |
10℃~40℃ |
| Storage Temperature |
-20℃~60℃ |
| Operating Humidity |
<90%RH (no condensation) |
| Dimensions |
180mm*120mm*50mm |
| Weight |
1.2kg |
Product Models
| Model |
Spectral Range(nm) |
Resolution(nm) |
Slit(μm) |
| SR100Q-G21 |
200~950 |
6.8 |
200 |
| SR100Q-G22 |
350~1100 |
2.2 |
50 |
| SR100Q-G23 |
200~775 |
1.6 |
50 |
| SR100Q-G24 |
350~925 |
1.0 |
25 |
| SR100Q-G25 |
532~690(4400cm-1*) |
13cm-1 |
50 |
| SR100Q-G26 |
638~800(3200cm-1) |
10cm-1 |
25 |
| SR100Q-G27 |
785~1050(3200cm-1) |
11cm-1 |
50 |
Technical Characteristics
- High quantum efficiency: 92%peak@650nm, 83%@232nm
- High SNR: Ultra-low dark noise under long integration time, SNR up to 1000:1
- Noise-free processing of weak signals in long exposure with strong environmental adaptation
- Low-noise, high-speed circuit with USB3.0 interface
Typical Applications
- Absorption, transmittance and reflection spectrum detection
- Light source and laser wavelength characterization
- OEM product modules for fluorescence spectrum, Raman spectrum, etc.
