High Quantum Efficiency Fiber Optic Spectrometer Integrated High SNR Low Noise

Contact Now

High Quantum Efficiency Fiber Optic Spectrometer Integrated High SNR Low Noise

Minimum Order Quantity :	1	Price :	USD12900 - USD14300
Packaging Details :	Customized Packaging	Delivery Time :	90-120 working days
Payment Terms :	T/T,Western Union	Supply Ability :	5PCS/90-120 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	ISO9001	Model Number:	SR100Q

Detail Information
Spectrual Range:	200nm - 1100nm	Effective Pixels:	1024*122
Qutuam Efficiency:	QE92%peak@650nm, 83%@232nm	SNR:	1000:1

Product Description

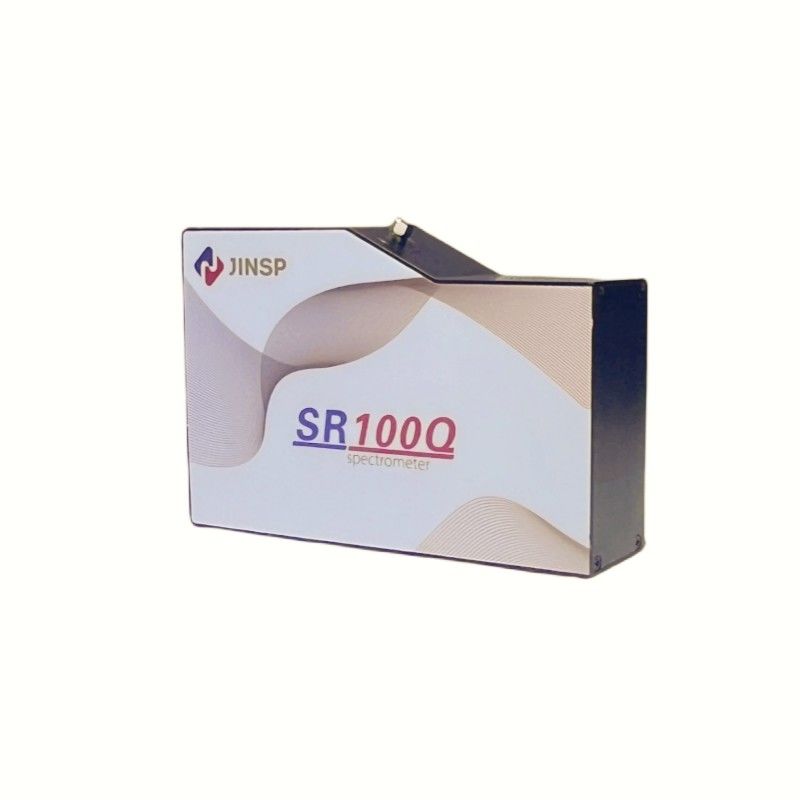

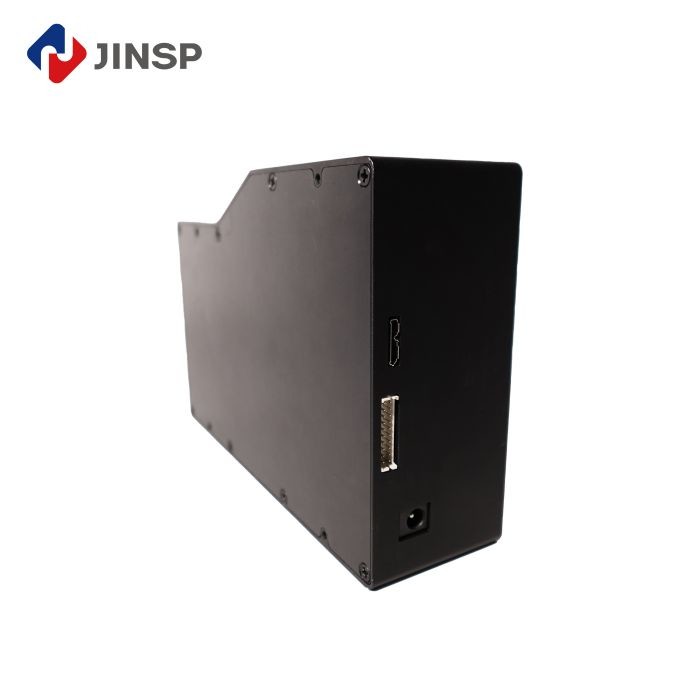

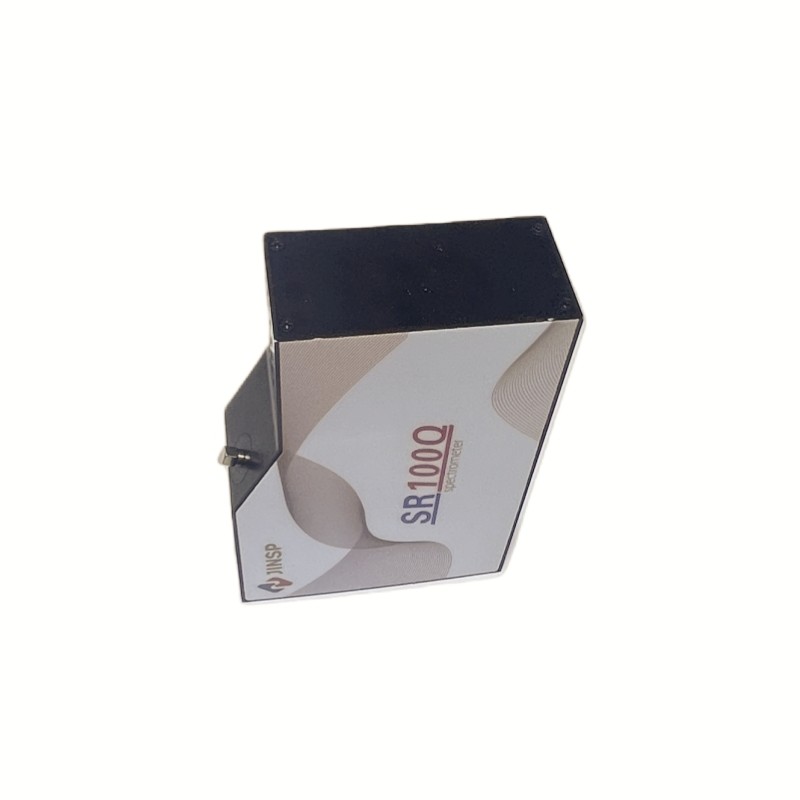

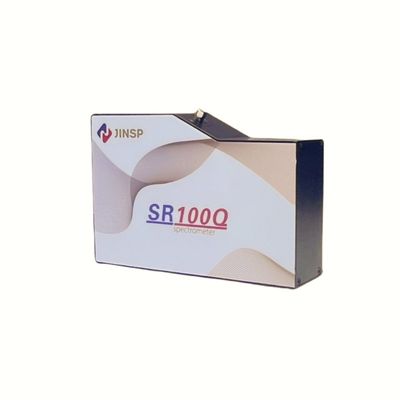

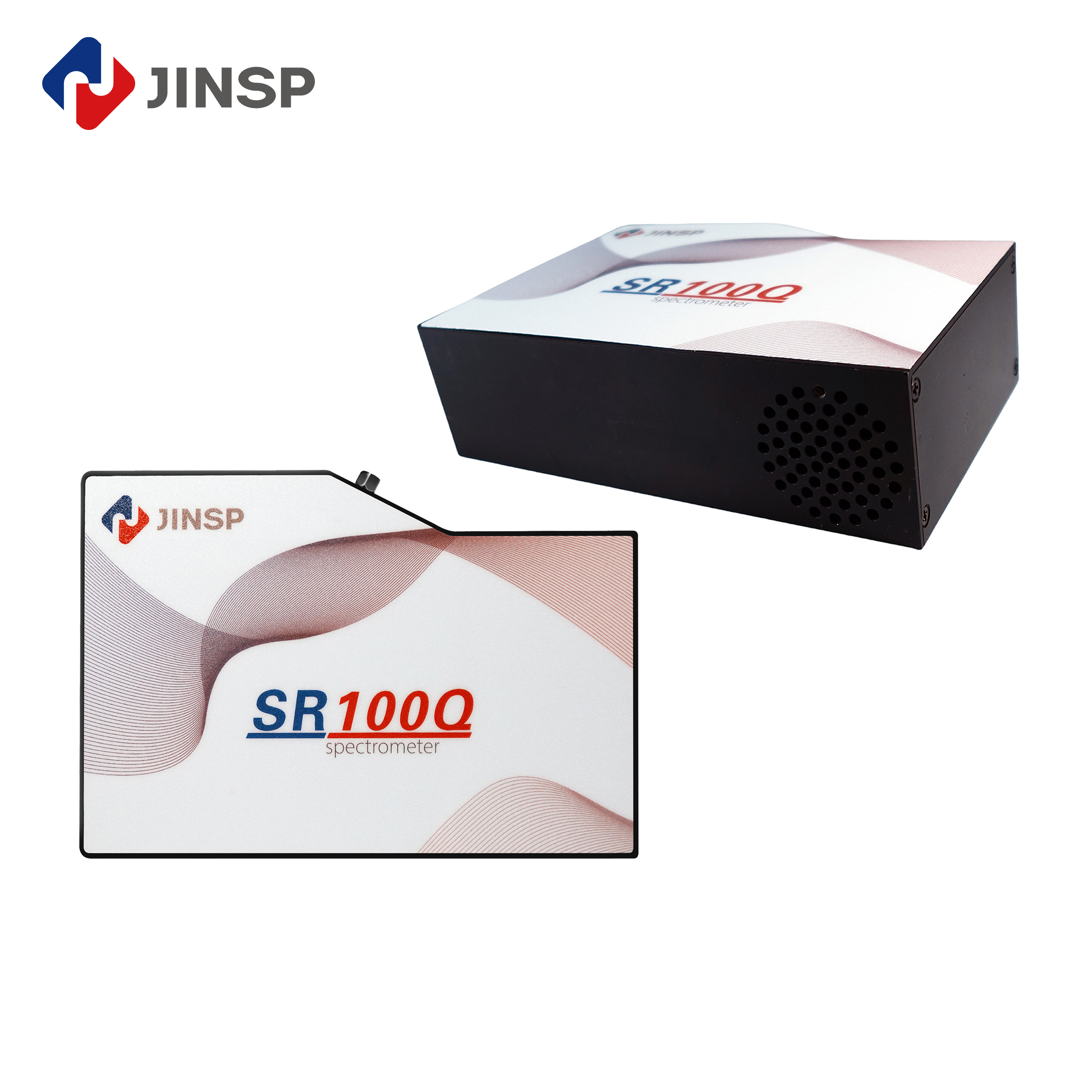

92% High Quantum Efficiency CCD Modular Fiber Optic Spectrometer

Optimized for high-fidelity spectral analysis, the JINSP SR100Q Spectrometer incorporates a scientific CCD with excellent cooling and noise control. It delivers high SNR and sensitivity across a wide spectrum, from deep UV to near-infrared. This makes it ideal for demanding applications such as laser diagnostics, fluorescence imaging, and thin-film inspection.

The spectrometer’s ability to perform long-exposure measurements without noise interference allows for clear data even in low-light conditions. Its OEM-friendly design facilitates integration into automated systems for real-time monitoring and process control.

Ideal for research labs and industrial plants, the SR100Q ensures accurate and repeatable results every time.

Product Parameters:

Detector	Chip Type	Back-illuminated TE-cooled Hamamatsu S7031
	Effective Pixel	1024*122
	Pixel Size	24*24μm
	Sensing Area	24.576*2.928mm
Optical Parameters	Optical Design	F/4 cross-type
	Numerical Aperture	0.13
	Focal Length	100mm
	Entrance Slit Width	10μm,25μm,50μm,100μm,200μm (customizable)
	Fiber Interface	SMA905,free space
Electrical Parameters	Integration Time	8ms-3600s
	Data Output Interface	USB3.0,RS232,RS485,20pin connector
	ADC Bit Depth	16-bit
	Power Supply	5V
	Operating Current	<3.5A
Physical Parameters	Operating Temperature	10℃~40℃
	Storage Temperature	-20℃~60℃
	Operating Humidity	<90%RH (no condensation)
	Dimensions	180mm120mm50mm
	Weight	1.2kg

List of Product Models:

Model	Spectral Range(nm)	Resolution(nm)	Slit(μm)
SR100Q-G21 SR100Q-G22	200~950 350~1100	6.8	200
		2.2	50
		1.5	25
		1.0	10
SR100Q-G23 SR100Q-G24	200~775 350~925	1.6	50
		1.0	25
		0.7	10
SR100Q-G25	532~690(4400cm-1)	13cm-1	50
SR100Q-G26	638~800(3200cm-1)*	10cm-1	25
SR100Q-G27	785~1050(3200cm-1)*	11cm-1	50

Technical Characteristics:

High quantum efficiency, 92%peak@650nm, 83%@232nm
High SNR: Ultra-low dark noise under long integration time, SNR is as high as 1000:1

Noise-free clear processing of weak signal in long exposure, strong adaption to environment
Low-noise and high-speed circuit: USB3.0

Typical Applications:

Detect absorption, transmittance and reflection Spectrum
Light source and laser wavelength characterization
OEM product module: Fluorescence spectrum, Raman spectrum, etc.

High Quantum Efficiency Fiber Optic Spectrometer Integrated High SNR Low Noise 0

High Quantum Efficiency Fiber Optic Spectrometer Integrated High SNR Low Noise 1

Company Instroductions:

JINSP Company Limited ("JINSP") is a leading global supplier specializing in advanced spectral detection technologies, including Raman, FT-IR, and LIBS systems. With 17+ years of industry experience, our cutting-edge innovations have positioned us at the forefront of spectral analysis solutions. Headquartered in Beijing, China, with a state-of-the-art manufacturing facility in Jiangsu, we hold 200+ patents and maintain ISO 9001, 14001, and 45001 certifications. Our products meet rigorous standards, including CE, ECAC, ICT Security Testing, and more—ensuring reliability for security, environmental, and industrial applications worldwide.

FAQ

Q1:This is the first time I use,is it easy to operate?

A1:We will send you manual and guide vedio in English,it can teach you how to operate the spectrometer.Also our technicians will offer professional tecnical opearation meetings.

Q2:Can your offer a operation traning?
A2:Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support
( installation , training, debugging, maintenance ).

Q3:What's your website?
A3:You can visit:www.jinsptech.com

Q4:What about your quality assurance?

A4:We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
