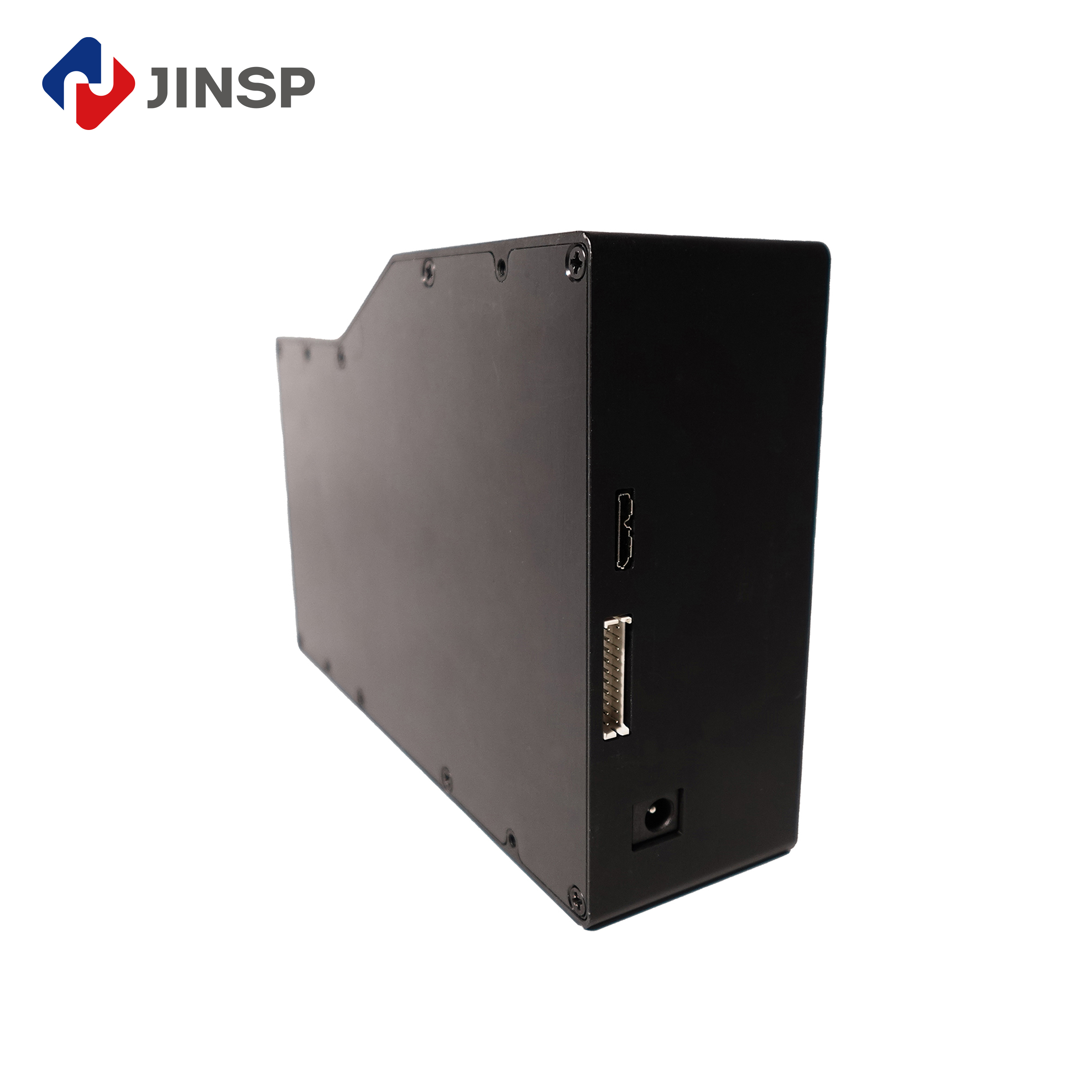

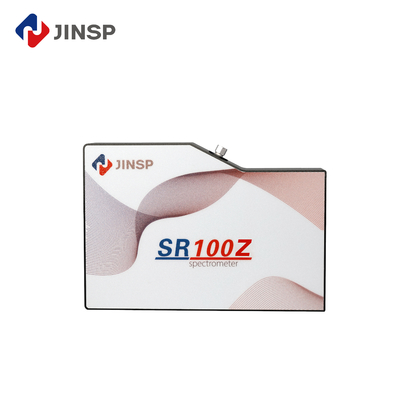

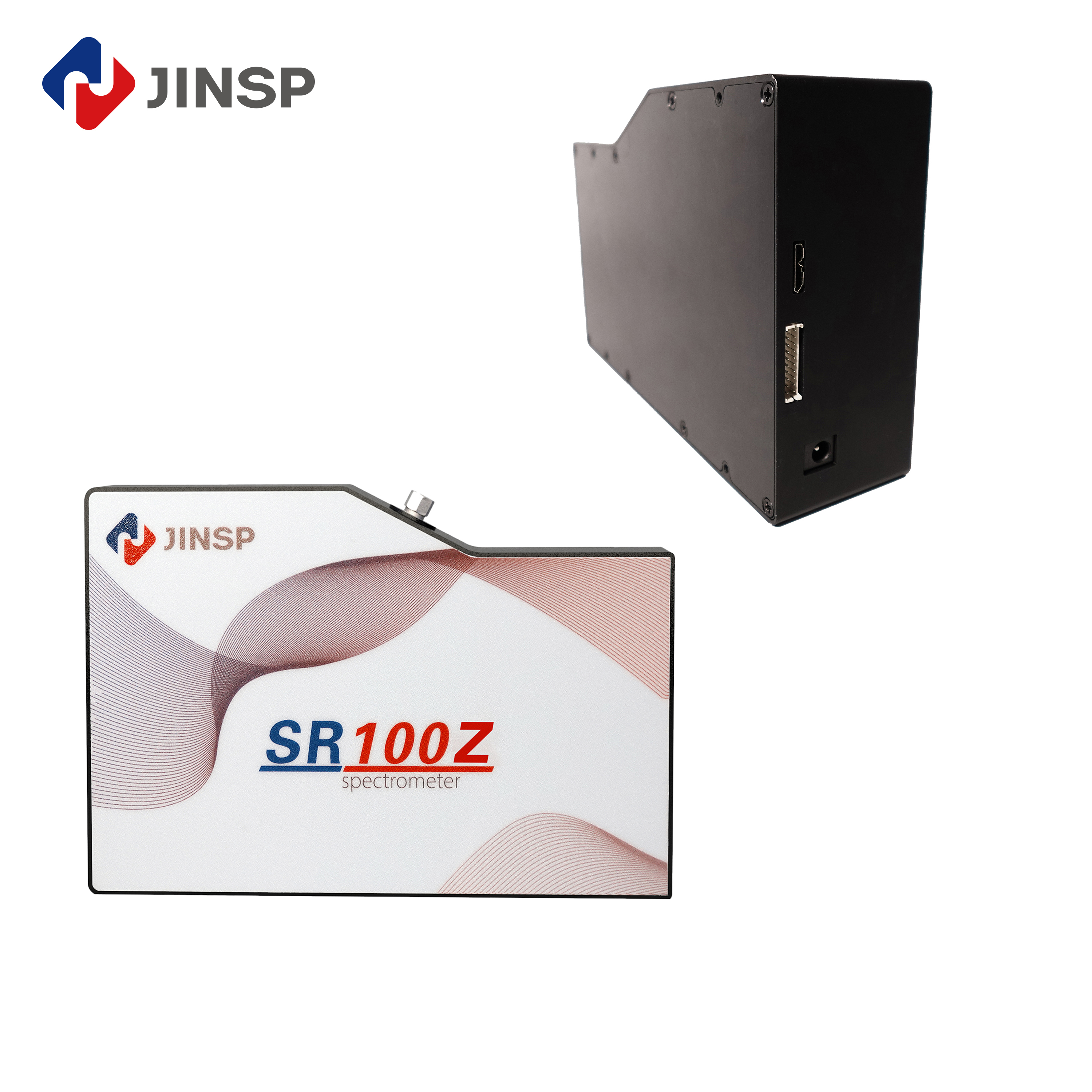

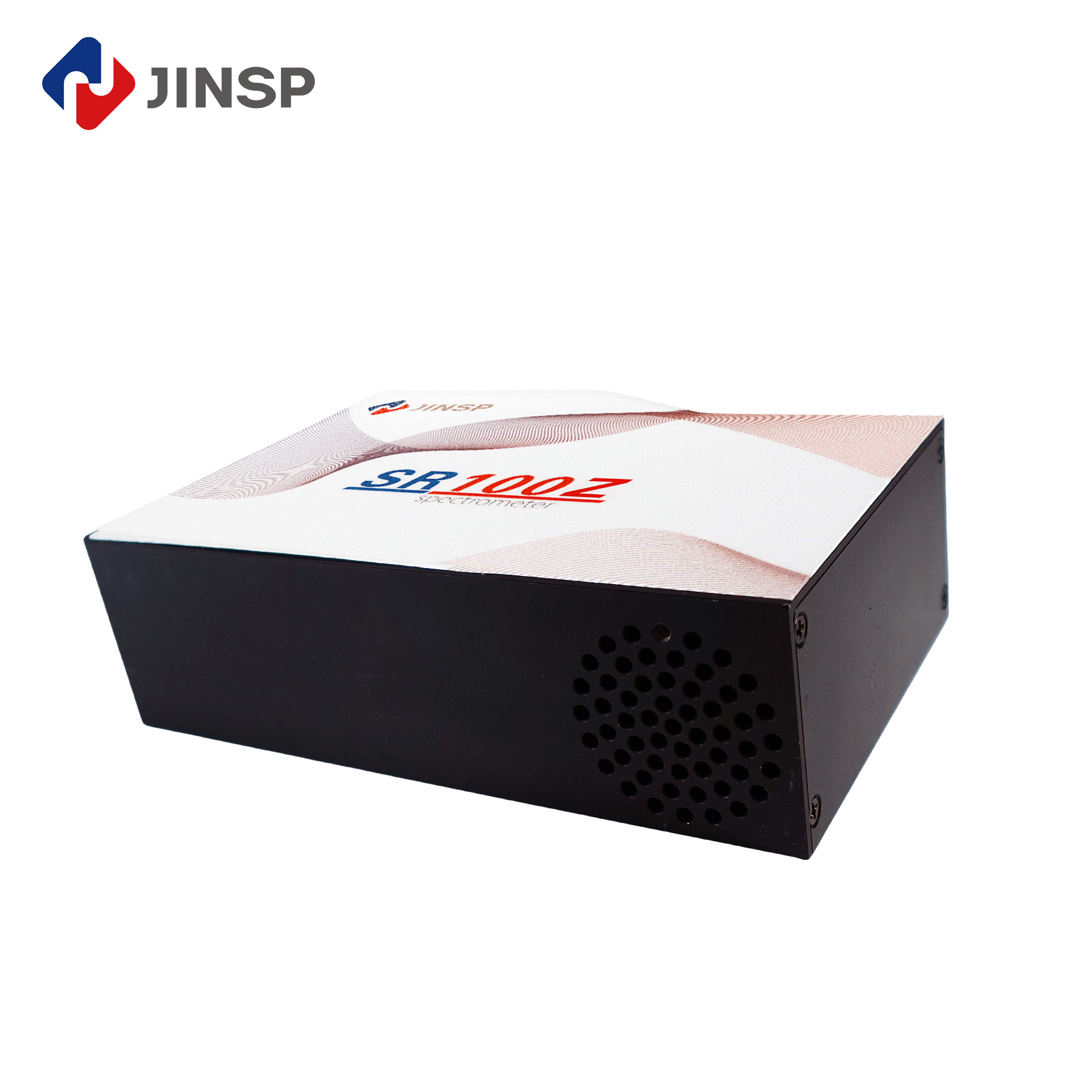

100mm Focal Length Fiber Optic Spectrometer with USB 3.0 Connectivity and Active Cooling System

Contact Now

100mm Focal Length Fiber Optic Spectrometer with USB 3.0 Connectivity and Active Cooling System

Minimum Order Quantity :	1	Price :	USD5100- USD5700
Packaging Details :	International Shipping Package	Delivery Time :	30-40 working days
Payment Terms :	T/T,Western Union	Supply Ability :	100PCS/60 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	ISO9001 CE	Model Number:	SR100Z
Document:	Brochure JINSP HIGH SENSITI...EN.pdf

Detail Information
Spectrual Range:	200nm - 1100nm	Effective Pixels:	2048*64
Pixel Size:	28.672*0.896mm	Fiber Interface:	SMA905, Free Space
Numerical Aperture:	0.13	Integration Time:	4ms~900s
Dimensions:	180mm120mm50mm	Weight:	1.2kg

Product Description

UV-VIS 200nm-1100nm Wide Wavelength Range Fiber Optic Spectrometer

The JINSP SR100Z spectrometer features a high-sensitivity Hamamatsu S11850 back-illuminated CCD with a 2048x64 pixel array, delivering superior spectral accuracy. Its advanced thermoelectric cooling (5°C) ensures low noise and enhanced durability, while the 14x14μm pixel size captures more light for improved SNR. With quantum efficiency twice that of linear sensors (up to 70% in UV), it excels in fluorescence, Raman, and reflection/transmission spectroscopy.

Integrated with a high-resolution imaging path and FPGA low-noise circuitry, the SR100Z guarantees stable, high-speed signal processing. Its expanded detection area makes it ideal for demanding applications, from biomedical research to material analysis, ensuring reliable performance in diverse environments.

Product Parameters:

Detector	Chip Type	Back-illuminated TE-cooling Hamamatsu S11850
	Eﬀective Pixel	2048*64
	Pixel Size	14*14μm
	Sensing Area	28.672*0.896mm
Optical Parameters	Optical Design	F/4 cross type
	Numerical Aperture	0.13
	Focal Length	100mm
	Entrance Slit Width	10μm, 25μm, 50μm, 100μm, 200μm (customizable)
	Fiber Interface	SMA905, free space
Electrical Parameters	Integration Time	4ms~900s
	Data Output Interface	USB3.0, RS232, RS485, 20pin connector
	ADC Bit Depth	16-bit
	Power Supply	5V
	Operating Current	＜3.5A
Physical Parameters	Operating Temperature	10°C ~ 40°C
	Storage Temperature	-20°C ~ 60°C
	Operating Humidity	＜90%RH (no condensation)
	Dimensions	180mm120mm50mm
	Weight	1.2kg

List of Product Models:

Model	Spectral Range( nm)	Resolution( nm)	Slit(μm)
SR100Z-G21	200~1100	2.2nm	50μm
		1.5nm	25μm
		1.0nm	10μm
SR100Z-G23 SR100Z-G24	200~875 350~1025	1.6nm	50μm
		1.0nm	25μm
		0.7nm	10μm
SR100Z-G28	200~345	0.35nm	50μm
		0.2nm	25μm
		0.14nm	10μm
SR100Z-G25	532~720(4900cm-1)	13cm-1	50μm
SR100Z-G26	638~830(3200cm-1)*	10cm-1	25μm
SR100Z-G27	785~1080(3200cm-1)*	11cm-1	50μm

Note:The*are primarily designed for Raman applications, with the corresponding Raman.

Technical Characteristics:

High sensitivity: 78% peak quantum eﬃciency, UV band optimization
High resolution: Realize resolution <1.0nm@25um (200~875nm)
High ﬂexibility: 200nm~1100nm, compatible with multiple interfaces including USB3.0, RS232 and RS485

Typical Applications:

Detect absorption, transmittance and reflection Spectrum
OEM product module: Fluorescence spectrum, Raman spectrum,etc.

100mm Focal Length Fiber Optic Spectrometer with USB 3.0 Connectivity and Active Cooling System 0

Company Introduction:

JINSP – Your Partner in Spectral Detection
For 17+ years, JINSP Company Limited has empowered industries with Raman, FT-IR, and LIBS technologies. Backed by 200+ patents, ISO certifications, and Beijing/Jiangsu operations, we provide fully certified systems (CE, ECAC, ICT, etc.). Whether for security, research, or industrial use, JINSP ensures precision, compliance, and unmatched support.

FAQ

Q1:This is the first time I use,is it easy to operate?

A1:We will send you manual and guide vedio in English,it can teach you how to operate the spectrometer.Also our technicians will offer professional tecnical opearation meetings.

Q2:Can your offer a operation traning?
A2:Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support
( installation , training, debugging, maintenance ).

Q3:What's your website?
A3:You can visit:www.jinsptech.com

Q4:What about your quality assurance?

A4:We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
