Customizable Fiber Optic Spectrometer for Intensity Laser Characterization Numerical Aperture 0.13 2048*64 Effective Pixels

Contact Now

Customizable Fiber Optic Spectrometer for Intensity Laser Characterization Numerical Aperture 0.13 2048*64 Effective Pixels

Minimum Order Quantity :	1	Price :	USD5100- USD5700
Packaging Details :	International Shipping Package	Delivery Time :	30-40 working days
Payment Terms :	T/T,Western Union	Supply Ability :	100PCS/60 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	ISO9001 CE	Model Number:	SR100Z
Document:	Brochure JINSP HIGH SENSITI...EN.pdf

Detail Information
Spectrual Range:	200nm - 1100nm	Effective Pixels:	2048*64
Pixel Size:	28.672*0.896mm	Fiber Interface:	SMA905, Free Space
Numerical Aperture:	0.13	Integration Time:	4ms~900s
Dimensions:	180mm120mm50mm	Weight:	1.2kg

Product Description

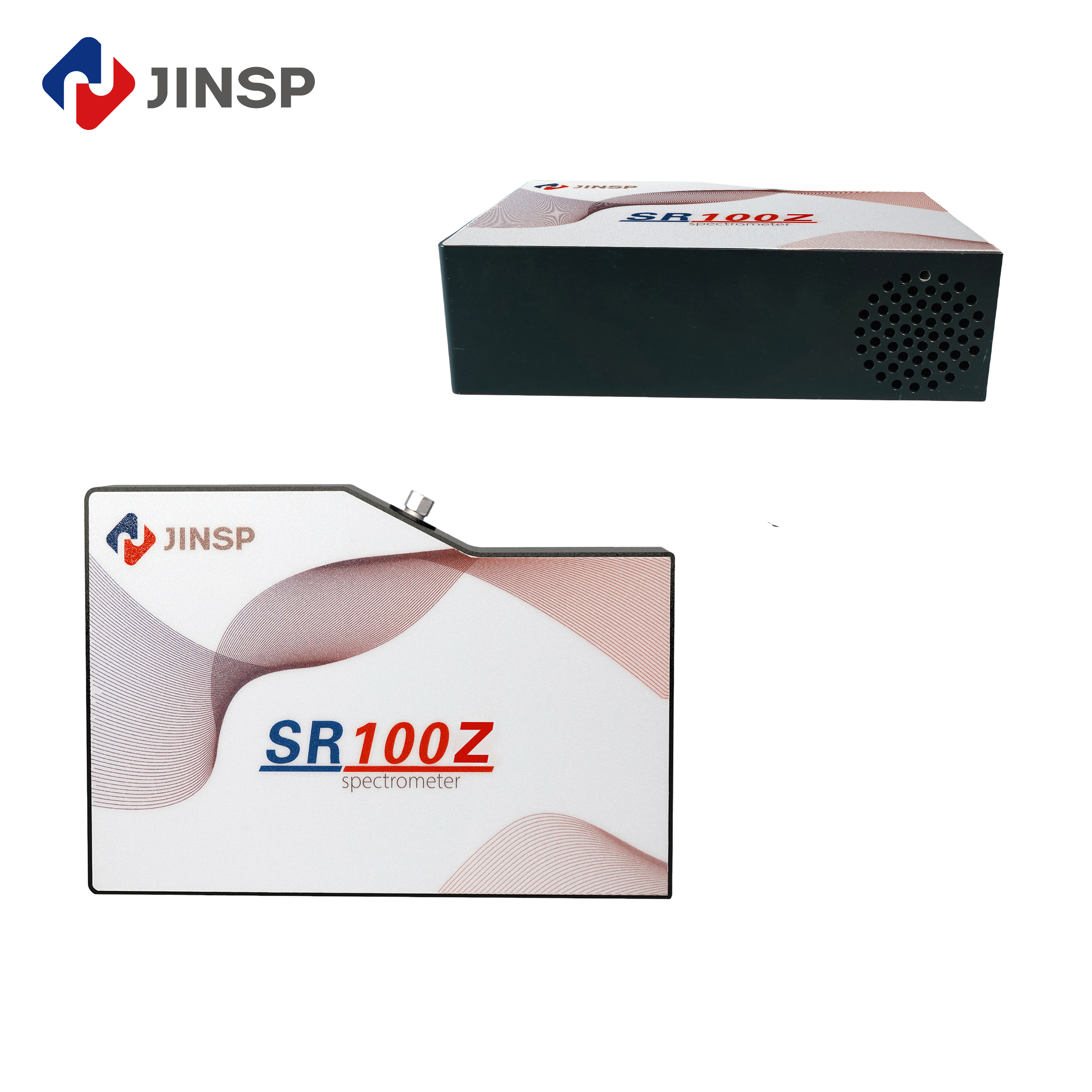

UV-VIS 200nm-1100nm Wide Wavelength Range Fiber Optic Spectrometer

Unlock high-fidelity spectra with the JINSP SR100Z—powered by a back-illuminated CCD for 70% UV efficiency and broadband sensitivity. The active TE cooling ensures consistent 5°C operation, critical for long-exposure experiments. Its 2048-pixel resolution and 14μm pixel pitch provide exceptional detail in Raman and fluorescence studies.

Engineered for demanding environments, the SR100Z integrates low-noise electronics and smart signal processing. From photonics research to QA/QC, it’s the versatile choice for precision spectroscopy.

Product Parameters:

Detector	Chip Type	Back-illuminated TE-cooling Hamamatsu S11850
	Eﬀective Pixel	2048*64
	Pixel Size	14*14μm
	Sensing Area	28.672*0.896mm
Optical Parameters	Optical Design	F/4 cross type
	Numerical Aperture	0.13
	Focal Length	100mm
	Entrance Slit Width	10μm, 25μm, 50μm, 100μm, 200μm (customizable)
	Fiber Interface	SMA905, free space
Electrical Parameters	Integration Time	4ms~900s

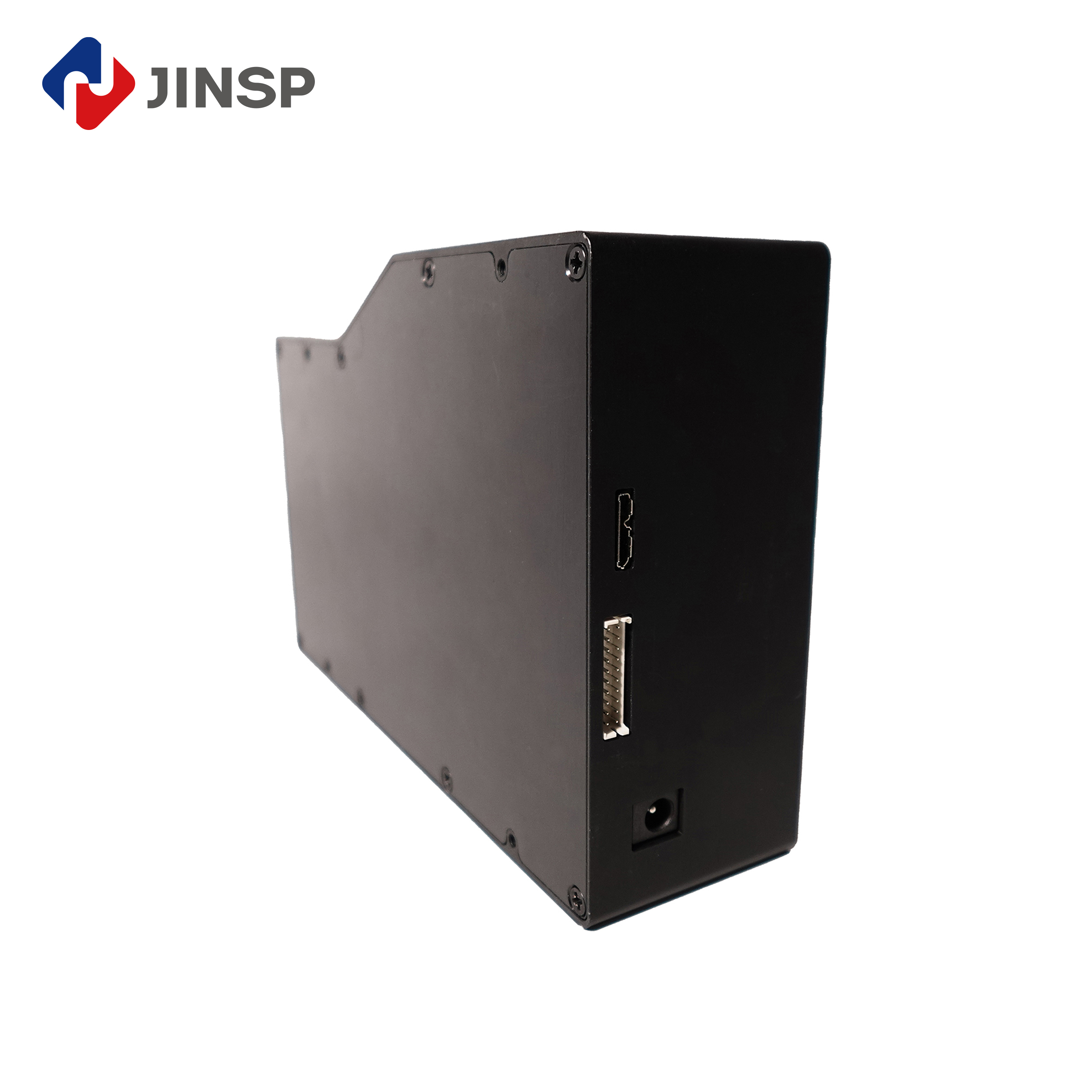

	Data Output Interface	USB3.0, RS232, RS485, 20pin connector
	ADC Bit Depth	16-bit
	Power Supply	5V
	Operating Current	＜3.5A
Physical Parameters	Operating Temperature	10°C ~ 40°C
	Storage Temperature	-20°C ~ 60°C
	Operating Humidity	＜90%RH (no condensation)
	Dimensions	180mm120mm50mm
	Weight	1.2kg

List of Product Models:

Model	Spectral Range( nm)	Resolution( nm)	Slit(μm)
SR100Z-G21	200~1100	2.2nm	50μm
		1.5nm	25μm
		1.0nm	10μm
SR100Z-G23 SR100Z-G24	200~875 350~1025	1.6nm	50μm
		1.0nm	25μm
		0.7nm	10μm
SR100Z-G28	200~345	0.35nm	50μm
		0.2nm	25μm
		0.14nm	10μm
SR100Z-G25	532~720(4900cm-1)	13cm-1	50μm
SR100Z-G26	638~830(3200cm-1)*	10cm-1	25μm
SR100Z-G27	785~1080(3200cm-1)*	11cm-1	50μm

Note:The*are primarily designed for Raman applications, with the corresponding Raman.

Technical Characteristics:

High sensitivity: 78% peak quantum eﬃciency, UV band optimization
High resolution: Realize resolution <1.0nm@25um (200~875nm)
High ﬂexibility: 200nm~1100nm, compatible with multiple interfaces including USB3.0, RS232 and RS485

Core Capabilities:

Spectroscopic Analysis: Measure absorption, transmission, and reflection spectra.
Light Source Characterization: Accurately profile laser and broadband source wavelengths.
Advanced OEM Modules: Integrate fluorescence and Raman spectroscopy into your systems.

Customizable Fiber Optic Spectrometer for Intensity Laser Characterization Numerical Aperture 0.13 2048*64 Effective Pixels 0

Company Introduction:

JINSP – Secure, Certified Spectral Detection Solutions
Trusted by global security and industrial sectors, JINSP Company Limited offers 17 years of expertise in Raman, FT-IR, and LIBS technologies. Our Beijing HQ and Jiangsu plant produce 200+ patented systems, rigorously tested for ECAC, CE, IP Level, and Public Security compliance. When accuracy and certification matter, JINSP delivers.

FAQ

Q1:This is the first time I use,is it easy to operate?

A1:We will send you manual and guide vedio in English,it can teach you how to operate the spectrometer.Also our technicians will offer professional tecnical opearation meetings.

Q2:Can your offer a operation traning?
A2:Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support
( installation , training, debugging, maintenance ).

Q3:What's your website?
A3:You can visit:www.jinsptech.com

Q4:What about your quality assurance?

A4:We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
