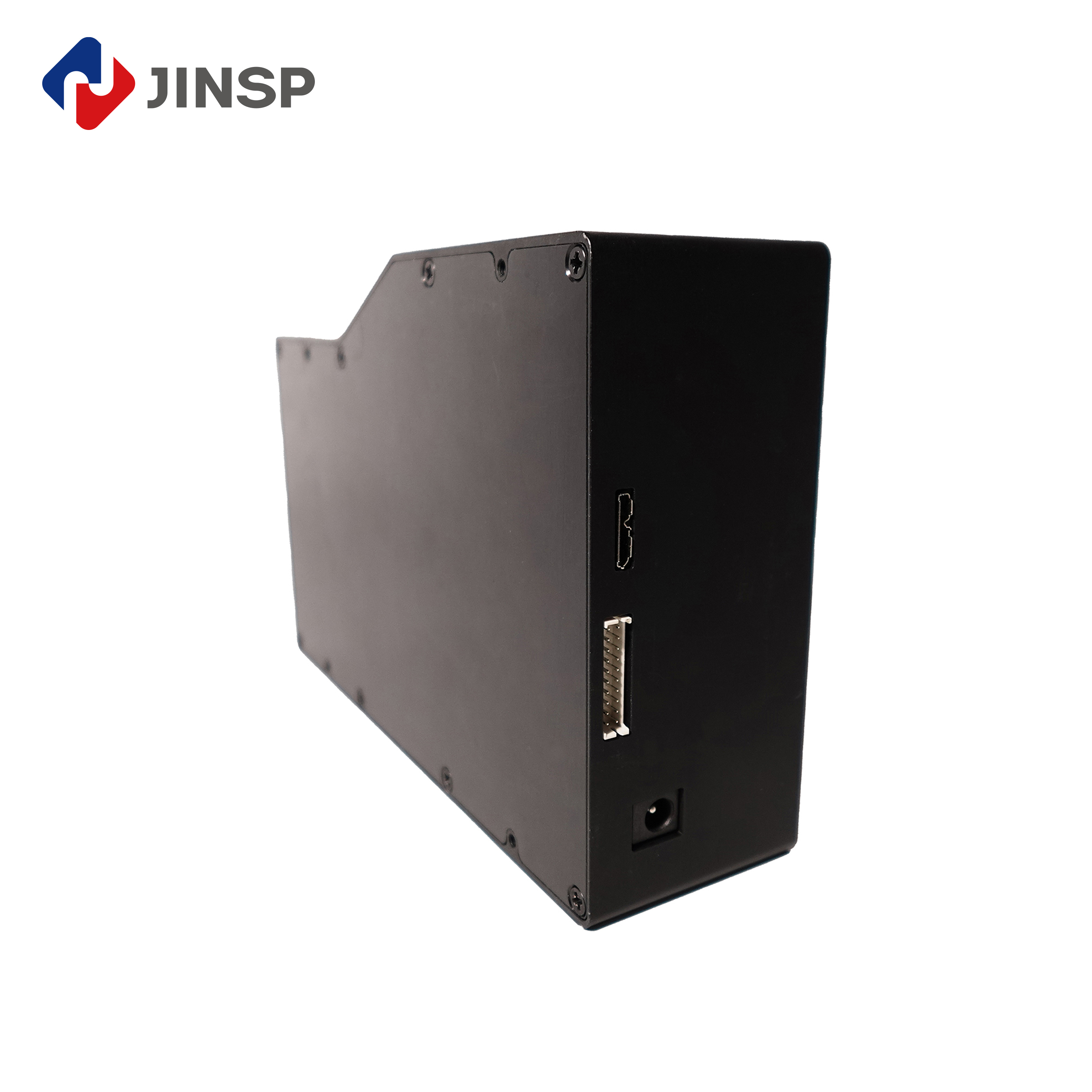

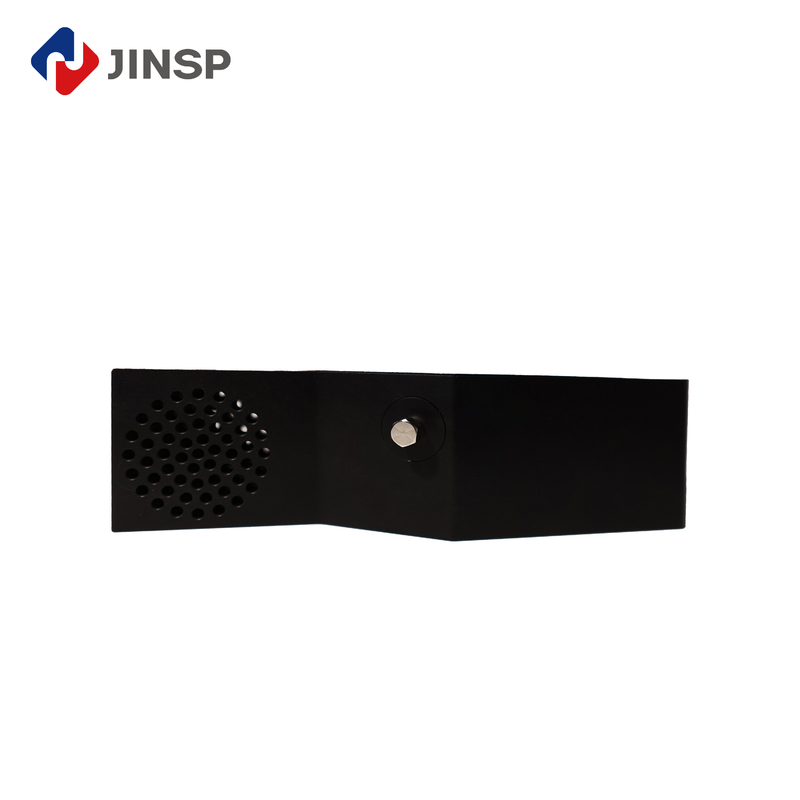

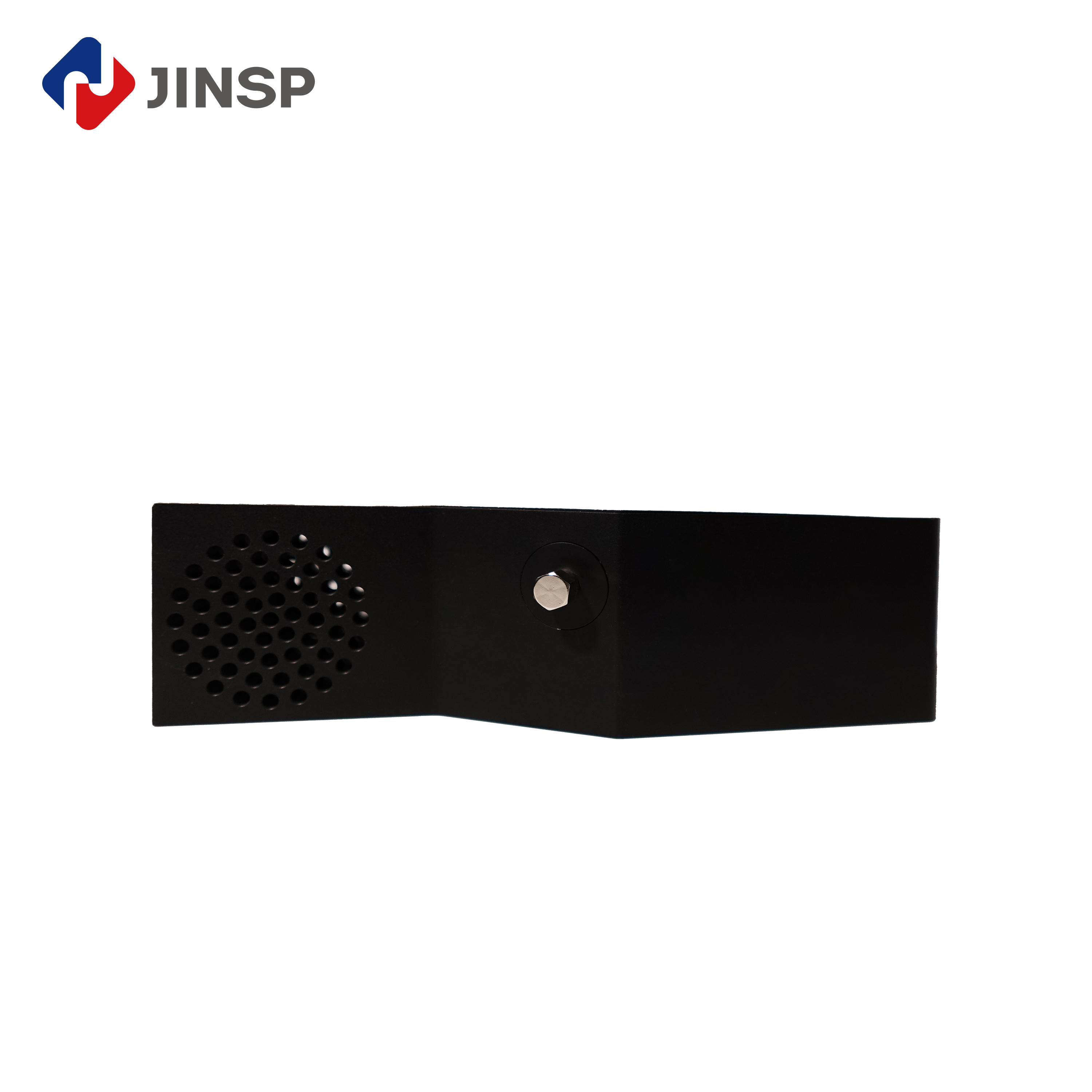

Next-Gen Fiber Optic Spectrometer Dual Advantages of USB 3.0 Connectivity and Pixel Size 28.672*0.896mm for Accurate Analysis

Contact Now

Next-Gen Fiber Optic Spectrometer Dual Advantages of USB 3.0 Connectivity and Pixel Size 28.672*0.896mm for Accurate Analysis

Minimum Order Quantity :	1	Price :	USD5100- USD5700
Packaging Details :	International Shipping Package	Delivery Time :	30-40 working days
Payment Terms :	T/T,Western Union	Supply Ability :	100PCS/60 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	ISO9001 CE	Model Number:	SR100Z
Document:	Brochure JINSP HIGH SENSITI...EN.pdf

Detail Information
Spectrual Range:	200nm - 1100nm	Effective Pixels:	2048*64
Pixel Size:	28.672*0.896mm	Numerical Aperture:	0.13
Data Output Interface:	USB3.0, RS232, RS485, 20pin Connector	Focal Length:	100mm
Dimensions:	180mm120mm50mm	Weight:	1.2kg

Product Description

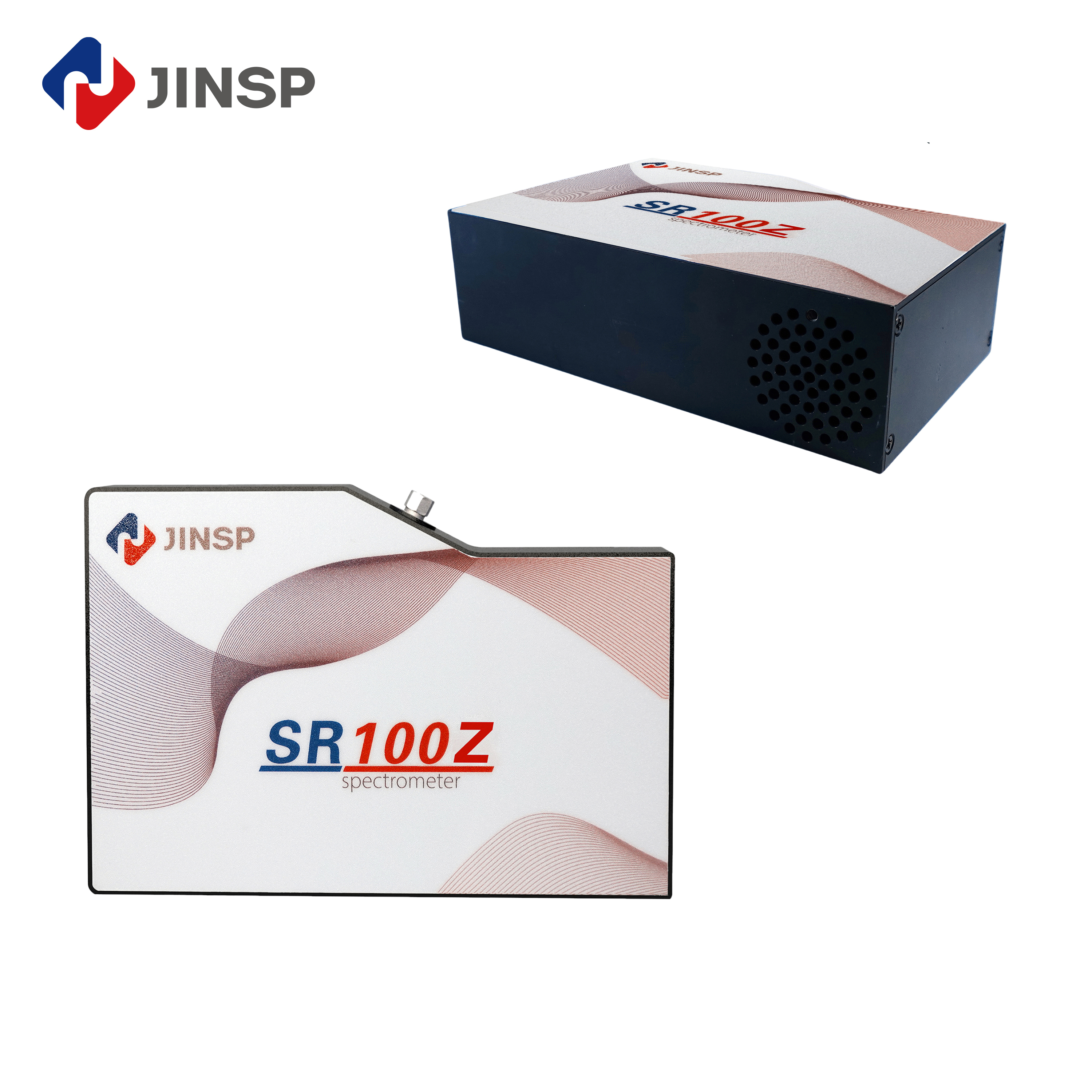

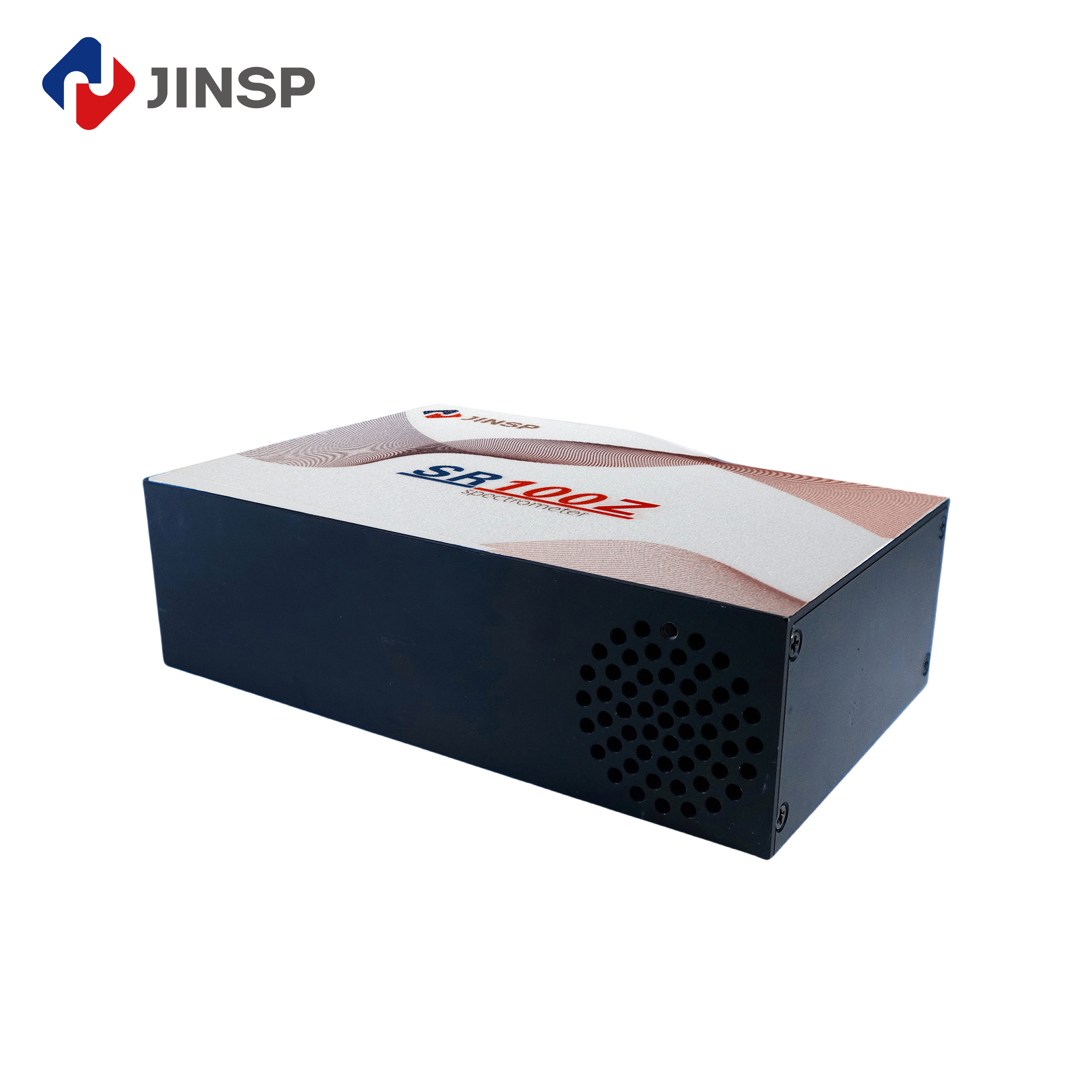

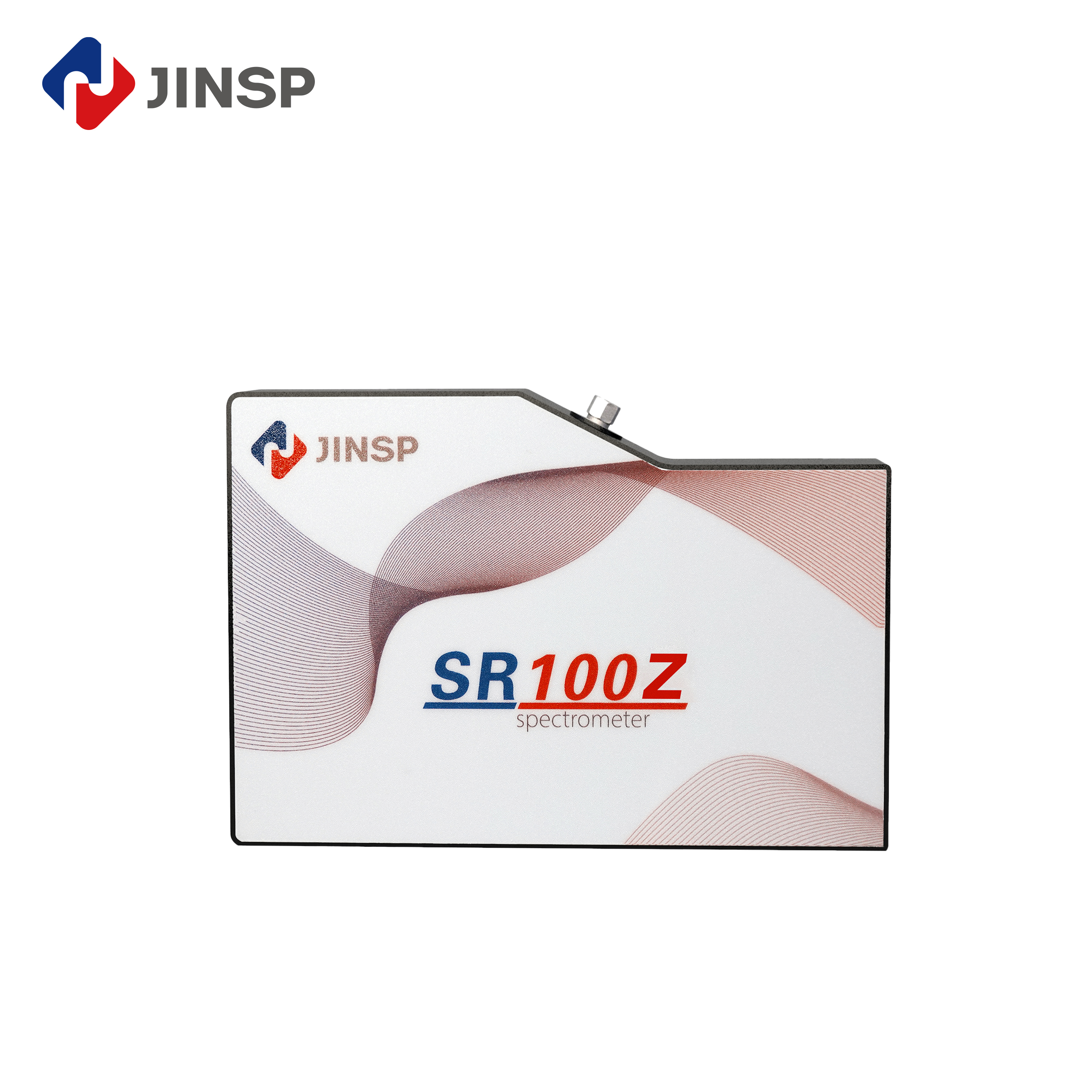

UV-VIS 200nm-1100nm Wide Wavelength Range Fiber Optic Spectrometer

The SR100Z’s Hamamatsu CCD redefines sensitivity, offering 2x QE gains over linear arrays. TE cooling (5°C) extends detector life and cuts noise, while the 2048x64 pixel layout ensures wide spectral coverage. Perfect for ultrafast or low-light apps, it achieves 70% QE at 250nm.

A high-performance optical train and FPGA-based circuitry enable rapid, drift-free measurements. Ideal for chemometrics, plasma diagnostics, and more, this spectrometer balances speed and accuracy.

Product Parameters:

Detector	Chip Type	Back-illuminated TE-cooling Hamamatsu S11850
	Eﬀective Pixel	2048*64
	Pixel Size	14*14μm
	Sensing Area	28.672*0.896mm
Optical Parameters	Optical Design	F/4 cross type
	Numerical Aperture	0.13
	Focal Length	100mm
	Entrance Slit Width	10μm, 25μm, 50μm, 100μm, 200μm (customizable)
	Fiber Interface	SMA905, free space
Electrical Parameters	Integration Time	4ms~900s
	Data Output Interface	USB3.0, RS232, RS485, 20pin connector
	ADC Bit Depth	16-bit
	Power Supply	5V
	Operating Current	＜3.5A
Physical Parameters	Operating Temperature	10°C ~ 40°C
	Storage Temperature	-20°C ~ 60°C
	Operating Humidity	＜90%RH (no condensation)
	Dimensions	180mm120mm50mm
	Weight	1.2kg

List of Product Models:

Model	Spectral Range( nm)	Resolution( nm)	Slit(μm)
SR100Z-G21	200~1100	2.2nm	50μm
		1.5nm	25μm
		1.0nm	10μm
SR100Z-G23 SR100Z-G24	200~875 350~1025	1.6nm	50μm
		1.0nm	25μm
		0.7nm	10μm
SR100Z-G28	200~345	0.35nm	50μm
		0.2nm	25μm
		0.14nm	10μm
SR100Z-G25	532~720(4900cm-1)	13cm-1	50μm
SR100Z-G26	638~830(3200cm-1)*	10cm-1	25μm
SR100Z-G27	785~1080(3200cm-1)*	11cm-1	50μm

Note:The*are primarily designed for Raman applications, with the corresponding Raman.

Technical Characteristics:

High sensitivity: 78% peak quantum eﬃciency, UV band optimization
High resolution: Realize resolution <1.0nm@25um (200~875nm)
High ﬂexibility: 200nm~1100nm, compatible with multiple interfaces including USB3.0, RS232 and RS485

Typical Applications:

Unveil the Hidden Properties of Light! Need to master light analysis? Our ultimate OEM modules have you covered. Characterize any light source, laser, or material with stunning precision. Measure absorption, transmission, and reflection effortlessly. Plus, unlock advanced capabilities like Fluorescence and Raman spectroscopy. Build a smarter product with us!

Next-Gen Fiber Optic Spectrometer Dual Advantages of USB 3.0 Connectivity and Pixel Size 28.672*0.896mm for Accurate Analysis 0

Company Introduction:

JINSP – Secure, Certified Spectral Detection Solutions
Trusted by global security and industrial sectors, JINSP Company Limited offers 17 years of expertise in Raman, FT-IR, and LIBS technologies. Our Beijing HQ and Jiangsu plant produce 200+ patented systems, rigorously tested for ECAC, CE, IP Level, and Public Security compliance. When accuracy and certification matter, JINSP delivers.

FAQ

Q1:This is the first time I use,is it easy to operate?

A1:We will send you manual and guide vedio in English,it can teach you how to operate the spectrometer.Also our technicians will offer professional tecnical opearation meetings.

Q2:Can your offer a operation traning?
A2:Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support
( installation , training, debugging, maintenance ).

Q3:What's your website?
A3:You can visit:www.jinsptech.com

Q4:What about your quality assurance?

A4:We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
