High Sensitivity Fiber Optic Spectrometer 2048*64 Effective Pixel Size and 14*14 mu m Pixel Size Fiber Interface Free Space

Contact Now

High Sensitivity Fiber Optic Spectrometer 204864 Effective Pixel Size and 1414 mu m Pixel Size Fiber Interface Free Space

Minimum Order Quantity :	1	Price :	USD5100- USD5700
Packaging Details :	International Shipping Package	Delivery Time :	30-40 working days
Payment Terms :	T/T,Western Union	Supply Ability :	100PCS/60 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	ISO9001 CE	Model Number:	SR100Z
Document:	Brochure JINSP HIGH SENSITI...EN.pdf

Detail Information
Spectrual Range:	200nm - 1100nm	Effective Pixels:	2048*64
Pixel Size:	28.672*0.896mm	Fiber Interface:	SMA905, Free Space
Numerical Aperture:	0.13	Integration Time:	4ms~900s
Dimensions:	180mm120mm50mm	Weight:	1.2kg

Product Description

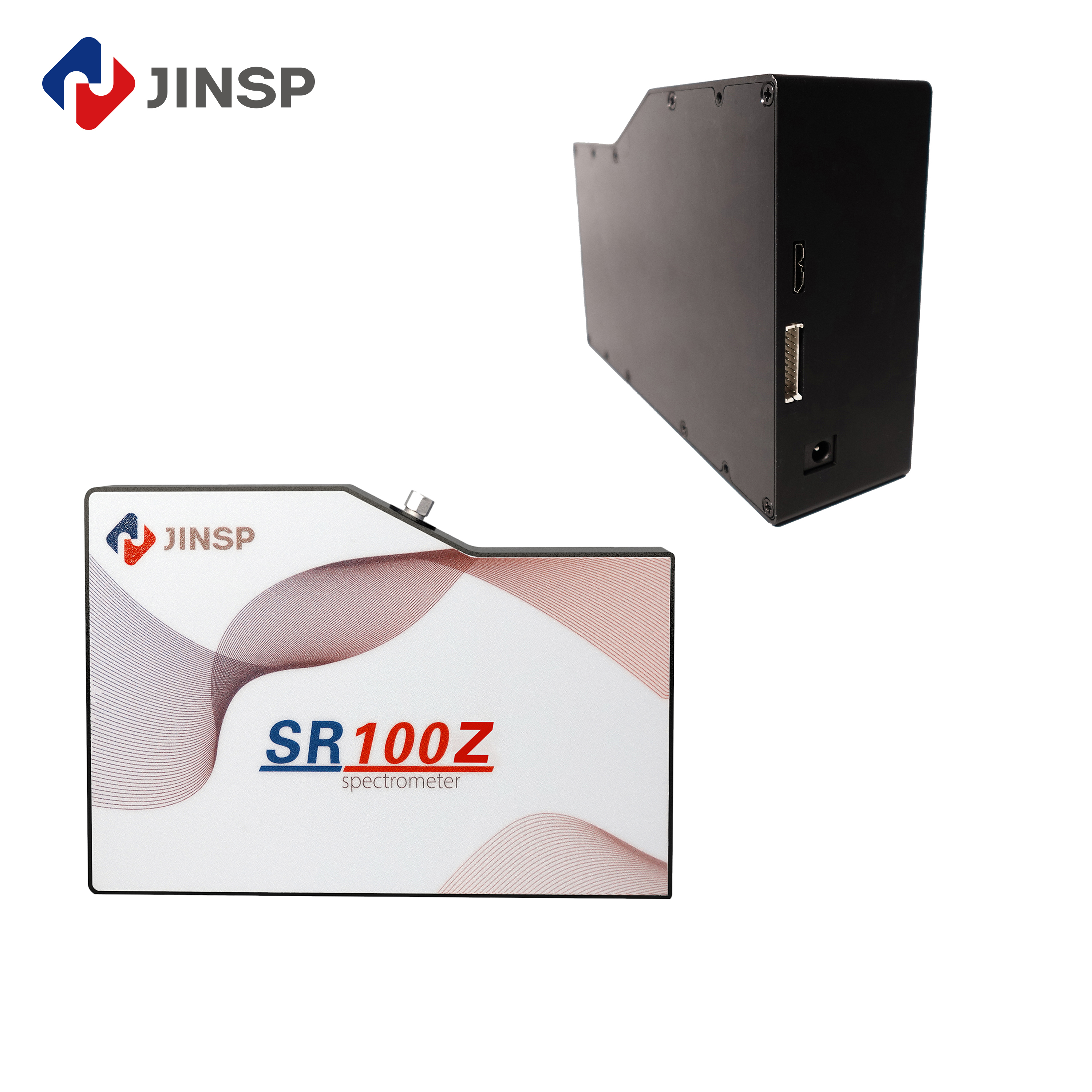

UV-VIS 200nm-1100nm Wide Wavelength Range Fiber Optic Spectrometer

Maximize light throughput with the SR100Z’s 2048x64 CCD, featuring 2x sensitivity in NIR/UV. Active cooling eliminates thermal drift, vital for time-resolved studies. The 14μm pixel design enhances dynamic range, critical for multivariate analysis.

From pharmaceutical testing to semiconductor inspection, its FPGA-enhanced throughput and modular optics adapt to any workflow.

Product Parameters:

Detector	Chip Type	Back-illuminated TE-cooling Hamamatsu S11850
	Eﬀective Pixel	2048*64
	Pixel Size	14*14μm
	Sensing Area	28.672*0.896mm
Optical Parameters	Optical Design	F/4 cross type
	Numerical Aperture	0.13
	Focal Length	100mm
	Entrance Slit Width	10μm, 25μm, 50μm, 100μm, 200μm (customizable)
	Fiber Interface	SMA905, free space
Electrical Parameters	Integration Time	4ms~900s
	Data Output Interface	USB3.0, RS232, RS485, 20pin connector
	ADC Bit Depth	16-bit
	Power Supply	5V
	Operating Current	＜3.5A
Physical Parameters	Operating Temperature	10°C ~ 40°C
	Storage Temperature	-20°C ~ 60°C
	Operating Humidity	＜90%RH (no condensation)
	Dimensions	180mm120mm50mm
	Weight	1.2kg

List of Product Models:

Model	Spectral Range( nm)	Resolution( nm)	Slit(μm)
SR100Z-G21	200~1100	2.2nm	50μm
		1.5nm	25μm
		1.0nm	10μm
SR100Z-G23 SR100Z-G24	200~875 350~1025	1.6nm	50μm
		1.0nm	25μm
		0.7nm	10μm
SR100Z-G28	200~345	0.35nm	50μm
		0.2nm	25μm
		0.14nm	10μm
SR100Z-G25	532~720(4900cm-1)	13cm-1	50μm
SR100Z-G26	638~830(3200cm-1)*	10cm-1	25μm
SR100Z-G27	785~1080(3200cm-1)*	11cm-1	50μm

Note:The*are primarily designed for Raman applications, with the corresponding Raman.

Technical Characteristics:

High sensitivity: 78% peak quantum eﬃciency, UV band optimization
High resolution: Realize resolution <1.0nm@25um (200~875nm)
High ﬂexibility: 200nm~1100nm, compatible with multiple interfaces including USB3.0, RS232 and RS485

Typical Applications:

Empowering Innovation with Precision Light Measurement. Our OEM modules deliver tailored solutions for your application, from fundamental analysis of absorption, transmittance, and reflection to complete light source characterization. Unlock deeper insights with integrated fluorescence and Raman spectrum detection.

High Sensitivity Fiber Optic Spectrometer 2048*64 Effective Pixel Size and 14*14 mu m Pixel Size Fiber Interface Free Space 0

Company Introduction:

JINSP – Pioneering Spectral Detection Since 2007
For over 17 years, JINSP Company Limited has been a technology leader in Raman, FT-IR, and LIBS spectral analysis. Our 200+ patented innovations reflect our dedication to world-class R&D. Operating from Beijing with a Jiangsu production plant, we combine precision engineering with ISO and international certifications (CE, ECAC, ICT, etc.). Whether for security, environmental, or industrial use, JINSP’s cutting-edge spectral solutions set the benchmark for accuracy and reliability.

FAQ

Q1:This is the first time I use,is it easy to operate?

A1:We will send you manual and guide vedio in English,it can teach you how to operate the spectrometer.Also our technicians will offer professional tecnical opearation meetings.

Q2:Can your offer a operation traning?
A2:Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support
( installation , training, debugging, maintenance ).

Q3:What's your website?
A3:You can visit:www.jinsptech.com

Q4:What about your quality assurance?

A4:We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
