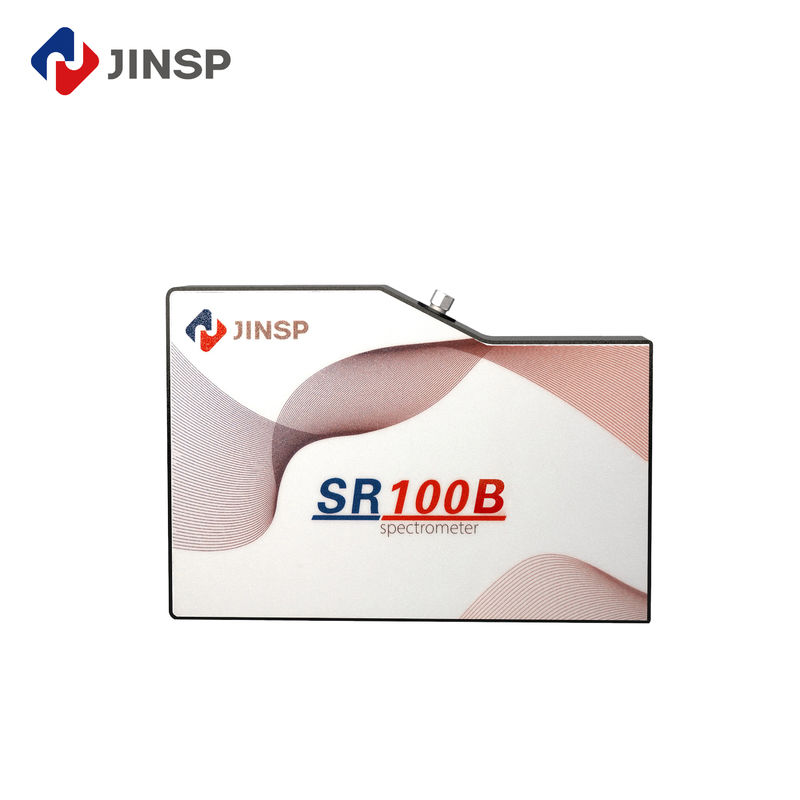

Fiber Optic CCD Spectrometer With Large Sensing Area And High Sensitivity

Contact Now

Fiber Optic CCD Spectrometer With Large Sensing Area And High Sensitivity

Minimum Order Quantity :	1	Price :	USD3900 - USD4300
Packaging Details :	International Shipping Package	Delivery Time :	30-400 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100PCS/30-40 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	ISO9001 CE	Model Number:	SR100B

Detail Information
Spectrual Range:	200nm - 1100nm	Effective Pixels:	2048*64
Pixel Size:	28.672*0.896mm	Integration Time:	4ms~900s
Dimensions:	180mm120mm50mm	Weight:	1.2kg
Highlight:	High Sensitivity Fiber Optic Spectrometer , High Sensitivity optical fiber spectroscopy , CE Fiber Optic CCD Spectrometer

Product Description

Fiber Optic CCD Spectrometer With Large Sensing Area And High Sensitivity

Key Specifications

Spectral Range	200nm - 1100nm
Effective pixels	2048*64
Pixel Size	28.672*0.896mm
Integration Time	4ms~900s
Dimensions	180mm120mm50mm
Weight	1.2kg

Product Overview

The SR100B spectrometer features a back-illuminated CCD UV enhanced high sensitivity design, making it ideal for industrial, laboratory, and research applications. Equipped with a Hamamatsu S10420 CCD chip, it offers exceptional quantum efficiency and stable spectral readings across a 200-1100nm wavelength range.

Technical Specifications

Detector
Chip Type	Back-illuminated cooling Hamamatsu S10420
Effective Pixel	2048*64
Pixel Size	14*14μm
Sensing Area	28.672*0.896mm
Optical Parameters
Optical Design	F/4 cross type
Numerical Aperture	0.13
Focal Length	100mm
Entrance Slit Width	10μm,25μm,50μm,100μm,200μm (customizable)
Fiber Interface	SMA905, free space
Electrical Parameters
Integration Time	4ms~900s
Data Output Interface	USB3.0, RS232, RS485, 20pin connector
ADC Bit Depth	16-bit
Power Supply	5V
Operating Current	<3.5A
Physical Parameters
Operating Temperature	10℃~40℃
Storage Temperature	-20℃~60℃
Operating Humidity	<90%RH (no condensation)
Dimensions	180mm120mm50mm
Weight	1.2kg

Available Models

Model	Spectral Range(nm)	Resolution(nm)	Slit(μm)
SR100B-G21	200~1100	2.2 (50μm) 1.5 (25μm) 1.0 (10μm)	50, 25, 10
SR100B-G24	200~875 350~1025	1.6 (50μm) 1.0 (25μm) 0.7 (10μm)	50, 25, 10
SR100B-G28	200~345	0.35 (50μm) 0.2 (25μm) 0.14 (10μm)	50, 25, 10
SR100B-G25	532~720(4900cm-1*)	13cm-1	50
SR100B-G26	638~830(3200cm-1)	10cm-1	25
SR100B-G27	785~1080(3200cm-1)	11cm-1	50

Note: Models marked with * are primarily designed for Raman applications.

Key Features

High sensitivity with back-illuminated detector and optimized ultraviolet band
High resolution (<1.0nm@10μm in 200~1100nm range)
Flexible operation with 180~1100nm range and multiple interface options (USB3.0, RS232, RS485)
Reliable performance with ultra-high SNR and excellent thermal stability

Applications

Absorption, transmittance and reflection spectrum detection
Light source and laser wavelength characterization
OEM product modules for fluorescence spectrum, Raman spectrum, etc.

About JINSP

JINSP Company Limited is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, and LIBS technologies. With headquarters in Beijing and a manufacturing facility in Jiangsu, China, JINSP holds ISO9001:2015, ISO14001:2015, and ISO45001:2018 certifications.

The company's core technologies have reached international leading levels, with over 200 patent applications. JINSP can provide various certifications including CE Certification, EU ECAC certification, and German ICT Security Testing.

Frequently Asked Questions

Q1: This is my first time using this product. Is it easy to operate?

A1: We provide an English manual and guide video, along with professional technical operation meetings with our technicians.

Q2: Do you offer operation training?

A2: We offer training at our factory or can provide on-site support including installation, training, debugging, and maintenance.

Q3: What's your website?

A3: Visit us at www.jinsptech.com

Q4: What about your quality assurance?

A4: All goods undergo quality inspection before shipment, with inspection photos available upon request.
