CCD High Performance Fiber Optic Spectrometer Module Back Illuminated Fiber Spectrometer

Contact Now

CCD High Performance Fiber Optic Spectrometer Module Back Illuminated Fiber Spectrometer

Minimum Order Quantity :	1	Price :	USD3900 - USD4300
Packaging Details :	International Shipping Package	Delivery Time :	30-400 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100PCS/30-40 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	ISO9001 CE	Model Number:	SR100B

Detail Information
Spectrual Range:	200nm - 1100nm	Effective Pixels:	2048*64
Pixel Size:	28.672*0.896mm	Integration Time:	4ms~900s
Dimensions:	180mm120mm50mm	Weight:	1.2kg
Numerical Aperture:	0.13	Data Output Interface:	USB3.0,RS232,RS485,20pin Connector
Highlight:	CCD Fiber Optic Spectrometer Module , High Performance Fiber Optic Spectrometer Module , CCD Back Illuminated Fiber Spectrometer

Product Description

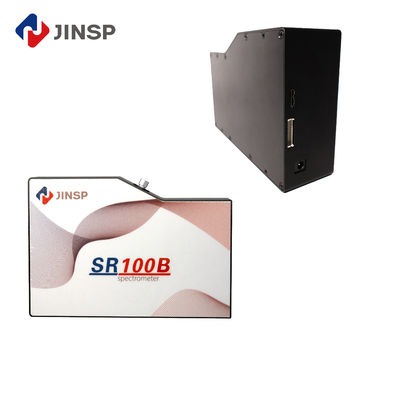

CCD High Performance Fiber Optic Spectrometer Module Back Illuminated Fiber Spectrometer

Product Overview

The SR100B spectrometer features cutting-edge back-illuminated CCD technology for exceptional performance in scientific and industrial applications. With its Hamamatsu S10420 CCD chip offering a 2048x64 pixel format and 14x14μm pixel size, it delivers remarkable quantum efficiency and sensitivity across the 200-1100nm wavelength range.

Key Specifications

Attribute	Value
Spectral Range	200nm - 1100nm
Effective pixels	2048*64
Pixel Size	28.672*0.896mm
Integration Time	4ms~900s
Dimensions	180mm120mm50mm
Weight	1.2kg
Numerical Aperture	0.13
Data Output Interface	USB3.0, RS232, RS485, 20pin connector

Detailed Parameters

Category	Parameter	Value
Detector	Chip Type	Back-illuminated cooling Hamamatsu S10420
	Effective Pixel	2048*64
	Pixel Size	14*14μm
Optical Parameters	Optical Design	F/4 cross type
	Numerical Aperture	0.13
	Focal Length	100mm
	Entrance Slit Width	10μm,25μm,50μm,100μm,200μm (customizable)
	Fiber Interface	SMA905, free space
Electrical Parameters	Integration Time	4ms~900s
	Data Output Interface	USB3.0,RS232,RS485,20pin connector
	ADC Bit Depth	16-bit
	Power Supply	5V
Physical Parameters	Operating Temperature	10℃~40℃
	Storage Temperature	-20℃~60℃
	Operating Humidity	<90%RH(no condensation)
	Dimensions	180mm120mm50mm
	Weight	1.2kg

Product Models

Model	Spectral Range(nm)	Resolution(nm)	Slit(μm)
SR100B-G21	200~1100	2.2 (50μm) 1.5 (25μm) 1.0 (10μm)	50 25 10
SR100B-G23
SR100B-G24	200~875 350~1025	1.6 (50μm) 1.0 (25μm) 0.7 (10μm)	50 25 10
SR100B-G28	200~345	0.35 (50μm) 0.2 (25μm) 0.14 (10μm)	50 25 10
SR100B-G25	532~720(4900cm-1*)	13cm-1	50
SR100B-G26	638~830(3200cm-1)	10cm-1	25
SR100B-G27	785~1080(3200cm-1)	11cm-1	50

Note: Models marked with * are primarily designed for Raman applications.

Technical Characteristics

High sensitivity - Features area array back-illuminated detector with high quantum efficiency and optimized ultraviolet band
High resolution - Resolution <1.0nm@10μm (200~1100nm)
High flexibility - 180~1100nm range, compatible with multiple interfaces including USB3.0, RS232 and RS485
High reliability - Ultra-high SNR and excellent thermal performance

Typical Applications

Material absorption, transmission, and reflection spectra analysis
Light source and laser wavelength characterization
Customized OEM module options for fluorescence and Raman spectra analysis

About JINSP

JINSP Company Limited is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, and LIBS technologies. With over 200 patent applications, our core technologies have reached international leading levels.

Headquartered in Beijing with a manufacturing facility in Jiangsu, China, JINSP holds ISO9001:2015, ISO14001:2015, and ISO45001:2018 certifications. We can provide various required certifications including CE Certification, EU ECAC certification, and German ICT Security Testing.

Frequently Asked Questions

Q1: Is this spectrometer easy to operate for first-time users?

A1: We provide an English manual and instructional video, along with professional technical support meetings with our technicians.

Q2: Do you offer operation training?

A2: We offer both on-site training at our factory and local support from JINSP engineers for installation, training, debugging, and maintenance.

Q3: What is your website?

A3: Visit us at www.jinsptech.com

Q4: What quality assurance do you provide?

A4: All goods undergo thorough quality inspection before shipment, with inspection photos available upon request.
