Customizable Back Illuminated Fiber Optic CCD Spectrometer With High Sensitivity

Minimum Order Quantity : 1 Price : USD3900 - USD4300
Packaging Details : International Shipping Package Delivery Time : 30-400 working days
Payment Terms : T/T, Western Union Supply Ability : 100PCS/30-40 days
Place of Origin: CHINA Brand Name: JINSP
Certification: ISO9001 CE Model Number: SR100B

Detail Information

Spectrual Range: 200nm - 1100nm Effective Pixels: 2048*64
Pixel Size: 28.672*0.896mm Integration Time: 4ms~900s
Dimensions: 180mm*120mm*50mm Weight: 1.2kg
Highlight:

Customizable Fiber Optic CCD Spectrometer

,

Back Illuminated Fiber Optic CCD Spectrometer

,

Back Illuminated fiber coupled spectrometer

Product Description

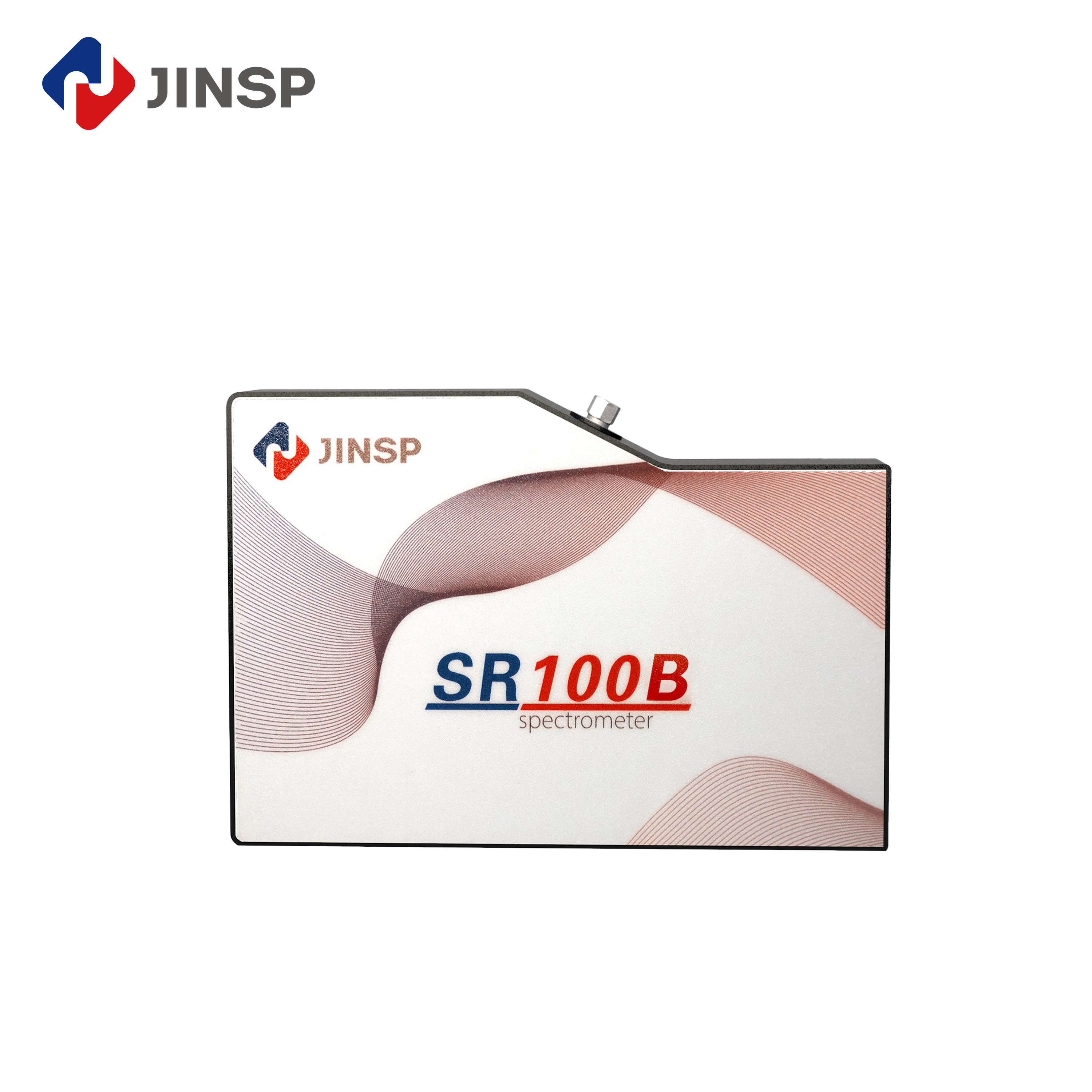

Backlit array CCD UV enhanced High Sensitivity Modular Spectrometer

The SR100B spectrometer is a powerhouse of spectral analysis, boasting a back-illuminated CCD sensor with exceptional performance metrics. It is a go-to solution for industrial, laboratory, and research applications that demand precision and speed. The Hamamatsu S10420 CCD chip provides a vast sensing area and ensures stable spectral measurements. With a 2048x64 pixel array and 14x14μm pixel size, the SR100B delivers outstanding quantum efficiency and sensitivity across the 200-1100nm spectrum.



The spectrometer can be tailored with various gratings and slit widths to meet specific spectral resolution and sensitivity requirements. Its high-resolution optical path and advanced FPGA signal processing technology ensure superior spectrum signals and a stable, dependable performance.



Product Parameters:

Detector

Chip Type

Back-illuminated cooling Hamamatsu S10420

Effective Pixel

2048*64

Pixel Size

14*14μm

Sensing Area

28.672*0.896mm

Optical
Parameters

Optical Design

F/4 cross type

Numerical Aperture

0.13

Focal Length

100mm

Entrance Slit Width

10μm,25μm,50μm,100μm,200μm
(customizable)

Fiber Interface

SMA905,free space

Electrical
Parameters

Integration Time

4ms~900s

Data Output Interface

USB3.0,RS232,RS485,20pin connector

ADC Bit Depth

16-bit

Power Supply

5V

Operating Current

<3.5A

Physical
Parameters

Operating Temperature

10~40

Storage Temperature

-20~60

Operating Humidity

<90%RH(no condensation)

Dimensions

180mm*120mm*50mm

Weight

1.2kg



List of Product Models:

Model

Spectral Range(nm)

Resolution(nm)

Slit(μm)

SR100B-G21

200~1100

2.2

50

1.5

25

1.0

10

SR100B-G23

SR100B-G24


200~875

350~1025

1.6

50

1.0

25

0.7

10

SR100B-G28

200~345

0.35

50

0.2

25

0.14

10

SR100B-G25

532~720(4900cm-1*)*

13cm-1

50

SR100B-G26

638~830(3200cm-1)*

10cm-1

25

SR100B-G27

785~1080(3200cm-1)*

11cm-1

50

Note:The*are primarily designed for Raman applications, with the corresponding Raman.



Technical Characteristics:

  • High sensitivity-Fitted with area array back-illuminated detector with high quantum efficiency,optimizable ultraviolet band
  • High resolution -Resolution<1.0nm@10μm (200~1100nm)
  • High flexibility-180~1100nm,compatible with multiple interfaces including USB3.0,RS232 and RS485
  • High reliability -Ultra-high SNR and excellent thermal



Typical Applications:

  • Detect absorption, transmittance and reflection Spectrum
  • Light source and laser wavelength characterization
  • OEM product module:Fluorescence spectrum,Raman spectrum,etc.
