See the Composition Profile Inside Your C8 Separation Process
What is happening inside an adsorption tower cannot always be understood from a periodic laboratory sample.
In PX production, the concentration of C8 aromatic components changes continuously as the separation process operates. A measurement taken several minutes earlier may provide useful information—but it cannot show the current concentration profile.
JINSP RS2000PAT Online Raman Analyzer brings continuous analytical measurement directly into the adsorption process.
From Periodic Samples to Continuous Visibility
PX production involves the separation of a difficult C8 aromatic mixture containing PX, MX, OX and EB.
Because these components have similar boiling points, adsorption separation is widely used.
The challenge is not simply measuring the composition. It is obtaining the information frequently enough to support process decisions.
RS2000PAT addresses this challenge through in-situ Raman monitoring.
Multiple Points, One Process Picture
Raman probes can be installed at different positions within the adsorption tower.
Each monitoring point provides current compositional information. Together, these measurements can reveal how the C8 aromatic concentration profile changes through the separation system.
The result is a practical “concentration radar” for the adsorption process.
What Operators Can See
Depending on the configured analytical model, the system can provide information on:
- Component concentration
- Concentration changes
- Process trends
- Reaction/process abnormalities
- Product consistency
- Process status
The product documentation identifies raw materials, products, intermediates and by-products as monitorable component categories and lists reaction endpoints, abnormality, conversion and product qualification among possible output information.
PX Quantification
For the demonstrated PX application, the Raman analyzer accurately extracts the PX signal from the surrounding C8 aromatic background. The reported PX quantitative deviation is below 0.07%.
Connect Measurement to Action
RS2000PAT can transmit measurement results to the plant's central control system, allowing real-time analytical information to become part of process control.
This can support:
- Faster operating adjustments
- Better monitoring of adsorption performance
- Optimization of adsorbent cycles
- Reduced offline sampling
- Lower laboratory workload
The goal is straightforward: provide the process team with current concentration information when it is needed—not only after the sample reaches the laboratory.

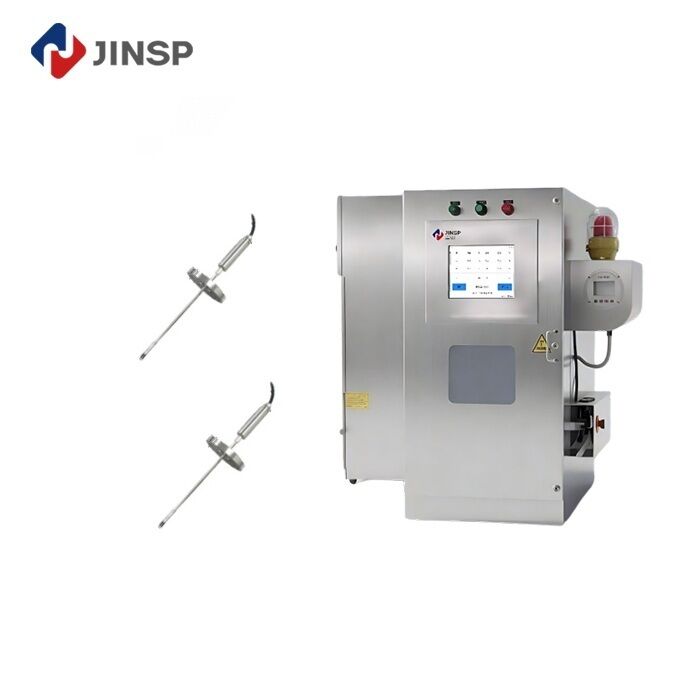

Technical Parameters:
|
Model number
|
RS2000PAT
|
|
Number of detection channels
|
Single channel, monitoring 1 position only
|
|
Device dimension
|
800 mm(width)× 900 mm(depth)× 1300 mm(height)
|
|
Operating temperature
|
-20 ~ 50 ℃
|
|
Explosion Proof (Main Unit)
|
ExdbebibmbpxbIICT4Gb / ExtbibmbIIICT135℃Db
|
|
Thermostat
|
Three-level temperature control system design can operate stably for a long time in an environment of -20 ~ 50 ℃ , and is suitable for online monitoring environments in different factories
|
|
Connectivity
|
RS485 and RJ45 network ports provide Mod Bus protocol, can be adapted to many types of industrial control systems and can feedback results to the control system.
|
|

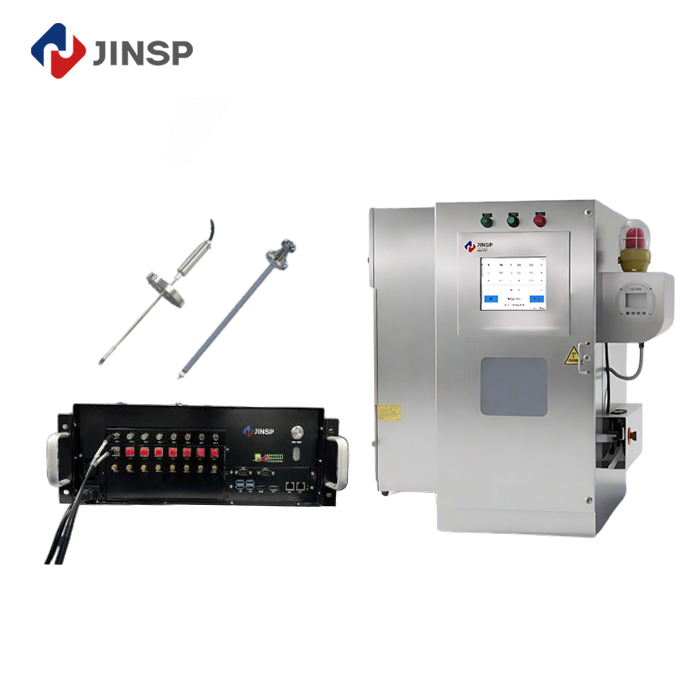

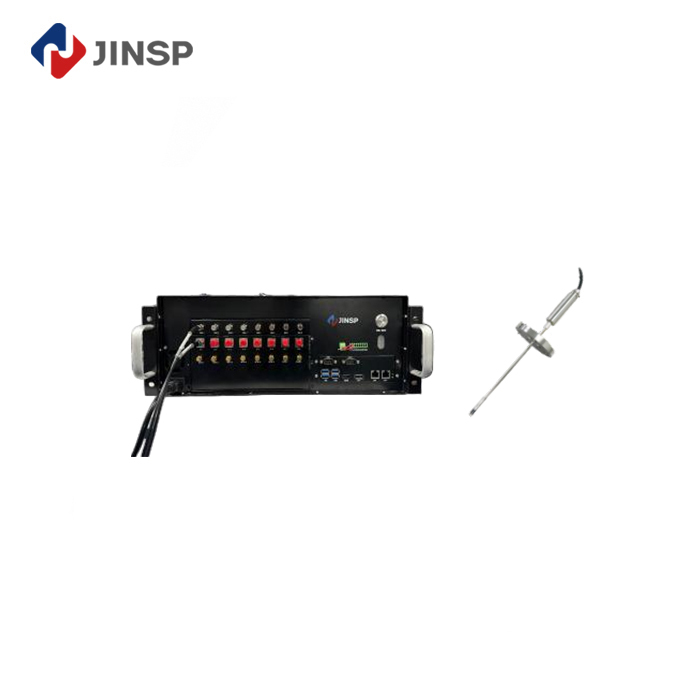

Probe
|
1pc standard immerssion fiber optic probe and 1pc non-immersion probe
|
|
Multi-component monitoring
|
Simultaneously obtain the content of multiple components during the reaction process, collect single-channel signals continuously in real-time, and the substance content and change trend can be given in real-time, enabling intelligent analysis of unknown components during the reaction process.
|
|
Consistency
|
Patented algorithms for device calibration and model transfer ensure data consistency across multiple devices
|
|
Smart modeling
|
Intelligent matching of optimal algorithms, or customize multiple machine learning models according to the needs of one-click automatic modeling
|
|
Self-learning modeling
|
Equipped with self-learning modeling capabilities, it eliminates the need for sampling and manual modeling. It can intelligently select optimal collection parameters, monitor changes in various components within the system in real-time, automatically identify and assist in analysis. This aids in understanding and monitoring reactions without the need for manual intervention
|
|
24h working
|
Built-in real-time automatic calibration and self-test, thermostatic control and positive pressure protection. Works well in high and low temperatures, explosive and corrosive environments.
|
|
% Relative humidity
|
0~90%RH
|
|
Power supply
|
900 W (max)；500 W (typical running)
|
|
Pre-heating time
|
＜60 min
|
Company Introduction:
JINSP COMPANY LIMITED is a professional enterprise focusing on spectral analysis technology. Rooted in Tsinghua University, it has accumulated 19 years of technical expertise with over 200 patent applications. The company has participated in formulating 4 national standards for Raman spectroscopy and 1 international standard, and has won authoritative awards including China Patent Excellence Award, Geneva International Invention Award, and Zhu Liang-Yi Analytical Instrument “Innovation Achievement Award”.
