| 최소 주문 수량 : | 1 | 가격 : | USD12900 - USD14300 |
|---|---|---|---|
| 포장 세부 사항 : | 맞춤형 포장 | 배달 시간 : | 90-120 근무일 |
| 지불 조건 : | T/T, Western Union | 공급 능력 : | 5PCS/90-120일 |
| 원래 장소: | 중국 | 브랜드 이름: | JINSP |
|---|---|---|---|
| 인증: | ISO9001 | 모델 번호: | SR100Q |
|
상세 정보 |
|||
| 스펙트럼 범위: | 200nm -1100nm | 효과적인 픽셀: | 1024*122 |
|---|---|---|---|
| 큐텀 효율성: | QE92%피크@650nm, 83%@232nm | SNR: | 1000 : 1 |
제품 설명

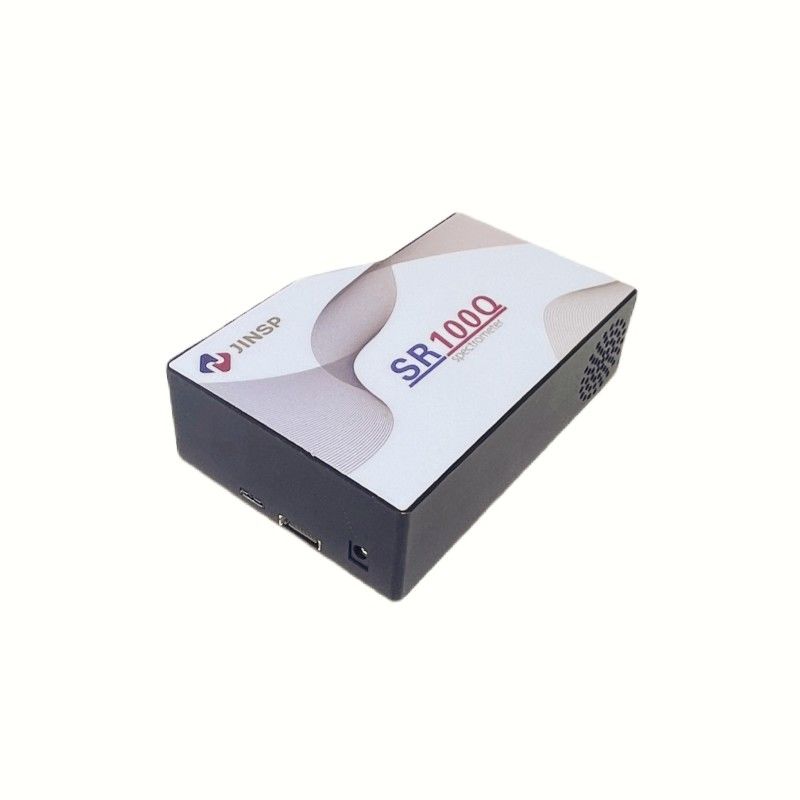

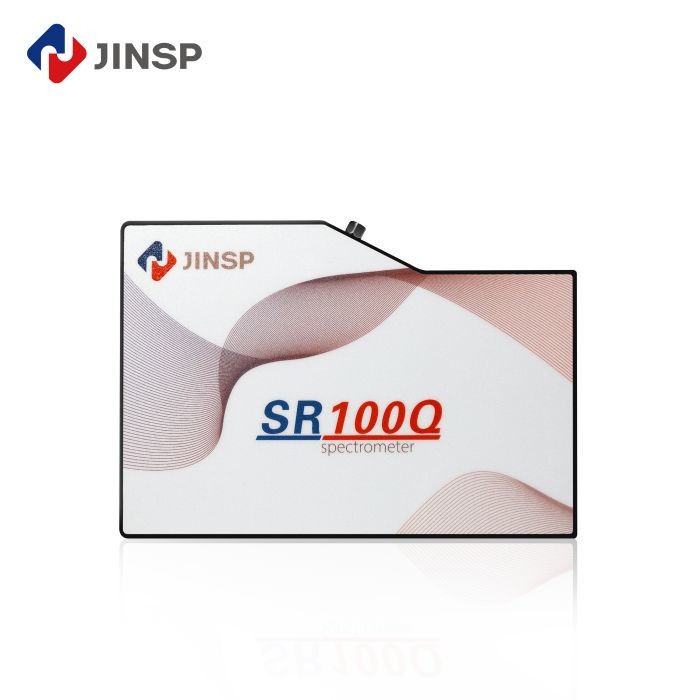

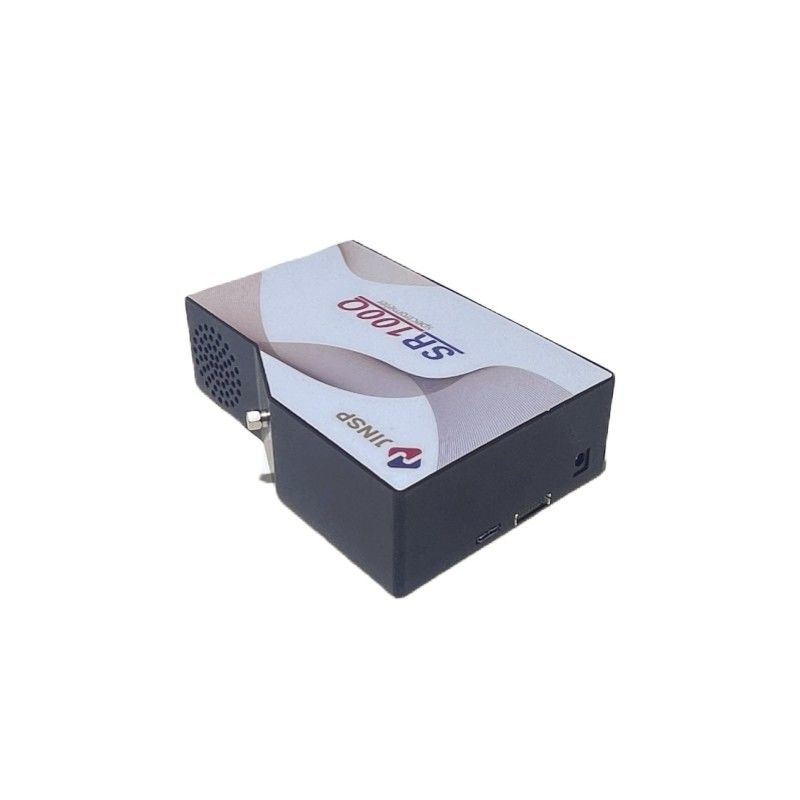

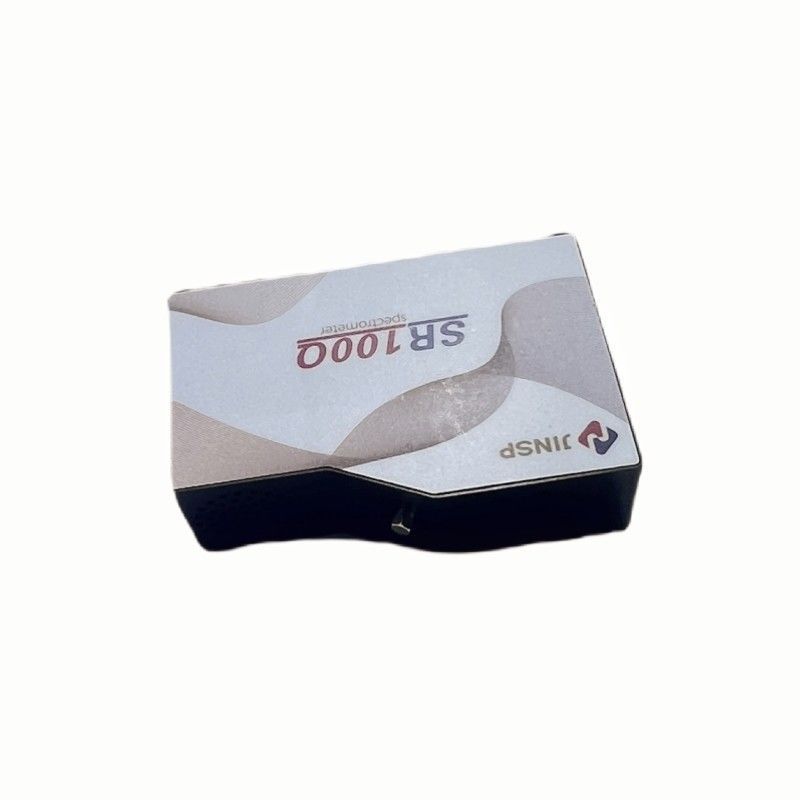

The JINSP SR100Q is a versatile spectrometer optimized for both weak-light detection and high-speed spectral acquisition. Its scientific-grade CCD sensor ensures high quantum efficiency and low noise, supported by thermoelectric cooling for stable long-term operation. The spectrometer’s wide spectral range makes it perfect for applications including fluorescence, absorption, Raman, and laser diagnostics.
Ideal for OEM integration, the SR100Q can be embedded into custom systems for specialized uses such as thin-film quality inspection and laser process monitoring. Its high SNR and adaptive environmental performance make it suitable for lab and field applications alike.
Backed by USB3.0 technology, this spectrometer offers rapid data processing and ease of use, meeting the needs of modern photonic research and industrial metrology.
| Detector | Chip Type | Back-illuminated TE-cooled Hamamatsu S7031 |
| Effective Pixel | 1024*122 | |
| Pixel Size | 24*24μm | |
| Sensing Area | 24.576*2.928mm | |
| Optical Parameters |
Optical Design | F/4 cross-type |
| Numerical Aperture | 0.13 | |
| Focal Length | 100mm | |
| Entrance Slit Width | 10μm,25μm,50μm,100μm,200μm (customizable) |
|
| Fiber Interface | SMA905,free space | |
| Electrical Parameters |
Integration Time | 8ms-3600s |
| Data Output Interface | USB3.0,RS232,RS485,20pin connector | |
| ADC Bit Depth | 16-bit | |
| Power Supply | 5V | |
| Operating Current | <3.5A | |
| Physical Parameters |
Operating Temperature | 10℃~40℃ |
| Storage Temperature | -20℃~60℃ | |
| Operating Humidity | <90%RH (no condensation) | |
| Dimensions | 180mm*120mm*50mm | |
| Weight | 1.2kg |
| Model | Spectral Range(nm) | Resolution(nm) | Slit(μm) |
| SR100Q-G21 SR100Q-G22 |
200~950 350~1100 |
6.8 | 200 |
| 2.2 | 50 | ||
| 1.5 | 25 | ||
| 1.0 | 10 | ||
| SR100Q-G23 SR100Q-G24 |
200~775 350~925 |
1.6 | 50 |
| 1.0 | 25 | ||
| 0.7 | 10 | ||
| SR100Q-G25 | 532~690(4400cm-1*)* | 13cm-1 | 50 |
| SR100Q-G26 | 638~800(3200cm-1)* | 10cm-1 | 25 |
| SR100Q-G27 | 785~1050(3200cm-1)* | 11cm-1 | 50 |
JINSP – Precision Spectral Systems, Built to Last
Since 2007, JINSP Company Limited has designed and manufactured top-tier spectral detection equipment (Raman, FT-IR, LIBS). Our Jiangsu production facility combines 200+ patented technologies with ISO 9001/14001/45001 processes. With CE, ECAC, and security certifications, JINSP serves high-stakes industries requiring durable, high-performance spectral analysis tools.
Q1:This is the first time I use,is it easy to operate?
A1:We will send you manual and guide vedio in English,it can teach you how to operate the spectrometer.Also our technicians will offer professional tecnical opearation meetings.
Q2:Can your offer a operation traning?
A2:Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support
( installation , training, debugging, maintenance ).
Q3:What's your website?
A3:You can visit:www.jinsptech.com
Q4:What about your quality assurance?
A4:We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
