Economical High Resolution Portable Near Infrared Spectrometer Handheld Nir Analyzer

Contact Now

Economical High Resolution Portable Near Infrared Spectrometer Handheld Nir Analyzer

Minimum Order Quantity :	1	Price :	USD4500 - USD5000
Packaging Details :	Customized Packaging	Delivery Time :	30-50working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR50R

Detail Information
Effective Pixels:	128 (256 Optional)	Cell Size:	50μm*250μm
Sensitive Area:	6.4mm*0.25mm	Data Output Interface:	USB2.0, UART
Wavelength Accuracy:	±0.3 Nm	Measurement Range:	900-1700 Nm
Spectral Resolution:	0.1 Nm	Integration Time:	1 Ms - 10 S
Highlight:	Economical Portable Near Infrared Spectrometer , High Resolution Portable Near Infrared Spectrometer , High Resolution Handheld Nir Analyzer

Product Description

Economical High Resolution Portable Near Infrared Spectrometer Handheld Nir Analyzer

Product Overview

The JINSP SR50R17 spectrometer provides a compact, economical solution for near-infrared spectroscopy (900-1700nm range). Featuring a non-cooled InGaAs sensor with exceptional sensitivity and high resolution, this portable analyzer delivers precise spectral analysis for industrial applications.

Key Specifications

Attribute	Value
Effective pixels	128 (256 optional)
Cell size	50μm*250μm
Sensitive area	6.4mm*0.25mm
Data Output Interface	USB2.0, UART
Wavelength Accuracy	±0.3 nm
Measurement Range	900-1700 nm
Spectral Resolution	0.1 nm
Integration Time	1 ms - 10 s

Technical Parameters

Category	Parameter	Value
Detector	Type	Linear array InGaAs
	Effective Pixel	128 (256 optional)
	Pixel Size	50μm*250μm
	Sensing Area	6.4mm*0.25mm
Optical Parameters	Wavelength Range	900-1700nm
	Optical Resolution	6.5nm (@25μm)
	Entrance Slit Width	5μm, 10μm, 25μm, 50μm (customizable)
	Incident Light Interface	SMA905 fiber interface, free space
Electrical Parameters	Integration Time	1ms-5s
	Data Output Interface	USB2.0, UART
	ADC Bit Depth	16-bit
	Power Supply	5V
	Operating Current	<1A
	Operating Temperature	10°C~40°C
Physical Parameters	Dimensions	77mm67mm36mm
	Weight	0.4kg
	Storage Temperature	-20°C~60°C

Key Features

Compact and lightweight design for portability
Gold-coated lens for high near-infrared reflectance
Versatile connectivity with USB2.0 and UART interfaces
Complete package including light source, optical fiber, and test holder
Cost-effective solution for industrial material analysis

Applications

Moisture content measurement
Waste water testing
Detection of substances (fat, oil, protein, fiber)
Grain and fodder quality testing
Pharmaceutical mixture component measurement

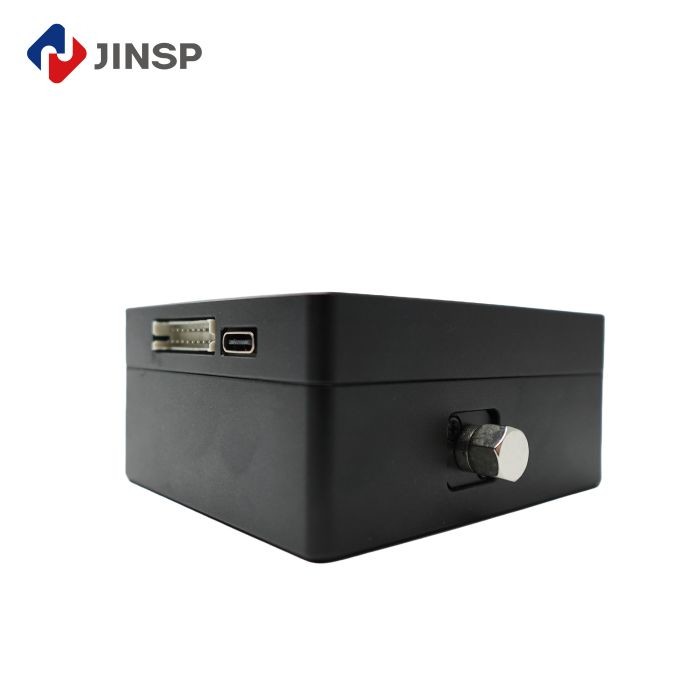

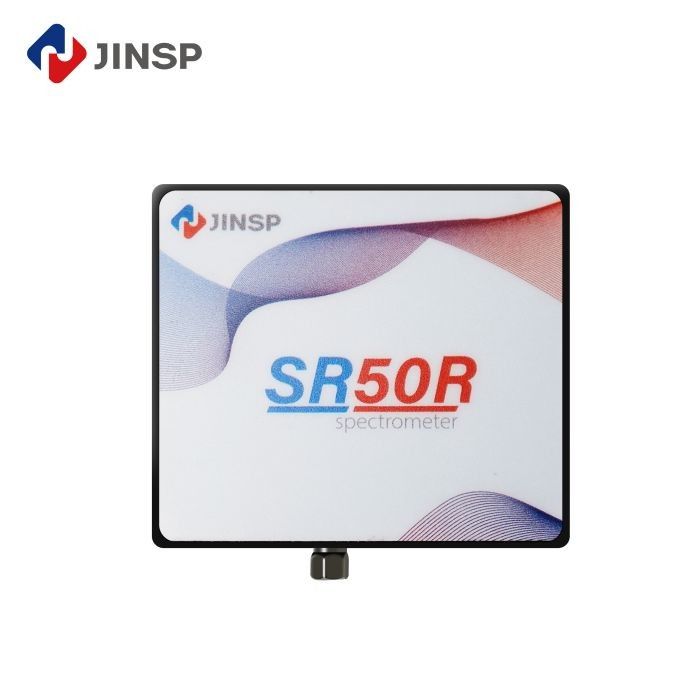

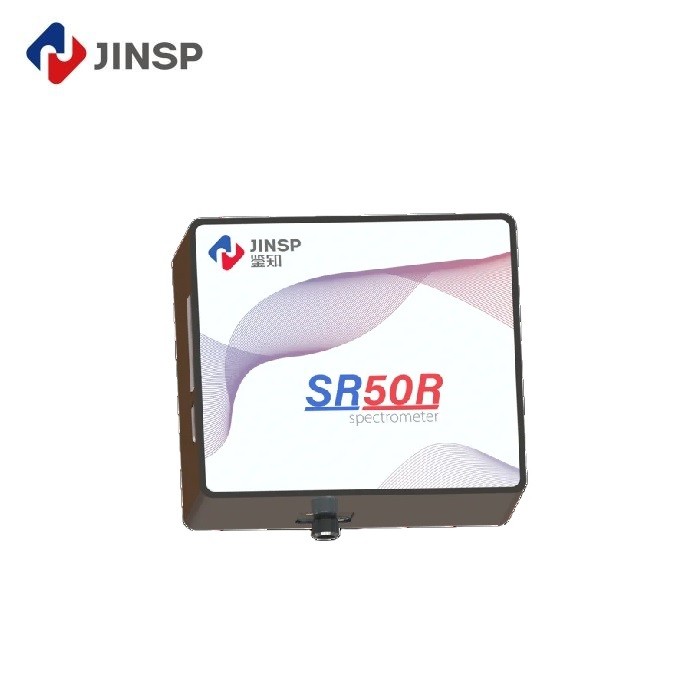

Product Images

Support & Services

Expert technical assistance and troubleshooting
Comprehensive product documentation and user manuals
Software updates and upgrades
On-site installation, training, and maintenance available
1-year warranty included

Company Profile

JINSP Company Limited originates from Tsinghua University with 17 years of experience in spectroscopic technology development. As a leading supplier, we offer over twenty spectroscopic products serving pharmaceutical, chemical, public security, and customs industries. Our products are available nationwide and exported to over 30 countries, with cumulative sales exceeding 3,000 units.

Frequently Asked Questions

Q1: Is this spectrometer easy to operate for first-time users?

A1: We provide an English manual and instructional video, along with professional technical operation meetings with our technicians.

Q2: Do you offer operation training?

A2: Your technicians can receive training at our factory, or our engineers can provide on-site support including installation, training, debugging, and maintenance.

Q3: How can I get the best price quickly?

A3: Please provide detailed requirements (wavelength, detector, effective pixels, focal length, etc.) in your inquiry for a prompt, detailed quotation.

Q4: What if the spectrometer has problems?

A4: The spectrometer comes with a 1-year warranty. Our technicians will diagnose any issues based on your feedback and provide free repairs during the warranty period.

Q5: What payment methods do you accept?

A5: We accept T/T, Paypal, Western Union, L/C, and other standard payment methods.
