Advanced Near Ir Spectrometer 5μM 10μM With 12.8mm*0.5mm Sensing Area

Contact Now

Advanced Near Ir Spectrometer 5μM 10μM With 12.8mm*0.5mm Sensing Area

Minimum Order Quantity :	1	Price :	USD21900 - USD24300
Packaging Details :	International Shipping Package	Delivery Time :	30-40 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100PCS/40-60 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	ISO9001	Model Number:	SR100N25

Detail Information
Sensing Area:	12.8mm*0.5mm	Wavelength Range:	900~2500nm
Entrance Slit Width:	5μm，10μm，25μm，50μm (customizable)	Incident Light Interface:	SMA905 Fiber Interface, Free Space
Highlight:	Advanced Near Ir Spectrometer , Advanced near infrared spectroscopy sensor , 5μM Near Ir Spectrometer

Product Description

Advanced Near IR Spectrometer 5μM 10μM With 12.8mm*0.5mm Sensing Area

Key Specifications

Sensing Area	12.8mm*0.5mm
Wavelength Range	900~2500nm
Entrance Slit Width	5μm, 10μm, 25μm, 50μm (customizable)
Incident Light Interface	SMA905 fiber interface, free space

900nm - 2500nm Near-Infrared Spectrometer

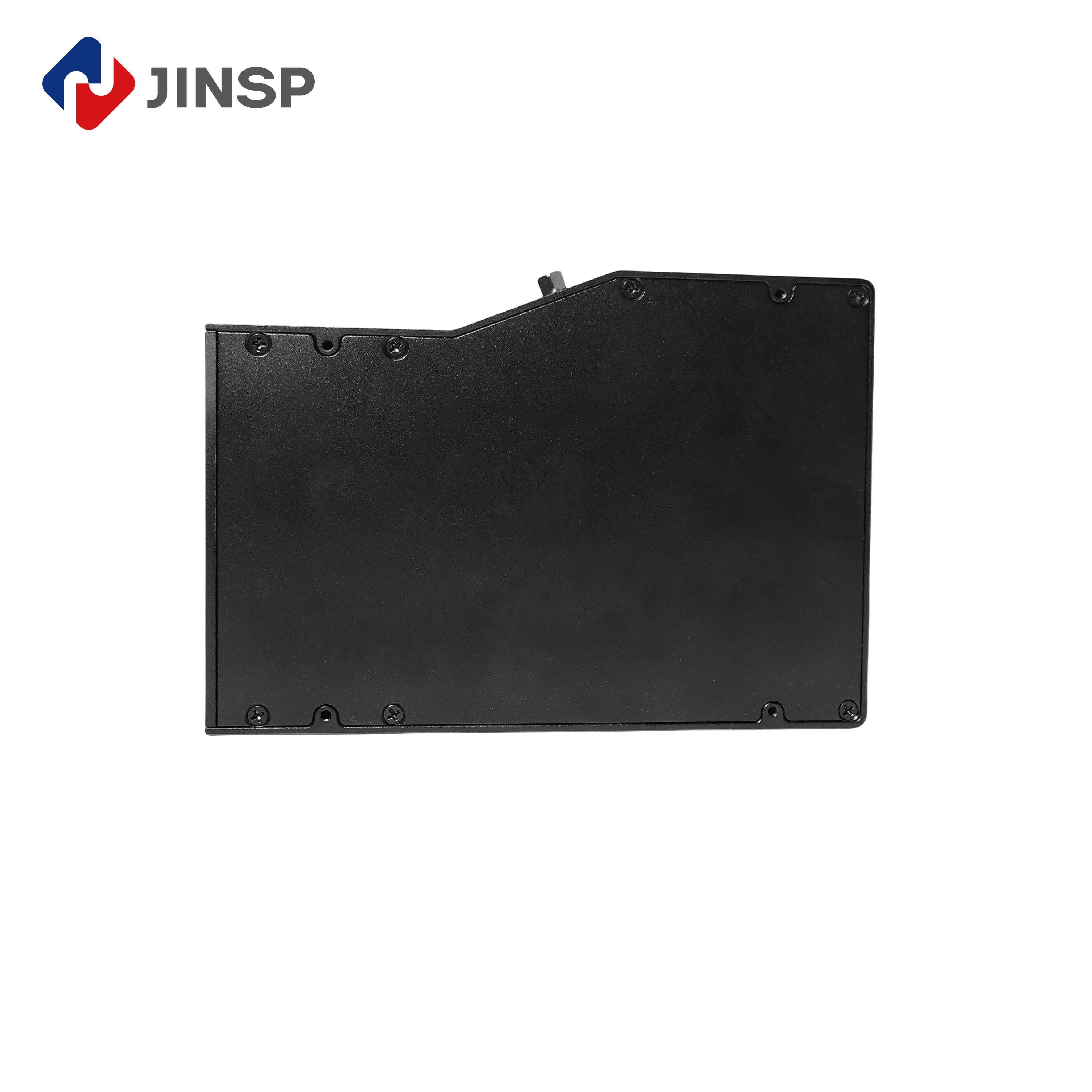

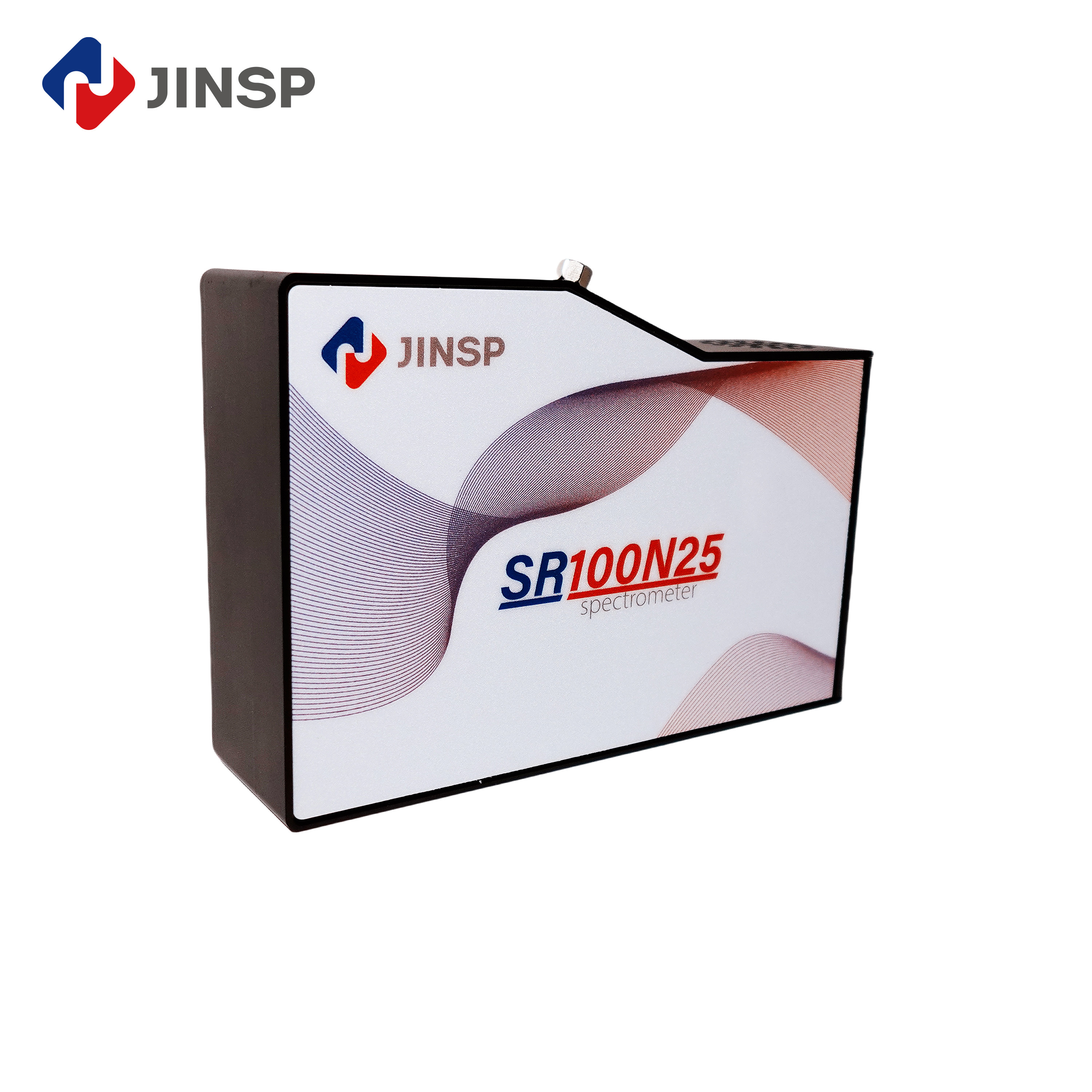

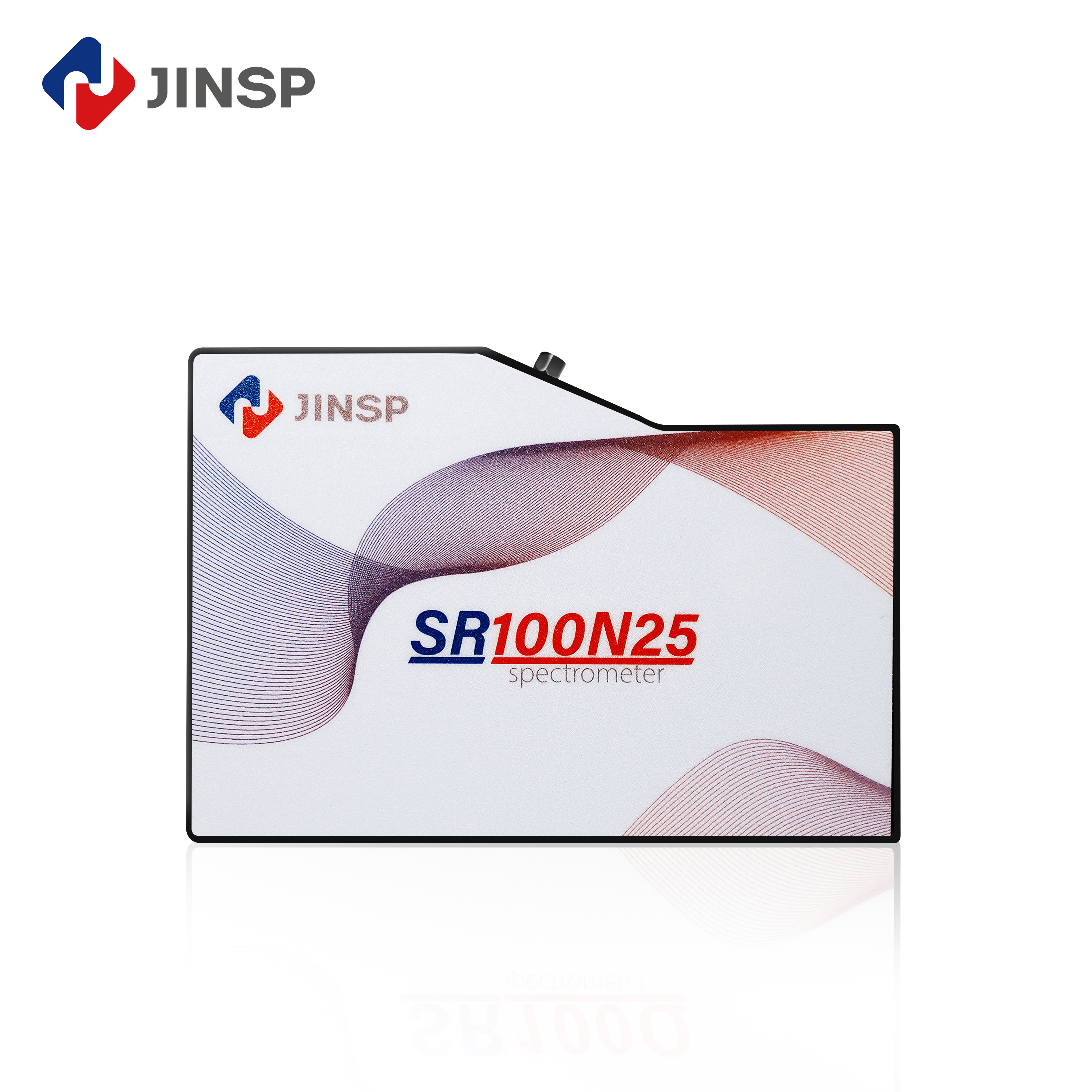

The JINSP SR100N25 near-infrared refrigerated spectrometers are versatile instruments with applications spanning a broad wavelength range of 0.9 to 1.7μm or 0.9 to 2.5μm, respectively. These spectrometers feature integrated light filters that effectively screen out visible light and remove high-order modes, along with a cooled 512-pixel area array InGaAs sensor for high resolution and minimal stray light. Suitable for detecting near-infrared spectra through transmission, reflection, or absorption methods.

Detailed Specifications

Performance Indicators		SR100N25
Detector	Type	Refrigerated linear array InGaAs
	Effective Pixel	512
	Pixel Size	25μm*500μm
	Sensing Area	12.8mm*0.5mm
Optical Parameters	Wavelength Range	900-2500nm
	Optical Resolution	6.3nm(@25μm)
	Optical Design	F/4 cross-type
	Numerical Aperture	0.14
	Focal Length	100mm
	Entrance Slit Width	5μm, 10μm, 25μm, 50μm (customizable)
Electrical Parameters	Integration Time	1ms-200ms
	Data Output Interface	USB2.0, UART
	ADC Bit Depth	16-bit
	Power Supply	DC4.9 to 5.1V(type @5V)
	Operating Current	＜3A
	Operating Temperature	10°C~40°C
Physical Parameters	Dimensions	178mm123mm49mm
	Weight	1.2kg
	Storage Temperature	-20°C~60°C

Technical Characteristics

512 pixels, cooled type, high resolution, low stray light

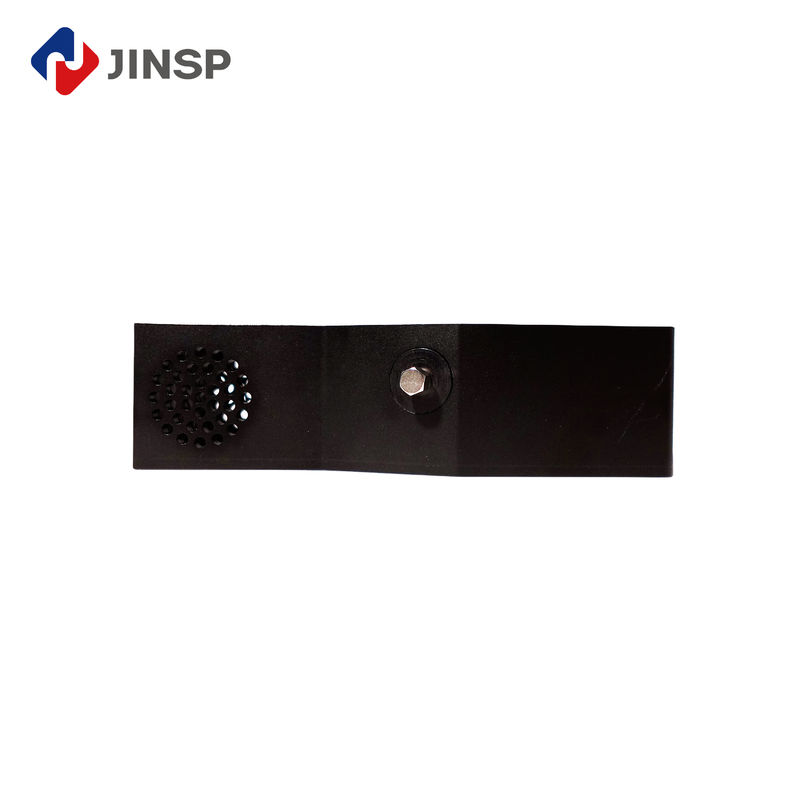

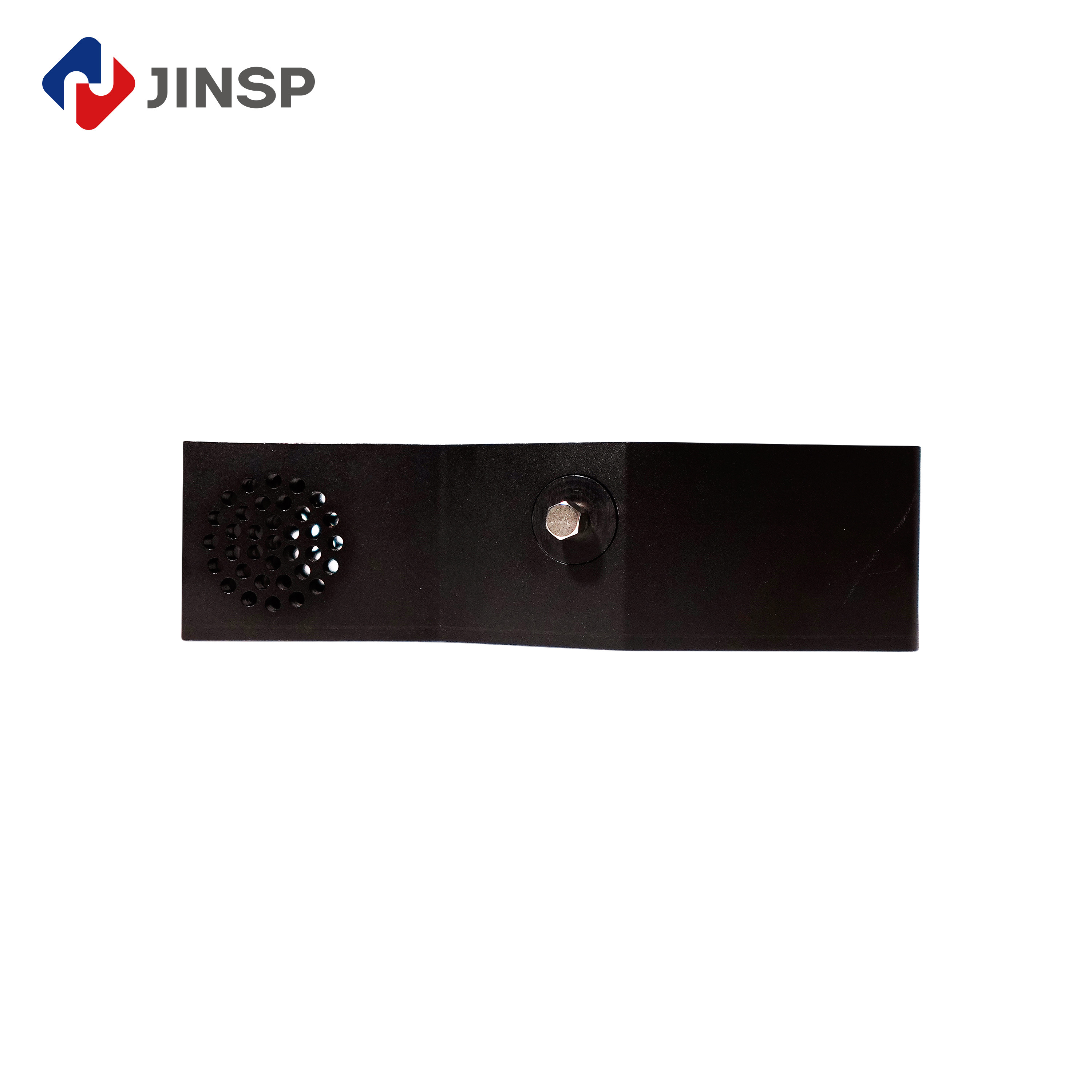

Receives SMA905 fiber input for free space optical measurement
Compatible with USB or UART interface for spectrum data output
Lens surface plated with gold film for high near-infrared reflection efficiency

Typical Applications

Moisture content measurement and wastewater testing
Substance detection including fat, oil, protein and fiber
Grain and fodder quality testing
Identification of illegal drug components

About JINSP Technology

JINSP Company Limited originates from Tsinghua University and has 17 years of experience in developing spectroscopic technology. As a leading supplier, we offer over twenty spectroscopic products for various fields including pharmaceutical, chemical industries, public security and customs.

Our product range includes:

UV VIS NIR fiber optic spectrometers
Desktop/portable, online Raman analyzers for laboratory or industrial liquid & gas analysis
On-site rapid detectors/identifiers based on Raman technology for drugs, liquids, food safety, explosives & hazardous materials

Frequently Asked Questions

Q1: This is my first time using this product. Is it easy to operate?

A1: We provide an English manual and instructional video to guide you through spectrometer operation. Our technicians also offer professional technical support meetings.

Q2: Do you offer operation training?

A2: Your technicians can receive training at our factory. JINSP engineers can also provide on-site support including installation, training, debugging, and maintenance.

Q3: What's your website?

A3: Visit us at: www.jinsptech.com

Q4: What about your quality assurance?

A4: Our quality inspection team thoroughly checks all goods before shipment. We can provide inspection photos upon request.
