Modular Near Infrared Spectrometer Integrated 900-2500nm Wavelength Range

Contact Now

Modular Near Infrared Spectrometer Integrated 900-2500nm Wavelength Range

Minimum Order Quantity :	1	Price :	USD21900 - USD24300
Packaging Details :	International Shipping Package	Delivery Time :	30-50 working days
Payment Terms :	T/T, Western Union	Supply Ability :	200PCS 40-60 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	ISO9001	Model Number:	SR100N25

Detail Information
Type:	Refrigerated Linear Array InGaAs	Effective Pixel:	512
Sensing Area:	12.8mm*0.5mm	Wavelength Range:	900~2500nm
Optical Design:	F/4 Cross-type	Optical Resolution:	6.3nm(@25μm)
Highlight:	Modular Near Infrared Spectrometer , Modular near infrared spectroscopy equipment , Integrated Near Infrared Spectrometer

Product Description

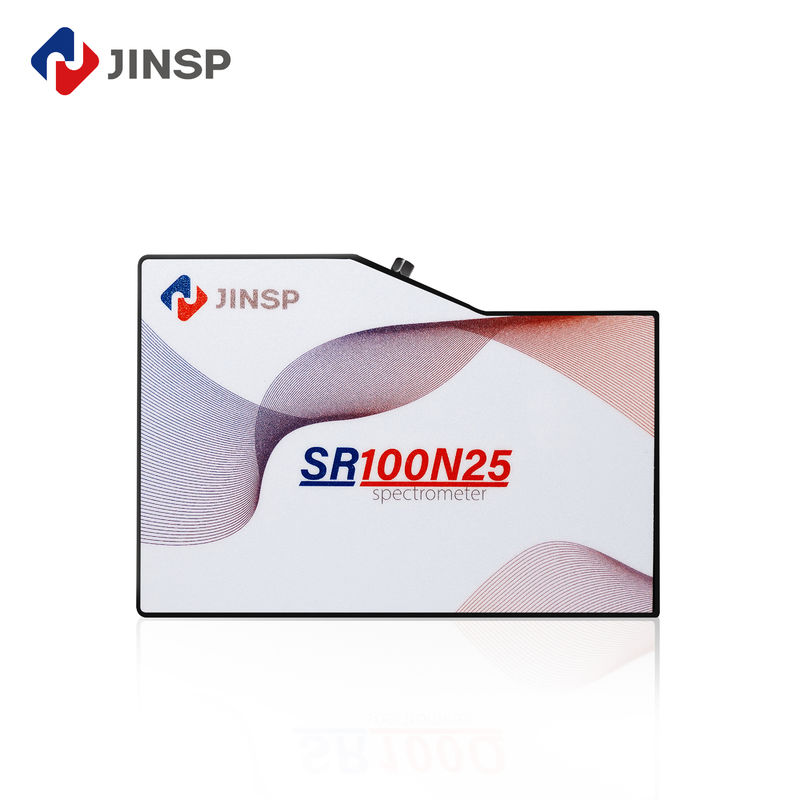

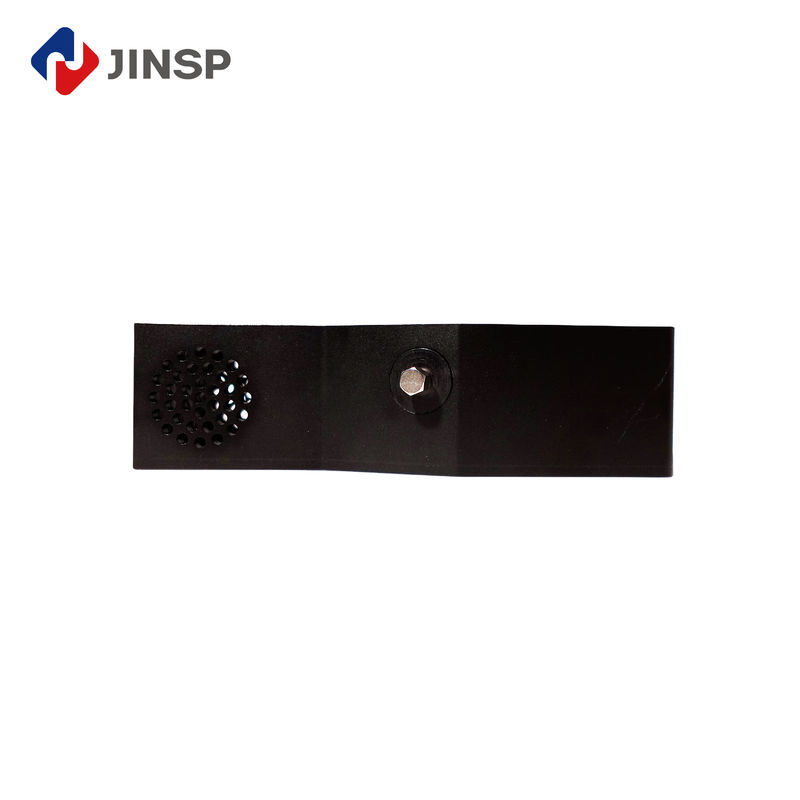

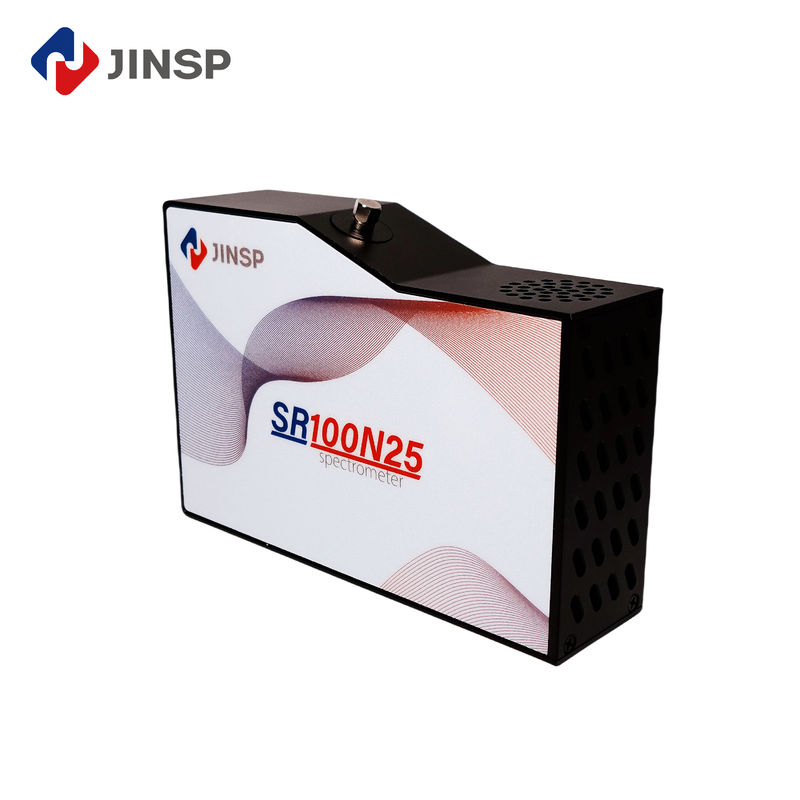

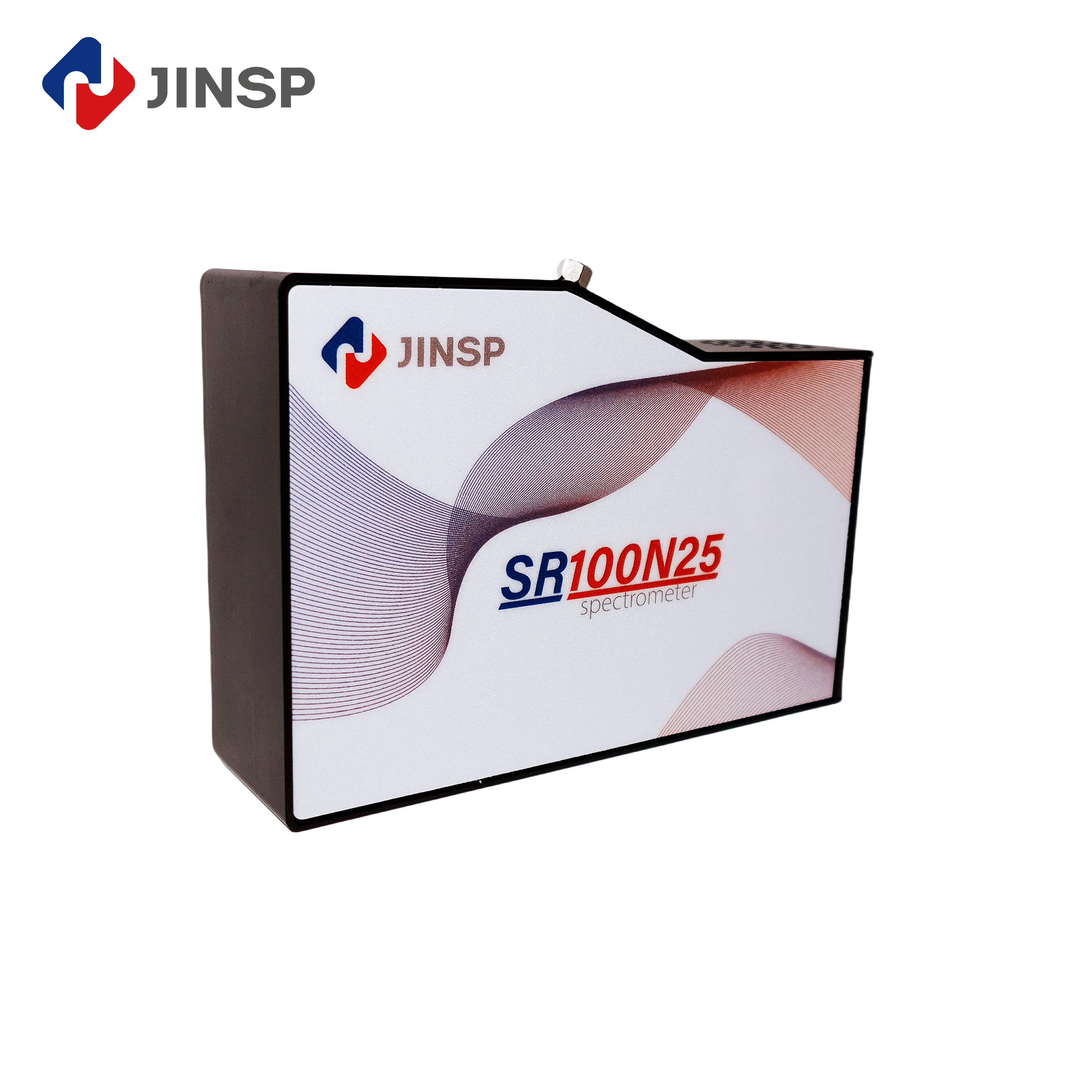

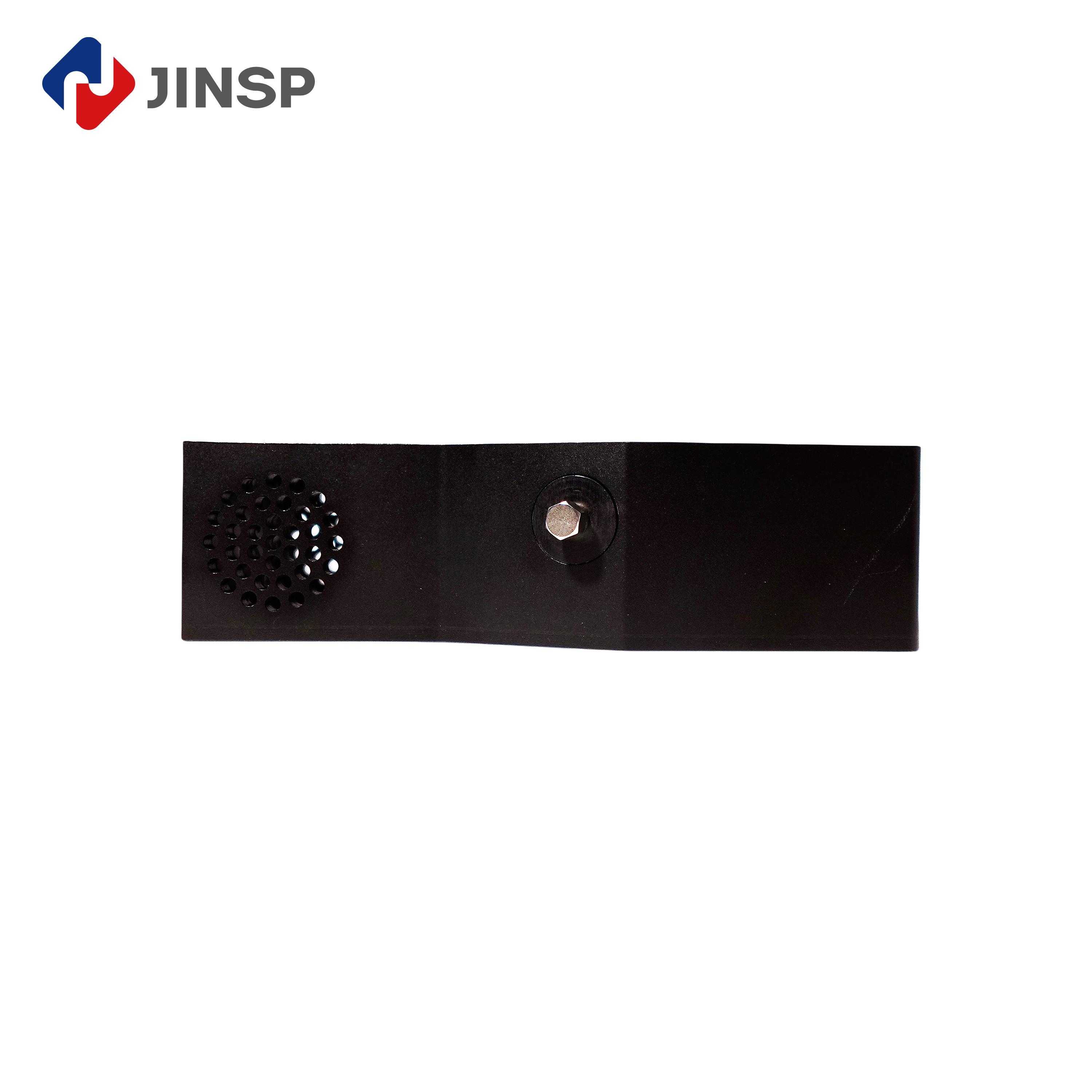

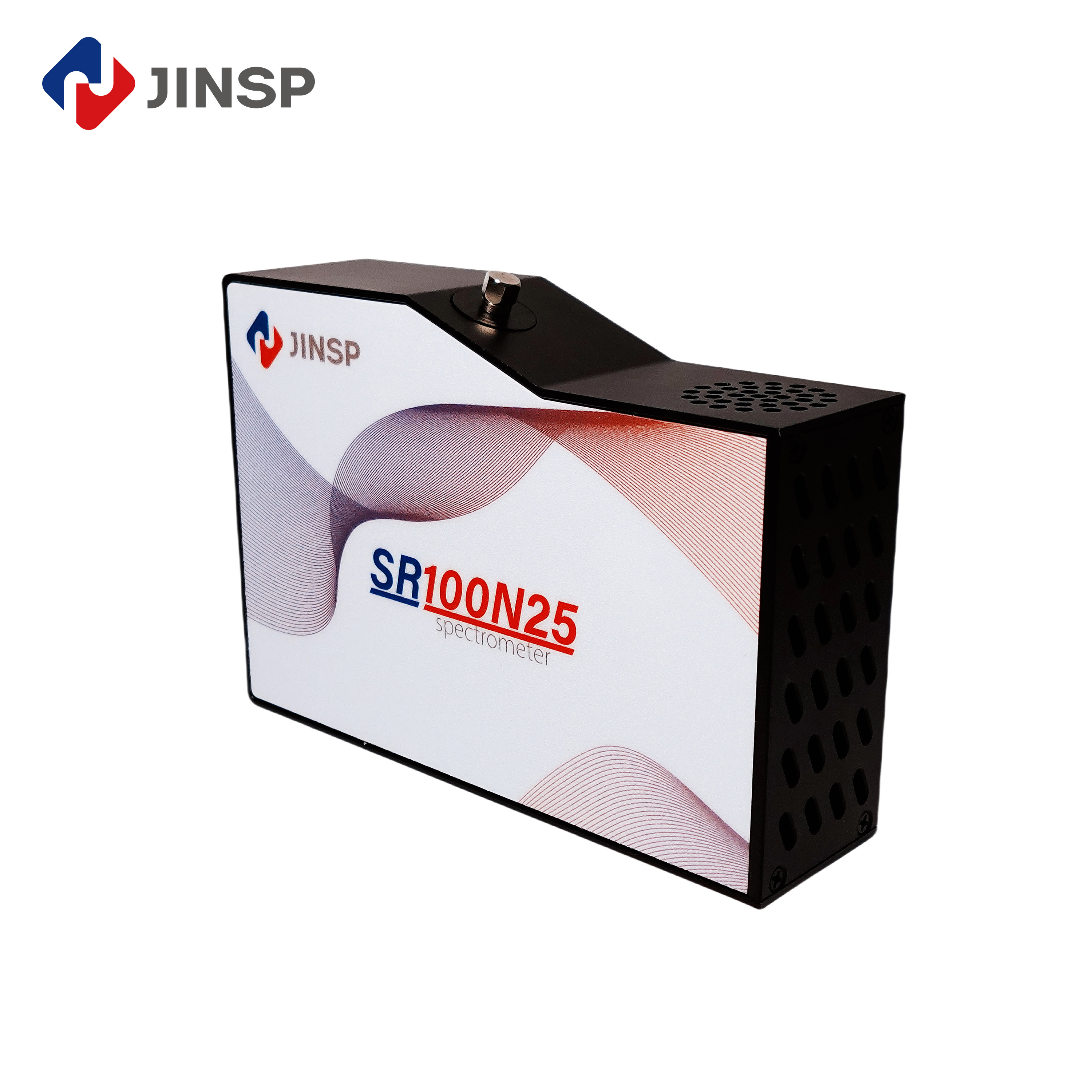

SR100N25 Cooled Near-Infrared Spectrometer

The JINSP SR100N25 near-infrared refrigerated spectrometers are versatileinstruments with applications spanning a broad wavelength range of 0.9 to 1.7μm or 0.9 to 2.5μm, respectively. These spectrometers are equipped with integrated light filters thateffectively screen out visible light and remove high-order modes. Additionally, they feature a cooled 512-pixel area array InGaAs sensor, ensuring high resolution and minimal stray of light. These spectrometers are suitable for detecting near-infrared spectra throughtransmission, reflection, or absorption methods.

Technical Specifications:

	Performance Indicators	Parameters
Detector	Type	Refrigerated linear array InGaAs
	Eﬀective Pixel	512
	Pixel Size	25μm*500μm
	Sensing Area	12.8mm*0.5mm
Optical Parameters	Wavelength Range	900-2500nm
	Optical Resolution	6.3nm(@25μm)
	Optical Design	F/4 cross-type
	Numerical Aperture	0.14
	Focal Length	100mm
	Entrance Slit Width	5μm ,10μm ,25μm ,50μm (customizable)
	Incident Light Interface	SMA905 ﬁber interface, free space
Electrical Parameters	Integration Time	1ms-200ms
	Data Output Interface	USB2.0 ,UART
	ADC Bit Depth	16-bit
	Power Supply	DC4.9 to 5.1V(type @5V)
	Operating Current	＜3A
	Operating Temperature	10°C~40°C
	Storage Temperature	-20°C~60°C
	Operating Humidity	＜90%RH (no condensation)
Physical Parameters	Dimensions	178mm123mm49mm
Physical Parameters	Weight	1.2kg

Typical Applications:

Moisture content measurement and wastewater testing
Substance detection such as fat, oil, protein and fiber

Grain and fodder quality testing
Identification of illegal drugs components

Technical Characteristics:

512 pixels, cooled type, high resolution, low stray of light
Receive SMA905 fiber input to obtain free space optical
Compatible with USB or UART interface to output measured spectrum data
Lens surface is plated with gold film, high efficiency of near-infrared reflection

Company Introduction:

JINSP Company Limited has won the National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate and the China Patent Excellence Award, and related products have been obtained has won authoritative awards such as the Geneva International Invention Award, the Beijing New Technology and New Product Certificate, and the "Innovation Achievement Award" of the Zhu Liangyi Analytical Instrument Innovation Award.JINSP is a professional leading solution provider of molecular spectroscopy, particulaly in Roman Spectroscopy for many years.

Our products mostly include:

UV VIS NIR fiber optic spectrometers;
Desktop/portable, online Raman analyzers for laboratory or indutrial liquid & gas analysis;
On-site rapid detectors/identifiers based on Raman technology for drugs, liquid, food safety, explosive & hazardous materials, pharmaceutical industry etc;

FAQ

Q: This is the first time I use,is it easy to operate?

A: We will send you manual and guide vedio in English,it can teach you how to operate the spectrometer.Also our technicians will offer professional tecnical opearation meetings.

Q: Can your offer a operation traning?
A: Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support( installation , training, debugging, maintenance ).

Q: What's your website?
A: You can visit:www.jinsptech.com

Q: What about your quality assurance?

A: We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
