Modular High Accuracy Portable Nir Analyzer Handheld Near Infrared Spectrometer

Contact Now

Modular High Accuracy Portable Nir Analyzer Handheld Near Infrared Spectrometer

Minimum Order Quantity :	1	Price :	USD4500 - USD5000
Packaging Details :	International Shipping Package	Delivery Time :	30-50working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/40-60 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR50R

Detail Information
Effective Pixels:	128 (256 Optional)	Cell Size:	50μm*250μm
Sensitive Area:	6.4mm*0.25mm	Wavelength Accuracy:	±0.3 Nm
Measurement Range:	900-1700 Nm	Spectral Resolution:	0.1 Nm
Highlight:	Modular Portable Nir Analyzer , Modular Handheld Near Infrared Spectrometer , High Accuracy Portable Nir Analyzer

Product Description

Modular High Accuracy Portable NIR Analyzer Handheld Near Infrared Spectrometer

Product Overview

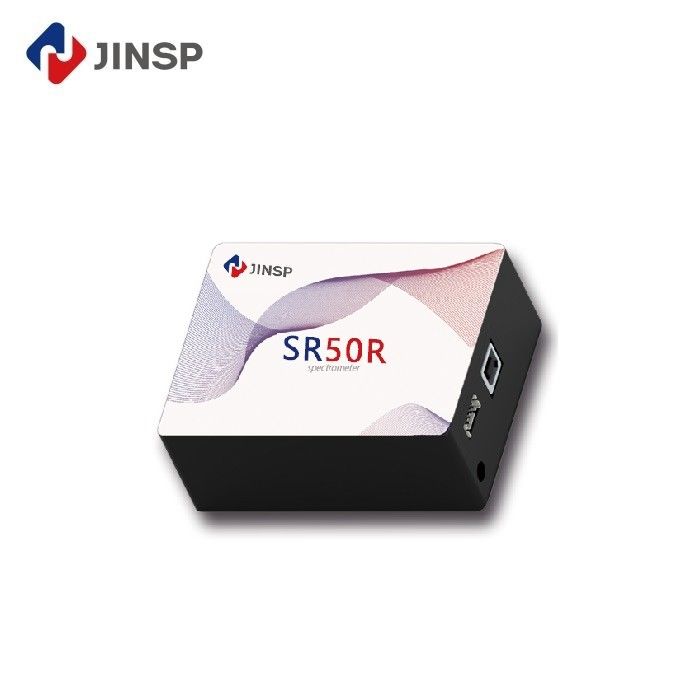

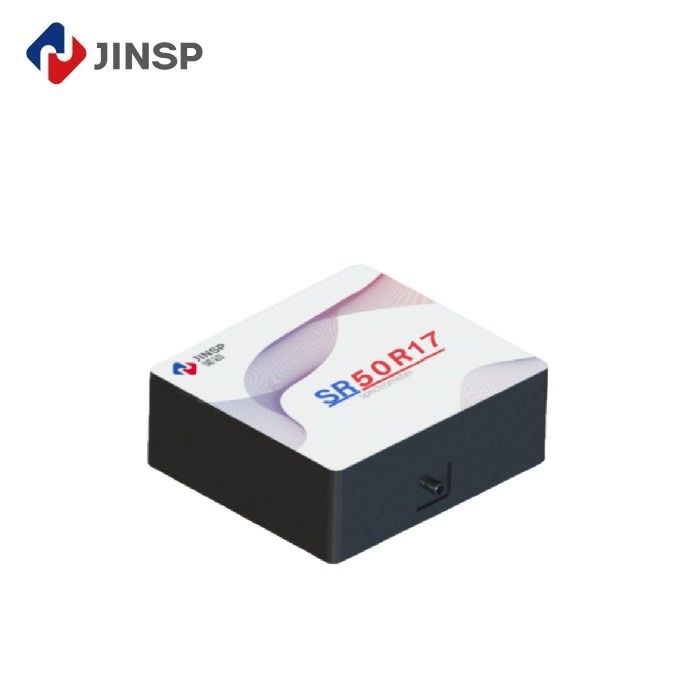

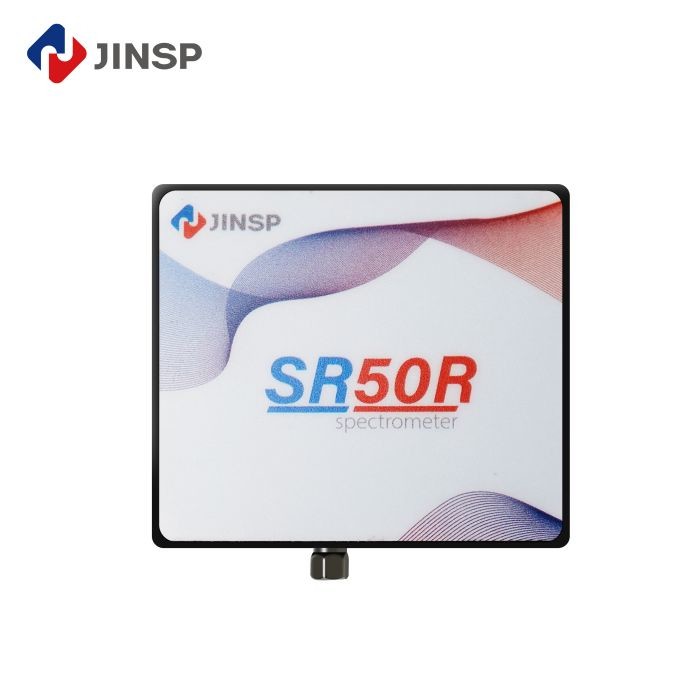

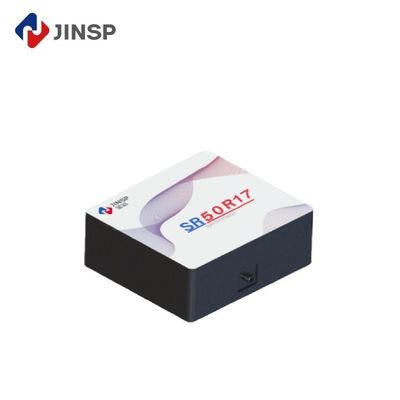

The JINSP SR50R17 spectrometer is a compact and economical near-infrared spectroscopy solution (900nm to 1700nm) featuring a non-cooled InGaAs sensor that delivers high sensitivity and resolution. When combined with a light source, optical fiber, and test holder, it becomes an ideal tool for near-infrared absorption, reflectance, and transmission measurements to analyze material optical properties and evaluate quality and performance.

Technical Specifications

Category	Parameter	Value
Detector	Type	Linear array InGaAs
	Effective Pixel	128 (256 optional)
	Pixel Size	50μm*250μm
	Sensing Area	6.4mm*0.25mm
Optical Parameters	Wavelength Range	900-1700nm
	Optical Resolution	6.5nm (@25μm)
	Entrance Slit Width	5μm, 10μm, 25μm, 50μm (customizable)
	Incident Light Interface	SMA905 fiber interface, free space
	Wavelength Accuracy	±0.3 nm
Electrical Parameters	Integration Time	1ms-5s
	Data Output Interface	USB2.0, UART
	ADC Bit Depth	16-bit
	Power Supply	5V
	Operating Current	<1A
	Operating Temperature	10°C~40°C
Physical Parameters	Dimensions	77mm67mm36mm
Physical Parameters	Weight	0.4kg

Key Features

Compact and lightweight design for portability and ease of handling
Gold-coated lens ensures high near-infrared reflectance for precise functionality
Supports USB and UART interfaces for seamless spectral data export and system integration
Customizable entrance slit width for various measurement requirements
Wide operating temperature range (10°C~40°C) for diverse environments

Product Images

Applications

Moisture content measurement and waste water testing
Detection of substances including fat, oil, protein, and fiber
Grain and fodder quality testing
Pharmaceutical mixture component measurement
Material quality and performance evaluation

Support & Services

The NIR spectrometer comes with comprehensive support including:

Expert technical assistance and troubleshooting
Detailed product documentation and user manuals
Software updates and upgrades
One-year warranty with free repairs
On-site installation, training, and maintenance options

About JINSP Company Limited

With over 17 years of experience in spectral detection technology (including Raman, FT-IR, and LIBS technologies), JINSP has accumulated more than 200 patents and maintains international leadership in core technologies. Our 30+ R&D team (including 4 Ph.D. engineers) supports customized solutions across pharmaceutical, chemical, public security, and customs applications.

Our products are available nationwide and exported to over 30 countries, with cumulative sales exceeding 3,000 units. We uphold a "customer-centric" approach to ensure personalized experiences from concept to final product.

Frequently Asked Questions

Q: Is this spectrometer easy to operate for first-time users?

A: We provide English manuals, guide videos, and professional technical operation meetings to ensure smooth operation.

Q: Do you offer operation training?

A: Training options include factory visits for your technicians or on-site support from JINSP engineers for installation, training, debugging, and maintenance.

Q: How can I get the best price quickly?

A: Please provide detailed requirements (wavelength, detector, effective pixels, focal length, etc.) in your inquiry for a prompt, detailed quotation.

Q: What if I encounter problems with the spectrometer?

A: The product includes a one-year warranty. Our technicians will diagnose issues based on your feedback and provide free repairs during the warranty period.

Q: Which payment methods do you accept?

A: We accept T/T, Paypal, Western Union, L/C, and other standard payment methods.
