Accurate Raman Spectroscopy Analyzer Customizable Spc Standard Spectrum Output Data Format

Contact Now

Accurate Raman Spectroscopy Analyzer Customizable Spc Standard Spectrum Output Data Format

Minimum Order Quantity :	1	Price :	USD40000 - USD57200
Packaging Details :	International Shipping Package	Delivery Time :	50-60 working days
Payment Terms :	TT	Supply Ability :	100 PCS/60-80 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	RS2100

Detail Information
Laser Wavelength:	1064nm	Wavelength Accuracy:	0.2nm
Wavelength Stability:	0.01nm	Connectivity Interface:	USB 2.0
Output Data Format:	Spc Standard Spectrum, Prn, Txt And Other Formats Are Optional	Communication Protocols:	Modbus
Power Supply:	100 ~ 240 VAC，50 ~ 60 Hz	Operating Temperature:	0 ~ 40 ℃
Power Consumption:	50W	Detection Accuracy:	0.5%
Highlight:	Accurate Crystalization Process Raman Analyzer , 0.2nm Wavelength Accuracy Raman Analyzer , SPC Standard Spectrum Raman Analyzer

Product Description

Accurate Raman Spectroscopy Analyzer with Customizable SPC Standard Spectrum Output

Key Specifications

Attribute	Value
Laser wavelength	1064nm
Wavelength accuracy	0.2nm
Wavelength stability	0.01nm
Connectivity interface	USB 2.0
Output Data format	SPC standard spectrum, PRN, TXT and other optional formats
Communication protocols	Modbus
Power supply	100 ~ 240 VAC，50 ~ 60 Hz
Operating temperature	0 ~ 40 ℃
Power consumption	50W
Detection Accuracy	0.5%

Advanced Raman Spectroscopy Solution

The RS2100 Raman Analyzer grows with your process from lab to production. Featuring customizable immersion lengths (50mm-2m), explosion-proof variants (ATEX Zone 0), and multi-analyte quantification packages, it offers the most adaptable Raman solution for extreme chemistry applications.

Technical Parameters

Parameter	Value
Product	Online Raman Analyzer
Measurement Type	Raman Spectrometer
Sample Type	Liquid
Number of detection channels	1 single channel
Standard Probe	1pc 1.3 m non-immersed fiber optic probe (PR100) and 1pc 5 m immersed probe (PR200-HSGL)
Dimensions	300x356x185mm
Net Weight	≤10 kg
Certifications	CE ISO9001

Software Capabilities

Online Monitoring: Continuous real-time collection of single-channel signals with intelligent analysis of unknown components
Data Analysis: Advanced processing including smoothing, peak finding, noise reduction, baseline subtraction, and difference spectra
Model Establishment: Automatic quantitative model building based on real-time reaction data

Industry Applications

Li-ion Battery Industry

Research on the synthesis process of bis(fluorosulfonyl)amide

Biopharmaceutical Industry

Drug crystal form research and consistency evaluation, Quality Control in Biofermentation Engineering

Fine Chemical Industry

Process research for furfuryl alcohol production, enzyme catalytic reactions, and nitration processes

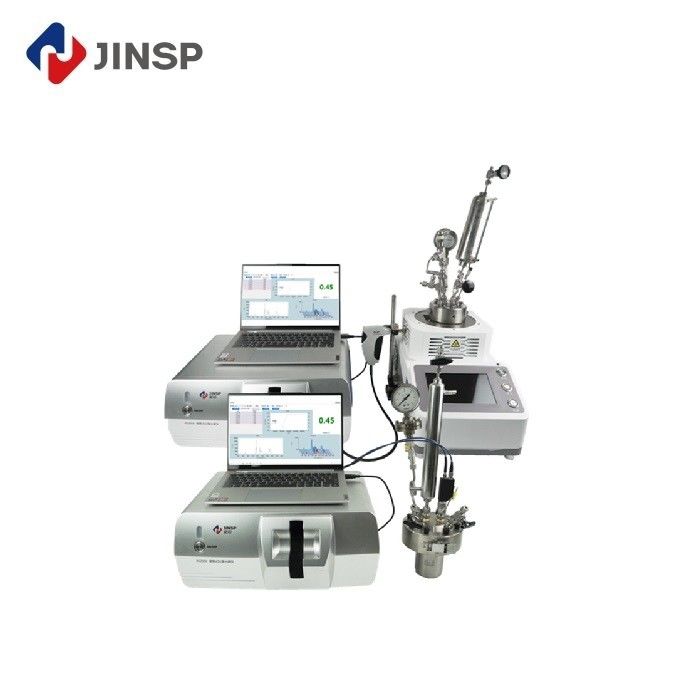

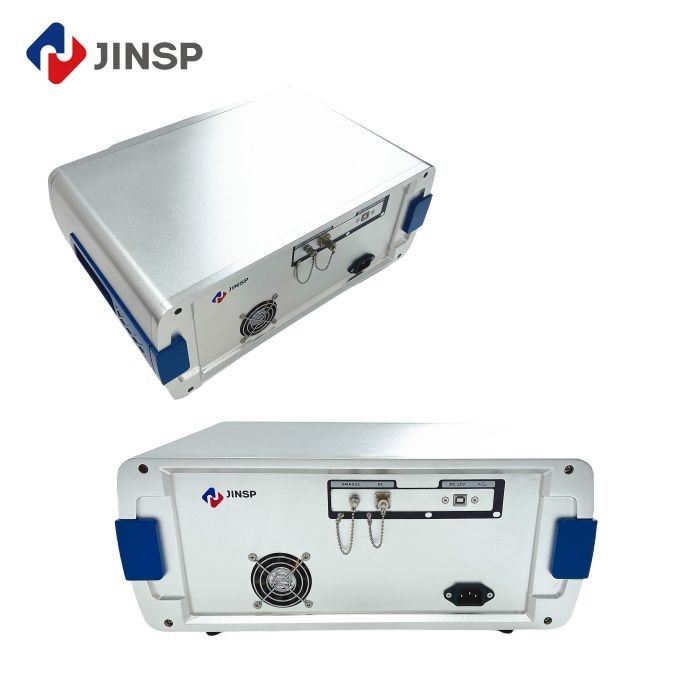

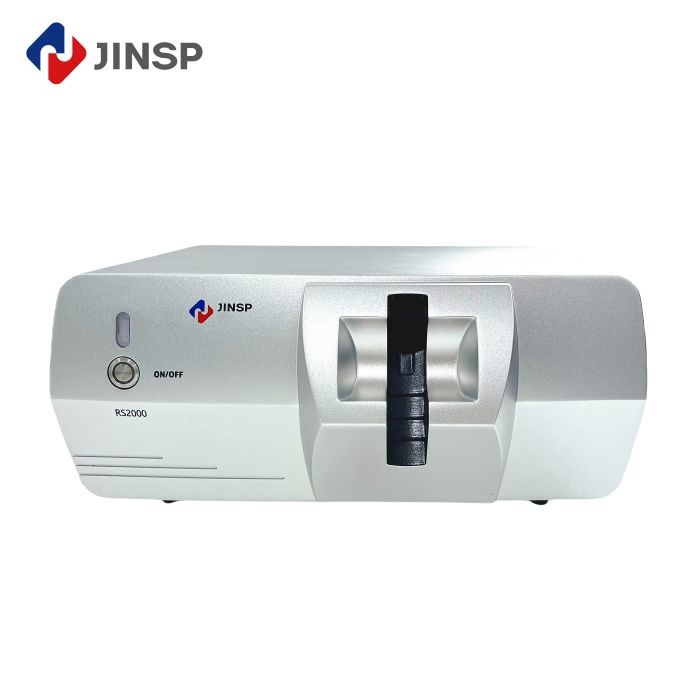

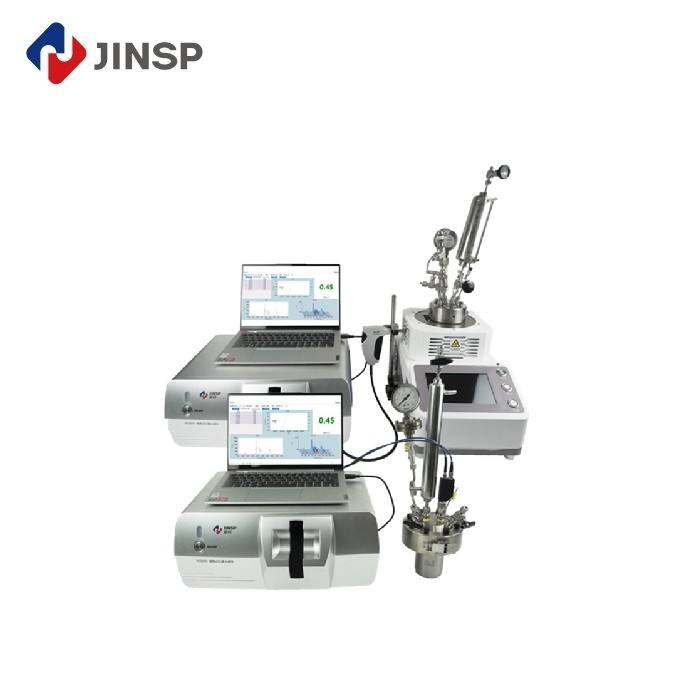

Product Images

Operational Modes

Immersion Mode: Long probe for direct liquid level monitoring with configurable probe specifications
Flow Cell Mode: Bypass probe connection for microchannel reactor applications
Optical Alignment Mode: Direct side window monitoring of reaction vessels

About JINSP

JINSP Company Limited is a professional supplier with over 17 years of experience in spectral detection technologies including Raman, FT-IR, and LIBS. With 200+ patents and 30+ R&D engineers (including 4 PhDs), we offer customized solutions across pharmaceutical, chemical, and security industries.

Our products are available nationwide and exported to 30+ countries with cumulative sales exceeding 3,000 units.

Frequently Asked Questions

Is the spectrometer easy to operate for first-time users?

We provide English manuals and guide videos, along with professional technical support meetings.

Do you offer operation training?

Training is available at our factory or your location through our engineers or local distributors.

What is the minimum order quantity?

We support orders for even single units (1pc).

What is the product warranty?

All products come with 1 year warranty, extendable at additional cost.
