100/240VAC Raman Analyzer Process Instruments for Real Time Monitoring

Contact Now

100/240VAC Raman Analyzer Process Instruments for Real Time Monitoring

Minimum Order Quantity :	1	Price :	USD40000 - USD57200
Packaging Details :	International Shipping Package	Delivery Time :	50-60 working days
Payment Terms :	TT	Supply Ability :	100 PCS/60-80 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	RS2100

Detail Information
Laser Wavelength:	1064nm	Wavelength Accuracy:	0.2nm
Wavelength Stability:	0.01nm	Connectivity Interface:	USB 2.0
Output Data Format:	Spc Standard Spectrum, Prn, Txt And Other Formats Are Optional	Communication Protocols:	Modbus
Power Supply:	100 ~ 240 VAC，50 ~ 60 Hz	Operating Temperature:	0 ~ 40 ℃
Power Consumption:	50W	Detection Accuracy:	0.5%
Highlight:	100VAC Raman Analyzer Process Instruments , 100VAC Laser Online Raman Analyzer , Real Time Raman Analyzer Process Instruments

Product Description

100/240VAC Raman Analyzer Process Instruments for Real Time Monitoring

Key Specifications

Attribute	Value
Laser wavelength	1064nm
Wavelength accuracy	0.2nm
Wavelength stability	0.01nm
Connectivity interface	USB 2.0
Output Data format	spc standard spectrum, prn, txt and other formats are optional
Communication protocols	Modbus
Power supply	100 ~ 240 VAC，50 ~ 60 Hz
Operating temperature	0 ~ 40 ℃
Power consumption	50W
Detection Accuracy	0.5%

Product Overview

The RS2100 Raman Analyzer meets Industry 4.0 requirements for smart process orchestration. Its embedded edge computing converts raw spectra into OPC-UA compatible concentration signals, enabling seamless integration with DCS/SCADA systems for closed-loop control. The redundant cooling systems ensure 24/7 operation in demanding thermal environments.

Technical Specifications

Parameter	Value
Product	Online Raman Analyzer
Measurement Type	Raman Spectrometer
Laser wavelength	1064nm
Wavelength accuracy	0.2 nm
Wavelength stability	0.01 nm
Sample Type	Liquid
Number of detection channels	1 single channel
Standard Probe	1pc 1.3 m non-immersed fiber optic probe (PR100) and 1pc 5 m immersed probe (PR200-HSGL)
Dimensions	300x356x185mm
Net Weight	≤10 kg
Certifications	CE ISO9001

Software Capabilities

Online Monitoring: Continuous real-time collection of single-channel signals with intelligent analysis of unknown components during reactions
Data Analysis: Advanced processing including smoothing, peak finding, noise reduction, baseline subtraction, and difference spectra
Model Establishment: Creates quantitative models using known content samples and builds models based on real-time reaction data

Industrial Applications

Li-ion Battery Industry: Research on bis(fluorosulfonyl)amide synthesis process

Biopharmaceutical Industry: Drug crystal form research, consistency evaluation, and biofermentation quality control

Fine Chemical Industry: Process research for furfuryl alcohol production, bioenzyme catalytic reactions, and nitration processes

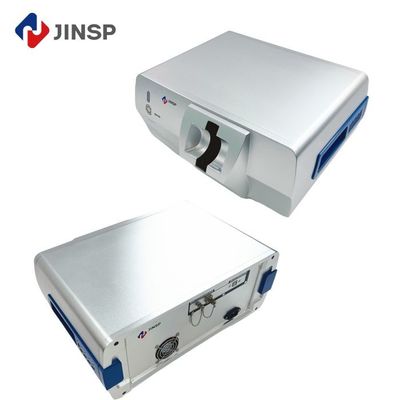

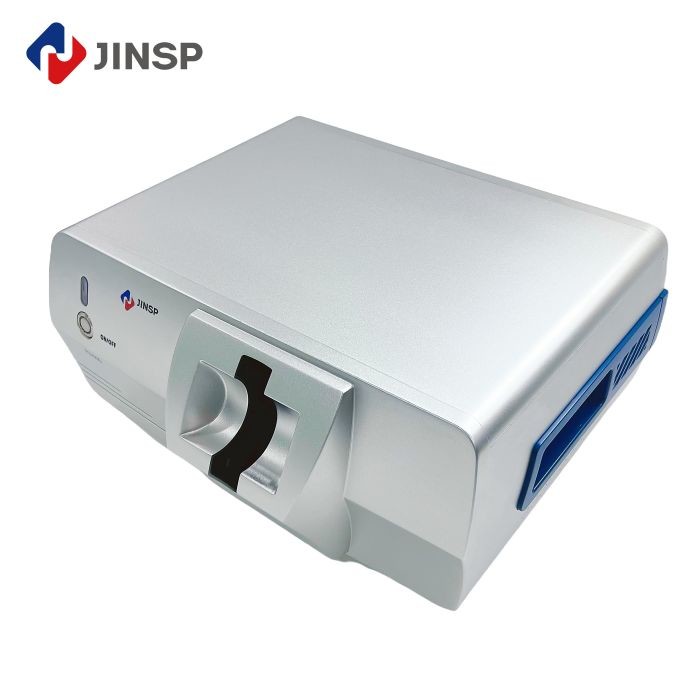

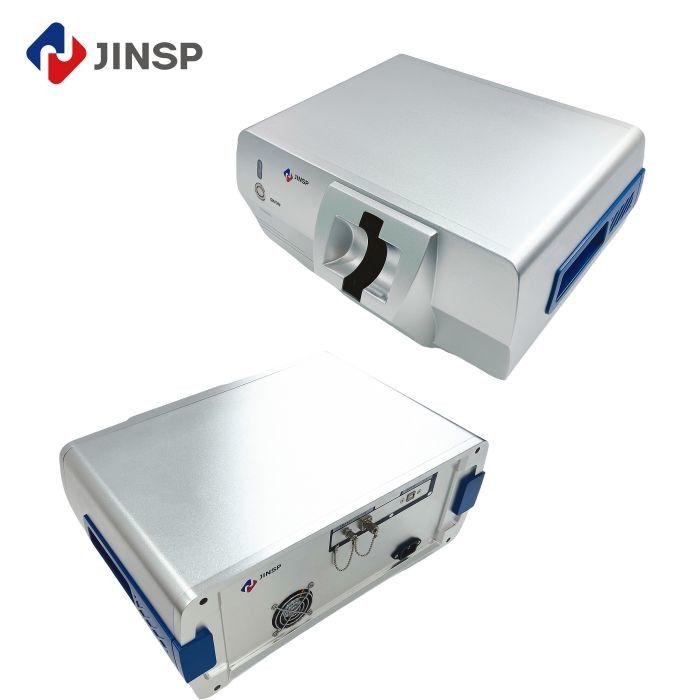

Product Images

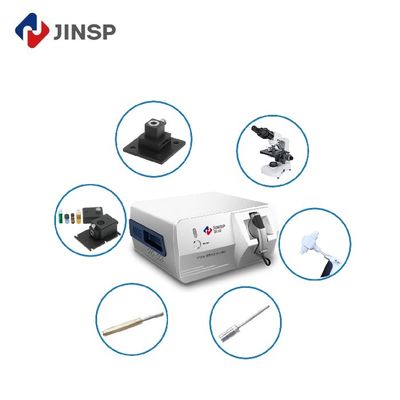

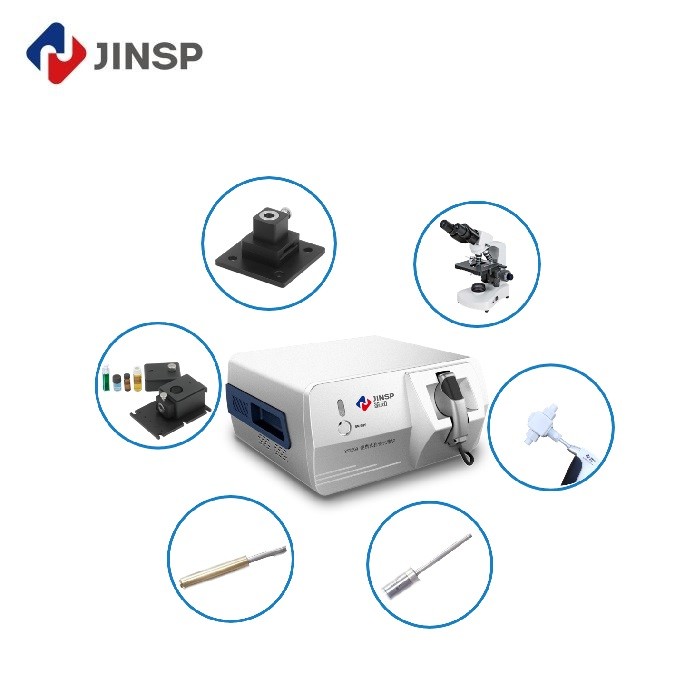

Operation Modes

Immersed Probe Mode: Long probe extends to liquid level for comprehensive monitoring
Flow Cell Mode: Bypass probe connection suitable for microchannel reactors
Optical Probe Mode: Direct alignment with reaction vessel side window

About JINSP

JINSP Company Limited specializes in spectral detection technologies with 17 years of experience in Raman, FT-IR, and LIBS technologies. With over 200 patents and 30+ R&D engineers including 4 PhDs, JINSP products are used in 30+ countries with cumulative sales exceeding 3,000 units.

Frequently Asked Questions

Q: Is the spectrometer easy to operate for first-time users?

A: We provide English manuals, instructional videos, and professional technical support for operation.

Q: Do you offer operation training?

A: Training is available at our factory or your location through our engineers or local distributors.

Q: What is the minimum order quantity?

A: We accept orders for single units (1pc).

Q: What is the product warranty?

A: All products come with 1 year warranty, extendable for additional cost.
