High Precision Raman Analyzer Process Instruments Integrated For Industry

Contact Now

High Precision Raman Analyzer Process Instruments Integrated For Industry

Minimum Order Quantity :	1	Price :	USD40000 - USD57200
Packaging Details :	International Shipping Package	Delivery Time :	60-80 working days
Payment Terms :	TT	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	RS2100

Detail Information
Laser Wavelength:	1064nm	Wavelength Accuracy:	0.2nm
Wavelength Stability:	0.01nm	Connectivity Interface:	USB 2.0
Output Data Format:	Spc Standard Spectrum, Prn, Txt And Other Formats Are Optional	Communication Protocols:	Modbus
Power Supply:	100 ~ 240 VAC，50 ~ 60 Hz	Operating Temperature:	0 ~ 40 ℃
Power Consumption:	50W	Detection Accuracy:	0.5%
Highlight:	High Precision Raman Analyzer Process Instruments , High Precision raman effect device , Integrated Raman Analyzer Process Instruments

Product Description

High Precision Raman Analyzer Process Instruments Integrated For Industry

Product Overview

Revolutionize process analysis with the RS2100 Raman Analyzer - a 1064nm laser-powered solution for in-situ chemical/biological monitoring. Engineered to withstand harsh environments (extreme pH, corrosion, 500°C temps, 100 bar pressure), this analytical instrument delivers second-scale responsiveness to accelerate reaction mechanism studies and optimize industrial processes.

Its non-invasive design eliminates sampling delays while maintaining system integrity, enabling continuous tracking of reaction endpoints and anomaly detection.

Key Specifications

Attribute	Value
Laser wavelength	1064nm
Wavelength accuracy	0.2nm
Wavelength stability	0.01nm
Connectivity interface	USB 2.0
Output Data format	spc standard spectrum, prn, txt and other formats
Communication protocols	Modbus
Power supply	100 ~ 240 VAC，50 ~ 60 Hz
Operating temperature	0 ~ 40 ℃
Power consumption	50W
Detection Accuracy	0.5%

Technical Features

Standard Probe Configuration

1pc 1.3 m non-immersed fiber optic probe (PR100)
1pc 5 m immersed probe (PR200-HSGL)

Software Capabilities

Online Monitoring: Continuous real-time collection of single-channel signals with intelligent analysis of unknown components
Data Analysis: Processing through smoothing, peak finding, noise reduction, baseline subtraction, and difference spectra
Model Establishment: Quantitative modeling using known content samples and real-time reaction data

Physical Specifications

Dimensions: 300x356x185mm
Net Weight: ≤10 kg
Certifications: CE ISO9001

Industrial Applications

Li-ion battery industry research
Biopharmaceutical drug crystal form research and consistency evaluation
Quality control in biofermentation engineering
Fine chemical industry process research
Process control of bioenzyme catalytic reactions
Ultra-low temperature nitrification reaction studies
o-Xylene nitration reaction process research

Quality/Consistency Control in Mass Production: Our online monitoring technology enables automated quality control for 100% of batch products, eliminating the quality risks associated with traditional offline sample testing methods.

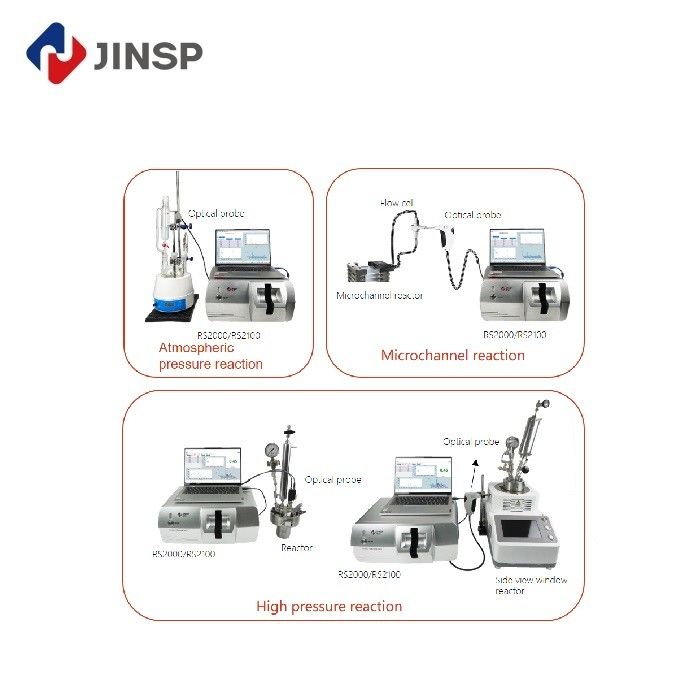

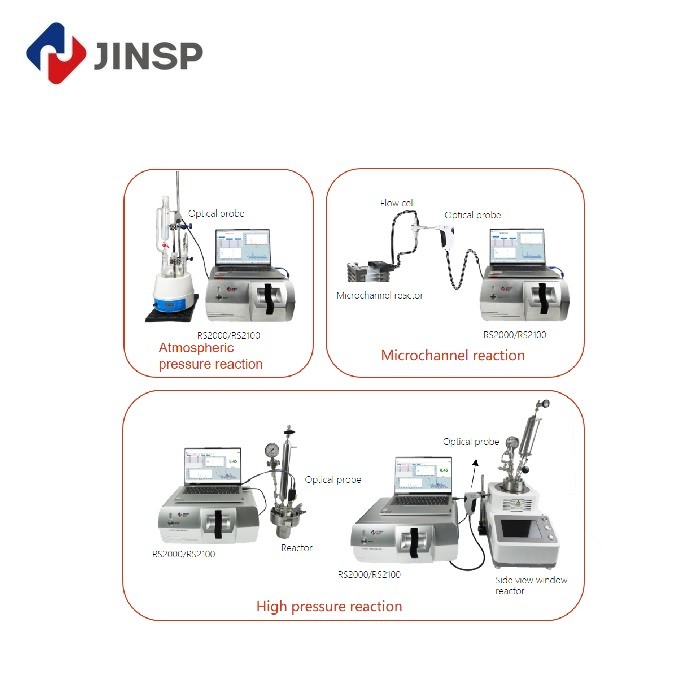

Usage Modes

Immersed Probe Mode: Long probe extends to liquid level for comprehensive monitoring
Flow Cell Mode: Bypass probe connects for online monitoring in microchannel reactors
Optical Alignment Mode: Direct side window monitoring of reaction vessels

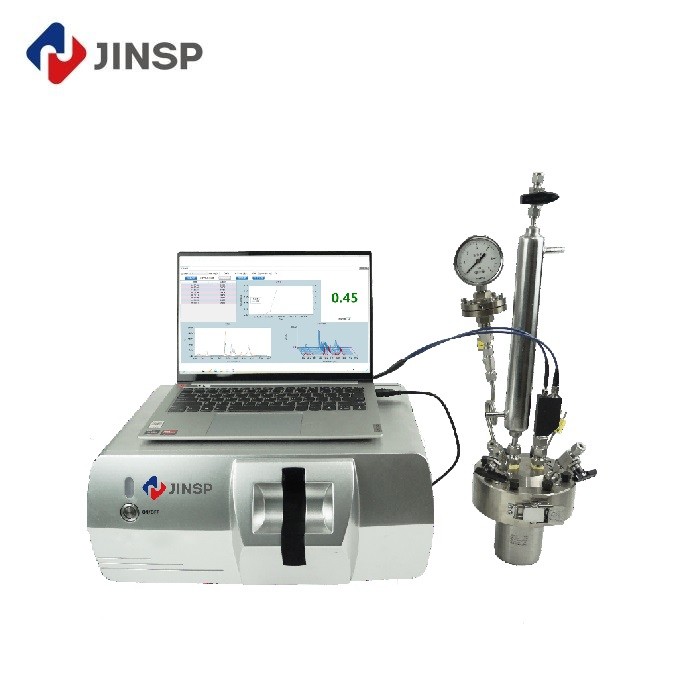

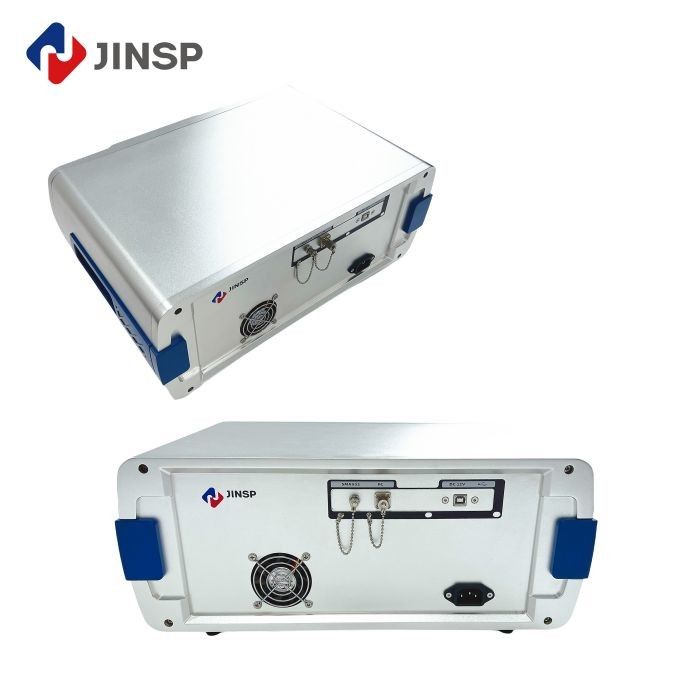

Product Images

About JINSP

JINSP Company Limited is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, and LIBS technologies. With 30+ R&D engineers (including 4 Ph.D.), we offer:

200+ patent applications
20+ spectroscopic products across multiple industries
Global presence in 30+ countries
3,000+ units sold worldwide

Frequently Asked Questions

Q: Is the Raman Analyzer easy to operate for first-time users?

A: We provide an English manual and guide video, along with professional technical support from our technicians.

Q: Do you offer operation training?

A: Training is available at our factory or at your location through our engineers or local distributors.

Q: How can I receive the best price quickly?

A: Provide detailed application, installation, and working environment requirements with your inquiry for a prompt quotation.

Q: Is there a minimum order quantity?

A: No MOQ - we accept orders for even single units.

Q: What is the product warranty?

A: All products come with a 1-year warranty, extendable for additional cost.
