Product Description

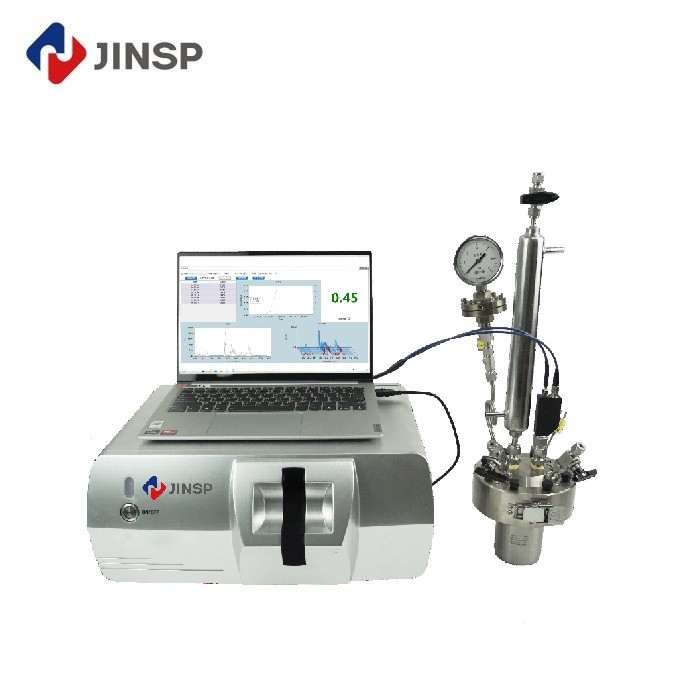

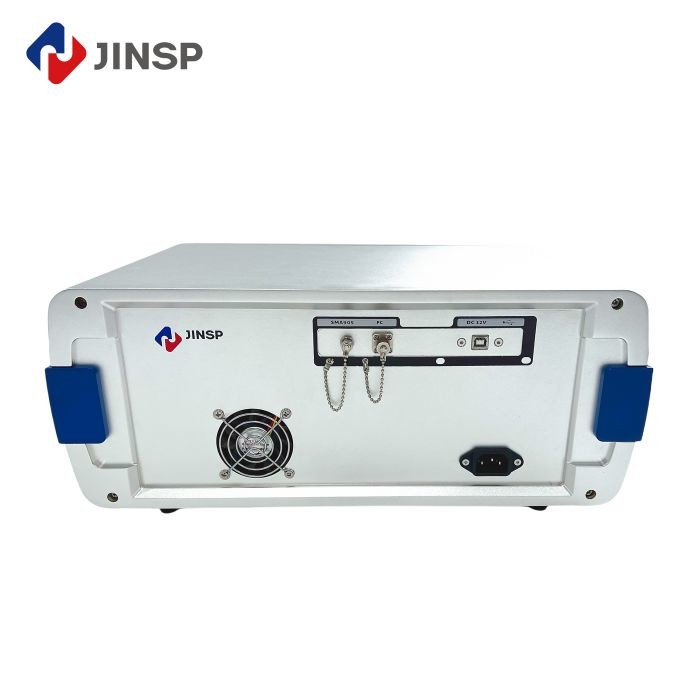

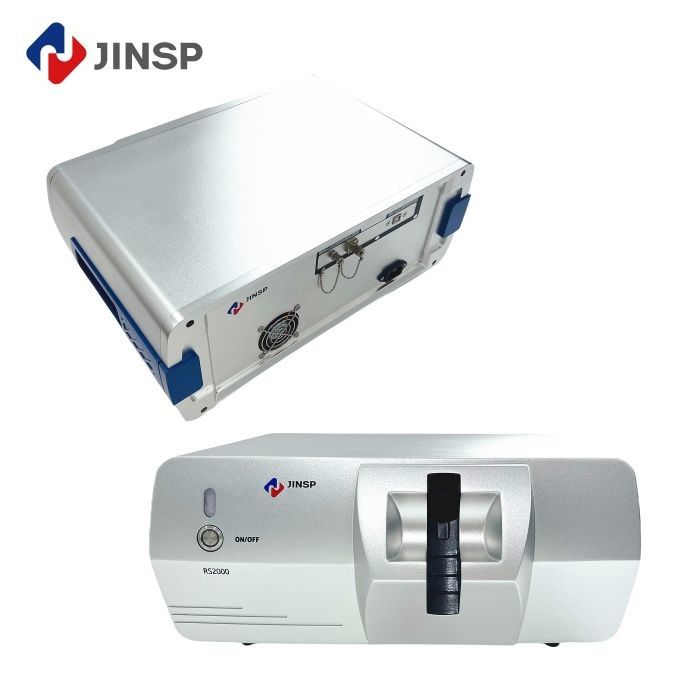

RS2000 Online Process Raman Analyzer
Chemical/pharmaceutical/materials process development and production requires quantitative analysis of components. Usually, offline laboratory analysis techniques are used, where samples are taken to the laboratory, and instruments such as chromatography, mass spectrometry, and nuclear magnetic resonance spectroscopy are used to give information on the content of each component. The long detection time and low sampling frequency cannot meet many real-time monitoring needs.
JINSP provides online monitoring solutions for chemical, pharmaceutical, and material process research and production. It enables in-situ, real-time, continuous, and rapid online monitoring of the content of each component in reactions.
JINSP RS2000 has been used in the field of fine chemicals for reaction mechanism, kinetics, crystal form research, process development and optimization. In particular, it is applicable to dangerous processes such as nitration, chlorination, fluorination, hydrogenation, and diazotization.
RS2000 has also been used in the field of biomedicine, including such biological processes as aseptic biological fermentation, peptide drug synthesis, enzyme catalytic reaction, etc. to control processes accurately.
Technical Parameters:
|
Technical Parameter
|
Value
|
| Product |
Online Raman Analyzer |
| Measurement Type |
Raman Spectrometer |
| Laser wavelength |
785nm |
| Wavelength accuracy |
0.2 nm |
| Wavelength stability |
0.01 nm |
| Sample Type |
Liquid |
| Number of detection channels |
1 single channel |
| Standard Probe |
1pc 1.3 m non-immersed fiber optic probe (PR100) and 1pc 5 m immersed probe (PR200-HSGL) |
| Software functions |
1. Online Monitoring: Continuous real-time collection of single-channel signals, providing real-time substance content and trend changes, enabling intelligent analysis of unknown components during the reaction process;
2. Data Analysis: Capable of processing data through smoothing, peak finding, noise reduction, baseline subtraction, difference spectra, etc;
3. Model Establishment: establishes a quantitative model using known content samples and automatically builds a quantitative model based on real-time data collected during the reaction process.
|
| Dimensions |
375x360x185mm |
| Net Weight |
≤10 kg |
| Certifications |
CE ISO9001 |
Technical Highlights:
- Utilizing specially engineered Raman probes, these devices are capable of enduring and functioning reliably within extreme reaction environments characterized by the presence of strong acids, strong bases, highly corrosive substances, elevated temperatures, and high pressures. These probes are designed to maintain their integrity and performance under such harsh conditions, ensuring accurate and reliable measurements without being compromised by the aggressive nature of the chemical reactions they are monitoring.
- These advanced Raman probes offer the capability of providing real-time responses within mere seconds, eliminating the need for any waiting period. This rapid analysis allows for the immediate provision of results, enabling researchers and operators to make timely decisions based on the data obtained. The speed of these probes is a significant advantage in dynamic and fast-paced experimental setups, where immediate feedback is crucial for the progression of the work.
- A notable feature of these Raman probes is their ability to perform measurements without the necessity of sampling or undergoing any sample processing. This in-situ monitoring technique ensures that the reaction system remains undisturbed and unaffected by external manipulation. By not requiring the removal of samples from the reaction vessel, the probes provide a non-invasive method of analysis, which is particularly beneficial in maintaining the integrity and consistency of the reaction conditions.
- The continuous monitoring capability of these Raman probes allows for the swift determination of the reaction endpoint, which is crucial for optimizing reaction times and yields. Additionally, these probes are equipped with alert systems that can detect any anomalies or deviations from the expected reaction profile. This feature is invaluable for ensuring the safety and efficiency of chemical processes, as it enables prompt intervention in case of any unexpected occurrences, thereby preventing potential hazards and ensuring the smooth progression of the reaction.
Applications:
Li-ion battery industry
Research on the synthesis process of bis(fluorosulfonyl)amide
Biopharmaceutical industry
Drug crystal form research and consistency evaluation
Quality Control in Biofermentation Engineering
Fine chemical industry
Research on the process of producing furfuryl alcohol by hydrogenation reaction of furfural
Process control of bioenzyme catalytic reactions of nitrile compounds
A certain ultra-low temperature nitrification reaction
Research on o-xylene nitration reaction process

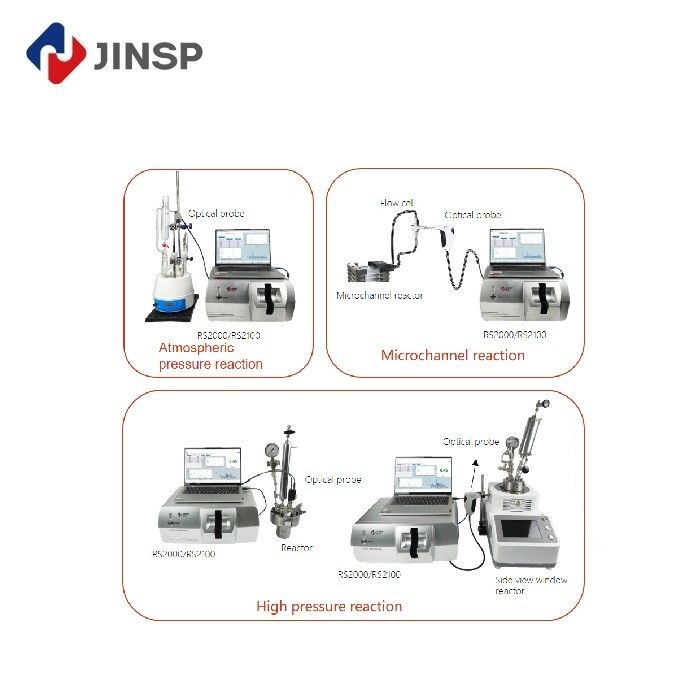

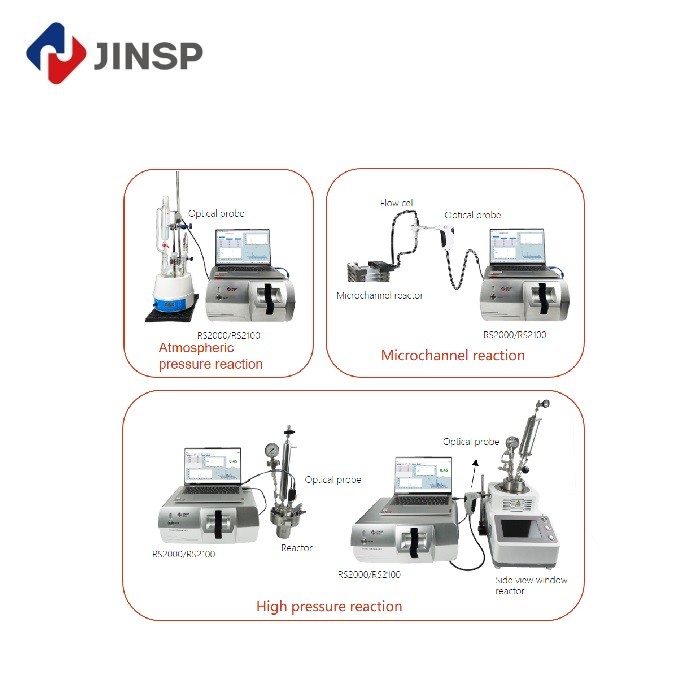

Usage models:
RS2000 has three usage modes in the laboratory, and each mode requires different accessories.
1. The first mode uses an immersed long probe that goes deep down to the liquid level of the reaction system to monitor each reaction component. Depending on the reaction vessel, reaction conditions, and system, different specifications of probes are configured.
2. The second mode involves using a flow cell to connect a bypass probe for online monitoring, which is suitable for reactors like microchannel reactors. Various probes are configured based on the specific reaction vessel and conditions.
3. The third mode utilizes an optical probe directly aligned with the side window of the reaction vessel for reaction monitoring.
Company Introduction:
JINSP Company Limited has won the National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate and the China Patent Excellence Award, and related products have been obtained has won authoritative awards such as the Geneva International Invention Award, the Beijing New Technology and New Product Certificate, and the "Innovation Achievement Award" of the Zhu Liangyi Analytical Instrument Innovation Award.In addition, JINSP participated in the drafting of several national and international standards, including participating in the drafting of an international standard as the only participating unit in China IEC 63085 International Standard: System of spectral identification of liquids in transparent or semitransparent containers; Drafting of two national standards: GB/T 41086-2021 "General Technical Requirements for Safety Inspection Equipment for Hazardous Chemicals Based on Raman Spectroscopy", GB/T 40219-2021 "General Specification for Raman Spectrometer".
FAQ:
Q1: This is the first time I use it, is it easy to operate?
A1:We will send you a manual and guide video in English, it can teach you how to operate the spectrometer. Also, our technicians will offer professional technical operation meetings.
Q2: Can you offer an operation training?
A2: Your technicians can come to our factory for training. Jinsp engineers can go to your place for local support ( installation, training, debugging, maintenance ).
Q3: How to receive the best price in the shortest time?
A3: When you send us an inquiry, please kindly offer details with wavelength, detector, effective pixels, focal length, and so on. We will send you a quotation with details soon to your email.
Q4:If the spectrometer has a problem in my place, what could I do?
A4: The spectrometer has a one-year warranty. If it breaks down, our technician will figure out what the problem maybe, according to the client's feedback. We can repair for free within one year warranty.
Q5: What about quality assurance?
A5:We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
