High Quantum Efficiency Fiber Optic Spectrometer Integrated High SNR Low Noise

Contactar ahora

High Quantum Efficiency Fiber Optic Spectrometer Integrated High SNR Low Noise

Cantidad de orden mínima :	1	Precio :	USD12900 - USD14300
Detalles de empaquetado :	Embalaje personalizado	Tiempo de entrega :	90-120 días laborables
Condiciones de pago :	T/t, unión occidental	Capacidad de la fuente :	5PCS/90 a 120 días

Lugar de origen:	China.	Nombre de la marca:	JINSP
Certificación:	ISO9001	Número de modelo:	Se trata de una serie de medidas:

Información detallada
Rango espectral:	200 nm - 1100 nm	Píxeles efectivos:	1024*122
Eficiencia de Qutuam:	QE92% pico a 650 nm, 83% a 232 nm	SNR:	1000: 1

Descripción de producto

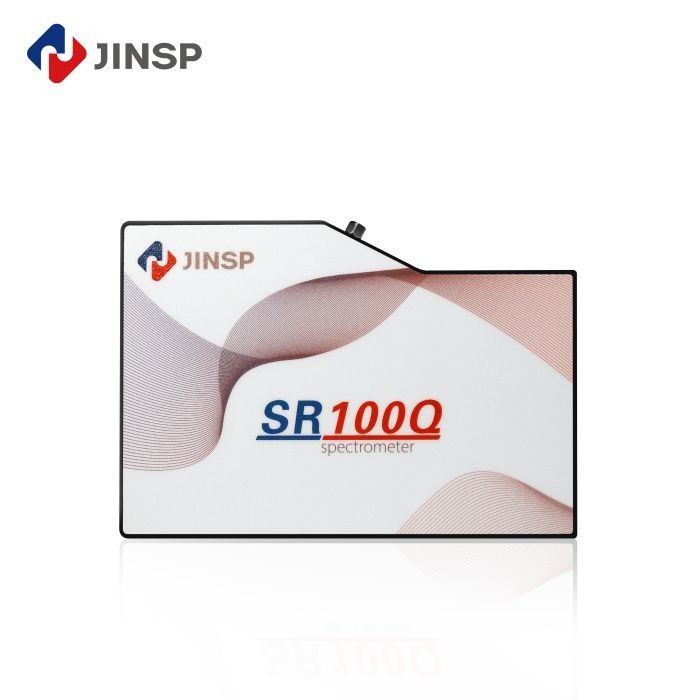

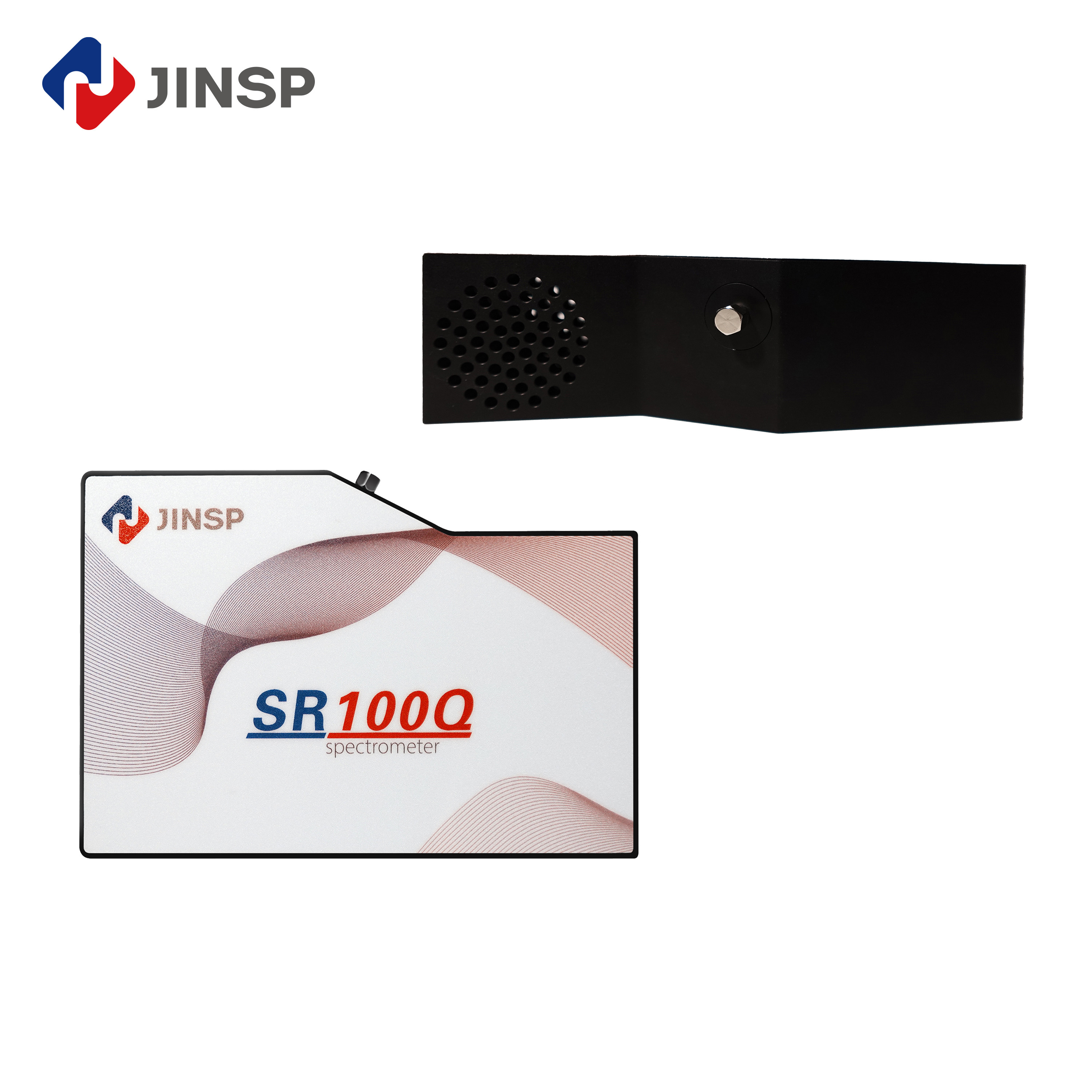

92% High Quantum Efficiency CCD Modular Fiber Optic Spectrometer

Advanced, adaptable, and accurate—the JINSP SR100Q Spectrometer is designed to meet the needs of modern spectroscopy. Featuring a high-QE CCD cooled to reduce dark current, it achieves outstanding performance in weak signal detection. The optical path and FPGA processor ensure high resolution and speed across UV, visible, and NIR ranges.

Applications span from laser spectral analysis to thin-film metrology, supporting both research and production environments. The system’s ability to monitor laser parameters and measure film thickness with high precision makes it invaluable for photonics and materials engineering.

With user-friendly connectivity and robust construction, the SR100Q is ready to tackle challenging light measurement tasks.

Product Parameters:

Detector	Chip Type	Back-illuminated TE-cooled Hamamatsu S7031
	Effective Pixel	1024*122
	Pixel Size	24*24μm
	Sensing Area	24.576*2.928mm
Optical Parameters	Optical Design	F/4 cross-type
	Numerical Aperture	0.13
	Focal Length	100mm
	Entrance Slit Width	10μm,25μm,50μm,100μm,200μm (customizable)
	Fiber Interface	SMA905,free space
Electrical Parameters	Integration Time	8ms-3600s
	Data Output Interface	USB3.0,RS232,RS485,20pin connector
	ADC Bit Depth	16-bit
	Power Supply	5V
	Operating Current	<3.5A
Physical Parameters	Operating Temperature	10℃~40℃
	Storage Temperature	-20℃~60℃
	Operating Humidity	<90%RH (no condensation)
	Dimensions	180mm120mm50mm
	Weight	1.2kg

List of Product Models:

Model	Spectral Range(nm)	Resolution(nm)	Slit(μm)
SR100Q-G21 SR100Q-G22	200~950 350~1100	6.8	200
		2.2	50
		1.5	25
		1.0	10
SR100Q-G23 SR100Q-G24	200~775 350~925	1.6	50
		1.0	25
		0.7	10
SR100Q-G25	532~690(4400cm-1)	13cm-1	50
SR100Q-G26	638~800(3200cm-1)*	10cm-1	25
SR100Q-G27	785~1050(3200cm-1)*	11cm-1	50

Technical Characteristics:

High quantum efficiency, 92%peak@650nm, 83%@232nm
High SNR: Ultra-low dark noise under long integration time, SNR is as high as 1000:1

Noise-free clear processing of weak signal in long exposure, strong adaption to environment
Low-noise and high-speed circuit: USB3.0

Typical Applications:

Detect absorption, transmittance and reflection Spectrum
Light source and laser wavelength characterization
OEM product module: Fluorescence spectrum, Raman spectrum, etc.

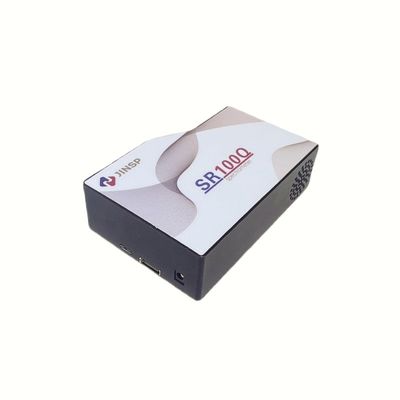

High Quantum Efficiency Fiber Optic Spectrometer Integrated High SNR Low Noise 0

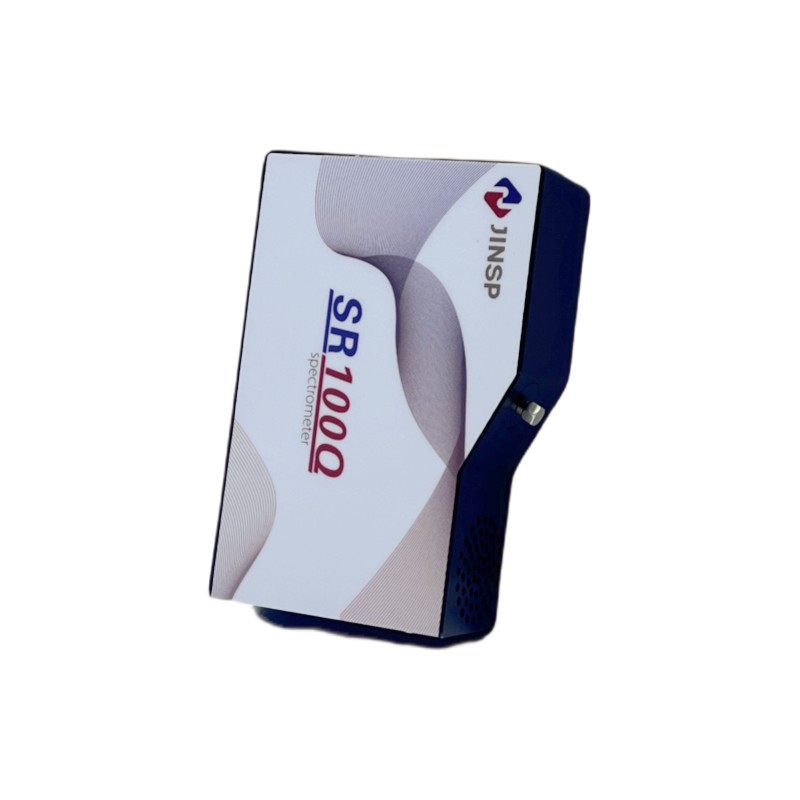

High Quantum Efficiency Fiber Optic Spectrometer Integrated High SNR Low Noise 1

Company Instroductions:

JINSP – Pioneering Spectral Detection Since 2007
For over 17 years, JINSP Company Limited has been a technology leader in Raman, FT-IR, and LIBS spectral analysis. Our 200+ patented innovations reflect our dedication to world-class R&D. Operating from Beijing with a Jiangsu production plant, we combine precision engineering with ISO and international certifications (CE, ECAC, ICT, etc.). Whether for security, environmental, or industrial use, JINSP’s cutting-edge spectral solutions set the benchmark for accuracy and reliability.

FAQ

Q1:This is the first time I use,is it easy to operate?

A1:We will send you manual and guide vedio in English,it can teach you how to operate the spectrometer.Also our technicians will offer professional tecnical opearation meetings.

Q2:Can your offer a operation traning?
A2:Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support
( installation , training, debugging, maintenance ).

Q3:What's your website?
A3:You can visit:www.jinsptech.com

Q4:What about your quality assurance?

A4:We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
