92% Quantum Efficiency CCD Modular Fiber Optic Spectrometer for Weak Light Detection in Scientific Research

Contactar ahora

92% Quantum Efficiency CCD Modular Fiber Optic Spectrometer for Weak Light Detection in Scientific Research

Cantidad de orden mínima :	1	Precio :	USD12900 - USD14300
Detalles de empaquetado :	Embalaje personalizado	Tiempo de entrega :	90-120 días laborables
Condiciones de pago :	T/t, unión occidental	Capacidad de la fuente :	5PCS/90 a 120 días

Lugar de origen:	China.	Nombre de la marca:	JINSP
Certificación:	ISO9001	Número de modelo:	Se trata de una serie de medidas:

Información detallada
Rango espectral:	200 nm - 1100 nm	Píxeles efectivos:	1024*122
Eficiencia de Qutuam:	QE92% pico a 650 nm, 83% a 232 nm	SNR:	1000: 1

Descripción de producto

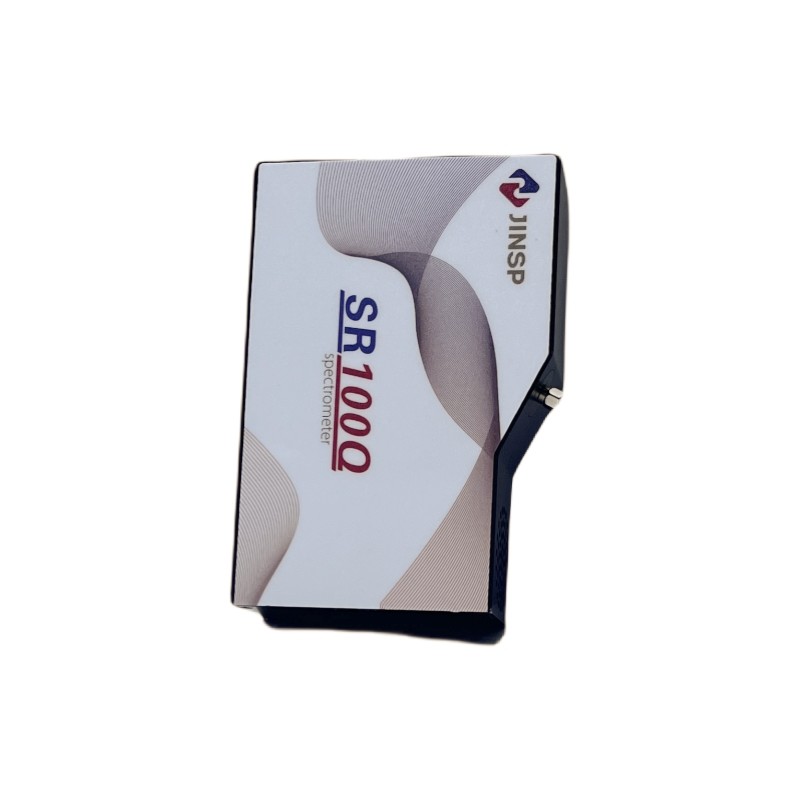

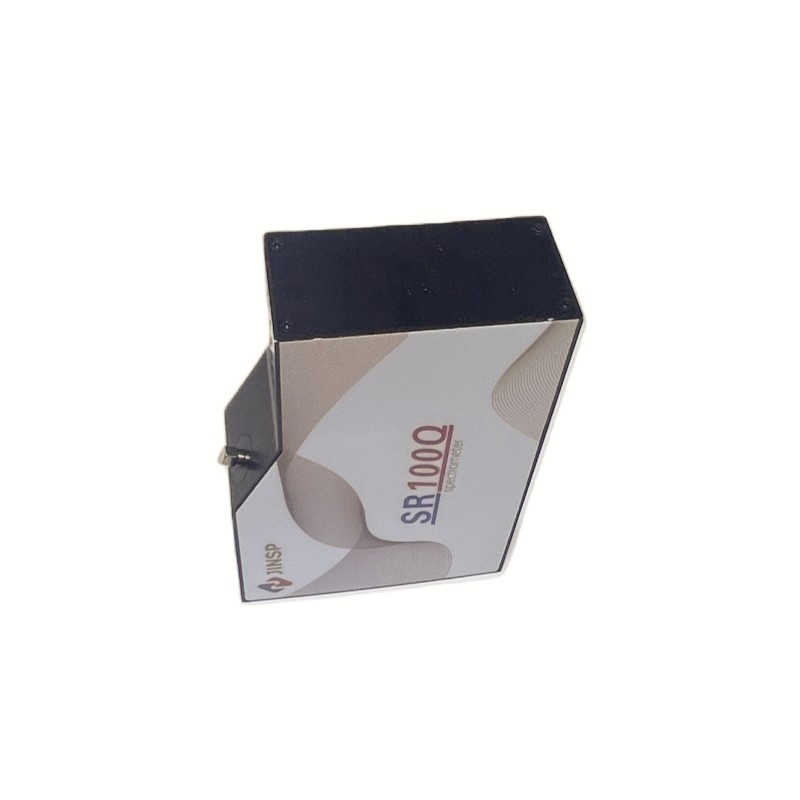

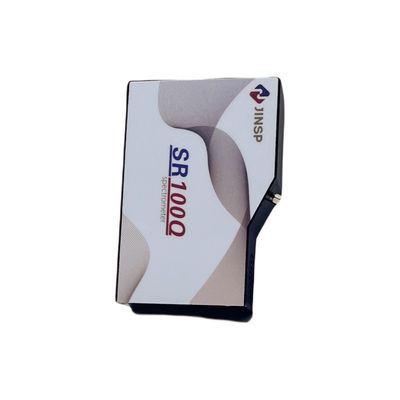

92% High Quantum Efficiency CCD Modular Fiber Optic Spectrometer

Meet the JINSP SR100Q—a high-efficiency spectrometer built for scientific and industrial spectral analysis. Integrating a Hamamatsu S7031 CCD with thermoelectric cooling, it significantly reduces noise and enhances signal clarity. The device supports a broad wavelength range and high resolution, suitable for UV-VIS-NIR applications.

Key uses include laser spectrum monitoring, where it tracks changes in real-time, and thin-film thickness measurement, offering non-destructive testing for optical and semiconductor layers. Its OEM compatibility allows customization for specialized modules such as portable analyzers or inline monitoring systems.

Whether you’re in academia or manufacturing, the SR100Q provides the accuracy and reliability needed for advanced photonic measurements.

Product Parameters:

Detector	Chip Type	Back-illuminated TE-cooled Hamamatsu S7031
	Effective Pixel	1024*122
	Pixel Size	24*24μm
	Sensing Area	24.576*2.928mm
Optical Parameters	Optical Design	F/4 cross-type
	Numerical Aperture	0.13
	Focal Length	100mm
	Entrance Slit Width	10μm,25μm,50μm,100μm,200μm (customizable)
	Fiber Interface	SMA905,free space
Electrical Parameters	Integration Time	8ms-3600s
	Data Output Interface	USB3.0,RS232,RS485,20pin connector
	ADC Bit Depth	16-bit
	Power Supply	5V
	Operating Current	<3.5A
Physical Parameters	Operating Temperature	10℃~40℃
	Storage Temperature	-20℃~60℃
	Operating Humidity	<90%RH (no condensation)
	Dimensions	180mm120mm50mm
	Weight	1.2kg

List of Product Models:

Model	Spectral Range(nm)	Resolution(nm)	Slit(μm)
SR100Q-G21 SR100Q-G22	200~950 350~1100	6.8	200
		2.2	50
		1.5	25
		1.0	10
SR100Q-G23 SR100Q-G24	200~775 350~925	1.6	50
		1.0	25
		0.7	10
SR100Q-G25	532~690(4400cm-1)	13cm-1	50
SR100Q-G26	638~800(3200cm-1)*	10cm-1	25
SR100Q-G27	785~1050(3200cm-1)*	11cm-1	50

Technical Characteristics:

High quantum efficiency, 92%peak@650nm, 83%@232nm
High SNR: Ultra-low dark noise under long integration time, SNR is as high as 1000:1

Noise-free clear processing of weak signal in long exposure, strong adaption to environment
Low-noise and high-speed circuit: USB3.0

Typical Applications:

Detect absorption, transmittance and reflection Spectrum
Light source and laser wavelength characterization
OEM product module: Fluorescence spectrum, Raman spectrum, etc.

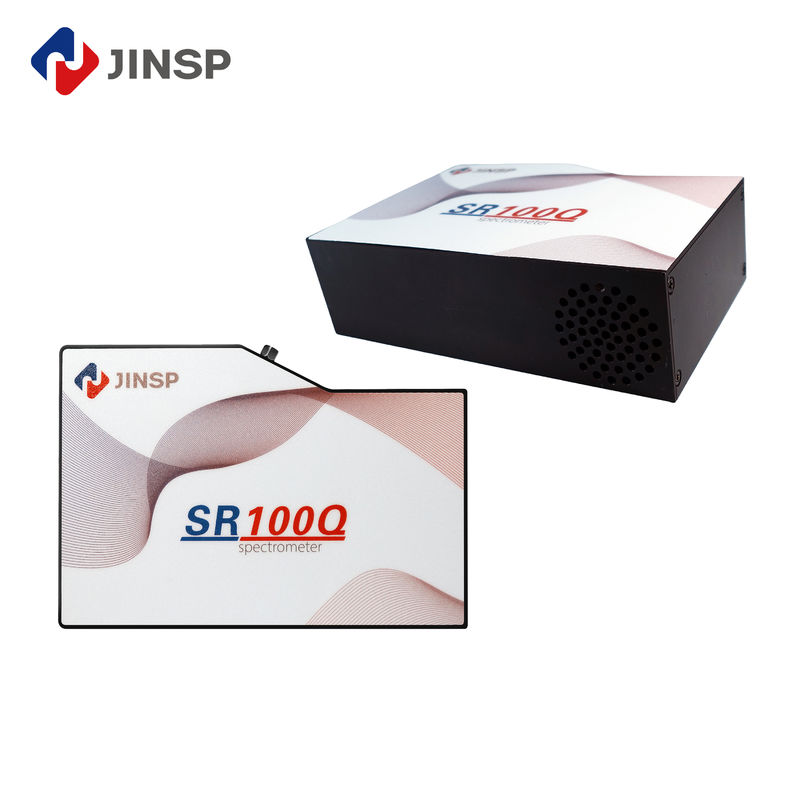

92% Quantum Efficiency CCD Modular Fiber Optic Spectrometer for Weak Light Detection in Scientific Research 0

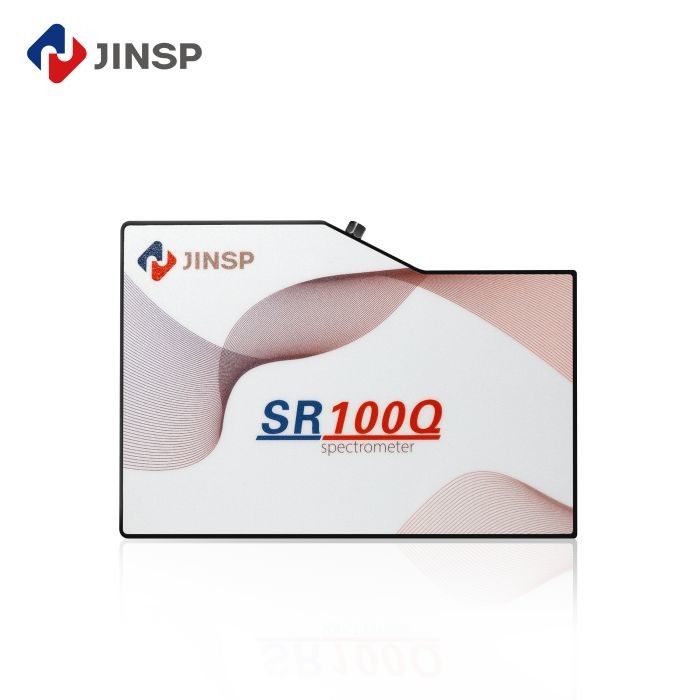

92% Quantum Efficiency CCD Modular Fiber Optic Spectrometer for Weak Light Detection in Scientific Research 1

Company Instroductions:

JINSP – Certified Excellence in Spectral Technology
As a 17-year veteran in spectral detection (Raman, FT-IR, LIBS), JINSP Company Limited meets the highest global standards. Our Beijing HQ and Jiangsu factory produce ISO-certified systems with 200+ patents. We provide multi-industry certifications, including:
✅ CE Marking
✅ ECAC Approval
✅ German ICT Security Testing
✅ Ministry of Public Security Compliance
Choose JINSP for globally recognized, precision-engineered detection equipment.

FAQ

Q1:This is the first time I use,is it easy to operate?

A1:We will send you manual and guide vedio in English,it can teach you how to operate the spectrometer.Also our technicians will offer professional tecnical opearation meetings.

Q2:Can your offer a operation traning?
A2:Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support
( installation , training, debugging, maintenance ).

Q3:What's your website?
A3:You can visit:www.jinsptech.com

Q4:What about your quality assurance?

A4:We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
