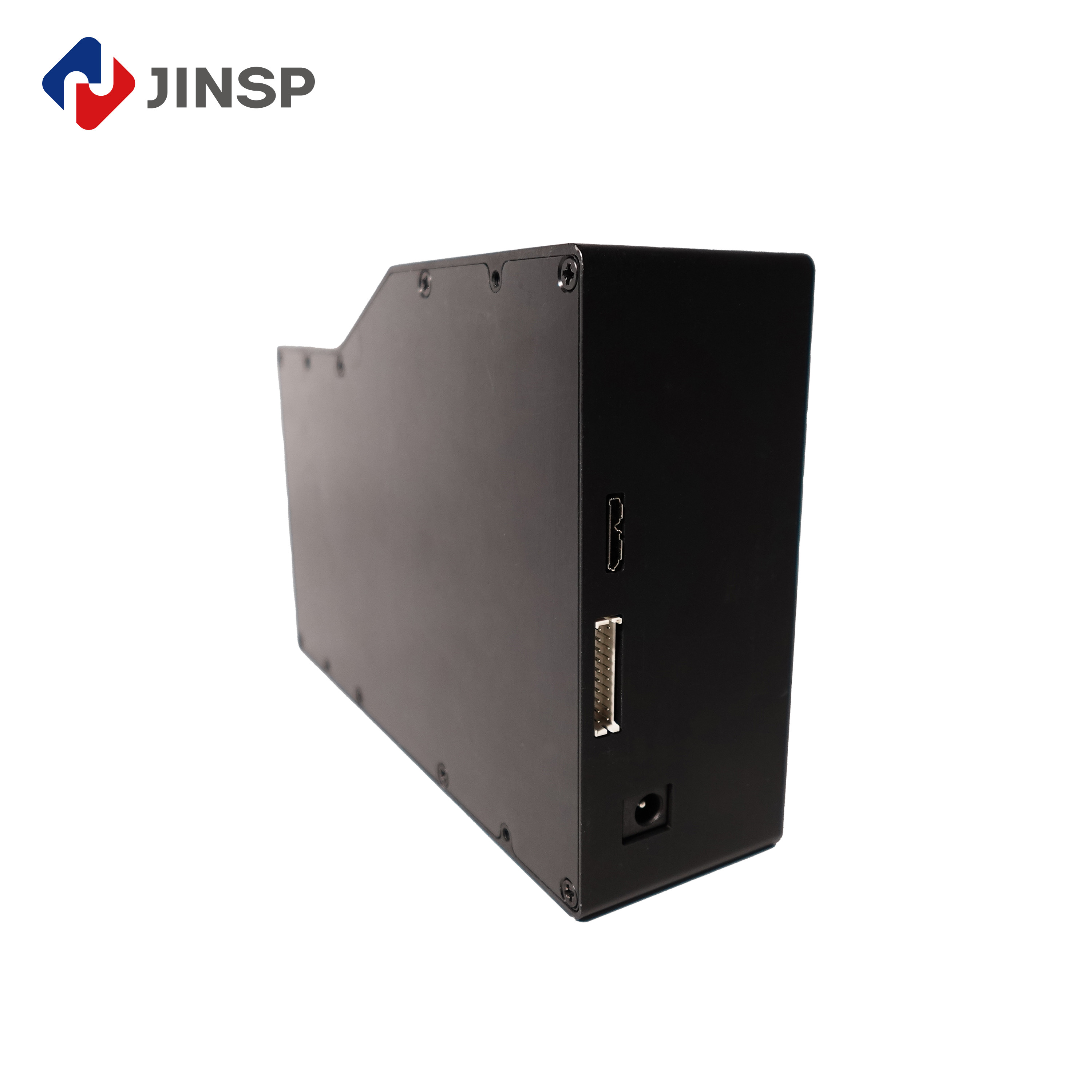

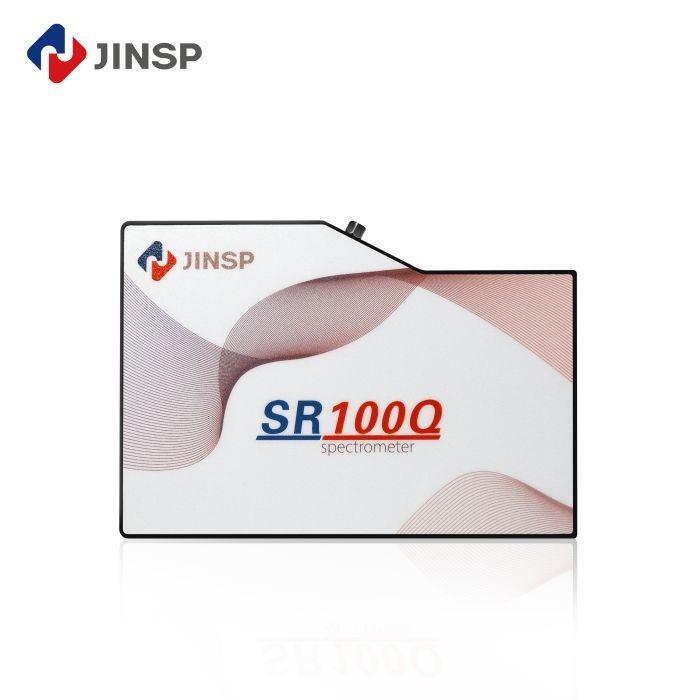

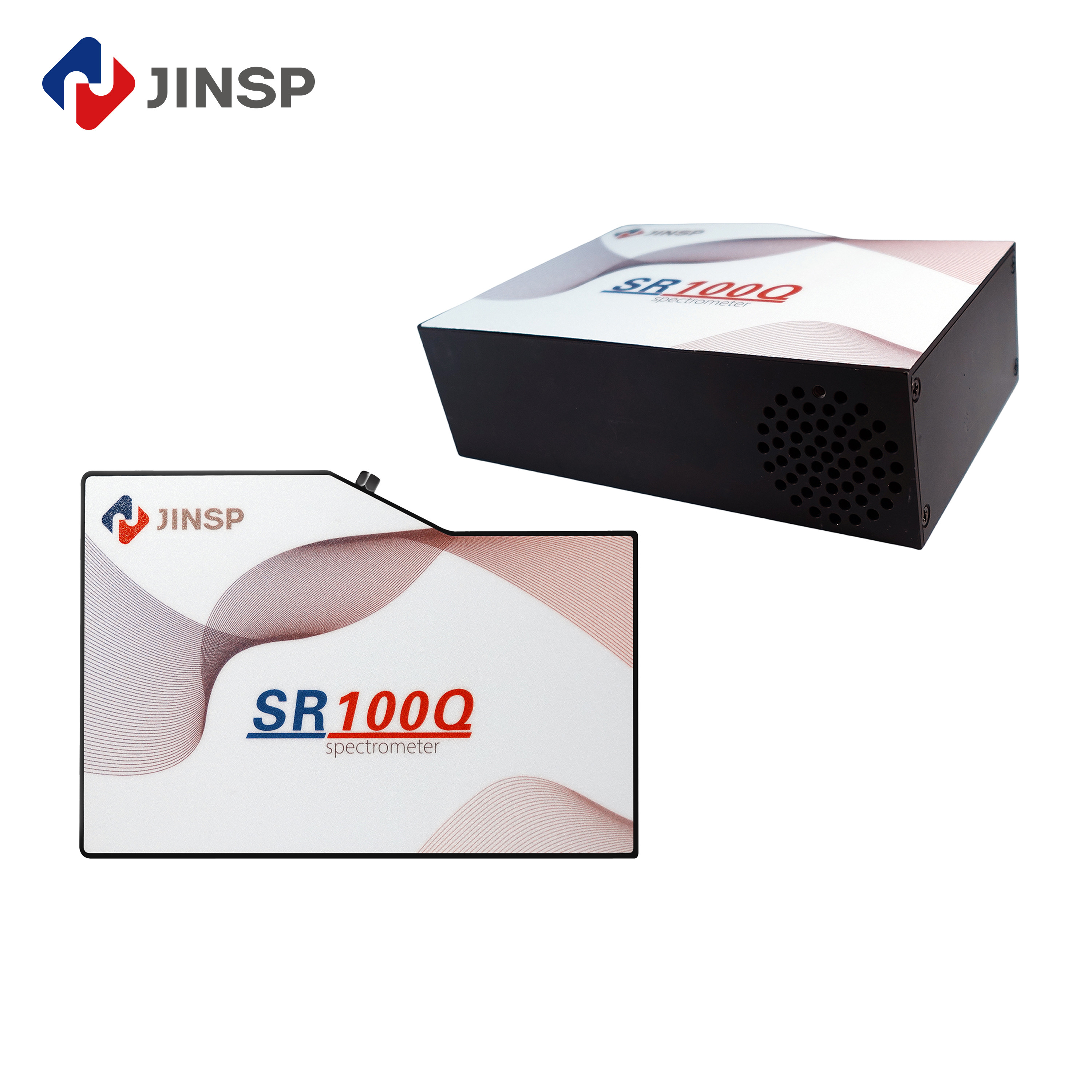

JINSP SR100Q Advanced CCD Fiber Optic Spectrometer with High Quantum Efficiency for Ultraviolet Band and TE Cooling

Contactar ahora

JINSP SR100Q Advanced CCD Fiber Optic Spectrometer with High Quantum Efficiency for Ultraviolet Band and TE Cooling

Cantidad de orden mínima :	1	Precio :	USD12900 - USD14300
Detalles de empaquetado :	Embalaje personalizado	Tiempo de entrega :	90-120 días laborables
Condiciones de pago :	T/t, unión occidental	Capacidad de la fuente :	5PCS/90 a 120 días

Lugar de origen:	China.	Nombre de la marca:	JINSP
Certificación:	ISO9001	Número de modelo:	Se trata de una serie de medidas:

Información detallada
Rango espectral:	200 nm - 1100 nm	Píxeles efectivos:	1024*122
Eficiencia de Qutuam:	QE92% pico a 650 nm, 83% a 232 nm	SNR:	1000: 1

Descripción de producto

92% High Quantum Efficiency CCD Modular Fiber Optic Spectrometer

Designed for researchers and engineers, the JINSP SR100Q Spectrometer combines high-resolution optics with cutting-edge sensor technology. The built-in Hamamatsu CCD with TE cooling minimizes thermal noise, enabling precise detection of weak light signals. With peak QE reaching 92%, users can trust the SR100Q for accurate spectral data across UV, VIS, and NIR ranges.

This spectrometer is particularly well-suited for laser spectral measurement, allowing real-time tracking of wavelength, intensity, FWHM, and multi-peak analysis. It also supports film thickness measurement via reflective or absorptive spectral methods, providing non-destructive testing solutions for semiconductors and optical coatings.

With its robust FPGA processing and intuitive operation, the SR100Q is a reliable tool for advancing scientific and industrial applications.

Product Parameters:

Detector	Chip Type	Back-illuminated TE-cooled Hamamatsu S7031
	Effective Pixel	1024*122
	Pixel Size	24*24μm
	Sensing Area	24.576*2.928mm
Optical Parameters	Optical Design	F/4 cross-type
	Numerical Aperture	0.13
	Focal Length	100mm
	Entrance Slit Width	10μm,25μm,50μm,100μm,200μm (customizable)
	Fiber Interface	SMA905,free space
Electrical Parameters	Integration Time	8ms-3600s
	Data Output Interface	USB3.0,RS232,RS485,20pin connector
	ADC Bit Depth	16-bit
	Power Supply	5V
	Operating Current	<3.5A
Physical Parameters	Operating Temperature	10℃~40℃
	Storage Temperature	-20℃~60℃
	Operating Humidity	<90%RH (no condensation)
	Dimensions	180mm120mm50mm
	Weight	1.2kg

List of Product Models:

Model	Spectral Range(nm)	Resolution(nm)	Slit(μm)
SR100Q-G21 SR100Q-G22	200~950 350~1100	6.8	200
		2.2	50
		1.5	25
		1.0	10
SR100Q-G23 SR100Q-G24	200~775 350~925	1.6	50
		1.0	25
		0.7	10
SR100Q-G25	532~690(4400cm-1)	13cm-1	50
SR100Q-G26	638~800(3200cm-1)*	10cm-1	25
SR100Q-G27	785~1050(3200cm-1)*	11cm-1	50

Technical Characteristics:

High quantum efficiency, 92%peak@650nm, 83%@232nm
High SNR: Ultra-low dark noise under long integration time, SNR is as high as 1000:1

Noise-free clear processing of weak signal in long exposure, strong adaption to environment
Low-noise and high-speed circuit: USB3.0

Typical Applications:

Detect absorption, transmittance and reflection Spectrum
Light source and laser wavelength characterization
OEM product module: Fluorescence spectrum, Raman spectrum, etc.

JINSP SR100Q Advanced CCD Fiber Optic Spectrometer with High Quantum Efficiency for Ultraviolet Band and TE Cooling 0

JINSP SR100Q Advanced CCD Fiber Optic Spectrometer with High Quantum Efficiency for Ultraviolet Band and TE Cooling 1

Company Instroductions:

JINSP – Secure, Certified Spectral Detection Solutions
Trusted by global security and industrial sectors, JINSP Company Limited offers 17 years of expertise in Raman, FT-IR, and LIBS technologies. Our Beijing HQ and Jiangsu plant produce 200+ patented systems, rigorously tested for ECAC, CE, IP Level, and Public Security compliance. When accuracy and certification matter, JINSP delivers.

FAQ

Q1:This is the first time I use,is it easy to operate?

A1:We will send you manual and guide vedio in English,it can teach you how to operate the spectrometer.Also our technicians will offer professional tecnical opearation meetings.

Q2:Can your offer a operation traning?
A2:Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support
( installation , training, debugging, maintenance ).

Q3:What's your website?
A3:You can visit:www.jinsptech.com

Q4:What about your quality assurance?

A4:We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
