1kHz 5kHz Nanosecond Pulsed Fiber Laser Nanosecond Pulse Solid State Laser

Contact Now

1kHz 5kHz Nanosecond Pulsed Fiber Laser Nanosecond Pulse Solid State Laser

Minimum Order Quantity :	1	Price :	USD100000 - USD192900
Packaging Details :	International Shipping Package	Delivery Time :	120 days
Payment Terms :	T/T	Supply Ability :	20PCS /110Working days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	LS1210 LS1320

Detail Information
Wave Length:	532nm	Repetition Rate:	1kHz ~ 5kHz
Pulse Width:	50 ± 20nm	Power Stability:	<1.5%
Beam Quality:	M2<1.5	Beam Divergence:	0.2±0.05(mrad)
Cooling Method:	Water	Average Power(:	40W ,120W, 150W Three Options
Highlight:	1kHz Nanosecond Pulsed Fiber Laser , 1kHz Nanosecond Pulse Solid State Laser , 5kHz Nanosecond Pulsed Fiber Laser

Product Description

Product Specifications

Wave length

532nm

Repetition Rate

1kHz ~ 5kHz

Pulse Width

50 ± 20nm

Power Stability

<1.5%

Beam quality

M2<1.5

Beam Divergence

0.2±0.05(mrad)

Cooling Method

Water

Average Power

40W, 120W, 150W three options

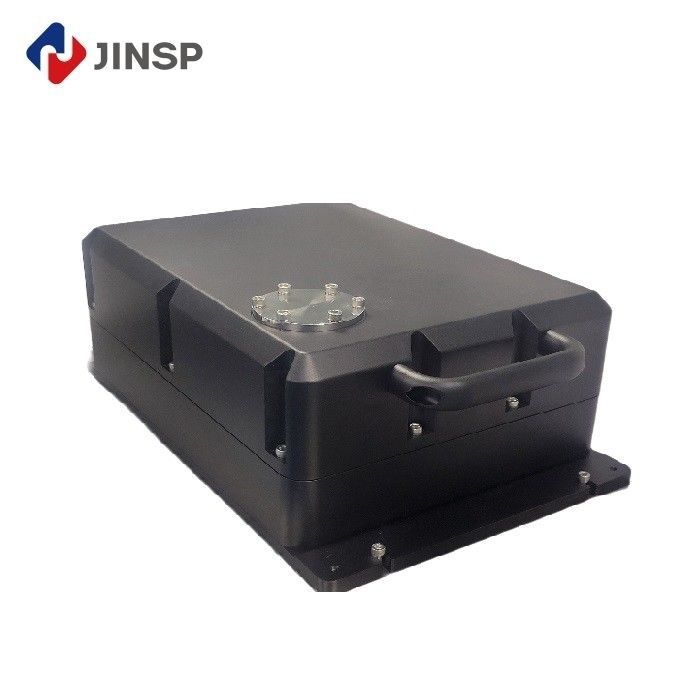

Nano-Second Long Pulse Width Solid-State Laser

The JINSP LS1200 Series represents a comprehensive range of diode-pumped solid-state lasers in the medium to high power spectrum, specializing in continuous wave and pulsed laser outputs. These advanced lasers feature a sophisticated water cooling system for optimal performance and longevity, utilizing a slab architecture design that enhances efficiency and beam quality. The active medium is Neodymium-doped Yttrium Aluminum Garnet (Nd:YAG), renowned for its excellent lasing properties.

Designed for versatility, the JINSP LS1200 Series can operate as a standalone integrated laser system or as a foundational laser seed source for amplification to higher power requirements. This adaptability makes it suitable for industrial cutting and welding, scientific research, medical procedures, and military applications.

Product Selection Table & Parameters

Product code	LS1210	LS1320
Wavelength(nm)	532
Repetition Rate(kHz)	1 \| 3 \| 5	1 \| 3 \| 5
Average Power (W)	10 \| 30 \| 37	40 \| 120 \| 150
Peak Power (MW)	0.17 \| 0.14 \| 0.1	0.67 \| 0.57 \| 0.39
Single Pulse Energy(mJ)	10 \| 10 \| 7.4	40 \| 40 \| 30
Pulse Width (ns)	50 ± 20
Size of Nearfield Beam	~5 (nm)
Beam Divergence	0.2±0.05(mrad)
Beam Quality M2＜	1.5	1.8
Linewidth	40 (GHz)
Polarization	Linear
Warm-up Time	~10 (min)

Applications

Scientific Research: Atomic physics, spectroscopy, particle physics
Instrument Components: Laser amplifier seed sources, fundamental frequency light for laser frequency doubling, Raman spectroscopy light sources
Industrial Manufacturing: Material processing, laser cutting, laser marking
Medical Field: Laser surgery, skin beautification, ophthalmic surgery

Advantages of Laser Processing

Non-contact: No physical contact required, avoiding material scratches or wear
High Precision: Concentrated energy accurately directed to target areas
High Efficiency: Quick contaminant removal without disassembly
Controllability: Adjustable parameters for different materials
Environmentally Friendly: No chemical solvents required

Frequently Asked Questions

Q1: This is the first time I use it, is it easy to operate?

A1: We provide an English manual and guide video, along with professional technical support from our technicians.

Q2: Can you offer an operation training?

A2: Training is available at our factory or we can provide on-site support including installation, training, debugging, and maintenance.

Q3: How to receive the best price in the shortest time?

A3: Please provide detailed specifications with your inquiry for a prompt, accurate quotation.

Q4: If the spectrometer has a problem in my place, what could I do?

A4: Our technicians will diagnose any issues during the one-year warranty period and provide free repairs.

Q5: What about quality assurance?

A5: All products undergo rigorous quality inspection before shipment, with documentation available upon request.
