High Precision CMOS Beam Profiler Reliable For Advanced Laser Characterization

Contact Now

High Precision CMOS Beam Profiler Reliable For Advanced Laser Characterization

Minimum Order Quantity :	1	Price :	USD2750 - USD2900
Packaging Details :	International Shipping Package	Delivery Time :	30 Working Days
Payment Terms :	T/T	Supply Ability :	100PCS Per 30 Working Days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001 IP30 IP40	Model Number:	BA1023

Detail Information
Dimension:	78 45 38.5mm (without Base)	Maximum Frame Rate:	41 Fps@1920*1200
Data Interface:	USB3 Vision, GenlCam	Power Supply:	USB Powered Or 12V DC Externally Powered
Minimum Detection Area:	30μm (5 Pixls)
Highlight:	High Precision CMOS Beam Profiler , High Precision laser beam analyzer , Reliable CMOS Beam Profiler

Product Description

High Precision CMOS Beam Profiler Reliable For Advanced Laser Characterization

Key Specifications

Dimension	78 45 38.5mm (without Base)
Maximum Frame Rate	41 Fps@1920*1200
Data Interface	USB3 Vision, GenlCam
Power Supply	USB Powered Or 12V DC Externally Powered
Minimum Detection Area	30μm (5 Pixls)

Product Overview

The BA1023 USB 1920x1200 CMOS 280nm~1100nm Laser Beam Spot Analysis system provides advanced capabilities for precise laser characterization. This high-performance beam profiler delivers accurate measurements with a signal-to-noise ratio of 40 dB, making it ideal for demanding applications in research, manufacturing, and industrial settings.

Key Features

Real-time comparison of dual light spots for side-by-side beam analysis
Background cropping to eliminate noise and improve measurement accuracy
Integrated light intensity camera for precise beam intensity measurement
USB3 Vision and GenlCam interface for high-speed data transfer
Compact design with flexible power options (USB or 12V DC)

Technical Specifications

Product Code	BA1023	BA1024Ga	BA1024Gb	BA1024Ua	BA1024Ub
Probe wavelength range	280nm ~ 1100nm
Effective sensing area	11mm*7mm	13mm*8.7mm	7mm*5.5mm	4.9mm*3.7mm
Sensor	2.3MP, 1/1.2" CMOS	20MP, 1" CMOS	2MP, 1/1.7" CMOS	0.4MP, 1/2.9" CMOS
SNR	40 dB	44.9 dB	41.5 dB	43.7 dB	42.9 dB
Gain control	0~20dB	0~24dB
Cell size	5.86μm*5.86μm	2.4μm*2.4μm	4.5μm*4.5μm	6.9μm*6.9μm
Minimum detection area	30μm (5 pixls)	12 μm (5 pixls)	22.5 μm (5 pixls)
Maximum frame rate	41 fps@1920*1200	5.9 fps@5472*3648	90 fps@1624*1240	526.5 fps @720*540 Mono 8
Ingress protection	IP30	IP40
Data interface	USB	GigE	USB
File storage	.jpg,.mat,.csv,.xml
Light attenuation component	Insertable and barrel-type options available, compatible with 1-inch unframed filters
Storage temperature	-30℃~ +70℃

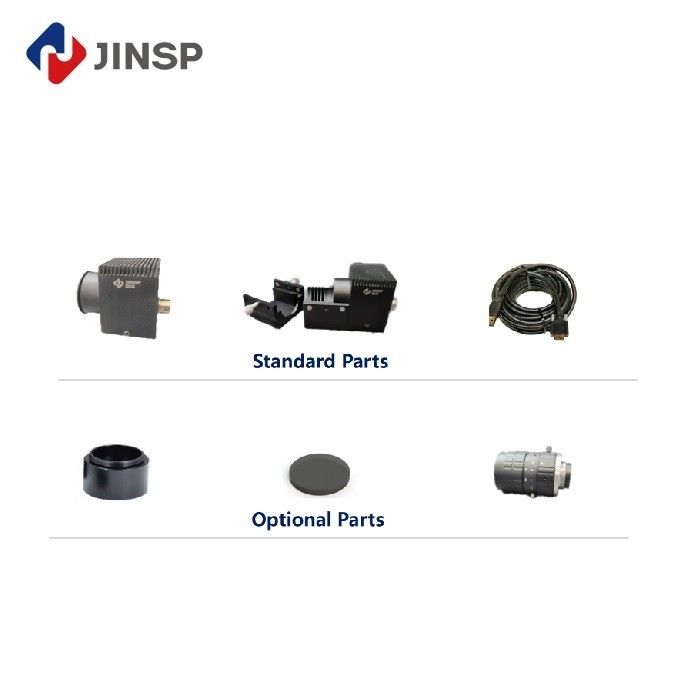

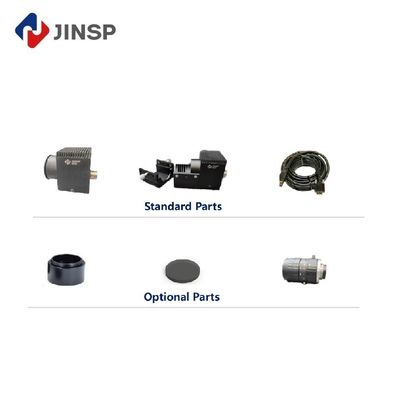

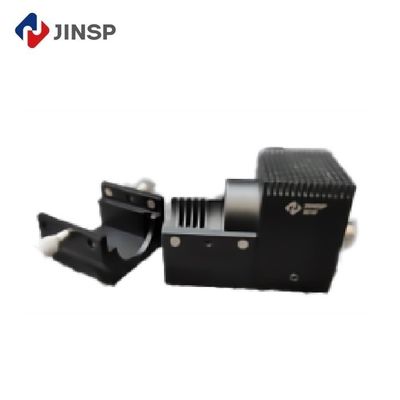

Product Images

Applications

The JINSP BA1023 Beam Profiler is designed for precise laser beam analysis in the 280nm-1100nm wavelength range. Its advanced features make it ideal for:

Laser manufacturing and quality control
Research and development laboratories
Medical laser applications
Military and defense applications
Industrial laser processing (welding, cutting, drilling)

Support & Services

Our comprehensive support package ensures optimal performance throughout your product's lifecycle:

Installation and setup assistance
Technical troubleshooting and diagnostics
Regular software updates
Training and educational resources
Repair and replacement services

All BA1023 units include a one-year warranty with free repair services.

Frequently Asked Questions

Q1: What is the brand name of this beam profiler?

A1: The brand name of this beam profiler is JINSP.

Q2: What is the model number of this beam profiler?

A2: The model number of this beam profiler is BA1023.

Q4: What are the payment terms for this beam profiler?

A4: The payment terms for this beam profiler are T/T.

Q5: What is the delivery time for this beam profiler?

A5: The delivery time for this beam profiler is 30 working days.
