High Performance Compact CMOS Spectrometer Shock Resistant For Spectral Analysis
High Performance Compact CMOS Spectrometer Shock Resistant For Spectral Analysis
High Performance Compact CMOS Spectrometer Shock Resistant For Spectral Analysis High Performance Compact CMOS Spectrometer Shock Resistant For Spectral Analysis High Performance Compact CMOS Spectrometer Shock Resistant For Spectral Analysis High Performance Compact CMOS Spectrometer Shock Resistant For Spectral Analysis
Contact Now

High Performance Compact CMOS Spectrometer Shock Resistant For Spectral Analysis

Minimum Order Quantity : 1 Price : USD1200- USD1300
Packaging Details : International Shipping Package Delivery Time : 30-40 working days
Payment Terms : T/T, Western Union Supply Ability : 100 PCS/30-40 days
Place of Origin: CHINA Brand Name: JINSP
Certification: CE Model Number: SR50C

Detail Information
Spectral Range: 200-1100 Nm Integration Time: 1 Ms - 60 S
Signal-to-Noise Ratio: 650:1(4ms） Dimensions: 76mm*65mm*38mm
Highlight:

High Performance Compact CMOS Spectrometer

,

High Performance CMOS fiber Spectrometer

,

Shock Resistant Compact CMOS Spectrometer

Product Description

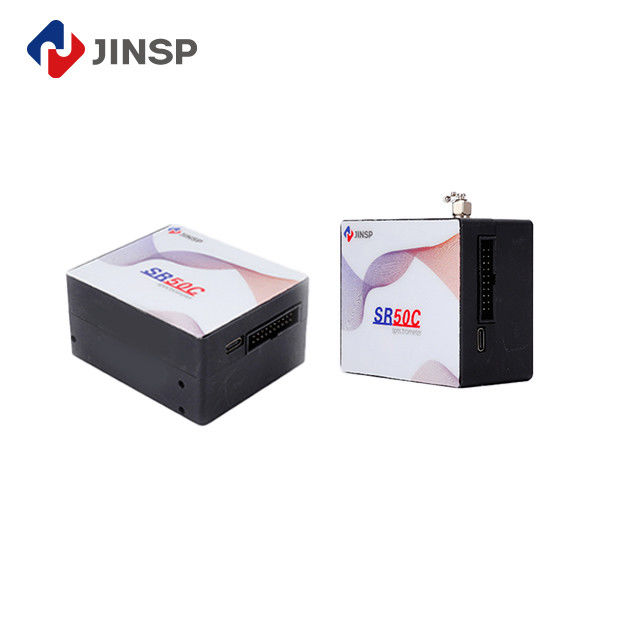

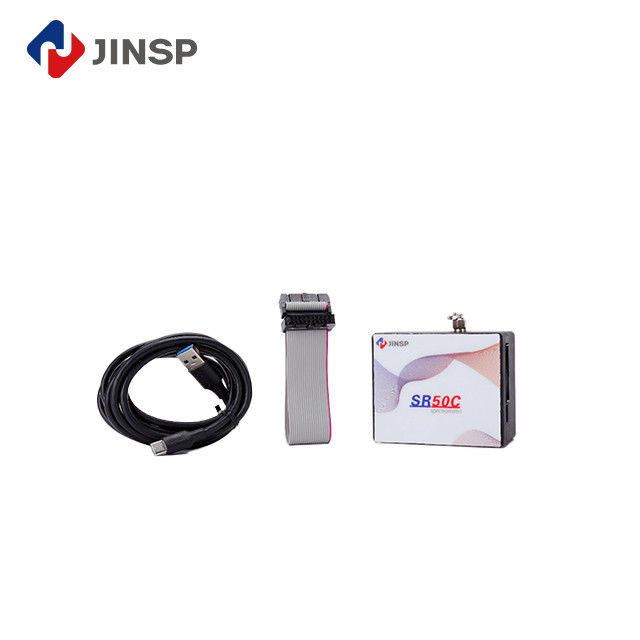

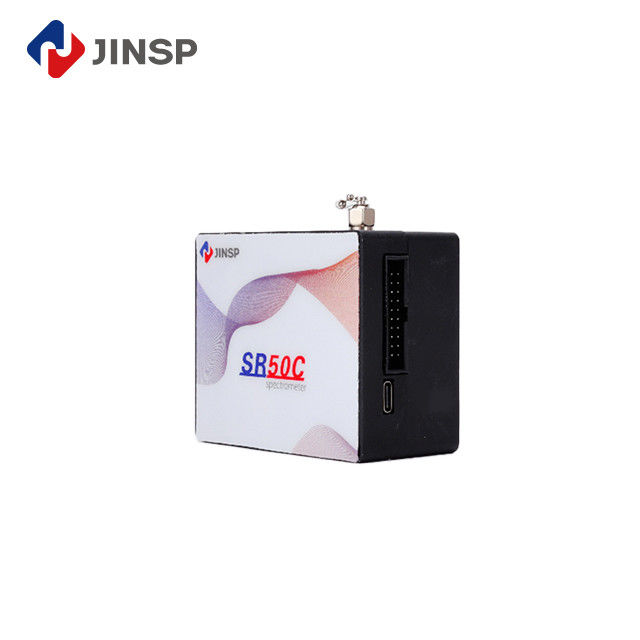

High Performance Compact CMOS Spectrometer - SR50C
Shock Resistant Spectral Analysis Instrument
Key Features
  • 200-1100 nm spectral range
  • 1 ms - 60 s integration time
  • 650:1 signal-to-noise ratio (4ms)
  • Compact dimensions: 76mm × 65mm × 38mm
  • IP65-rated housing with MIL-STD shock resistance
  • Adaptive grating with 0.3-5nm selectable resolution
  • AI-powered spectral library for rapid pollutant identification
High Performance Compact CMOS Spectrometer Shock Resistant For Spectral Analysis 0 High Performance Compact CMOS Spectrometer Shock Resistant For Spectral Analysis 1 High Performance Compact CMOS Spectrometer Shock Resistant For Spectral Analysis 2 High Performance Compact CMOS Spectrometer Shock Resistant For Spectral Analysis 3 High Performance Compact CMOS Spectrometer Shock Resistant For Spectral Analysis 4
Technical Specifications
Parameter Value
Spectral Range 200-1100 nm
Integration Time 1 ms - 60 s
Signal-to-Noise Ratio 650:1 (4ms)
Dimensions 76mm × 65mm × 38mm
Weight 220g
Chip Type Linear array CMOS, Hamamatsu S11639
Effective Pixel 2048
Sensing Area 28.7mm × 0.2mm
Focal Length ≤ 50mm
Numerical Aperture 0.14
Entrance Slit Width 10μm, 25μm, 50μm, 100μm, 200μm (customizable)
Applications
The SR50C spectrometer is designed for demanding environmental and industrial applications:
  • Water quality monitoring (turbid wastewater to drinking water)
  • Absorption, transmittance and reflectivity measurements
  • Light source and laser wavelength identification
  • Environmental protection (smoke and water quality monitoring)
  • LIBS, fluorescence spectrum, and Raman spectrum analysis
Company Profile
JINSP Company Limited is an award-winning manufacturer of precision spectroscopic instruments:
  • Recipient of National Science and Technology Commission's Scientific Achievement Certificate
  • China Patent Excellence Award winner
  • Geneva International Invention Award recipient
  • ISO9001:2015, ISO14001:2015, and ISO45001:2018 certified
  • Complies with GB/T 40219-2021 "General Specification for Raman Spectrometer"
Frequently Asked Questions
What is the brand name of this fiber spectrometer?
JINSP is the brand name of this fiber spectrometer.
What is the model number of this fiber spectrometer?
The model number is SR50C.
What certification does this fiber spectrometer have?
This spectrometer has CE certification.
Where is this fiber spectrometer made?
This spectrometer is manufactured in China.
What are the payment terms for this product?
Payment terms include T/T and Western Union. Prices are negotiable.
