Low Noise Compact Raman Spectrometer CMOS With 110mm*95mm*43mm Dimensions

Contact Now

Low Noise Compact Raman Spectrometer CMOS With 110mm95mm43mm Dimensions

Minimum Order Quantity :	1	Price :	USD1200- USD1300
Packaging Details :	Customized Packaging	Delivery Time :	30-50 working days
Payment Terms :	T/T,Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR75C
Document:	Brochure JINSP FIBER OPTIC ...EN.pdf

Detail Information
Wavelength Range:	200nm-1100nm	Detector Type:	Linear Array CMOS, Hamamatsu S11639
Optical Design:	Type M C-T Light Path	Grating Slits:	10μm, 25μm, 50μm, 100μm, 200μm (customizable)
Weight:	310g	Dimension:	110mm95mm43mm
Interface:	USB 2.0	Optical Interface:	FC/PC Or SMA905
Highlight:	Low Noise Compact Raman Spectrometer , Low Noise fiber optic spectrophotometer , CMOS Compact Raman Spectrometer

Product Description

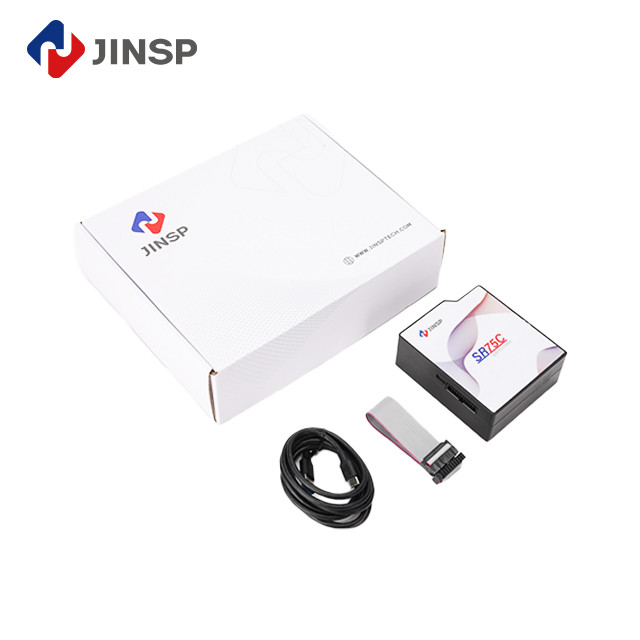

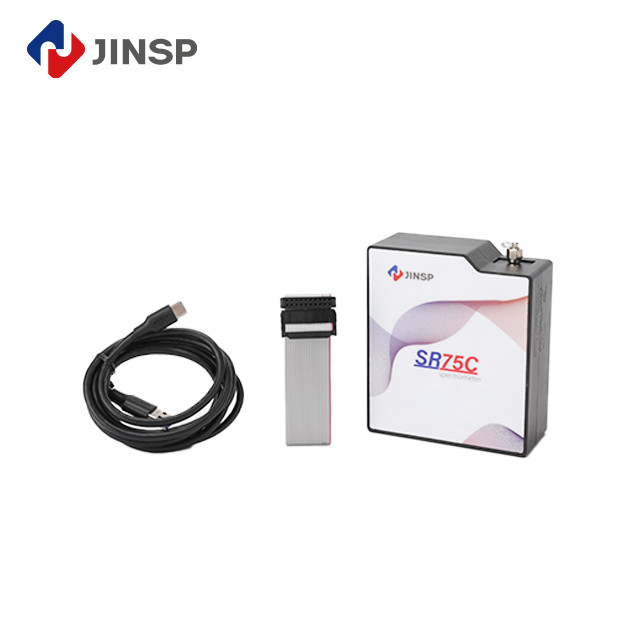

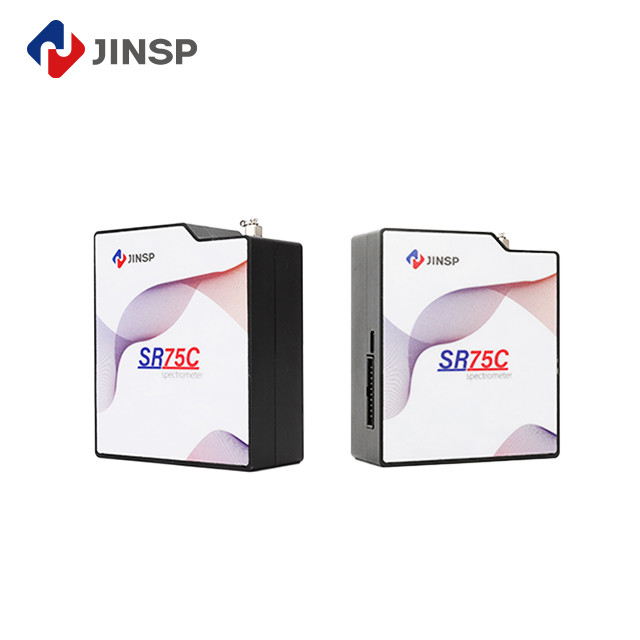

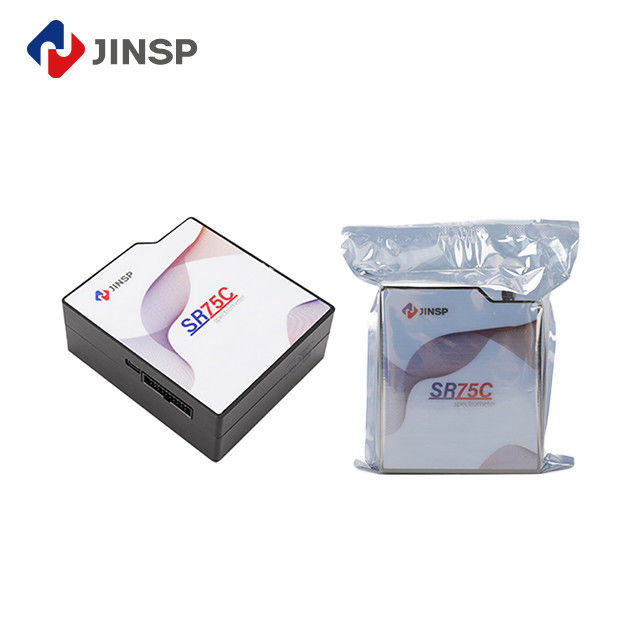

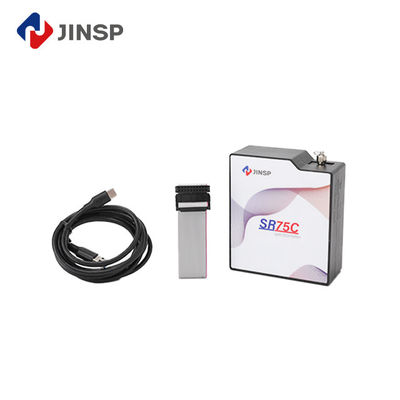

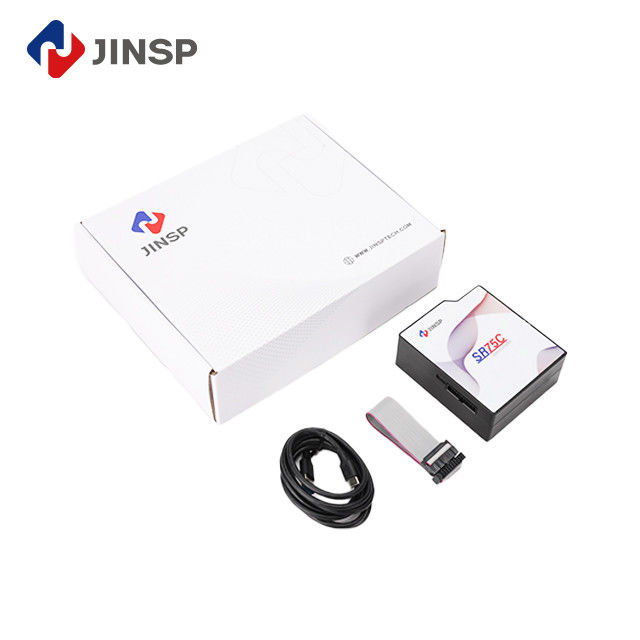

Miniature Fiber Optic Modular Spectrometer JINSP SR75C

The compact size of this device is truly remarkable, housing a high-sensitivity linear array sensor that is capable of covering an extensive range. This sensor is not limited to just the visible spectrum; it also extends its capabilities into the ultraviolet and near-infrared regions. Specifically, it can detect wavelengths ranging from 200 nanometers all the way up to 1000 nanometers, making it a versatile tool for a variety of applications.

Moreover, this advanced sensor is equipped with USB connectivity, which greatly simplifies the process of integrating it into industrial systems. Its compatibility with USB interfaces ensures that it can be easily connected to computers and other control devices, facilitating seamless data transfer and control. This feature is particularly advantageous for industrial integration, as it allows for straightforward incorporation into existing setups without the need for extensive modifications or specialized hardware.

In summary, this compact yet powerful sensor is designed to meet the demands of modern industrial applications. Its broad spectral coverage, combined with convenient USB connectivity, makes it an ideal choice for applications requiring precise and efficient detection across multiple spectral ranges. The ease of integration and control further enhances its appeal, ensuring that it can be quickly and effortlessly incorporated into various industrial processes.

Product Parameters:

	Performance Indicators	Parameters
Detector	Chip Type	Linear array CMOS, Hamamatsu S11639
	Eﬀective Pixel	2048
	Pixel Size	14μm *200μm
	Sensing Area	28.7mm *0.2mm
Optical Parameters	Optical Design	M Type C-T light path
	Numerical Aperture	0.085
	Entrance Slit Width	10μm, 25μm, 50μm, 100μm, 200μm (customizable)
	Spectrum Range and Resolution	See model table for details
	Fiber Input Interface	SMA905, free space
Electrical Parameters	Integration Time	1ms-60s
	Signal-to-Noise Ratio	650:1 (4ms)
	Data Output Interface	USB 2.0 or serial port
	ADC Bit Depth	16-bit
	Power Supply	DC 4.5V to 5.5V (type @5V)
	Operating Current	< 500mA
Others	Operating Temperature	10°C ~ 40°C
	Storage Temperature	-20°C ~ 60°C
	Operating Humidity	＜90%RH (no condensation)
	Dimensions	110mm95mm40.5mm
	Weight	310g

Model	Spectral Range (nm)	Resolution (nm)	Slit (μm)
SR75C-G02	510~1000 (VIS-NIR)	0.8	25
SR75C-G02	510~1000 (VIS-NIR)	0.5	10
SR75C-G04 SR75C-G06 SR75C-G07 SR75C-G08 SR75C-G09 SR75C-G10	200~450(UV) 330~570(VIS) 550~750(VIS) 750-900(NR)	0.3-0.5	25
	200~450(UV) 330~570(VIS) 550~750(VIS) 750-900(NR)	0.2-0.3	10
	180~340( UV) 500~600(VIS)	0.3	25
	180~340( UV) 500~600(VIS)	0.15~0.2	10

* Customization available for other ranges

Typical Applications:

Absorption, transmittance, and reflectance detection In ultraviolet, visible, and near-infrared range;
Detection of light source and laser wavelength;
OEM product module:

LIBS – analysis of soil and minerals for geological testing and mining-related work

Online monitoring of water quality and environmental protection - organic matter and oxygen content in water

Flue gas - Monitoring and identification of flue gas emission components

Technical Characteristics:

Wide Spectral Range Supports customized spectrum range of 200-1000nm
High Signal-to-Noise Ratio Low-noise CMOS signal processing circuit, with excellent signal-to-noise ratio
High Resolution M-shape C-T optical design

Low Noise Compact Raman Spectrometer CMOS With 110mm*95mm*43mm Dimensions 0

Company Introduction:

JINSP Company Limited has won the National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate and the China Patent Excellence Award, and related products have been obtained has won authoritative awards such as the Geneva International Invention Award, the Beijing New Technology and New Product Certificate, and the "Innovation Achievement Award" of the Zhu Liangyi Analytical Instrument Innovation Award.GB/T 40219-2021 "General Specification for Raman Spectrometer".

FAQ:

Q1: Is the price of this product negotiable?

A1: Yes, the price of this product is negotiable.

Q2: What are the payment terms for this product?

A2: The payment terms for this product are T/T and Western Union.

Q3: What is the supply ability for this product?

A3: The supply ability for this product is 100 PCS/70-90 days.

Q4: How long does it take to deliver this product?

A4: The delivery time for this product is 30-50 working days.
