JINSP SR100Q Fiber Optic Spectrometer with Advanced Light Path and Low-Noise High-Speed Signal Processing Chip

Contactar ahora

JINSP SR100Q Fiber Optic Spectrometer with Advanced Light Path and Low-Noise High-Speed Signal Processing Chip

Cantidad de orden mínima :	1	Precio :	USD12900 - USD14300
Detalles de empaquetado :	Embalaje personalizado	Tiempo de entrega :	90-120 días laborables
Condiciones de pago :	T/t, unión occidental	Capacidad de la fuente :	5PCS/90 a 120 días

Lugar de origen:	China.	Nombre de la marca:	JINSP
Certificación:	ISO9001	Número de modelo:	Se trata de una serie de medidas:

Información detallada
Rango espectral:	200 nm - 1100 nm	Píxeles efectivos:	1024*122
Eficiencia de Qutuam:	QE92% pico a 650 nm, 83% a 232 nm	SNR:	1000: 1

Descripción de producto

92% High Quantum Efficiency CCD Modular Fiber Optic Spectrometer

The JINSP SR100Q Spectrometer is a high-performance analytical instrument designed for precision spectral analysis. Integrated with the Hamamatsu S7031 scientific-grade TE-cooled CCD, it delivers exceptional quantum efficiency—peaking at 92% at 650 nm and maintaining 83% at 232 nm. This ensures superior sensitivity and signal-to-noise ratio (SNR), even for weak signals in the UV range. The large 24×24μm pixel size further enhances light capture, making it ideal for low-light conditions.

Equipped with advanced optical design and a low-noise FPGA signal processor, the SR100Q guarantees stable and reliable performance across multiple spectrum ranges, including UV, visible, and near-infrared. Its thermoelectric cooling significantly reduces dark noise, enabling long-exposure measurements without signal degradation. Typical applications include absorption, transmission, reflection spectroscopy, laser characterization, and OEM modules for fluorescence and Raman analysis.

Ideal for research and industrial use, the SR100Q supports applications such as laser spectral monitoring and thin-film thickness measurement, offering non-contact, high-efficiency solutions for quality control and R&D.

Product Parameters:

Detector	Chip Type	Back-illuminated TE-cooled Hamamatsu S7031
	Effective Pixel	1024*122
	Pixel Size	24*24μm
	Sensing Area	24.576*2.928mm
Optical Parameters	Optical Design	F/4 cross-type
	Numerical Aperture	0.13
	Focal Length	100mm
	Entrance Slit Width	10μm,25μm,50μm,100μm,200μm (customizable)
	Fiber Interface	SMA905,free space
Electrical Parameters	Integration Time	8ms-3600s
	Data Output Interface	USB3.0,RS232,RS485,20pin connector
	ADC Bit Depth	16-bit
	Power Supply	5V
	Operating Current	<3.5A
Physical Parameters	Operating Temperature	10℃~40℃
	Storage Temperature	-20℃~60℃
	Operating Humidity	<90%RH (no condensation)
	Dimensions	180mm120mm50mm
	Weight	1.2kg

List of Product Models:

Model	Spectral Range(nm)	Resolution(nm)	Slit(μm)
SR100Q-G21 SR100Q-G22	200~950 350~1100	6.8	200
		2.2	50
		1.5	25
		1.0	10
SR100Q-G23 SR100Q-G24	200~775 350~925	1.6	50
		1.0	25
		0.7	10
SR100Q-G25	532~690(4400cm-1)	13cm-1	50
SR100Q-G26	638~800(3200cm-1)*	10cm-1	25
SR100Q-G27	785~1050(3200cm-1)*	11cm-1	50

Technical Characteristics:

High quantum efficiency, 92%peak@650nm, 83%@232nm
High SNR: Ultra-low dark noise under long integration time, SNR is as high as 1000:1

Noise-free clear processing of weak signal in long exposure, strong adaption to environment
Low-noise and high-speed circuit: USB3.0

Typical Applications:

Detect absorption, transmittance and reflection Spectrum
Light source and laser wavelength characterization
OEM product module: Fluorescence spectrum, Raman spectrum, etc.

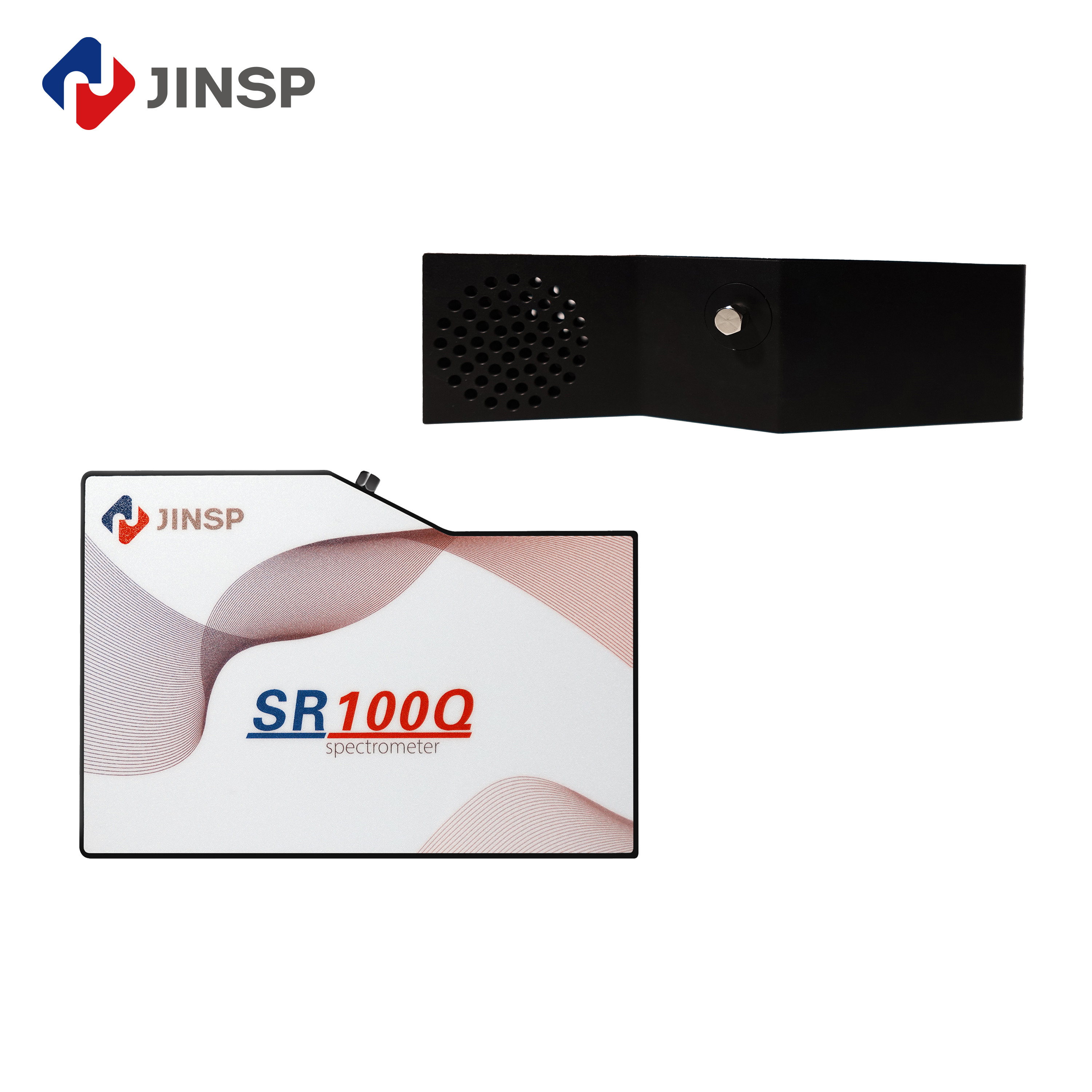

JINSP SR100Q Fiber Optic Spectrometer with Advanced Light Path and Low-Noise High-Speed Signal Processing Chip 0

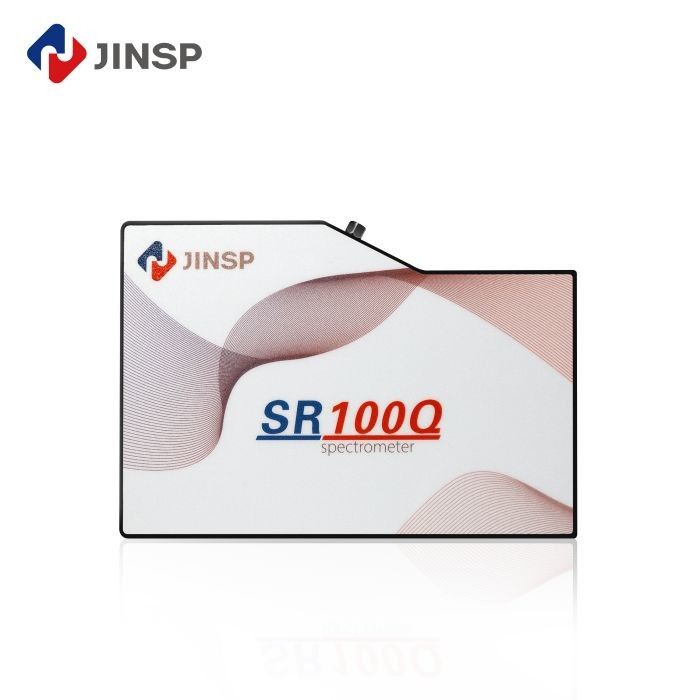

JINSP SR100Q Fiber Optic Spectrometer with Advanced Light Path and Low-Noise High-Speed Signal Processing Chip 1

Company Instroductions:

JINSP – Your Partner in Spectral Detection
For 17+ years, JINSP Company Limited has empowered industries with Raman, FT-IR, and LIBS technologies. Backed by 200+ patents, ISO certifications, and Beijing/Jiangsu operations, we provide fully certified systems (CE, ECAC, ICT, etc.). Whether for security, research, or industrial use, JINSP ensures precision, compliance, and unmatched support.

FAQ

Q1:This is the first time I use,is it easy to operate?

A1:We will send you manual and guide vedio in English,it can teach you how to operate the spectrometer.Also our technicians will offer professional tecnical opearation meetings.

Q2:Can your offer a operation traning?
A2:Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support
( installation , training, debugging, maintenance ).

Q3:What's your website?
A3:You can visit:www.jinsptech.com

Q4:What about your quality assurance?

A4:We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
