Product Description
High-Sensitivity In-Situ Monitoring of C8 Aromatic Separation
Accurate composition data is fundamental to efficient PX production.

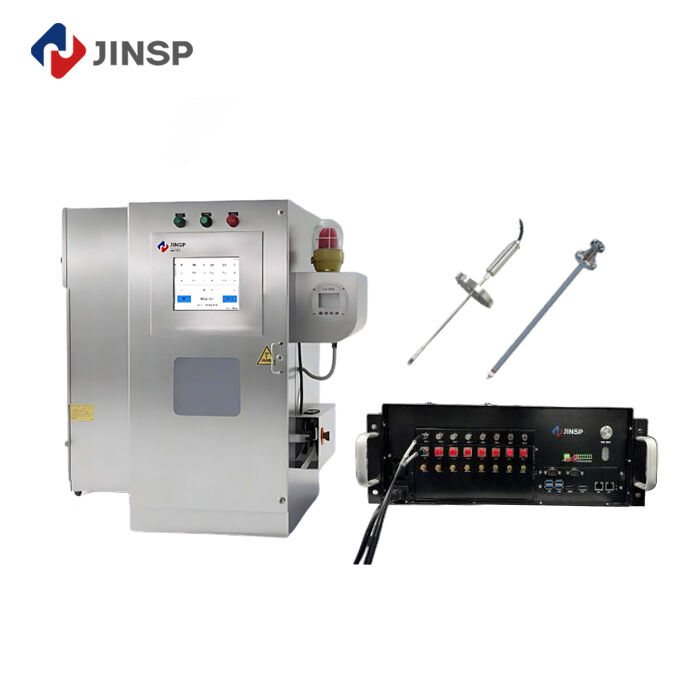

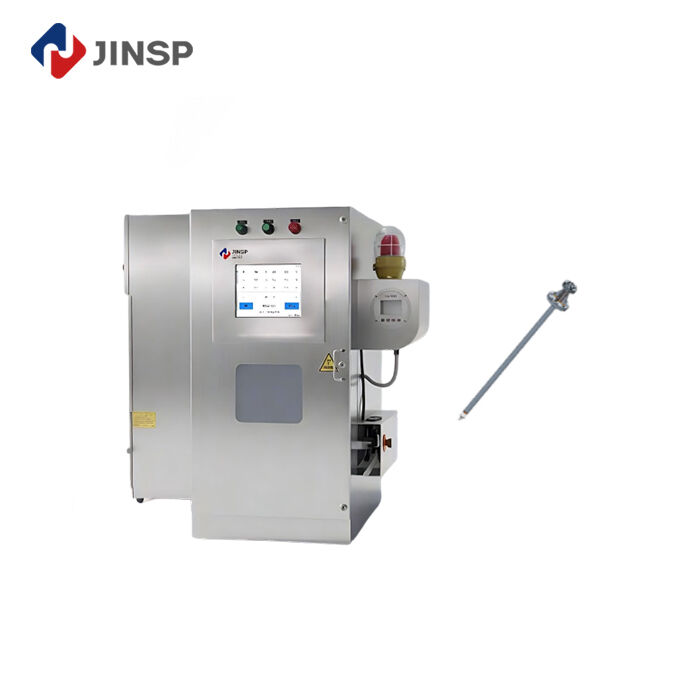

JINSP RS2000PAT Online Raman Analyzer combines laser Raman spectroscopy, intelligent analytical modeling and industrial process integration to provide continuous liquid-component measurement directly at the point of production.
Precision Analysis Where the Process Happens
Instead of removing samples from the production line and waiting for laboratory analysis, RS2000PAT performs in-situ measurement through industrial Raman probes.
For PX production, probes can be installed at different locations in an adsorption tower to monitor the C8 aromatic mixture in real time.
This configuration provides direct information about concentration changes throughout the separation process.
Built for Complex C8 Aromatic Mixtures
The PX process involves four closely related aromatic compounds:
- p-Xylene
- m-Xylene
- o-Xylene
- Ethylbenzene
Because their boiling points are close, adsorption-based separation is widely used.
RS2000PAT is designed to extract the relevant Raman information from this complex chemical environment and provide quantitative PX measurement.
Intelligent Raman Analysis
The analyzer supports intelligent matching of analytical algorithms and customizable machine-learning models. Its self-learning modeling capability can automatically select suitable acquisition parameters and monitor component changes within the process.
This provides a foundation for automated process analysis rather than simple spectral acquisition.
Integrated into the Plant
RS2000PAT supports:
- RS485 communication
- RJ45 Ethernet
- Modbus protocol
- DCS integration
- Real-time analytical feedback
- Continuous monitoring
The analyzer can therefore function as part of a broader process-control architecture rather than as an isolated laboratory instrument.
Demonstrated PX Performance
In the PX application presented by JINSP, the system achieves a reported PX quantitative deviation of less than 0.07%.
The application is intended to support:
- Real-time process adjustment
- PX yield improvement
- Adsorbent operating-cycle optimization
- Production-cost reduction
- Reduced offline sampling and laboratory workload
Industrial Deployment

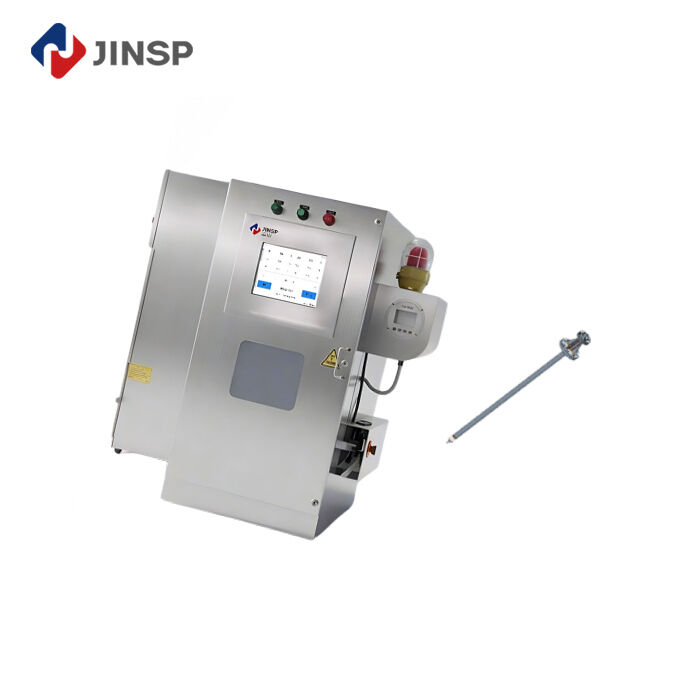

RS2000PAT platform supports continuous operation and is available in an explosion-proof cabinet configuration. The cabinet includes three-stage temperature control and is specified for operation from -20 to 50°C.
For petrochemical producers seeking continuous visibility into PX concentration and C8 aromatic separation, RS2000PAT provides an integrated Raman-based process-analysis solution—from in-situ measurement to industrial data communication.
Technical Parameters:
|
Model number
|
RS2000PAT
|
|
Number of detection channels
|
Single channel, monitoring 1 position only
|
|
Device dimension
|
800 mm(width)× 900 mm(depth)× 1300 mm(height)
|
|
Operating temperature
|
-20 ~ 50 ℃
|
|
Explosion Proof (Main Unit)
|
ExdbebibmbpxbIICT4Gb / ExtbibmbIIICT135℃Db
|
|
Thermostat
|
Three-level temperature control system design can operate stably for a long time in an environment of -20 ~ 50 ℃ , and is suitable for online monitoring environments in different factories
|
|
Connectivity
|
RS485 and RJ45 network ports provide Mod Bus protocol, can be adapted to many types of industrial control systems and can feedback results to the control system.
|
|

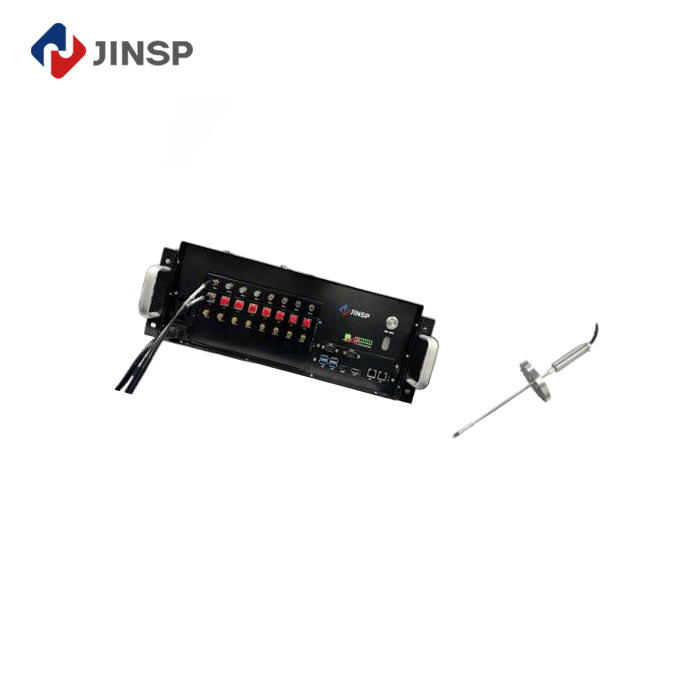

Probe
|
1pc standard immerssion fiber optic probe and 1pc non-immersion probe
|
|
Multi-component monitoring
|
Simultaneously obtain the content of multiple components during the reaction process, collect single-channel signals continuously in real-time, and the substance content and change trend can be given in real-time, enabling intelligent analysis of unknown components during the reaction process.
|
|
Consistency
|
Patented algorithms for device calibration and model transfer ensure data consistency across multiple devices
|
|
Smart modeling
|
Intelligent matching of optimal algorithms, or customize multiple machine learning models according to the needs of one-click automatic modeling
|
|
Self-learning modeling
|
Equipped with self-learning modeling capabilities, it eliminates the need for sampling and manual modeling. It can intelligently select optimal collection parameters, monitor changes in various components within the system in real-time, automatically identify and assist in analysis. This aids in understanding and monitoring reactions without the need for manual intervention
|
|
24h working
|
Built-in real-time automatic calibration and self-test, thermostatic control and positive pressure protection. Works well in high and low temperatures, explosive and corrosive environments.
|
|
% Relative humidity
|
0~90%RH
|
|
Power supply
|
900 W (max)；500 W (typical running)
|
|
Pre-heating time
|
＜60 min
|
Company Introduction:
JINSP COMPANY LIMITED is a professional enterprise focusing on spectral analysis technology. Rooted in Tsinghua University, it has accumulated 19 years of technical expertise with over 200 patent applications. The company has participated in formulating 4 national standards for Raman spectroscopy and 1 international standard, and has won authoritative awards including China Patent Excellence Award, Geneva International Invention Award, and Zhu Liang-Yi Analytical Instrument “Innovation Achievement Award”.
