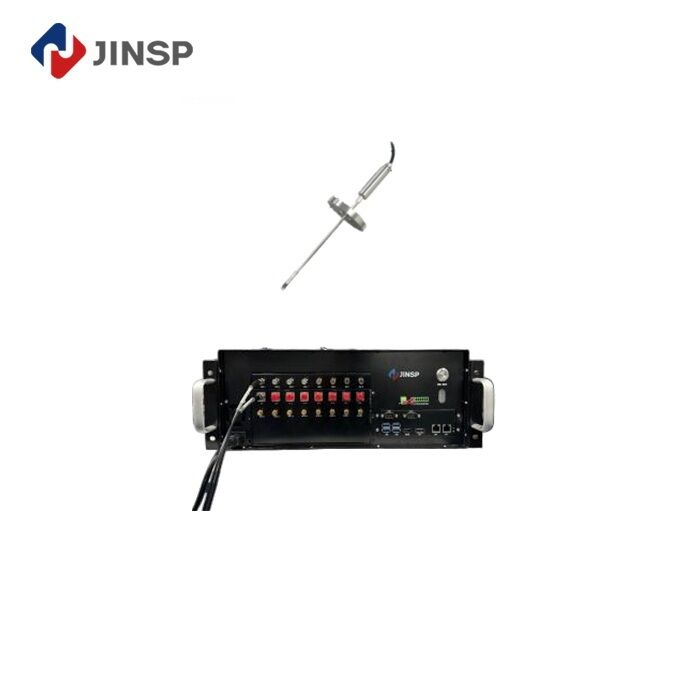

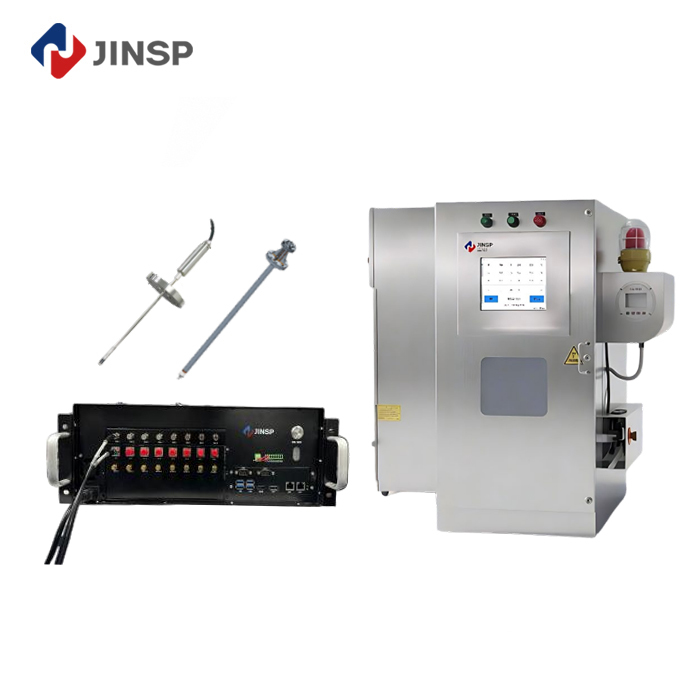

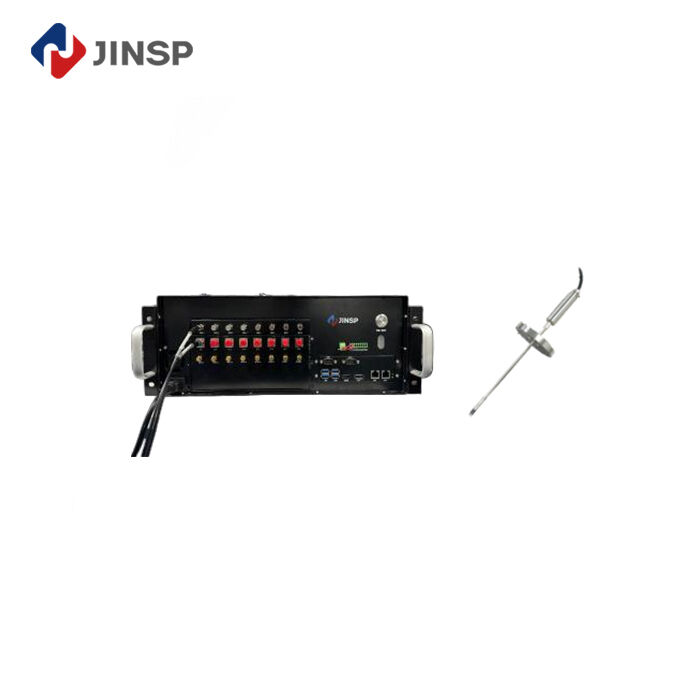

Online Raman Spectrometer for PX Concentration Measurement

Model number

RS2000PAT

Number of detection channels

Single channel, monitoring 1 position only

Device dimension

800 mm(width)× 900 mm(depth)× 1300 mm(height)

Operating temperature

-20 ~ 50 ℃

Explosion Proof (Main Unit)

ExdbebibmbpxbIICT4Gb / ExtbibmbIIICT135℃Db

Thermostat

Three-level temperature control system design can operate stably for a long time in an environment of -20 ~ 50 ℃ , and is suitable for online monitoring environments in different factories

Connectivity

RS485 and RJ45 network ports provide Mod Bus protocol, can be adapted to many types of industrial control systems and can feedback results to the control system.

Probe

1pc standard immerssion fiber optic probe and 1pc non-immersion probe

Multi-component monitoring

Simultaneously obtain the content of multiple components during the reaction process, collect single-channel signals continuously in real-time, and the substance content and change trend can be given in real-time, enabling intelligent analysis of unknown components during the reaction process.

Consistency

Patented algorithms for device calibration and model transfer ensure data consistency across multiple devices

Smart modeling

Intelligent matching of optimal algorithms, or customize multiple machine learning models according to the needs of one-click automatic modeling

Self-learning modeling

Equipped with self-learning modeling capabilities, it eliminates the need for sampling and manual modeling. It can intelligently select optimal collection parameters, monitor changes in various components within the system in real-time, automatically identify and assist in analysis. This aids in understanding and monitoring reactions without the need for manual intervention

24h working

Built-in real-time automatic calibration and self-test, thermostatic control and positive pressure protection. Works well in high and low temperatures, explosive and corrosive environments.

% Relative humidity

0~90%RH

Power supply

900 W (max)；500 W (typical running)

Pre-heating time

＜60 min
