Real-Time Paraxylene Analysis for C8 Aromatics Separation

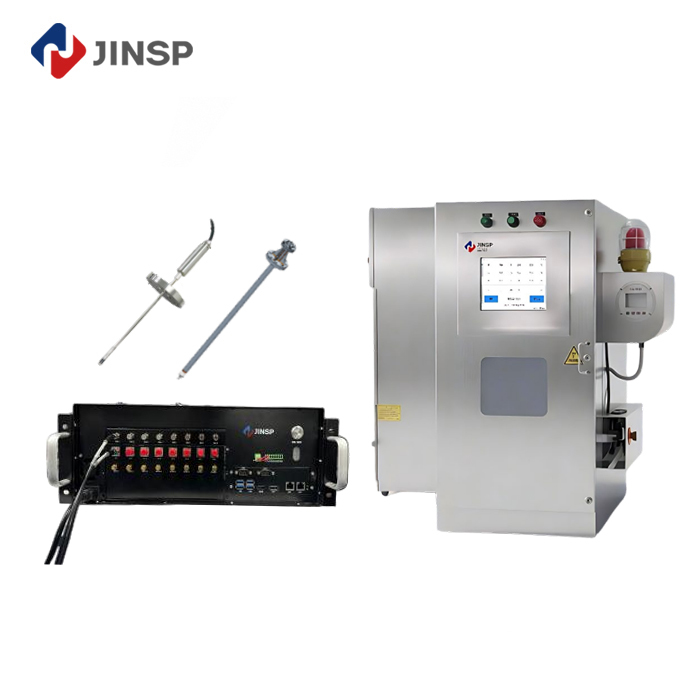

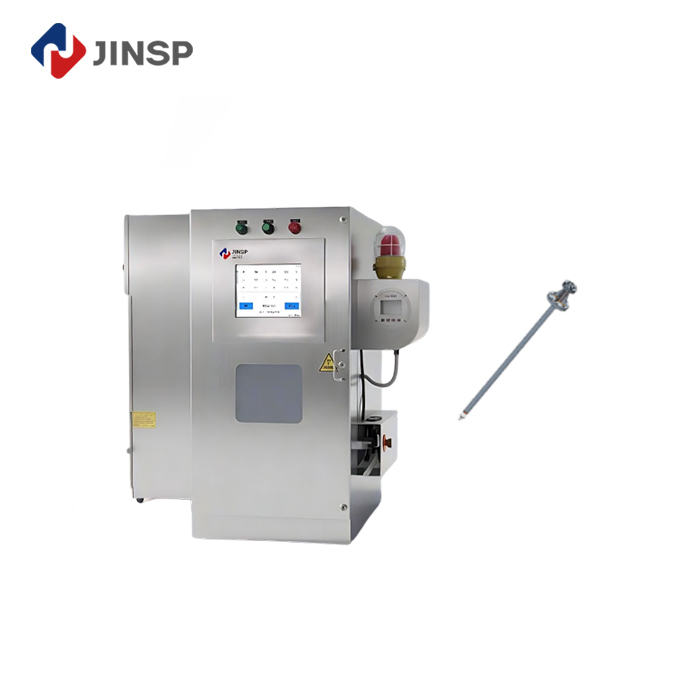

JINSP RS2000PAT Online Raman Analyzer provides continuous, in-situ measurement of liquid components in demanding chemical and petrochemical processes. For paraxylene (PX) production, the system enables real-time monitoring of C8 aromatic mixtures directly within the adsorption separation process.
PX production relies heavily on the separation of closely related C8 aromatic components, including para-xylene, meta-xylene, ortho-xylene and ethylbenzene. Because these compounds have very similar boiling points, conventional distillation is not an efficient separation method, making simulated moving bed (SMB) adsorption technology widely used in industrial PX production.
In this process, knowing the composition of feed, extract, raffinate and desorbent streams is essential for maintaining stable operation. Traditional laboratory or offline chromatographic analysis can require tens of minutes per analytical cycle, limiting the speed at which process conditions can be adjusted.
RS2000PAT changes this approach by bringing Raman analysis directly into the process.
Key Features:
- In-situ Raman measurement without routine sample withdrawal
- Continuous real-time monitoring of C8 aromatic composition
- Accurate PX quantification within a complex aromatic matrix
- Multi-position monitoring for concentration distribution analysis
- Real-time process data transmission to DCS and industrial control systems
- Automatic analytical modeling for intelligent component analysis
- Continuous operation for demanding industrial environments

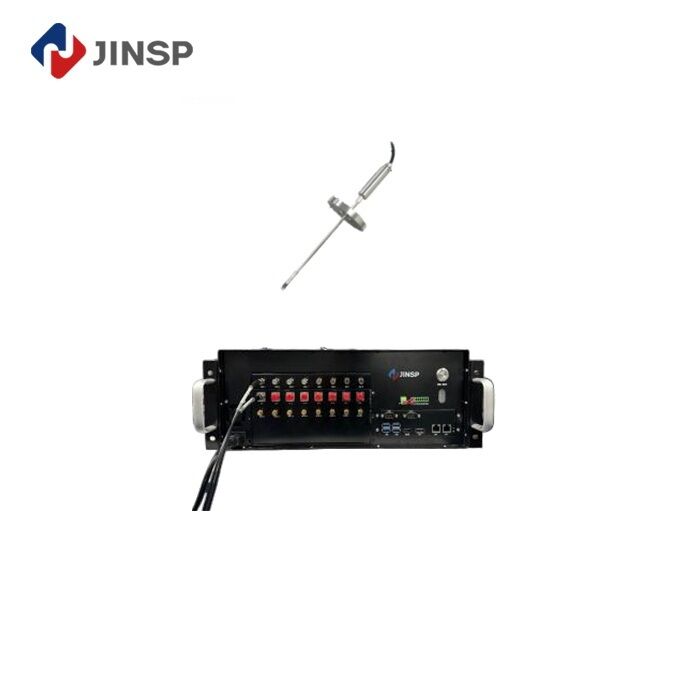

For the PX application, Raman probes can be installed at selected positions within the adsorption tower, creating a real-time view of concentration changes throughout the separation process.
The application demonstrates a PX quantitative deviation of less than 0.07%, supporting tighter process control and more responsive operating decisions.
From Laboratory Analysis to Process Intelligence
Instead of waiting for periodic laboratory results, operators can continuously observe concentration changes and respond to process conditions as they occur. This can support optimization of operating parameters, adsorbent cycles and production efficiency while reducing the workload associated with manual sampling and laboratory analysis.
RS2000PAT is also designed for integration with industrial control architectures through RS485 and RJ45 Ethernet interfaces with Modbus support.
Typical application: PX production, C8 aromatic separation, adsorption towers, SMB processes and continuous petrochemical production.
Technical Parameters:
|
Model number
|
RS2000PAT
|
|
Number of detection channels
|
Single channel, monitoring 1 position only
|
|
Device dimension
|
800 mm(width)× 900 mm(depth)× 1300 mm(height)
|
|
Operating temperature
|
-20 ~ 50 ℃
|
|
Explosion Proof (Main Unit)
|
ExdbebibmbpxbIICT4Gb / ExtbibmbIIICT135℃Db
|
|
Thermostat
|
Three-level temperature control system design can operate stably for a long time in an environment of -20 ~ 50 ℃ , and is suitable for online monitoring environments in different factories
|
|
Connectivity
|
RS485 and RJ45 network ports provide Mod Bus protocol, can be adapted to many types of industrial control systems and can feedback results to the control system.
|
|
Multi-component monitoring
|
Simultaneously obtain the content of multiple components during the reaction process, collect single-channel signals continuously in real-time, and the substance content and change trend can be given in real-time, enabling intelligent analysis of unknown components during the reaction process.
|
|
Consistency
|
Patented algorithms for device calibration and model transfer ensure data consistency across multiple devices
|
|
Smart modeling
|
Intelligent matching of optimal algorithms, or customize multiple machine learning models according to the needs of one-click automatic modeling
|
|
Self-learning modeling
|
Equipped with self-learning modeling capabilities, it eliminates the need for sampling and manual modeling. It can intelligently select optimal collection parameters, monitor changes in various components within the system in real-time, automatically identify and assist in analysis. This aids in understanding and monitoring reactions without the need for manual intervention
|
|
24h working
|
Built-in real-time automatic calibration and self-test, thermostatic control and positive pressure protection. Works well in high and low temperatures, explosive and corrosive environments.
|
|
% Relative humidity
|
0~90%RH
|
|
Power supply
|
900 W (max)；500 W (typical running)
|
|
Pre-heating time
|
＜60 min
|
