Superior Image Quality: Understanding the ST830E's 110dB SNR Advantage in OCT Imaging

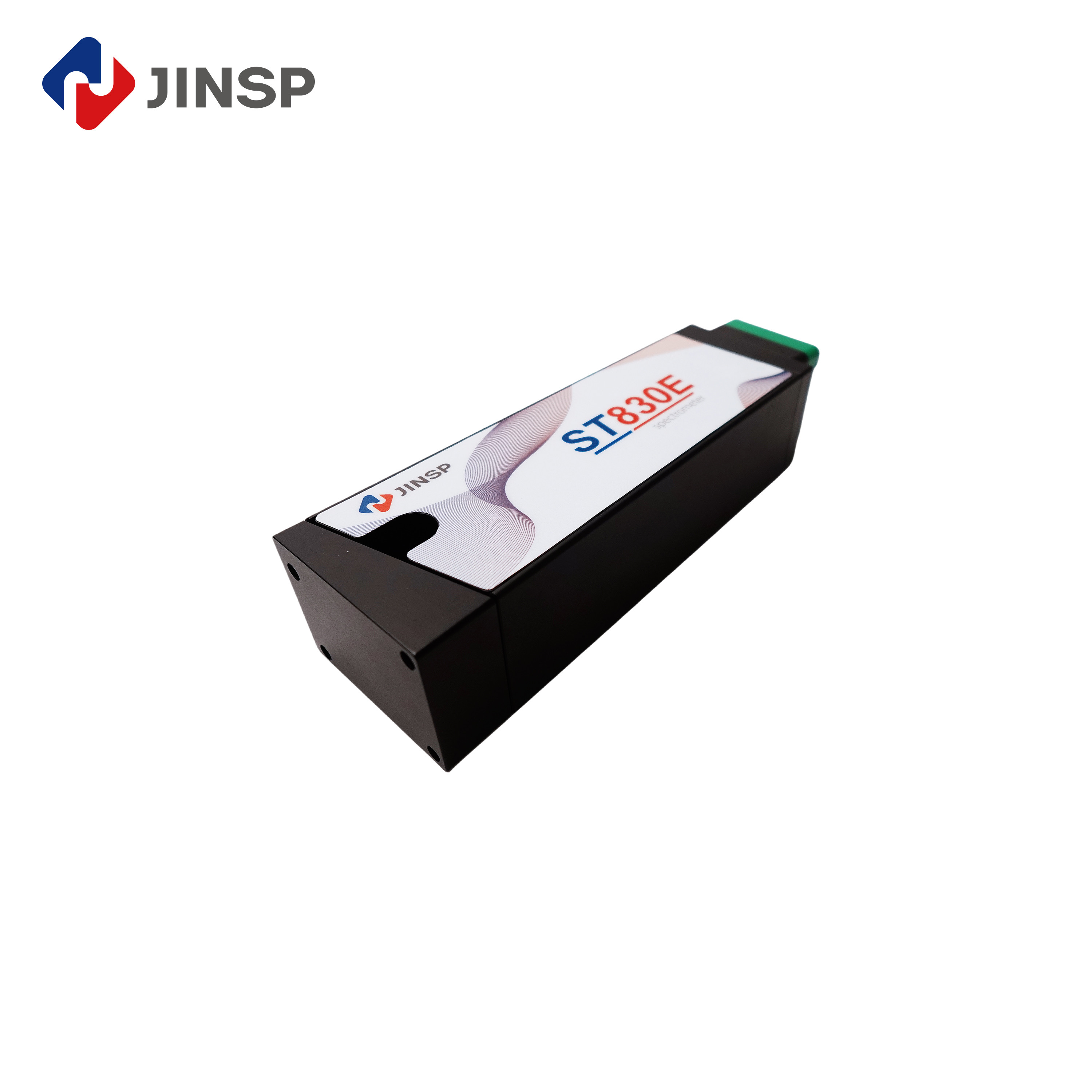

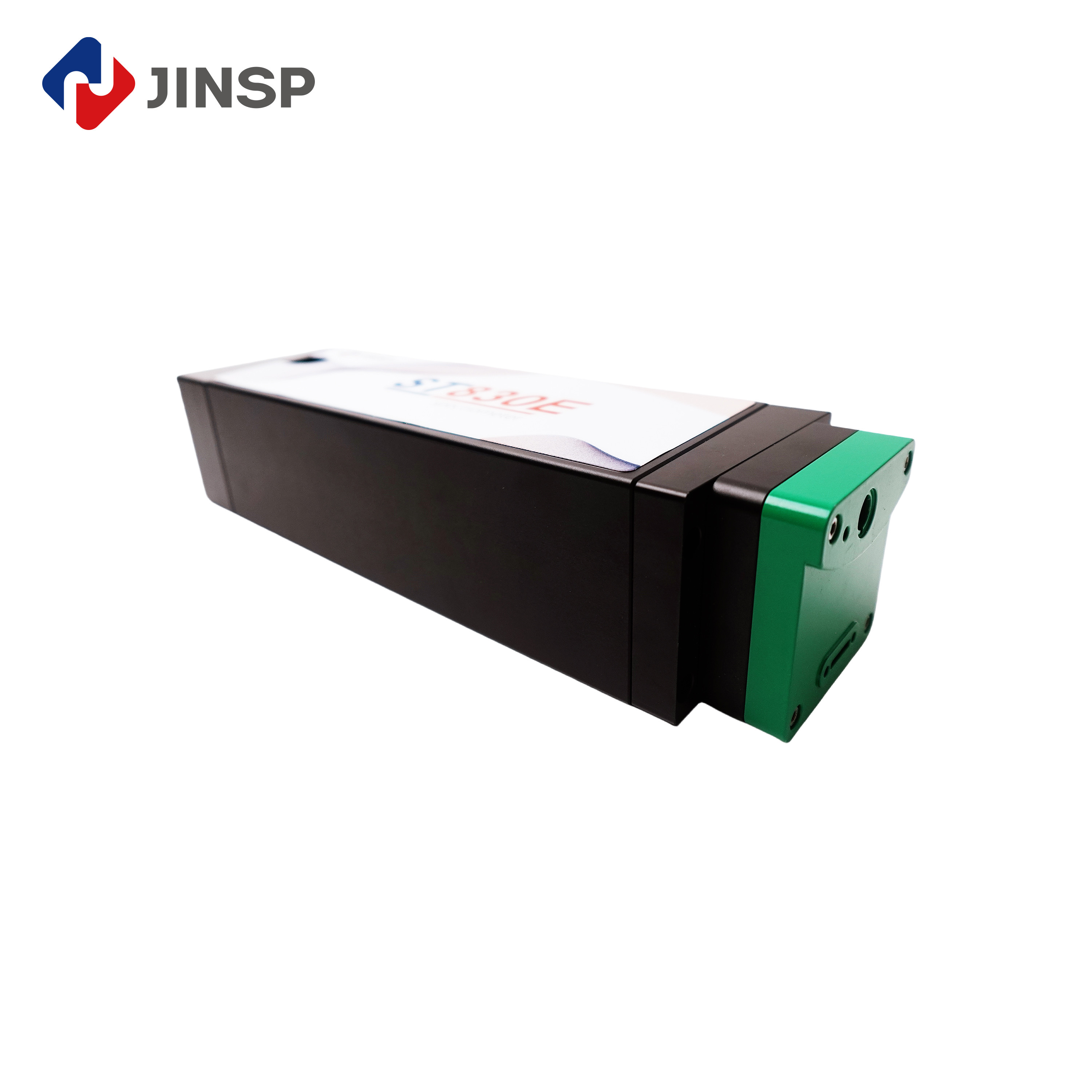

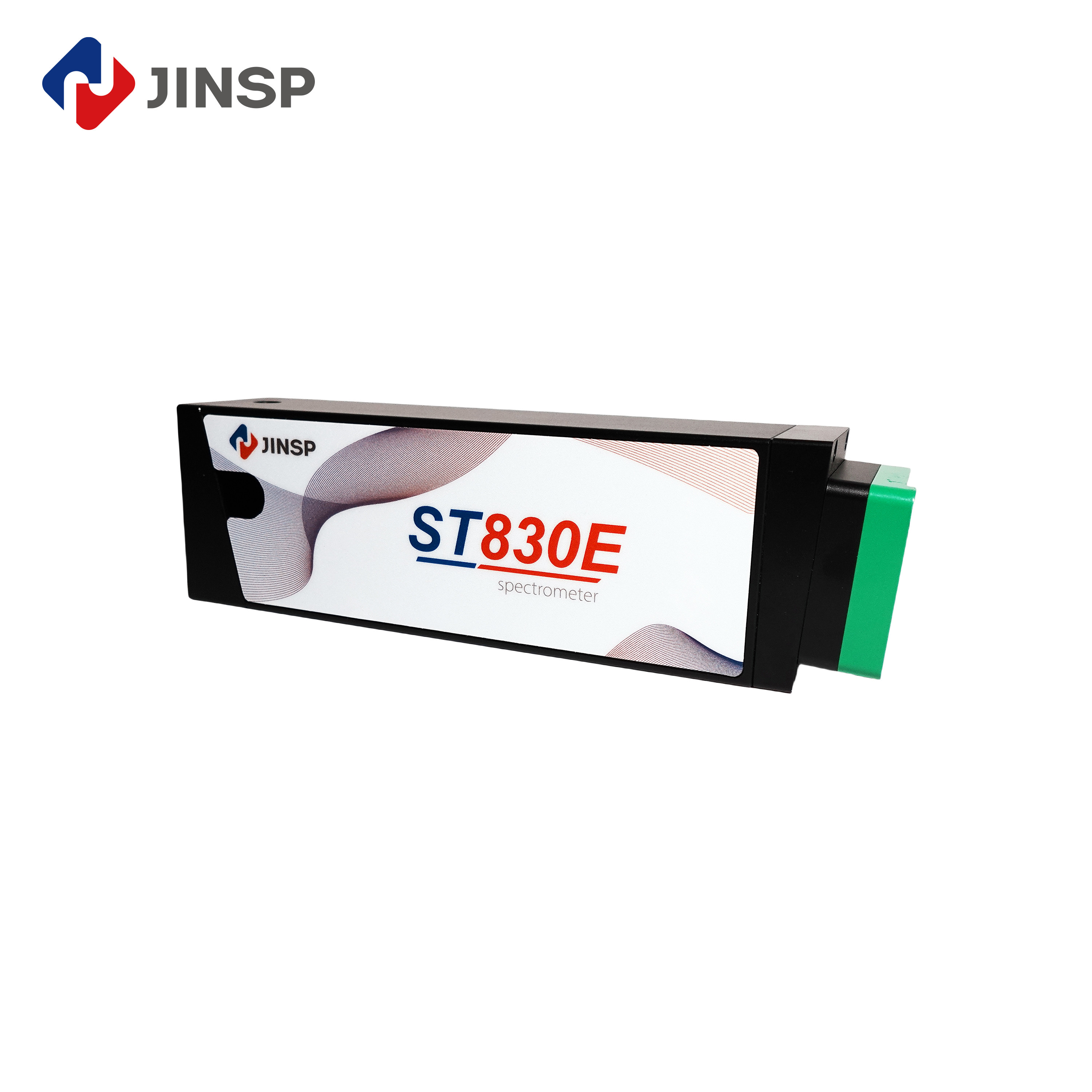

Signal-to-noise ratio is perhaps the most critical performance parameter in optical coherence tomography, directly determining the system's ability to visualize deep structures, resolve fine details, and produce diagnostically useful images. The JINSP ST830E OCT spectrometer achieves an exceptional 110dB SNR at clinically relevant settings (7mW source power, 120kHz line rate), setting a new standard for image quality in spectral-domain OCT systems.

This remarkable SNR performance is the result of multiple engineering innovations working in concert. At the heart of the ST830E is a high-efficiency Volume Phase Holographic (VPH) grating that delivers diffraction efficiency approaching 90%. Unlike conventional surface-relief gratings, VPH gratings exhibit minimal polarization sensitivity and significantly higher diffraction efficiency across broad wavelength ranges. This means more of the available light is directed to the detector, directly improving the signal strength at every pixel.

The spectrometer's hardware wavenumber-linear design contributes to SNR in a less obvious but equally important way. Traditional wavelength-linear spectrometers require software resampling to convert wavelength-domain data to wavenumber-domain data for FFT processing. This interpolation process inevitably introduces fitting errors that manifest as phase noise in the interference signal. These errors are particularly problematic when imaging deep structures, where the signal is already attenuated. The ST830E's hardware-based approach preserves the original phase information, resulting in lower background noise and clearer signal peaks after Fourier transformation.

The detector architecture further enhances SNR performance. The 2048-pixel linear array CMOS sensor with 10×200μm pixel size provides excellent quantum efficiency across the 790-930nm wavelength range. The 12-bit ADC bit depth ensures that the full dynamic range of the detector is captured, maximizing the signal resolution before digital processing. The photosensitive area of 20.48×0.2mm provides sufficient light-gathering capability while maintaining the spatial resolution required for high-quality OCT imaging.

The practical impact of high SNR is substantial across all OCT applications. In ophthalmology, higher SNR enables visualization of subtle retinal pathologies such as drusen, intraretinal fluid, and choroidal neovascularization that might be missed with lower-performance systems. In dermatology, superior SNR allows deeper penetration into skin tissue, revealing dermal vasculature and structural changes associated with inflammatory conditions and tumors. In industrial inspection, high SNR enables detection of microscopic defects in coatings, welds, and composite materials that would otherwise be obscured by noise.

The ST830E's excellent roll-off performance—the maintenance of signal quality with increasing imaging depth—complements its high SNR. Even at the maximum 2.4mm imaging depth, the spectrometer maintains sufficient signal integrity for meaningful image reconstruction. This combination of high base SNR and superior roll-off characteristics ensures that image quality remains high across the entire imaging range.

For researchers and clinicians, the ST830E's SNR advantage translates directly to better diagnostic confidence and more reliable research data. For industrial users, it means fewer false positives and more accurate defect detection. The spectrometer's mature, stable design ensures that this SNR performance is maintained consistently over time without frequent recalibration.

Technical Parameters:

Company Introduction:

JINSP Company Limited has won the National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate and the China Patent Excellence Award, and related products have been obtained has won authoritative awards such as the Geneva International Invention Award, the Beijing New Technology and New Product Certificate, and the "Innovation Achievement Award" of the Zhu Liangyi Analytical Instrument Innovation Award.JINSP is a professional leading solution provider of molecular spectroscopy, particulaly in Roman Spectroscopy for many years.

Our products mostly include:
--OCT spectrometers;
--Desktop/portable, online Raman analyzers for laboratory or indutrial liquid & gas analysis;
--On-site rapid detectors/identifiers based on Raman technology for drugs, liquid, food safety, explosive & hazardous materials, pharmaceutical industry etc;
