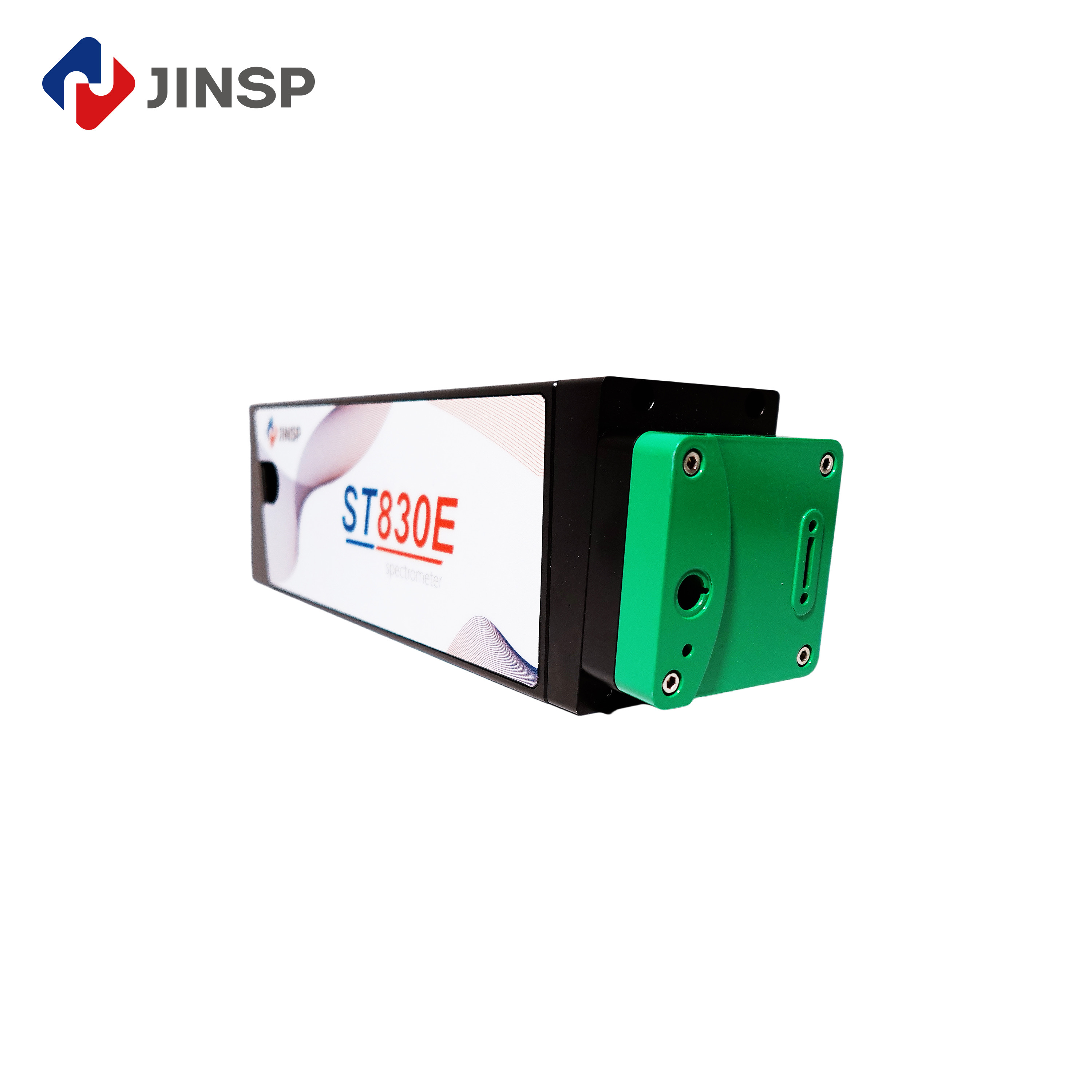

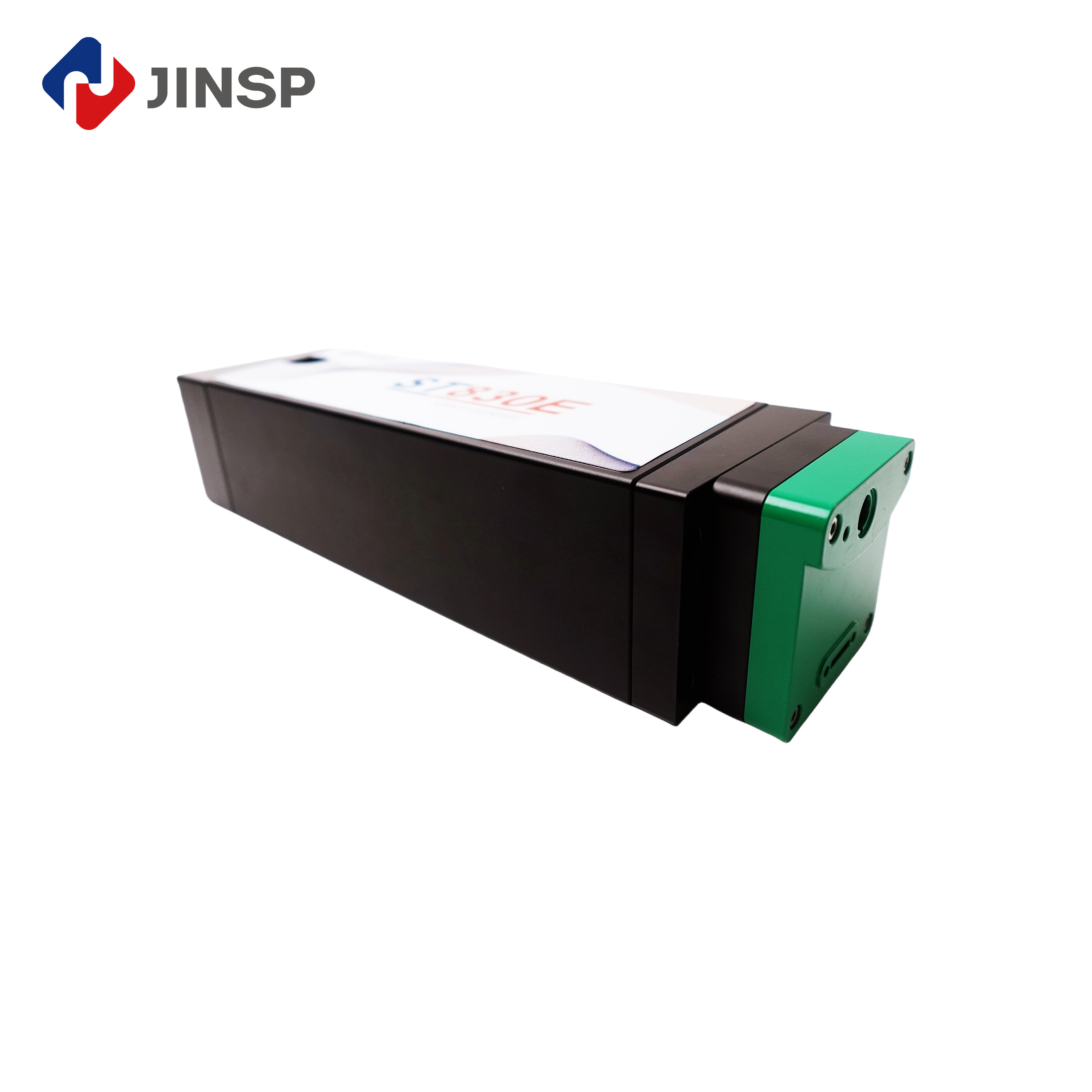

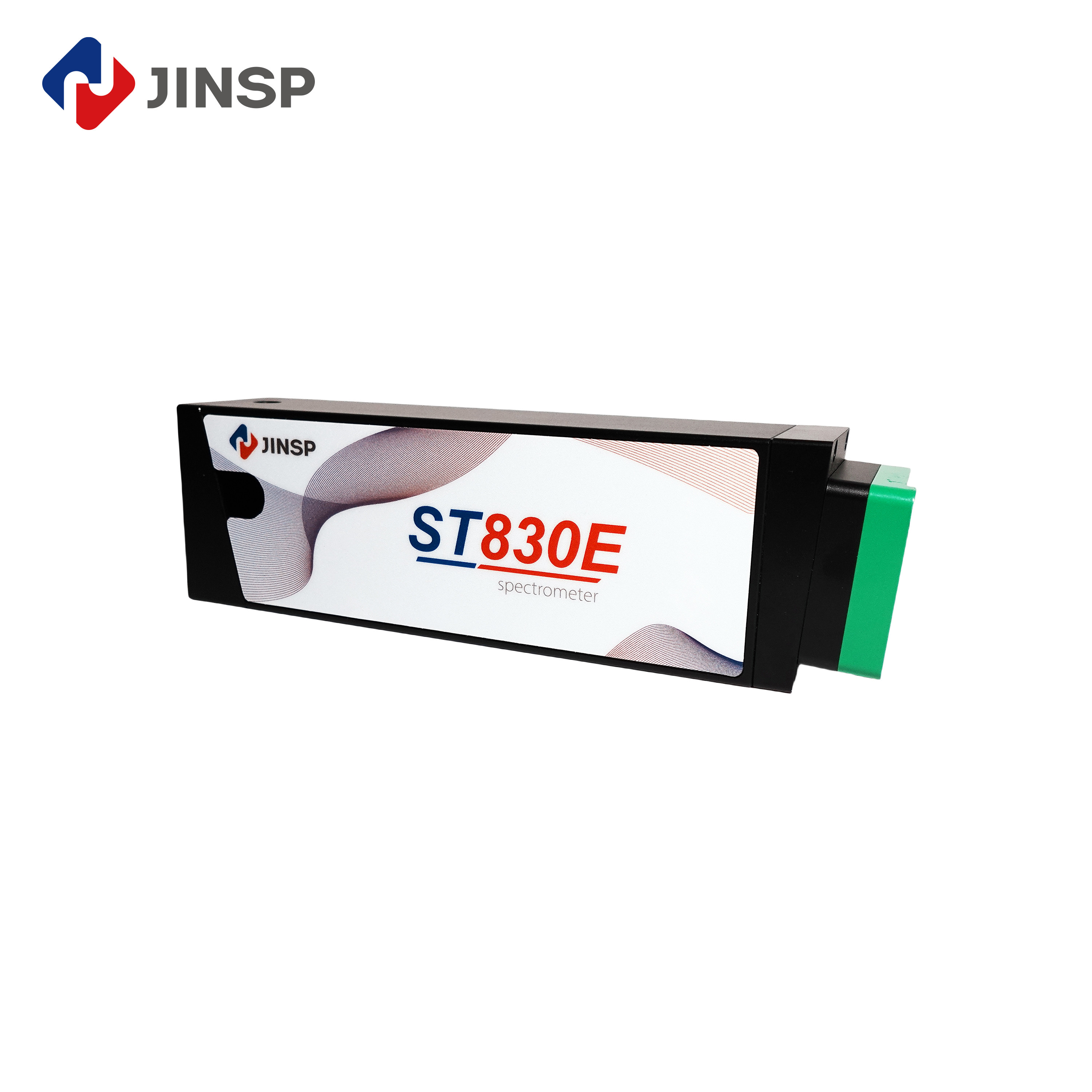

JINSP ST830E OCT Spectrometer for Clinical Ophthalmology

Product Description

Transforming Ophthalmic Diagnosis: ST830E OCT Spectrometer in Clinical Ophthalmology​

Optical coherence tomography has revolutionized ophthalmic diagnostics by providing non-invasive, high-resolution cross-sectional imaging of ocular structures. The JINSP ST830E OCT spectrometer is engineered specifically to meet the demanding requirements of clinical ophthalmology, delivering the imaging speed, resolution, and depth necessary for accurate diagnosis of retinal diseases, glaucoma, and anterior segment pathologies.

ST830E's 790-910nm wavelength range is optimally positioned for ophthalmic imaging, providing excellent penetration through ocular media while maintaining high axial resolution. With an optical resolution of 0.07nm and 2048 effective pixels, the spectrometer achieves the fine spectral sampling required to resolve subtle retinal layer structures. The 2.4mm imaging depth enables visualization of the full retinal thickness, from the internal limiting membrane to the choroid-scleral interface.

A key advantage in ophthalmic applications is the ST830E's outstanding roll-off performance, which enables deeper imaging with maintained signal quality. Signal roll-off—the progressive attenuation of signal with increasing depth—is a critical limitation in SD-OCT systems. The ST830E's exceptional roll-off characteristics allow clinicians to visualize choroidal structures with unprecedented clarity, supporting diagnosis of conditions such as age-related macular degeneration and central serous chorioretinopathy.

The spectrometer's high line scan rate—up to 250kHz via Camera Link or 130kHz via USB3.0—addresses a fundamental challenge in ophthalmic imaging: patient motion. Eye movements, even during fixation, can introduce significant motion artifacts that degrade image quality and complicate diagnosis. The ST830E's high frame rates effectively freeze motion, enabling clear, artifact-free retinal and anterior segment imaging.

The USB3.0 interface option is particularly valuable in clinical settings, allowing the spectrometer to connect directly to a laptop without specialized frame grabbers. This simplifies system setup, reduces equipment footprint, and lowers overall system cost—important considerations for busy clinical practices. The Camera Link interface, when maximum speed is required, supports the full 250kHz rate for applications such as OCT angiography where high temporal resolution is essential.

Beyond the retina, the ST830E supports anterior segment imaging for corneal topography, angle assessment, and crystalline lens evaluation. In vascular imaging applications, the spectrometer enables OCT angiography (OCTA)—a non-invasive technique for visualizing retinal and choroidal microvasculature without dye injection. The ST830E played a key role in a 2022 study published in the Journal of Biophotonics, where researchers achieved a 60% improvement in SNR and 25% increase in imaging speed using adaptive spatiotemporal OCT blood flow imaging.

With CE certification and ISO9001 compliance, the ST830E meets the regulatory requirements for medical device integration. Its stable, mature design requires no frequent recalibration, ensuring consistent diagnostic quality over time. For ophthalmic device manufacturers and clinical researchers, the ST830E provides a reliable, high-performance spectrometer foundation for next-generation OCT and OCTA systems.

Technical Parameters:

Company Introduction:

JINSP Company Limited has won the National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate and the China Patent Excellence Award, and related products have been obtained has won authoritative awards such as the Geneva International Invention Award, the Beijing New Technology and New Product Certificate, and the "Innovation Achievement Award" of the Zhu Liangyi Analytical Instrument Innovation Award.JINSP is a professional leading solution provider of molecular spectroscopy, particulaly in Roman Spectroscopy for many years.

Our products mostly include:
--OCT spectrometers;
--Desktop/portable, online Raman analyzers for laboratory or indutrial liquid & gas analysis;
--On-site rapid detectors/identifiers based on Raman technology for drugs, liquid, food safety, explosive & hazardous materials, pharmaceutical industry etc;
