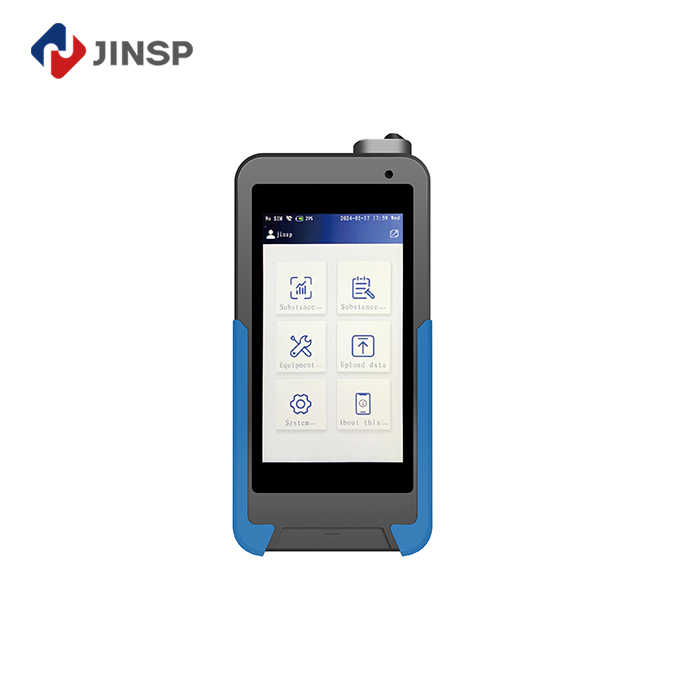

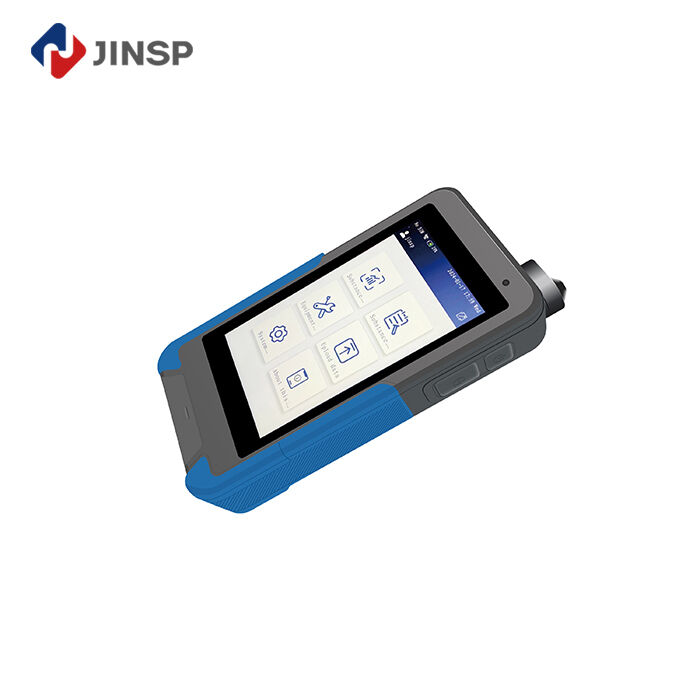

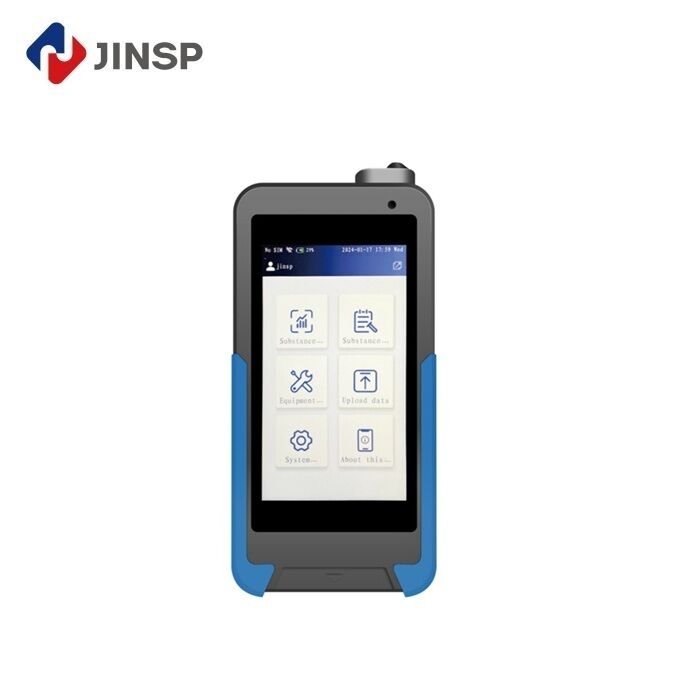

RS1500DI 1064nm Handheld Raman Spectrometer Conquers Fluorescent Pharmaceutical Excipients

For years, quality control managers have faced a persistent analytical dilemma: Raman spectroscopy offers incredible specificity for chemical identification, but standard 785nm laser systems often fail spectacularly when confronted with fluorescent samples. Many pharmaceutical ingredients—such as amino acids, coenzymes, cellulose, and many colored pigments—exhibit strong auto-fluorescence under visible and near-infrared 785nm excitation. This fluorescence acts like a blinding spotlight, drowning out the weak Raman scattered signal and rendering the spectrum uninterpretable. The result is a "no test" result, forcing operators to resort to slow, destructive, wet-chemistry methods. The JINSP RS1500DI Handheld Raman Spectrometer breaks this barrier entirely by utilizing a longer 1064nm excitation wavelength, placing it firmly outside the region where most organic molecules fluoresce.

The physics of Raman scattering dictates that moving to a longer wavelength lowers the energy of the incident photons, dramatically reducing the probability of exciting electronic transitions that cause fluorescence. The RS1500DI leverages this principle to deliver clean, high-signal-to-noise-ratio spectra from materials that are traditionally impossible for 785nm handhelds to identify. This capability is vital for pharmaceutical manufacturers dealing with complex formulations. For instance, detecting excipients like microcrystalline cellulose, verifying coenzymes, or identifying colorants (such as carmine or chlorophyll) can be performed instantly through the packaging. The 1064nm laser penetrates the matrix without generating background interference, allowing the RS1500DI to capture a clear "molecular fingerprint" in seconds.

This advanced detection range fundamentally changes raw material workflows. Previously, highly fluorescent materials required unpacking, sample preparation, and sending aliquots to a central lab. With the RS1500DI, operators can simply place the device against a plastic bag, glass jar, or woven sack containing the pigment or biochemical. Within approximately 15 seconds, the device delivers a definitive "Pass" or "Fail" result. This non-destructive method preserves the integrity of the sample, eliminating waste and reducing operator exposure to potent compounds. Furthermore, the RS1500DI maintains a wide spectral library covering over 20,000 compounds, allowing it to differentiate between chemically similar substances (polymorphs and hydrates) that other technologies miss. If your manufacturing process involves APIs, excipients, or high-value biochemicals that glow under 785nm, the JINSP RS1500DI is the only solution that guarantees a clear result every time, keeping your production line moving without the fluorescence bottleneck.

Production Specifications:

• Rapid detection capability: completes identification within seconds
• Non-invasive analysis: detects through various packaging materials including glass, woven bags, and plastics
• Portable design: lightweight construction enables flexible movement across different work environments
• Instant analysis: eliminates sample preparation requirements, ensuring safety and simplicity
• Precision recognition: utilizes advanced machine learning algorithms for accurate identification with high specificity

• Chemical raw materials: aspirin, folic acid, nicotinamide, etc.
• Pharmaceutical excipients: salts, alkalis, sugars, esters, alcohols, phenols, etc.
• Packaging materials: polyethylene, polypropylene, polycarbonate, ethylene-vinyl acetate copolymer, etc.

Compared with ordinary 785nm Raman, it has stronger detection ability

• Biochemical raw materials: amino acids and their derivatives, enzymes and coenzymes, proteins,etc.
• Pigment excipients: carmine, carotene, curcuminchlorophyll, etc.
• Other polymer excipients: gelatin, microcrystalline cellulose, etc.
