Low Noise Compact Raman Spectrometer CMOS With 110mm*95mm*43mm Dimensions

Contact Now

Low Noise Compact Raman Spectrometer CMOS With 110mm95mm43mm Dimensions

Minimum Order Quantity :	1	Price :	USD1200- USD1300
Packaging Details :	Customized Packaging	Delivery Time :	30-50 working days
Payment Terms :	T/T,Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR75C

Detail Information
Wavelength Range:	200nm-1100nm	Detector Type:	Linear Array CMOS, Hamamatsu S11639
Optical Design:	Type M C-T Light Path	Grating Slits:	10μm, 25μm, 50μm, 100μm, 200μm (customizable)
Weight:	310g	Dimension:	110mm95mm43mm
Interface:	USB 2.0	Optical Interface:	FC/PC Or SMA905
Highlight:	low noise compact raman spectrometer , compact spectrometer with CMOS , small raman spectrometer 110mm

Product Description

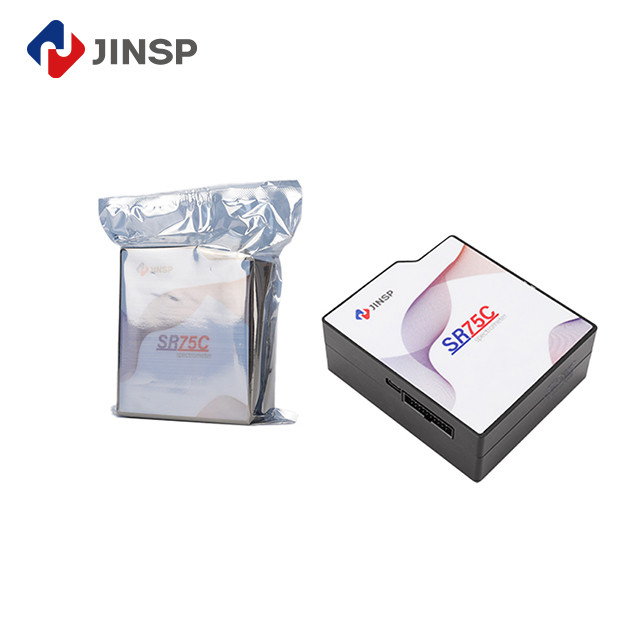

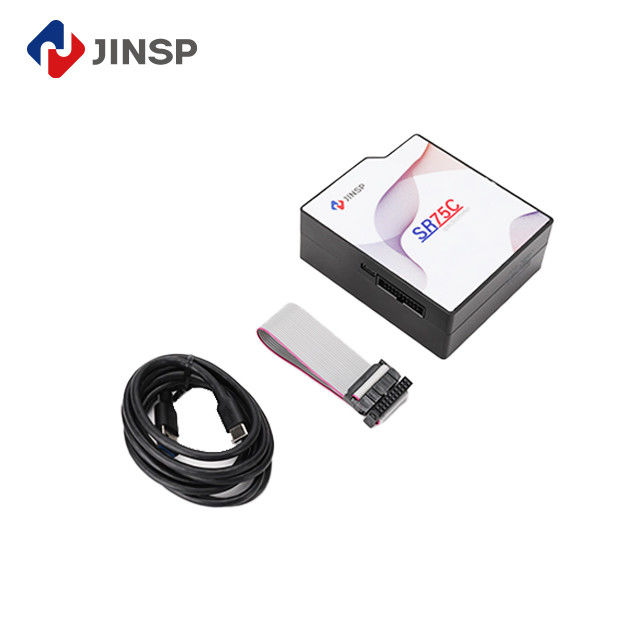

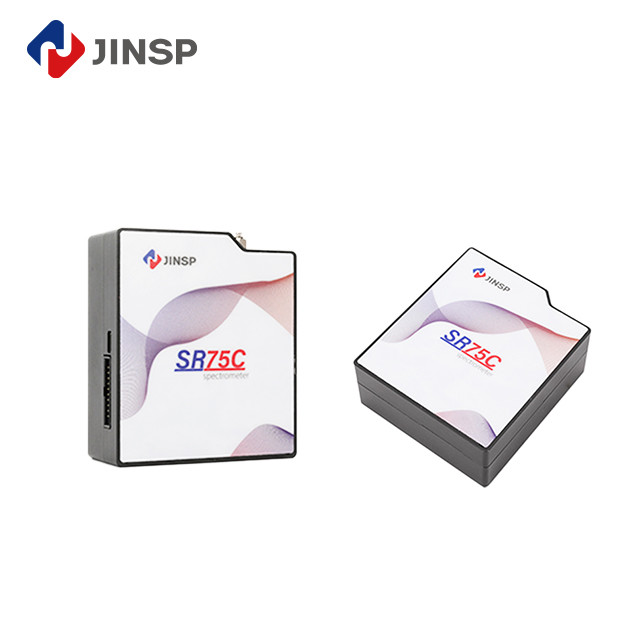

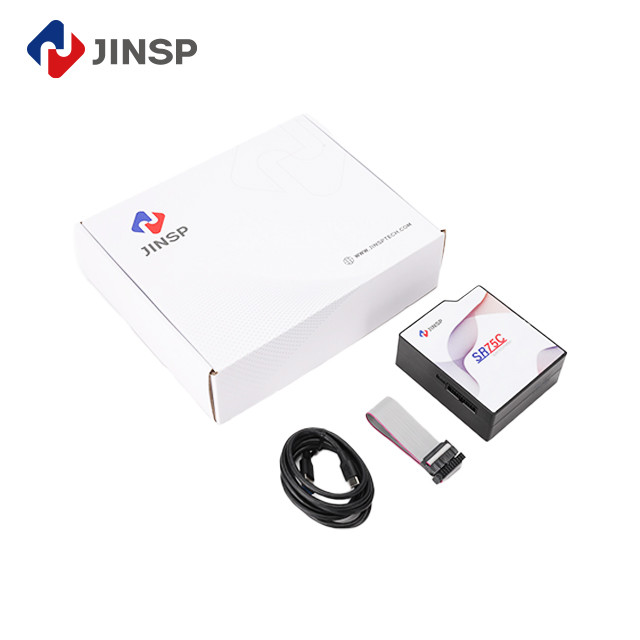

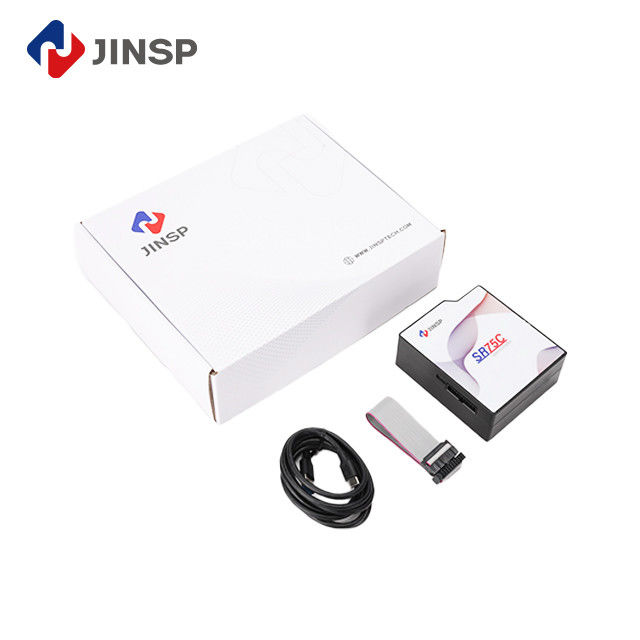

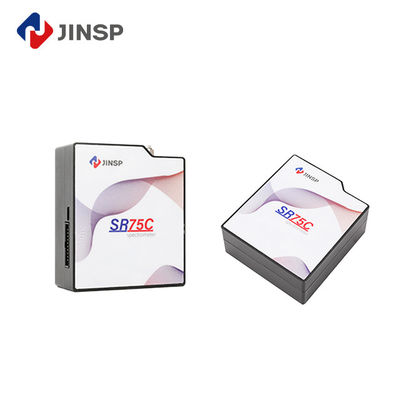

Miniature Fiber Optic Modular Spectrometer JINSP SR75C

Discover the power of precise light measurement with the JINSP SR75C Fiber Optic Spectrometer. Capable of detecting wavelengths from 200 to 1000nm, it offers high resolution and low temperature drift thanks to its intelligent compensation algorithm. The robust optical design ensures clarity and accuracy for diverse sample types.

Widely used in mining, environmental science, and emission monitoring, the SR75C provides versatile and cost-effective spectral solutions. Easy to integrate and operate, it is the go-to instrument for professionals seeking reliable performance in spectral analysis.

Product Parameters:

	Performance Indicators	Parameters
Detector	Chip Type	Linear array CMOS, Hamamatsu S11639
	Eﬀective Pixel	2048
	Pixel Size	14μm *200μm
	Sensing Area	28.7mm *0.2mm
Optical Parameters	Optical Design	M Type C-T light path
	Numerical Aperture	0.085
	Entrance Slit Width	10μm, 25μm, 50μm, 100μm, 200μm (customizable)
	Spectrum Range and Resolution	See model table for details
	Fiber Input Interface	SMA905, free space
Electrical Parameters	Integration Time	1ms-60s
	Signal-to-Noise Ratio	650:1 (4ms)
	Data Output Interface	USB 2.0 or serial port
	ADC Bit Depth	16-bit
	Power Supply	DC 4.5V to 5.5V (type @5V)
	Operating Current	< 500mA
Others	Operating Temperature	10°C ~ 40°C
	Storage Temperature	-20°C ~ 60°C
	Operating Humidity	＜90%RH (no condensation)
	Dimensions	110mm95mm40.5mm
	Weight	310g

Model	Spectral Range (nm)	Resolution (nm)	Slit (μm)
SR75C-G02	510~1000 (VIS-NIR)	0.8	25
SR75C-G02	510~1000 (VIS-NIR)	0.5	10
SR75C-G04 SR75C-G06 SR75C-G07 SR75C-G08 SR75C-G09 SR75C-G10	200~450(UV) 330~570(VIS) 550~750(VIS) 750-900(NR)	0.3-0.5	25
	200~450(UV) 330~570(VIS) 550~750(VIS) 750-900(NR)	0.2-0.3	10
	180~340( UV) 500~600(VIS)	0.3	25
	180~340( UV) 500~600(VIS)	0.15~0.2	10

* Customization available for other ranges

Typical Applications:

Absorption, transmittance, and reflectance detection In ultraviolet, visible, and near-infrared range;
Detection of light source and laser wavelength;
OEM product module:

LIBS – analysis of soil and minerals for geological testing and mining-related work

Online monitoring of water quality and environmental protection - organic matter and oxygen content in water

Flue gas - Monitoring and identification of flue gas emission components

Technical Characteristics:

Wide Spectral Range Supports customized spectrum range of 200-1000nm
High Signal-to-Noise Ratio Low-noise CMOS signal processing circuit, with excellent signal-to-noise ratio
High Resolution M-shape C-T optical design

Low Noise Compact Raman Spectrometer CMOS With 110mm*95mm*43mm Dimensions 0

Company Introduction:

Expertise-Focused
JINSP Company Limited ("JINSP") is a leading global supplier specializing in advanced spectral detection technologies, including Raman, FT-IR, and LIBS systems. With 17+ years of industry experience, our cutting-edge innovations have positioned us at the forefront of spectral analysis solutions. Headquartered in Beijing, China, with a state-of-the-art manufacturing facility in Jiangsu, we hold 200+ patents and maintain ISO 9001, 14001, and 45001 certifications. Our products meet rigorous standards, including CE, ECAC, ICT Security Testing, and more—ensuring reliability for security, environmental, and industrial applications worldwide.

FAQ:

Q1: Is the price of this product negotiable?

A1: Yes, the price of this product is negotiable.

Q2: What are the payment terms for this product?

A2: The payment terms for this product are T/T and Western Union.

Q3: What is the supply ability for this product?

A3: The supply ability for this product is 100 PCS/70-90 days.

Q4: How long does it take to deliver this product?

A4: The delivery time for this product is 30-50 working days.
