Professional Compact Spectrometer for High-Performance Spectroscopy and Data Handling in Research and Control

Contact Now

Professional Compact Spectrometer for High-Performance Spectroscopy and Data Handling in Research and Control

Minimum Order Quantity :	1	Price :	USD1200- USD1300
Packaging Details :	Customized Packaging	Delivery Time :	30-50 working days
Payment Terms :	T/T,Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR75C

Detail Information
Wavelength Range:	200nm-1100nm	Detector Type:	Linear Array CMOS, Hamamatsu S11639
Optical Design:	Type M C-T Light Path	Grating Slits:	10μm, 25μm, 50μm, 100μm, 200μm (customizable)
Weight:	310g	Dimension:	110mm95mm43mm
Interface:	USB 2.0	Optical Interface:	FC/PC Or SMA905
Highlight:	compact spectrometer for research , high-performance spectroscopy spectrometer , professional spectrometer with data handling

Product Description

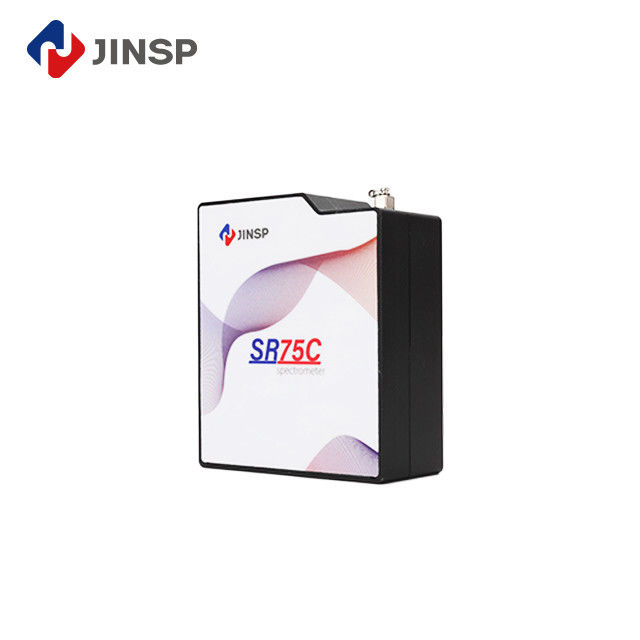

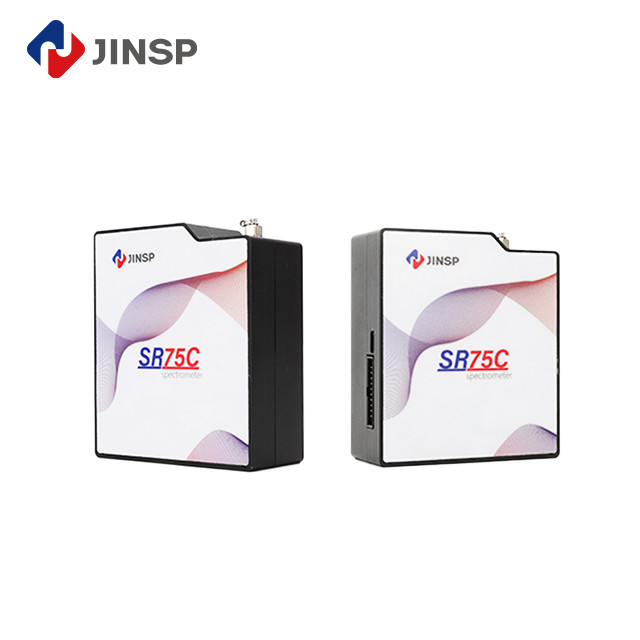

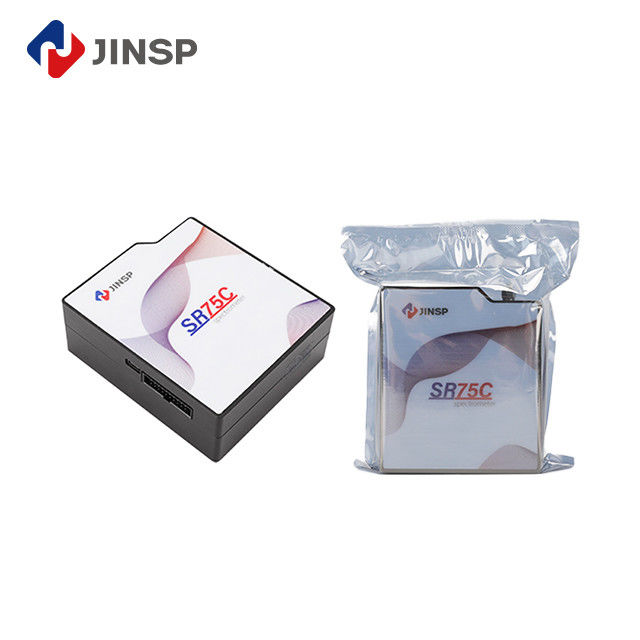

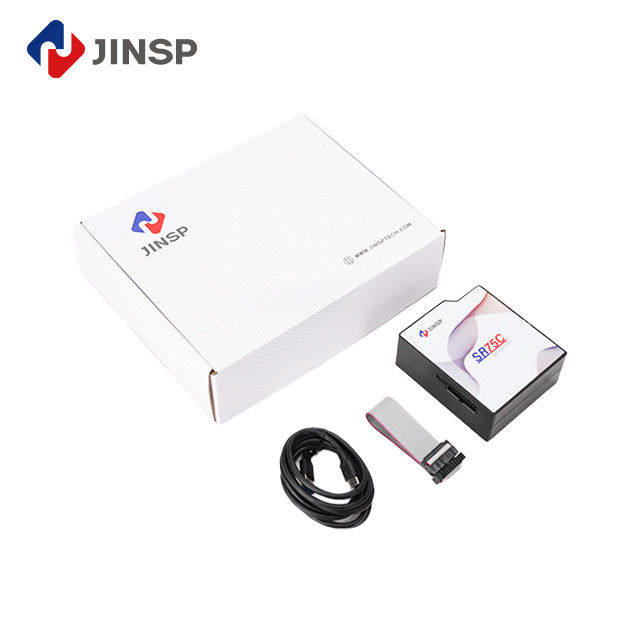

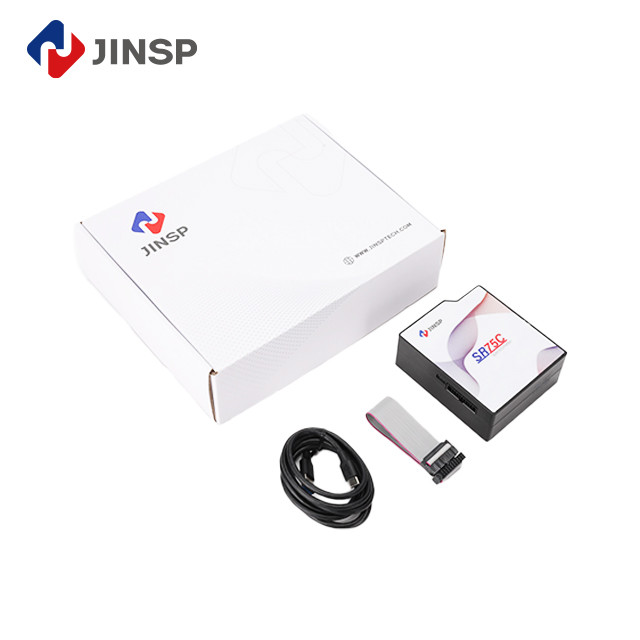

Miniature Fiber Optic Modular Spectrometer JINSP SR75C

The SR75C Fiber Optic Spectrometer provides outstanding value with its high-resolution capabilities and flexible design. It captures detailed spectral data from UV to NIR, supported by a low-noise CMOS circuit and advanced optical layout. Temperature drift is actively controlled via an internal algorithm, ensuring data integrity.

This spectrometer is widely used in geology, water treatment, and air quality management. With simple integration and stable operation, it meets the demands of both field and laboratory applications, delivering precision and efficiency.

Product Parameters:

	Performance Indicators	Parameters
Detector	Chip Type	Linear array CMOS, Hamamatsu S11639
	Eﬀective Pixel	2048
	Pixel Size	14μm *200μm
	Sensing Area	28.7mm *0.2mm
Optical Parameters	Optical Design	M Type C-T light path
	Numerical Aperture	0.085
	Entrance Slit Width	10μm, 25μm, 50μm, 100μm, 200μm (customizable)
	Spectrum Range and Resolution	See model table for details
	Fiber Input Interface	SMA905, free space
Electrical Parameters	Integration Time	1ms-60s
	Signal-to-Noise Ratio	650:1 (4ms)
	Data Output Interface	USB 2.0 or serial port
	ADC Bit Depth	16-bit
	Power Supply	DC 4.5V to 5.5V (type @5V)
	Operating Current	< 500mA
Others	Operating Temperature	10°C ~ 40°C
	Storage Temperature	-20°C ~ 60°C
	Operating Humidity	＜90%RH (no condensation)
	Dimensions	110mm95mm40.5mm
	Weight	310g

Model	Spectral Range (nm)	Resolution (nm)	Slit (μm)
SR75C-G02	510~1000 (VIS-NIR)	0.8	25
SR75C-G02	510~1000 (VIS-NIR)	0.5	10
SR75C-G04 SR75C-G06 SR75C-G07 SR75C-G08 SR75C-G09 SR75C-G10	200~450(UV) 330~570(VIS) 550~750(VIS) 750-900(NR)	0.3-0.5	25
	200~450(UV) 330~570(VIS) 550~750(VIS) 750-900(NR)	0.2-0.3	10
	180~340( UV) 500~600(VIS)	0.3	25
	180~340( UV) 500~600(VIS)	0.15~0.2	10

* Customization available for other ranges

Typical Applications:

Absorption, transmittance, and reflectance detection In ultraviolet, visible, and near-infrared range;
Detection of light source and laser wavelength;
OEM product module:

LIBS – analysis of soil and minerals for geological testing and mining-related work

Online monitoring of water quality and environmental protection - organic matter and oxygen content in water

Flue gas - Monitoring and identification of flue gas emission components

Technical Characteristics:

Wide Spectral Range Supports customized spectrum range of 200-1000nm
High Signal-to-Noise Ratio Low-noise CMOS signal processing circuit, with excellent signal-to-noise ratio
High Resolution M-shape C-T optical design

Professional Compact Spectrometer for High-Performance Spectroscopy and Data Handling in Research and Control 0

Company Introduction:

Industry-Leading Positioning JINSP – Where Spectral Technology Meets Excellence
For 17+ years, JINSP Company Limited has set the international standard in Raman, FT-IR, and LIBS technologies. With 200+ patent applications and ISO 9001/14001/45001 certifications, our Beijing-based R&D and Jiangsu manufacturing ensure unmatched quality. Our systems are certified by ECAC, CE, and global metrology institutes—proving JINSP’s role as a trusted supplier for defense, environmental, and industrial sectors.

FAQ:

Q1: Is the price of this product negotiable?

A1: Yes, the price of this product is negotiable.

Q2: What are the payment terms for this product?

A2: The payment terms for this product are T/T and Western Union.

Q3: What is the supply ability for this product?

A3: The supply ability for this product is 100 PCS/70-90 days.

Q4: How long does it take to deliver this product?

A4: The delivery time for this product is 30-50 working days.
