Advanced Raman Fiber Optic Probe 1064nm With Leakproof Connections

Contact Now

Advanced Raman Fiber Optic Probe 1064nm With Leakproof Connections

Minimum Order Quantity :	5	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	40-70 WORKING DAYS
Payment Terms :	T/T, Western Union	Supply Ability :	100PCS per 60-80 working days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	ISO9001	Model Number:	PR100 PR200 PR300

Detail Information
Outer Diameter:	10mm	Excitation Wavelengths:	532 Nm, 785 Nm, And 1064 Nm
High Collection Efficiency:	Special Optical Design Ensures High Collection Efficiency	Product Name:	Raman Probe For Automated Sampler In Continuous Flow Reaction Systems
Accepted Payment Methods:	T/T, Paypal, Western Union, L/C, Etc.	Raman Micro-spectroscopy:	Can Be Used With A Microscope
Highlight:	Advanced Raman Fiber Optic Probe , Advanced aman Spectroscopy Probe , 1064nm Raman Fiber Optic Probe

Product Description

Customizing Raman Probe for Raman Systems Analysis

Engineered for maximum light collection efficiency, our optical probes feature a robust design that withstands harsh chemical, thermal, and mechanical stresses. Whether in high-pressure reactors or extreme-temperature processes, they deliver consistent performance. Customization options include probe length, material, and interface to fit diverse analytical setups.

Complementing the probe, our high-performance flow cells provide enhanced optical efficiency with material choices for different media. Designed for strong acids, alkalis, and high-pressure flows, they ensure leak-proof connections and adaptability to various tubing standards.

Product table list and parameters:

/	PR100	PR200	PR201	PR202	PR300
/	Optical Probe	LAB Immersion Probe	LAB Immersion Probe	LAB Immersion Probe	Industrial Immersion Probe
Probe Tube Material	304 stainless steel	C276 alloy, 304 stainless steel, 316L stainless steel, Monel alloy, or TA2 optional		316L stainless steel, resistant to SIP/CIP sterilization	C276 alloy, 304 stainless steel, 316L stainless steel, Monel alloy, or TA2 optional
Outer Diameter	10mm	10mm	16mm	12mm	60mm Support customizing
Probe Tube Length	80mm	350 mm Support customizing from 100 mm ~ 350 mm	270 mm Support customizing from 100 mm ~ 1000 mm	120 mm Support customizing from 120mm ~ 320 mm	1.9 m Support customizing from 1 m ~ 3 m
Spectral Range	200 ~ 3900 cm-1 (532 nm or 785 nm excitation wavelength) 230 ~ 3100 cm-1 (1064 nm excitation wavelength)
Sample Type	Any sample type	L (clear liquid) or S (opaque or turbid liquid) or C (slurries or semi-solids)
Fiber Optic Cable	1.3 m PVC jacketed as standard, 3 m or 5 m length are optional	5 m as standard ,10 m, 50 m or 100 m length are optional; PVC jacket as standard, TPU or silica gel jacket are optional			50 m Support customizing
Temperature Range	0ºC ~ 100 ºC	-40ºC ~ 200 ºC	-40 ºC ~ 150 ºC	-30 ºC ~ 200 ºC	-60 ºC ~ 200 ºC
Maximum Pressure	ambient condition	30 MPa	30 MPa	1 MPa	30 MPa
Corrosion Resistance	Not resistant to corrosive liquid	Resistant to strong acid/alkali, hydrofluoric acid (HF), and organic solution	Resistant to strong acid/alkali, hydrofluoric acid (HF), and organic solution	pH range: 1-14	Resistant to strong acid/alkali, hydrofluoric acid (HF), and organic solution
Optical Fiber Conﬁguration	100 μm excitation fiber, 200 μm collection fiber, N.A. 0.22
Filter Efficiency	OD6, customizing is available
Connection Interface	FC and SMA

Technical Highlights:

A variety of materials are available as options. Flow cells are suitable for processes under high temperature, high pressure, or with strong acid/alkali,etc.
With diﬀerent speciﬁcations of interface, ﬂow cells can be coupled with pipelines of diﬀerent speciﬁcations.
Special optical design to maximize collection eﬃciency and Raman intensities.
Good sealing and convenient connection.

Applications:

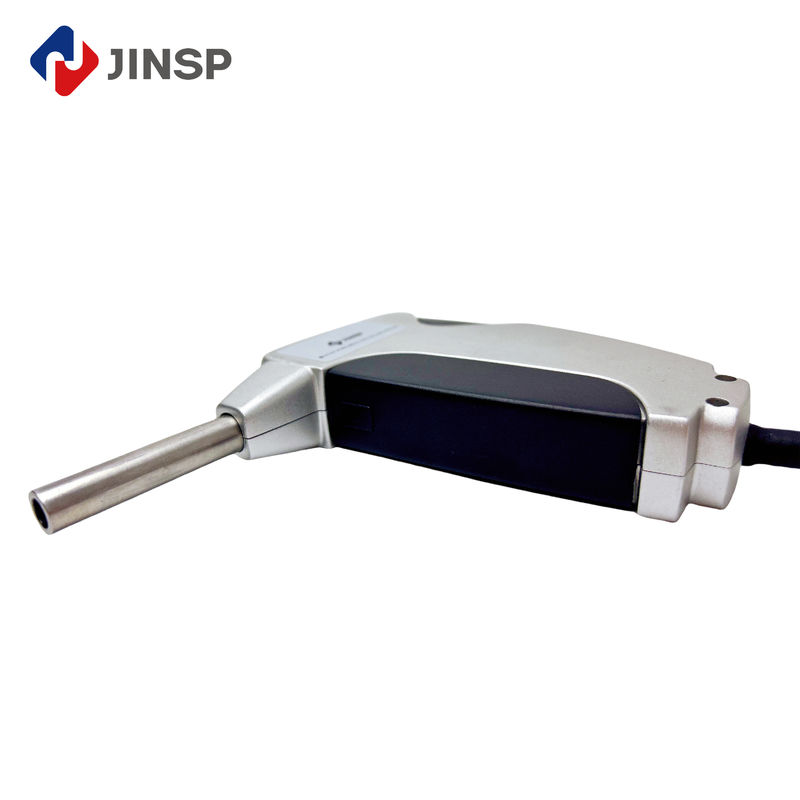

Designed for laboratory offline detection, the PR100 Raman probe offers three excitation options (532 nm, 785 nm, 1064 nm) to accommodate various sample types. Its small, ergonomic design facilitates easy handling for standard liquid and solid analyses in sample chambers. For advanced applications, it can be coupled with microscopes for high-resolution micro-spectroscopy or adapted for online monitoring using flow cells and reactor setups.

Advanced Raman Fiber Optic Probe 1064nm With Leakproof Connections 0

Designed for laboratory-scale reactors, the PR200/PR201/PR202 immersion probes enable direct process monitoring in reaction flasks. The series includes an enhanced version that effectively reduces signal interference in agitated solutions. Different material configurations make these probes ideal for harsh chemical environments and unstable reaction conditions. Interface options vary by model: PR200 for small connections, PR201 for medium interfaces. The PR202 stands out for bio-fermentation applications, with its sterilizable, detachable probe design (PG13.5 interface standard).

Designed for industrial applications, the PR300 immersion probe combines exceptional durability with precise measurement capabilities. Its temperature-resistant and pressure-proof architecture ensures consistent performance while shielding sensitive optical elements. The flange-mounted design provides secure integration into reaction vessels, making it particularly suitable for kettle-type processes. Custom flange sizing options are available to accommodate diverse industrial configurations.

Advanced Raman Fiber Optic Probe 1064nm With Leakproof Connections 1

Support and Services:

The Raman Probe product technical support and services include:
Assistance with product installation, setup, and calibration
Troubleshooting and diagnosis of any issues or errors
Regular maintenance and cleaning recommendations
Access to software updates and upgrades
Product training and education
Technical consultation with experienced support staff

FAQ:

Q: What is the minimum order quantity for the JINSP Raman Probe ?

A: The minimum order quantity for the JINSP Raman Probe is 1PC.

Q: What is the price of the JINSP Raman Probe?

A: The price of the JINSP Raman Probe is negotiable.

Q: What payment terms are accepted for the JINSP Raman Probe ?

A: The accepted payment terms for the JINSP are T/T and Western Union.

Q: What is the delivery time for the JINSP Raman Probe?

A: The delivery time for the JINSP Raman Probe is 40-70 working days.

Q: Where is the JINSP Raman Probe manufactured?

A: All Raman Probe is designed and manufactured in China.
