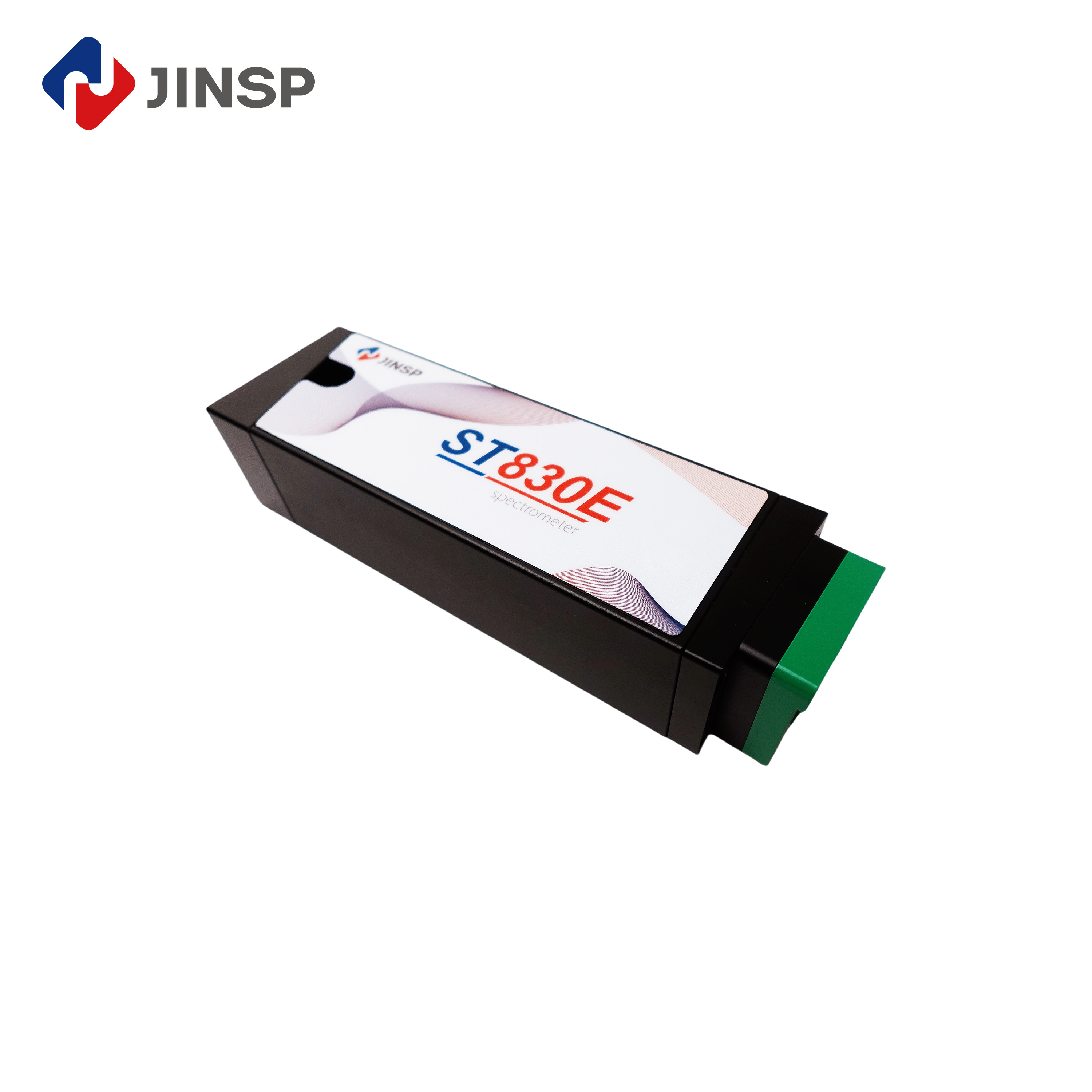

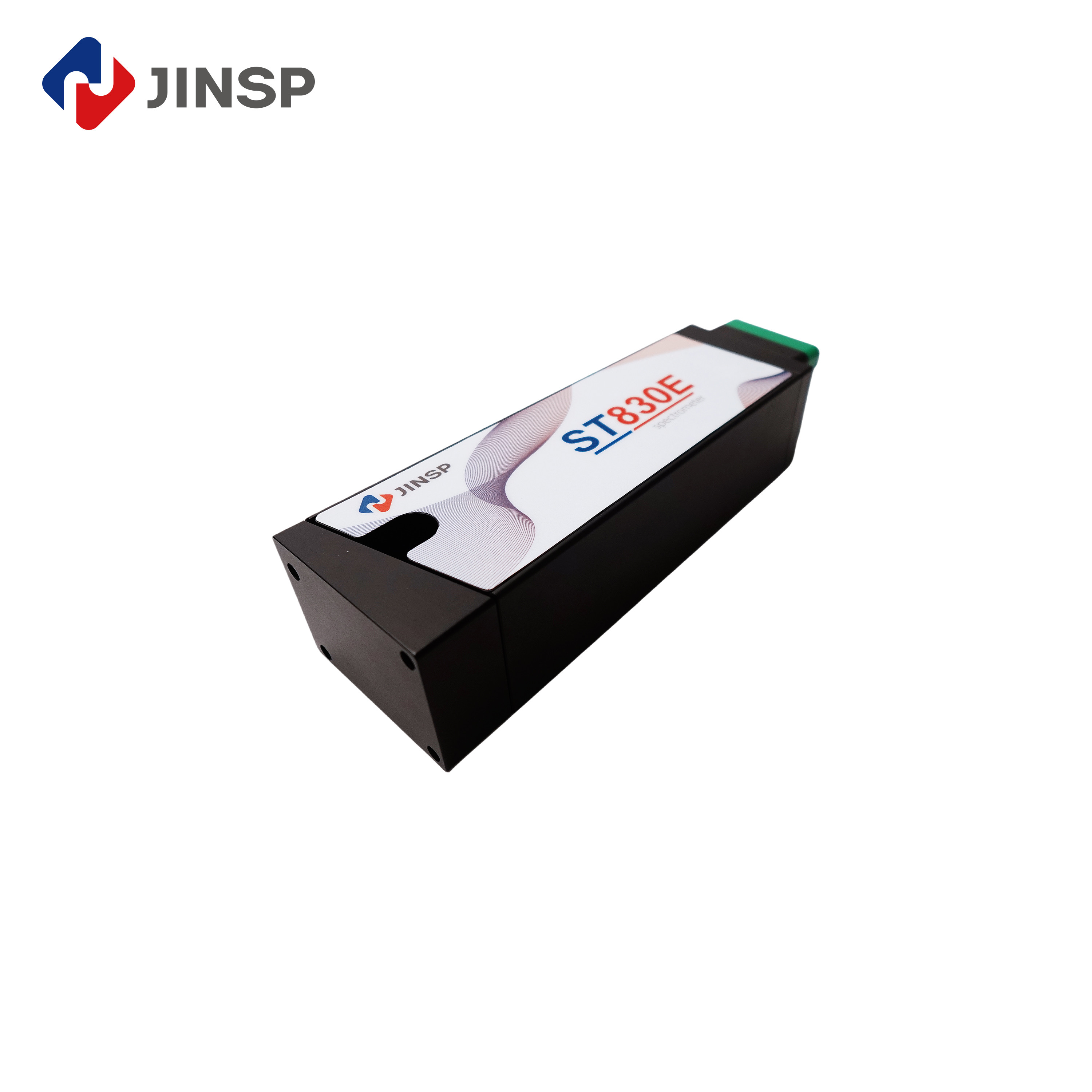

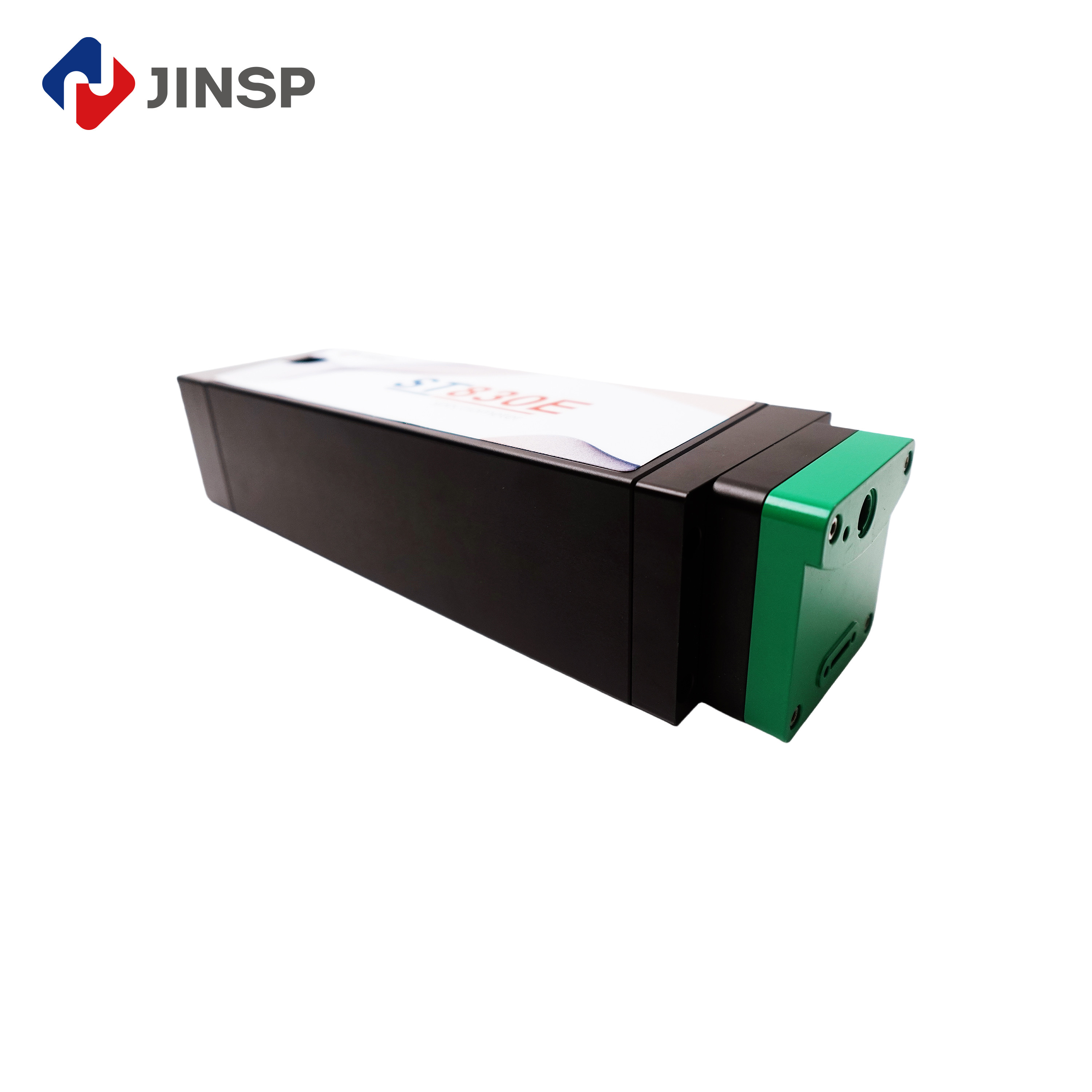

Wavenumber linear Depth Imaging OCT Spectrometer
Designed exclusively for OCT technology, the ST830E/ST850E spectrometer series forms the technological foundation of spectral domain systems. These critical components govern key performance aspects including imaging speed and the characteristic decline in signal quality that affects OCT resolution capabilities.
The ST830/850E series represents a technological leap forward with its hardware-implemented wavenumber-linear dispersion, enabling true equal-interval sampling without post-processing. This design eliminates resampling algorithms, reducing complexity and improving SNR characteristics. The advanced VPH grating technology provides superior efficiency, achieving 110dB sensitivity under typical operating conditions (7mW, 120kHz) to capture high-fidelity OCT/OCTA biological images.
Technical Parameters:
|
|
ST830E
|
ST850E
|
|
Detector
|
Type
|
CMOS
|
|
Optical parameters
|
Effective pixels
|
2048pixels
|
|
Cell size
|
10*200um
|
|
Photosensitive area
|
20.52*0.2mm
|
|
Maximum line sweep speed
|
130kHz/250kHz
|
|
Wavelength range
|
Customized in the range of 790-930nm
|
Customized in the range of 780-940nm
|
|
Optical resolution
|
0.07nm
|
0.08nm
|
|
Imaging depth
|
2.4mm
|
2mm
|
|
Optical design
|
VPH raster & wave ridge linear design
|
|
focal length
|
100mm
|
120mm
|
|
Incident optical interface
|
FC/APC fibre optic interface
|
|
Electrical parameters
|
Data output interface
|
USB3.0 (max. 130kHz) / Camera Link (max. 250kHz)
|
|
ADC bit depth
|
12bit
|
|
Power supply
|
DC6to 15V
|
|
Operating current
|
<600mA
|
|
Operating temperature
|
0°C~50°C
|
|
Storage temperature
|
-20°C~60°C
|
|
Operating humidity
|
< 90% RH (non-condensing)
|
|
Physical parameters
|
size
|
260*180*80mm
|
200*100*60mm
|
|
weight
|
1.5kg
|
1.5kg
|
Technical Characteristics:
Deep Imaging: Excellent roll-off performance enables imaging at deeper layers.
Wavenumber Linearity:
- Special optical path design allows for equidistant wavenumber sampling on the hardware.
- Direct FFT (Fast Fourier Transform) is possible, significantly reducing data processing complexity.
Fast Processing: The USB3.0 interface allows for a scanning speed of 20-130kHz, making OEM processes
more efficient and straightforward.
High Signal-to-Noise Ratio, High Resolution: Efficient VPH grating, optical resolution approaching the diffraction limit.
Typical Applications:
- Industrial OCT Systems: Metal cutting and welding, Laser oscillation etc;
- Medical OCT Systems: Vascular imaging, Anterior chamber of eye etc;
- Other OCT Systems: Detection of uniformity in multilayer coatings etc
