130kHz/250kHz Compact Optical Spectrometer With OCT System Fast Processing

Contact Now

130kHz/250kHz Compact Optical Spectrometer With OCT System Fast Processing

Minimum Order Quantity :	1	Price :	USD20600 - USD28600
Packaging Details :	International Shipping Package	Delivery Time :	40-60 WORKING DAYS
Payment Terms :	T/T, Western Union	Supply Ability :	100PCS per 40-60 working days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	ST830E

Detail Information
Optical Design:	VPH Raster & Wave Ridge Linear Design	Maximum Line Sweep Speed:	130kHz/250kHz
Effective Pixels:	2048	Incident Optical Interface:	FC/APC Fibre Optic Interface
Interference Spectrum Processing:	Direct FFT Without Wavenumber Resampling Algorithm	VPH Gratings:	High-efficiency With Near-diffraction-limited Optical Resolution
Wavelength Range:	Customized In The Range Of 790-930nm	Line Scan Rate:	Up To 250kHz
Highlight:	130kHz Compact Optical Spectrometer , 130kHz Advanced OCT Spectrometer , 250kHz Compact Optical Spectrometer

Product Description

130kHz/250kHz Compact Optical Spectrometer With OCT System Fast Processing

Product Attributes

Attribute	Value
Optical design	VPH raster & wave ridge linear design
Maximum line sweep speed	130kHz/250kHz
Effective pixels	2048
Incident optical interface	FC/APC fibre optic interface
Interference spectrum processing	Direct FFT without wavenumber resampling algorithm
VPH gratings	High-efficiency with near-diffraction-limited optical resolution
Wavelength range	Customized in the range of 790-930nm
Line scan rate	Up to 250kHz

Product Description

The JINSP ST830E/ST850E series spectrometer is specifically designed for OCT systems, serving as a critical component in spectral domain OCT (SD-OCT) systems. It significantly impacts key performance metrics including imaging speed and signal-to-noise ratio (SNR fall-off).

The ST830/850E series achieves wavenumber linear spatial dispersion through specialized optical path design, enabling equal interval sampling of wavenumber at the hardware level. This allows for direct FFT processing of acquired interference spectra without requiring wavenumber resampling algorithms, substantially reducing data processing complexity while enhancing system signal-to-noise ratio.

Featuring volume phase holographic grating (VPH) technology, this spectrometer delivers high efficiency, achieving 110dB signal-to-noise ratio in SD-OCT experimental systems (with 7mW light source power and 120kHz line imaging speed), enabling acquisition of high-quality OCT/OCTA in vivo biological images.

Technical Parameters

Parameter	ST830E	ST850E
Detector
Type	CMOS
Optical Parameters
Effective pixels	2048pixels	2048pixels
Cell size	10*200um
Photosensitive area	20.52*0.2mm
Maximum line sweep speed	130kHz/250kHz	130kHz/250kHz
Wavelength range	790-930nm (customizable)	780-940nm (customizable)
Optical resolution	0.07nm	0.08nm
Imaging depth	2.4mm	2mm
Optical design	VPH raster & wave ridge linear design
Focal length	100mm	120mm
Incident optical interface	FC/APC fibre optic interface
Electrical Parameters
Data output interface	USB3.0 (max. 130kHz)	Camera Link (max. 250kHz)
ADC bit depth	12bit
Power supply	DC6 to 15V
Operating current	<600mA
Operating temperature	0°C~50°C
Storage temperature	-20°C~60°C
Operating humidity	< 90% RH (non-condensing)
Physical Parameters
Size	26018080mm	20010060mm
Weight	1.5kg	1.5kg

Technical Characteristics

Deep Imaging: Excellent roll-off performance enables imaging at deeper layers

Wavenumber Linearity: Special optical path design allows for equidistant wavenumber sampling on the hardware

Fast Processing: USB3.0 interface supports scanning speeds of 20-130kHz, optimizing OEM processes

High Signal-to-Noise Ratio: Efficient VPH grating delivers optical resolution approaching the diffraction limit

Typical Applications

Industrial OCT Systems: Metal cutting and welding, laser oscillation

Medical OCT Systems: Vascular imaging, anterior chamber of eye examination

Other OCT Systems: Detection of uniformity in multilayer coatings

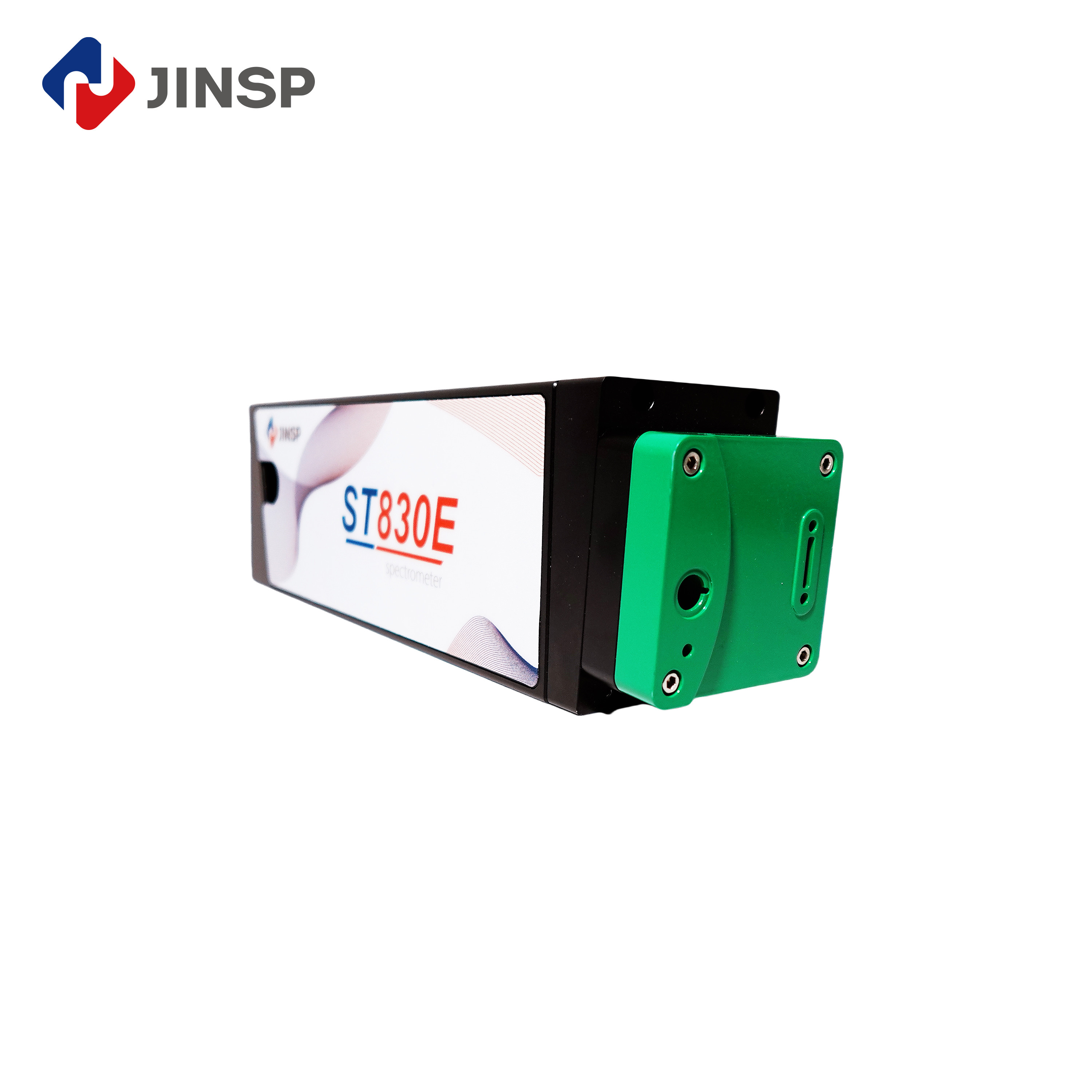

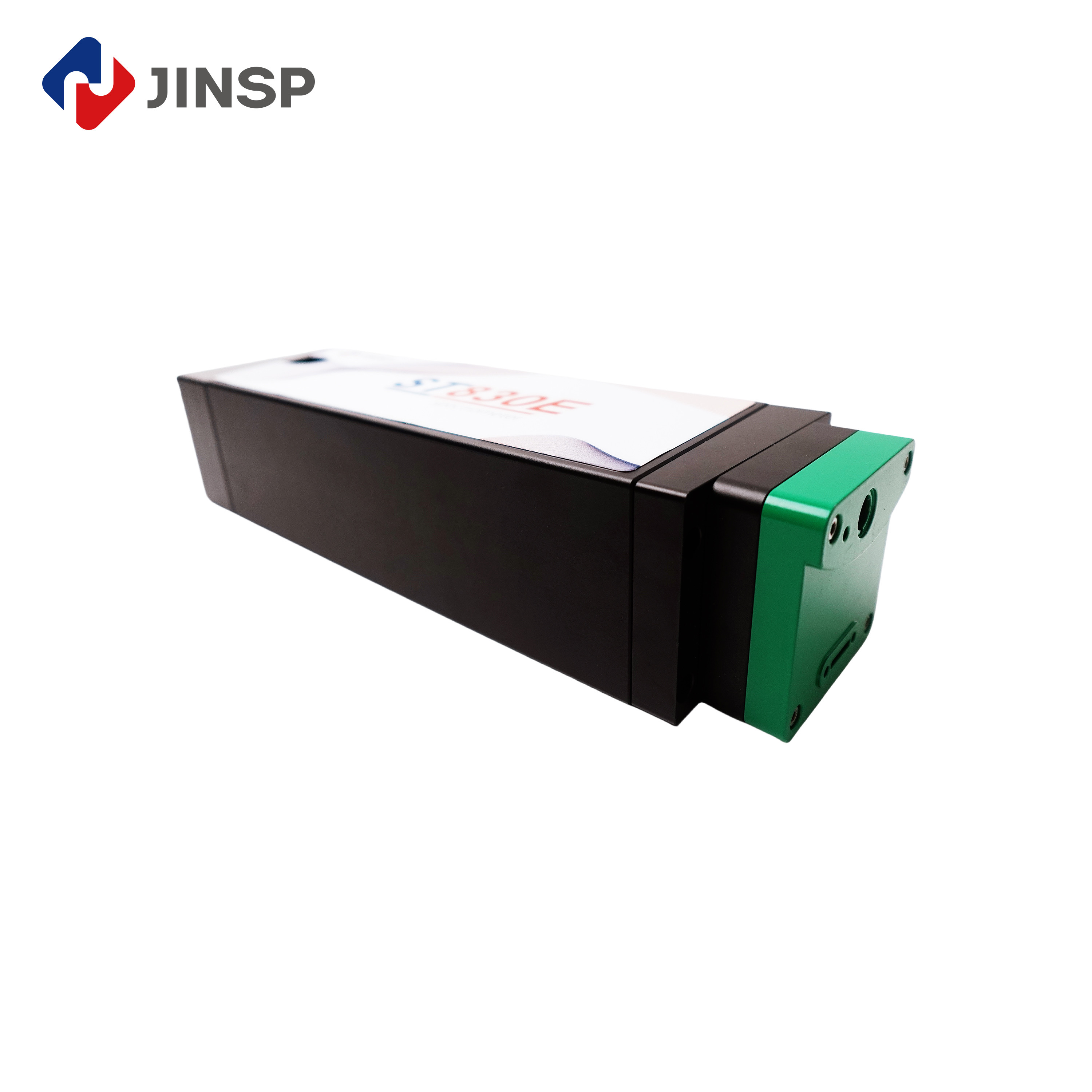

Product Images

Company Profile

JINSP Company Limited has earned numerous prestigious awards including the National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate, China Patent Excellence Award, Geneva International Invention Award, Beijing New Technology and New Product Certificate, and the "Innovation Achievement Award" of the Zhu Liangyi Analytical Instrument Innovation Award.

As a leading professional solution provider in molecular spectroscopy, JINSP specializes in Raman Spectroscopy technology. Our product portfolio includes:

UV VIS NIR fiber optic spectrometers

Desktop/portable and online Raman analyzers for laboratory or industrial liquid & gas analysis

On-site rapid detectors/identifiers based on Raman technology for drugs, liquids, food safety, explosives, hazardous materials, and pharmaceutical applications

Frequently Asked Questions

Q1: What is the brand name of this OCT Spectrometer?

A1: The brand name of this OCT Spectrometer is JINSP.

Q2: What is the model number of this OCT Spectrometer?

A2: The model number of this OCT Spectrometer is ST830E.

Q3: Where is this OCT Spectrometer made?

A3: This OCT Spectrometer is made in China.

Q4: What are the payment terms for this OCT Spectrometer?

A4: The payment terms for this OCT Spectrometer are T/T and Western Union.
