High Resolution EffiCient OCT Imaging Spectrometer Optical Coherence Tomography Spectrometer

Product Description

Wavenumber linear Depth Imaging OCT Spectrometer

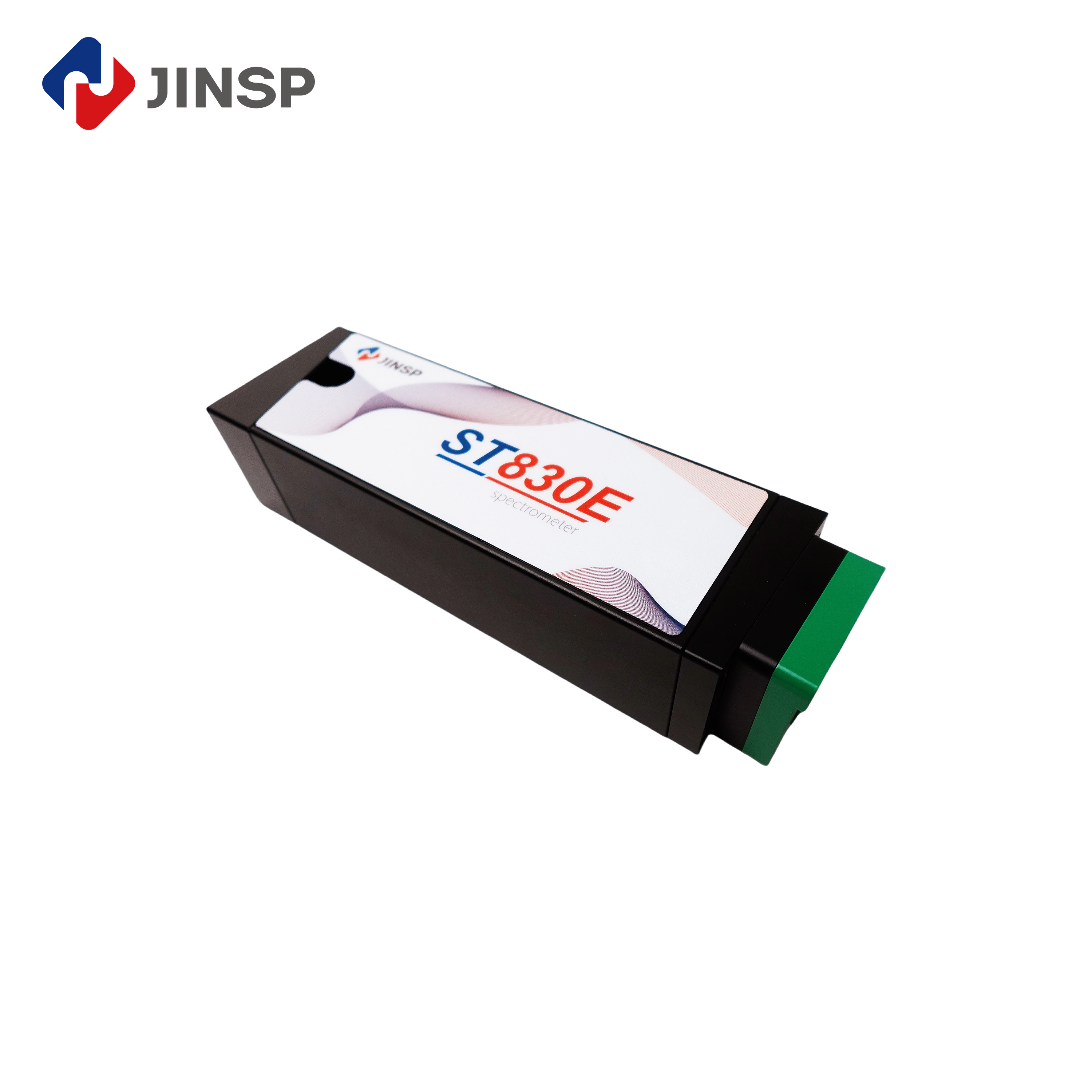

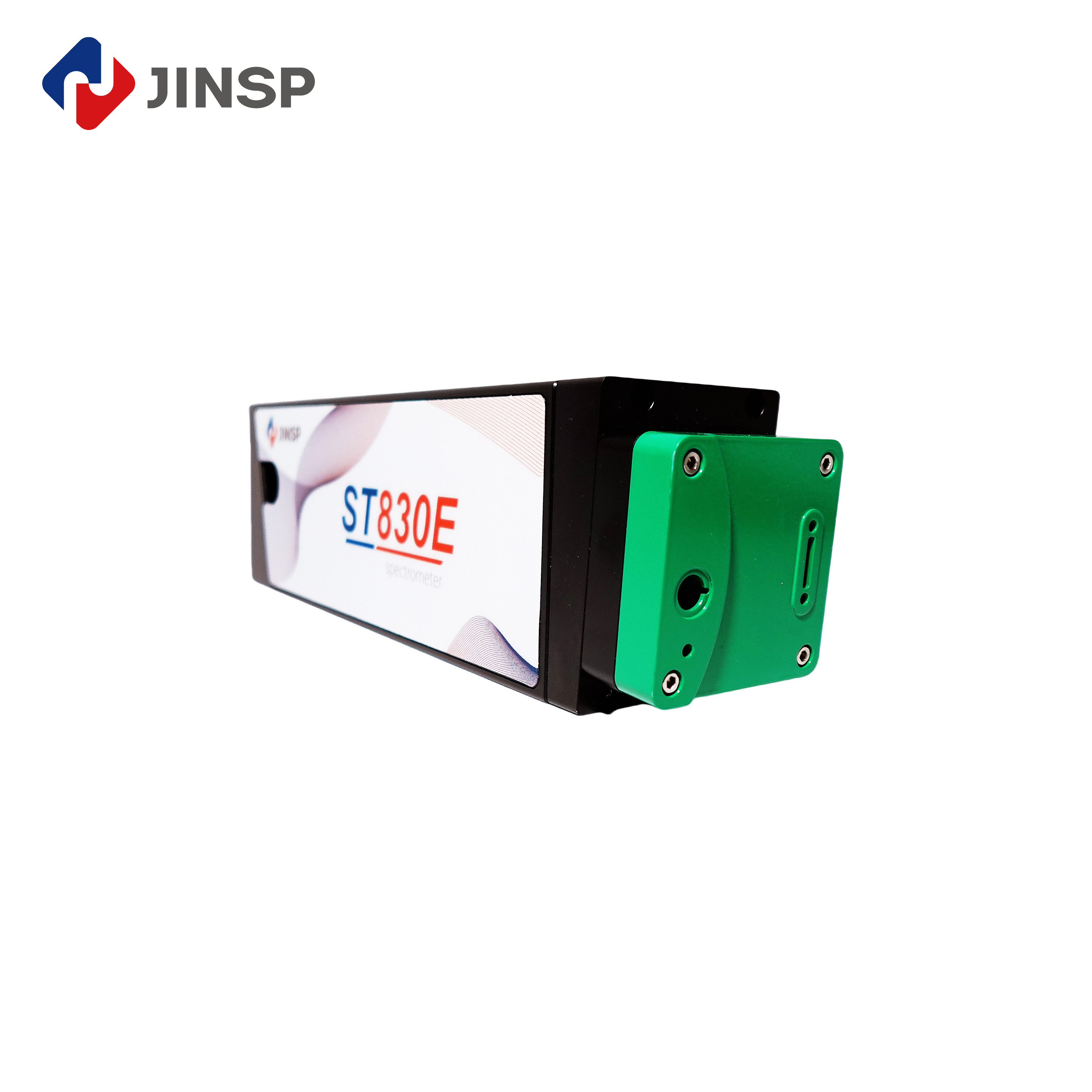

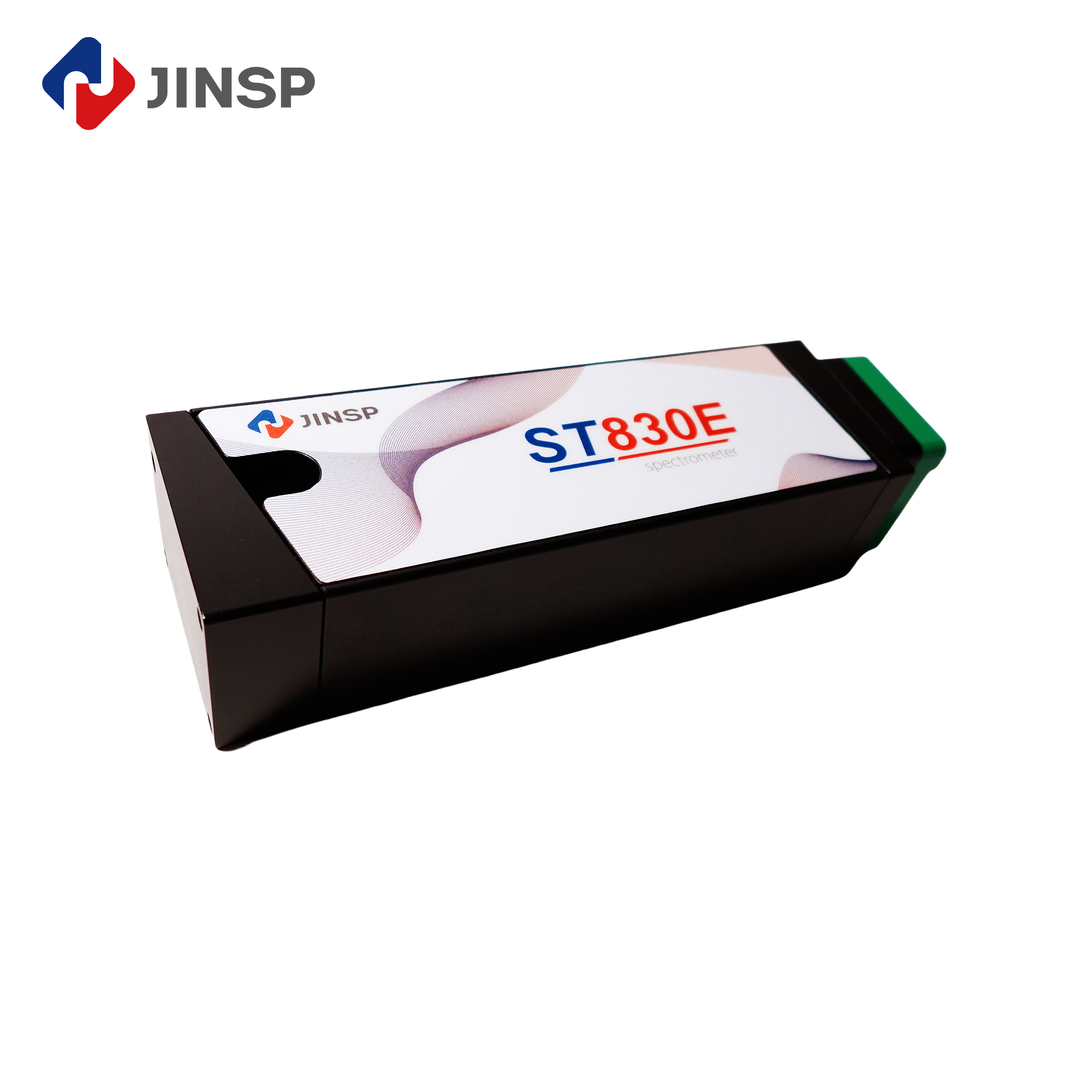

The JINSP ST830E/ST850E spectrometer series delivers exceptional performance for spectral domain OCT applications. As a critical component in SD-OCT configurations, these spectrometers directly influence system capabilities including acquisition speed and signal quality. Their optimized design ensures superior SNR characteristics for enhanced imaging performance.

The ST830/850E series achieves true wavenumber-linear spatial dispersion through innovative optical engineering, enabling direct equal-interval sampling in the wavenumber domain. This breakthrough eliminates the need for complex resampling algorithms before FFT processing, significantly streamlining data analysis while enhancing system SNR. Incorporating high-efficiency VPH grating technology, the system delivers exceptional 110dB sensitivity (at 7mW source power, 120kHz scan rate), producing superior quality OCT/OCTA biological imaging.

Technical Parameters:

Technical Characteristics:

Deep Imaging: Excellent roll-off performance enables imaging at deeper layers.

Wavenumber Linearity:

• Special optical path design allows for equidistant wavenumber sampling on the hardware.
• Direct FFT (Fast Fourier Transform) is possible, significantly reducing data processing complexity.

Fast Processing: The USB3.0 interface allows for a scanning speed of 20-130kHz, making OEM processes
more efficient and straightforward.

High Signal-to-Noise Ratio, High Resolution: Efficient VPH grating, optical resolution approaching the diffraction limit.

Typical Applications:

• Industrial OCT Systems: Metal cutting and welding, Laser oscillation etc;
• Medical OCT Systems: Vascular imaging, Anterior chamber of eye etc;
• Other OCT Systems: Detection of uniformity in multilayer coatings etc

Company Introduction:

JINSP Company Limited has won the National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate and the China Patent Excellence Award, and related products have been obtained has won authoritative awards such as the Geneva International Invention Award, the Beijing New Technology and New Product Certificate, and the "Innovation Achievement Award" of the Zhu Liangyi Analytical Instrument Innovation Award.JINSP is a professional leading solution provider of molecular spectroscopy, particulaly in Roman Spectroscopy for many years.

Our products mostly include:
--UV VIS NIR fiber optic spectrometers;
--Desktop/portable, online Raman analyzers for laboratory or indutrial liquid & gas analysis;
--On-site rapid detectors/identifiers based on Raman technology for drugs, liquid, food safety, explosive & hazardous materials, pharmaceutical industry etc;

FAQ:

Q1: What is the brand name of this OCT Spectrometer?

A1: The brand name of this OCT Spectrometer is JINSP.

Q2: What is the model number of this OCT Spectrometer?

A2: The model number of this OCT Spectrometer is ST830E.

Q3: Where is this OCT Spectrometer made?

A3: This OCT Spectrometer is made in China.

Q4: What are the payment terms for this OCT Spectrometer?

A4: The payment terms for this OCT Spectrometer are T/T and Western Union.
