Product Description

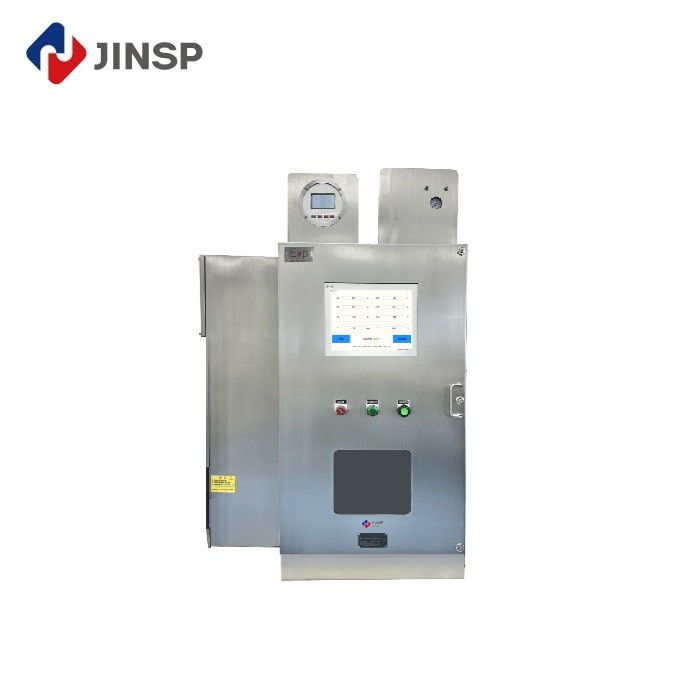

RS2600PAT Online Raman Multi-Gas Analyzer For Industrial Application
One Platform, Multiple Gateways to Fluorine Chemistry Mastery
While the application in LiPF₆ synthesis is profound, the utility of the JINSP RS2600PAT extends far beyond a single molecule. The entire fluorochemical industry, from semiconductor etchants (NF₃, SF₆) to refrigerants and pharmaceutical intermediates, faces similar challenges: corrosive feeds, complex gas mixtures, and a critical need for precise, in-situ analysis.
The RS2600PAT platform is engineered for this versatility. Its robust optical design and sophisticated chemometric software allow it to be configured for a wide array of gas-phase fluorine-containing compounds and their common impurities (e.g., OF₂, CF₄, SiF₄, COF₂). The same core benefits apply: safety through non-contact measurement, speed with real-time results, and simultaneity in analyzing multiple components.
Future-Proof Your Analytical Capabilities: Investing in the RS2600PAT is investing in a platform for innovation. It accelerates R&D for new fluorochemical processes by providing immediate feedback on reaction pathways and by-products. It de-risks pilot plant scale-up with reliable process data. For multi-product facilities, it offers a single, adaptable technology for monitoring diverse processes, simplifying training and maintenance. In the fast-evolving world of fluorine chemistry, where new materials are constantly in demand, the RS2600PAT provides the analytical agility to not just keep pace, but to lead the development of the next generation of high-value fluorinated products.
Technical Highlights:
- Multi-component: simultaneous online analysis of multiple gases
- Universal: >500 types of gases are detectable except noble gases
- No need for pressure control: Quantification is not affected by changes in sample gas pressure
- Rapid response: Complete a single detection within seconds
- Wide quantitative range: detection limit is as low as ppm level, and the measurement range can be as high as 100%
Technical Specifications:
| Components |
N2, H2, O2, CO, CO2, H2S, CmHn, etc. |
| Analysis time |
2 seconds |
| Measurement uncertainty |
≤0.2% |
| Laser excitation wavelength |
532 ± 0.5 nm |
| Spectral coverage |
200 ~ 4200 cm-1 |
| Spectral resolution |
≤8 cm-1 at full spectral range |
| Air circuit interface |
6 mm standard tube fitting (3 mm, 1/8’’, and 1/4’’ are optional) |
| Explosion-proof |
ExdbebibmbpxbIICT4Gb / ExtbibmbIIICT135ºCDb |
| Input voltage |
100~240 VAC,50~60 Hz |
| Sample gas temperature |
-20 ºC ~ 55 ºC |
| Sample gas pressure |
＜1.0 MPa |
| Unit dimensions |
750 mm (Width) × 900 mm (Height) × 1400 mm (Depth) |
| Weight |
250 kg |
Main Features:
- Quantitative model of multiple standard curves, combined with the chemometric method, establishes the relationship between the spectral signal (peak intensity or peak area) and the content of multi-component substances.
- Changes in sample gas pressure and test conditions do not affect the accuracy of quantitative results.
- No need to establish a separate quantitative model for each component.
Field of Applications:
- Petrochemical field: Quantitative analysis of different Elements in Petrochemical Natural Gas
- As a mixture of hydrocarbon components, the accuracy of qualitative and quantitative analysis of natural gas components directly affects the quality index of natural gas - calorific value.
- Fluorine chemical industry: Detection of components in reaction and emitted gases of fluorine materials ; Monitoring of F2 , N2 , HF and other components in the fluorination process.
- Metallurgical field;
- Isotope gases.
- Detection of Impurity Gases in Electronic Special Gases.
Usage/implementation:
Through valve control, it can achieve the following functions:
- Monitoring the content of each component in the raw gas.
- Alarm notification for impurity gases in the raw gas.
- Monitoring the content of each component in the synthesis reactor tail gas.
- Alarm notification for the excessive emission of hazardous gases in the synthesis reactor tail gas.
Company Introduction:
JINSP – Certified Excellence in Spectral Technology
As a 17-year veteran in spectral detection (Raman, FT-IR, LIBS), JINSP Company Limited meets the highest global standards. Our Beijing HQ and Jiangsu factory produce ISO-certified systems with 200+ patents. We provide multi-industry certifications, including:
✅ CE Marking
✅ ECAC Approval
✅ German ICT Security Testing
✅ Ministry of Public Security Compliance
Choose JINSP for globally recognized, precision-engineered detection equipment.
FAQ:
Q1: This is the first time I use it, is it easy to operate?
A1:We will send you a manual and guide video in English, it can teach you how to operate the spectrometer. Also, our technicians will offer professional technical operation meetings.
Q2: Can you offer an operation training?
A2: Your technicians can come to our factory for training. Jinsp engineers can go to your place for local support ( installation, training, debugging, maintenance ).
Q3: How to receive the best price in the shortest time?
A3: When you send us an inquiry, please kindly offer details with wavelength, detector, effective pixels, focal length, and so on. We will send you a quotation with details soon to your email.
Q4: What about quality assurance?
A5:We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
