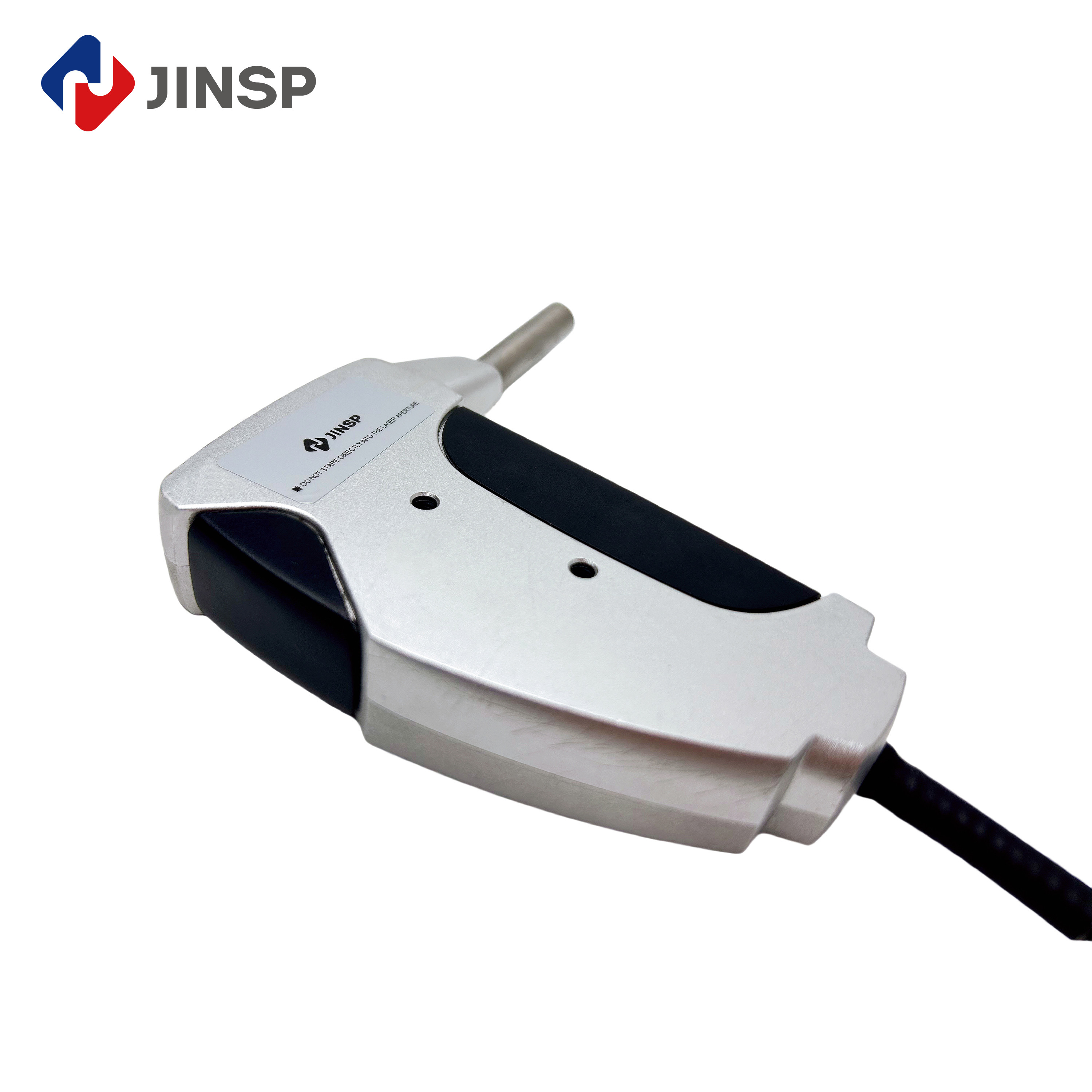

Corrosion Resistant Raman Spectroscopy Probe For Compact Routine Measurements

Contact Now

Corrosion Resistant Raman Spectroscopy Probe For Compact Routine Measurements

Minimum Order Quantity :	5	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	40-70 WORKING DAYS
Payment Terms :	T/T, Western Union	Supply Ability :	100PCS per 60-80 working days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	ISO9001	Model Number:	PR100 PR200 PR300

Detail Information
Outer Diameter:	10mm	Excitation Wavelengths:	532 Nm, 785 Nm, And 1064 Nm
High Collection Efficiency:	Special Optical Design Ensures High Collection Efficiency	Product Name:	Raman Probe For Automated Sampler In Continuous Flow Reaction Systems
Accepted Payment Methods:	T/T, Paypal, Western Union, L/C, Etc.	Raman Micro-spectroscopy:	Can Be Used With A Microscope
Highlight:	Corrosion Resistant Raman Spectroscopy Probe , Corrosion Resistant Optical Raman Probe , Compact Raman Spectroscopy Probe

Product Description

Key Features

Three excitation wavelengths: 532 nm, 785 nm, and 1064 nm for versatile applications
High collection efficiency through special optical design
10mm outer diameter for compact measurements
Compatible with flow cells for easy integration
Customizable interface, length, and materials
Microscope-compatible for Raman micro-spectroscopy

Product Specifications

Outer Diameter	10mm
Excitation Wavelengths	532 nm, 785 nm, and 1064 nm
Collection Efficiency	High efficiency through special optical design
Payment Methods	T/T, Paypal, Western Union, L/C

Detailed Description

Our corrosion-resistant Raman Spectroscopy Probe offers exceptional versatility with three excitation wavelengths (532 nm, 785 nm, and 1064 nm), making it suitable for a wide range of applications. The probe's compact 10mm design ensures easy integration with flow cells and existing equipment.

The probe features a special optical design that maximizes collection efficiency and Raman intensities. We offer extensive customization options for interface, length, and materials to meet specific monitoring requirements, ensuring accurate and reliable data collection.

Product Models Comparison

Model	PR100	PR200	PR201	PR202	PR300
Type	Optical Probe	LAB Immersion Probe	LAB Immersion Probe	LAB Immersion Probe	Industrial Immersion Probe
Probe Tube Material	304 stainless steel	C276 alloy, 304/316L stainless steel, Monel alloy, or TA2 optional	316L stainless steel (SIP/CIP sterilization resistant)	C276 alloy, 304/316L stainless steel, Monel alloy, or TA2 optional	Customizable
Outer Diameter	10mm	10mm	16mm	12mm	60mm (customizable)
Temperature Range	0ºC ~ 100ºC	-40ºC ~ 200ºC	-40ºC ~ 150ºC	-30ºC ~ 200ºC	-60ºC ~ 200ºC
Maximum Pressure	Ambient	30 MPa	30 MPa	1 MPa	30 MPa

Applications

The JINSP PR100 Raman Probe is ideal for industrial applications requiring flexible, efficient instrumentation. Its special optical design ensures high collection efficiency, making it perfect for routine measurements of liquids and solids with sample chambers.

PR200/PR201/PR202 immersion probes are designed for in situ process analysis in lab research, while the PR300 industrial immersion probe withstands extreme industrial environments with high temperature and pressure resistance.

Frequently Asked Questions

What is the minimum order quantity?

The minimum order quantity is 1 unit.

What is the price?

Pricing is negotiable based on configuration and quantity.

What payment methods are accepted?

We accept T/T, Western Union, Paypal, and L/C.

What is the delivery time?

Standard delivery time is 40-70 working days.

Where is the product manufactured?

All Raman Probes are designed and manufactured in China.
