Home ProductsCompact SpectrometerAccurate CMOS Modular Compact Spectrometer With 200-1100nm Spectral Range

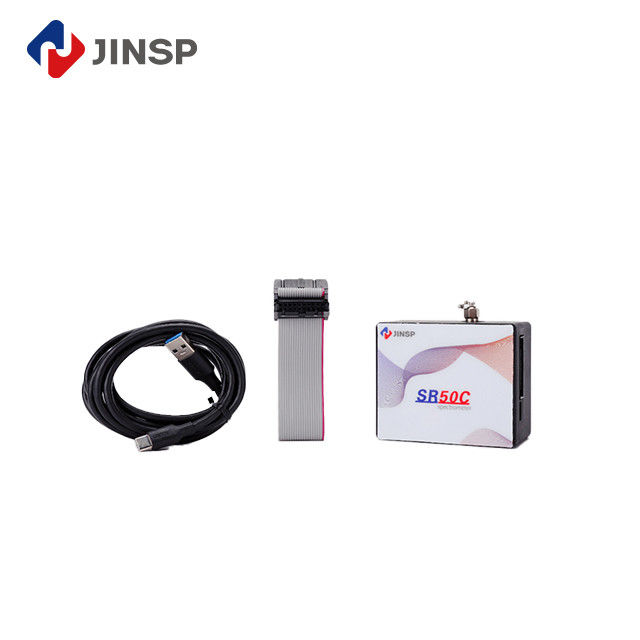

Accurate CMOS Modular Compact Spectrometer With 200-1100nm Spectral Range
Accurate CMOS Modular Compact Spectrometer With 200-1100nm Spectral Range
Accurate CMOS Modular Compact Spectrometer With 200-1100nm Spectral Range Accurate CMOS Modular Compact Spectrometer With 200-1100nm Spectral Range Accurate CMOS Modular Compact Spectrometer With 200-1100nm Spectral Range Accurate CMOS Modular Compact Spectrometer With 200-1100nm Spectral Range
Contact Now

Accurate CMOS Modular Compact Spectrometer With 200-1100nm Spectral Range

Minimum Order Quantity : 1 Price : USD1200- USD1300
Packaging Details : International Shipping Package Delivery Time : 30-40 working days
Payment Terms : T/T, Western Union Supply Ability : 100 PCS/30-40 days
Place of Origin: CHINA Brand Name: JINSP
Certification: CE Model Number: SR50C

Detail Information
Spectral Range: 200-1100 Nm Integration Time: 1 Ms - 60 S
Signal-to-Noise Ratio: 650:1(4ms） Dimensions: 76mm*65mm*38mm
Highlight:

Accurate Modular Compact Spectrometer

,

Accurate optical fiber spectroscopy

,

CMOS Modular Compact Spectrometer

Product Description

Accurate CMOS Modular Compact Spectrometer With 200-1100nm Spectral Range
Key Specifications
Spectral Range:
200-1100 nm
Integration Time:
1 ms - 60 s
Signal-to-Noise Ratio:
650:1 (4ms)
Dimensions:
76mm × 65mm × 38mm
Product Overview

The SR50C Compact Modular Fiber Optic Spectrometer represents a breakthrough in UV-Vis-NIR spectroscopy for environmental science applications. Its proprietary temperature drift control (<0.01°C⁻¹) ensures reliable field deployment for continuous nutrient monitoring, with particular effectiveness in tracking phosphorus variations during algal bloom seasons.

The spectrometer's optical throughput (f/2.0) combined with CMOS cooling technology achieves detection limits below 10ppb for most contaminants. Municipal water authorities can replace lab-based digestion processes with immediate in-situ measurements, significantly improving response time to pollution incidents.

Technical Parameters
No Item Description
1 Name SR50C Fiber Optic Spectrometer
2 Chip Type Linear array CMOS, Hamamatsu S11639
3 Effective Pixel 2048
4 Sensing Area 28.7mm × 0.2mm
5 Focal Length ≤ 50mm
6 Numerical Aperture 0.14
7 Entrance Slit Width 10μm, 25μm, 50μm, 100μm, 200μm (customizable)
8 Dimensions 79mm × 68mm × 42mm
9 Weight 220g
Technical Characteristics
  • Wide Spectral Range: Customized spectral range supporting 200-1100nm
  • High Signal-to-Noise Ratio: Low-noise CMOS signal processing circuit with excellent signal-to-noise ratio
Applications
  • Detection of absorption, transmittance and reflectivity of ultraviolet, visible light and near infrared radiations
  • Light source and laser wavelength identification
  • OEM product module for environmental protection industry (smoke and water quality monitoring)
  • LIBS, fluorescence spectrum, Raman spectrum applications
Accurate CMOS Modular Compact Spectrometer With 200-1100nm Spectral Range 0 Accurate CMOS Modular Compact Spectrometer With 200-1100nm Spectral Range 1 Accurate CMOS Modular Compact Spectrometer With 200-1100nm Spectral Range 2 Accurate CMOS Modular Compact Spectrometer With 200-1100nm Spectral Range 3 Accurate CMOS Modular Compact Spectrometer With 200-1100nm Spectral Range 4
Company Profile

JINSP Company Limited has won numerous prestigious awards including the National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate, China Patent Excellence Award, Geneva International Invention Award, and the "Innovation Achievement Award" of the Zhu Liangyi Analytical Instrument Innovation Award.

The company complies with GB/T 40219-2021 "General Specification for Raman Spectrometer" and holds ISO9001:2015, ISO14001:2015, and ISO45001:2018 certifications. JINSP can provide various required certifications including CE Certification, Environmental Level Certification, and IP Level Certification.

Frequently Asked Questions
Q: What is the brand name of this fiber spectrometer?
A: JINSP is the brand name of this fiber spectrometer.
Q: What is the model number of this fiber spectrometer?
A: The model number of this fiber spectrometer is SR50C.
Q: What certification does this fiber spectrometer have?
A: This fiber spectrometer has CE certification.
Q: Where is this fiber spectrometer made?
A: This fiber spectrometer is made in China.
Q: What are the payment terms for this product?
A: The payment terms for this product are T/T and Western Union. Prices are negotiable.
